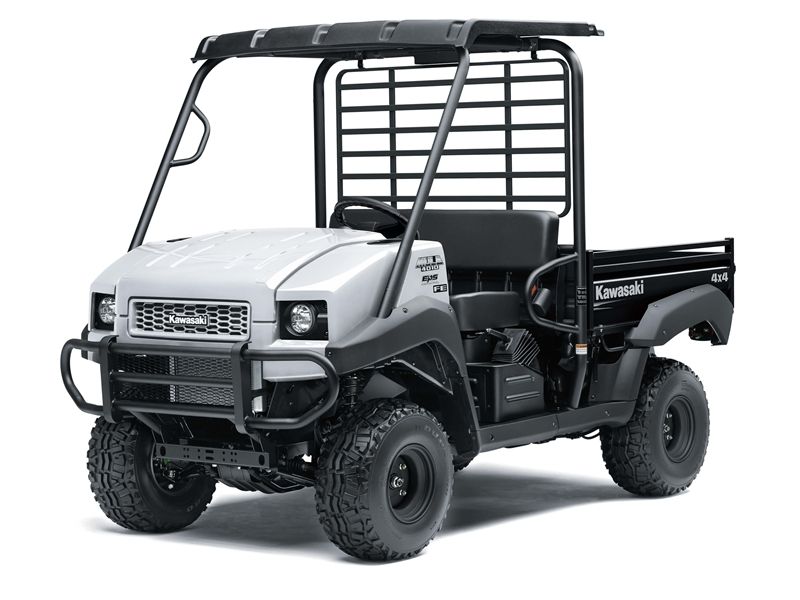

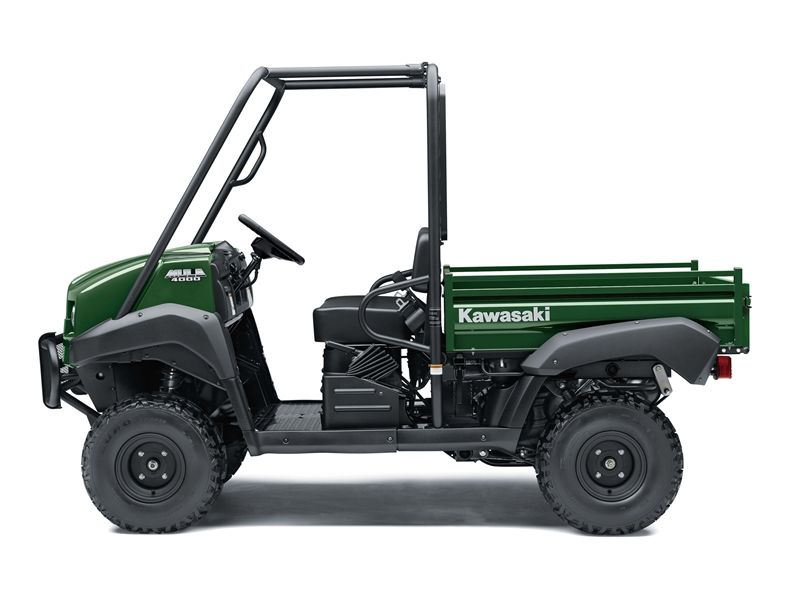

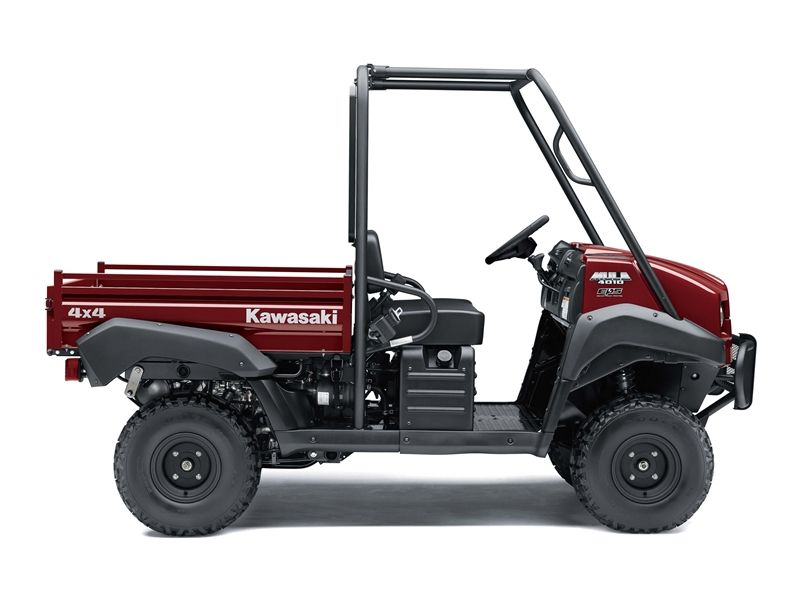

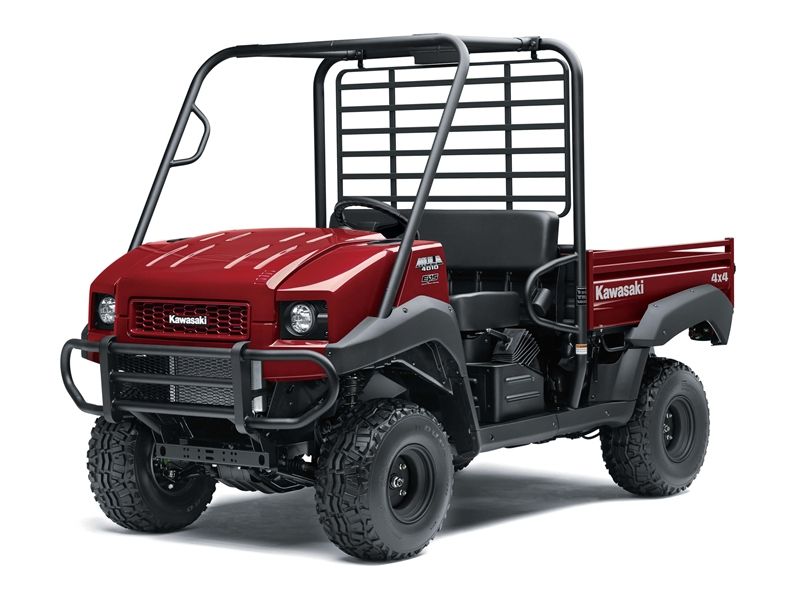

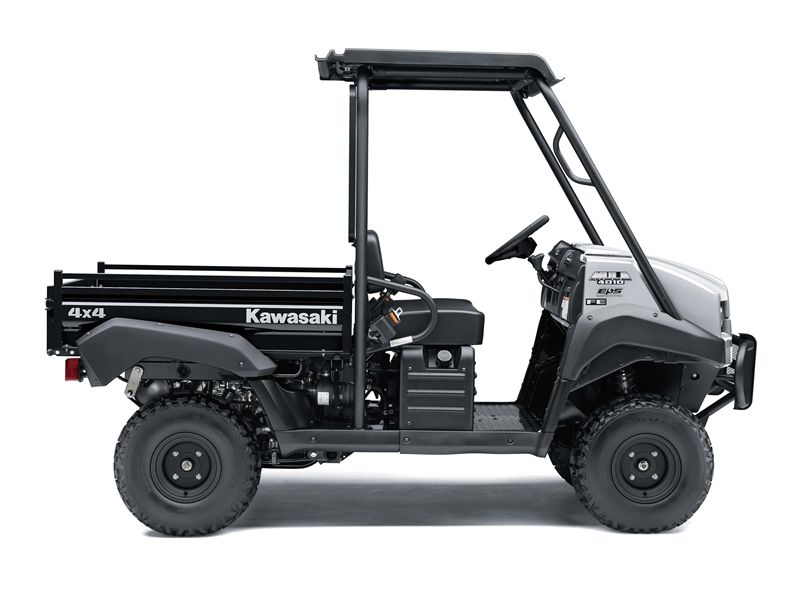

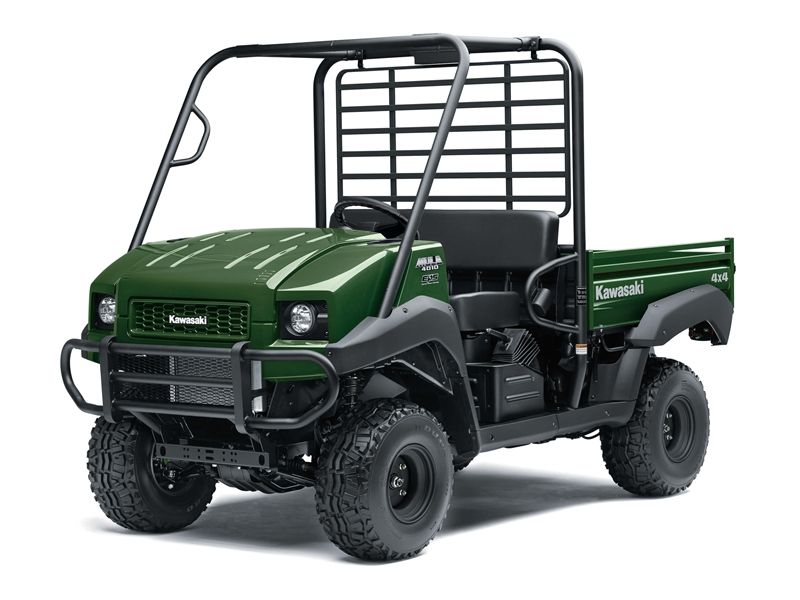

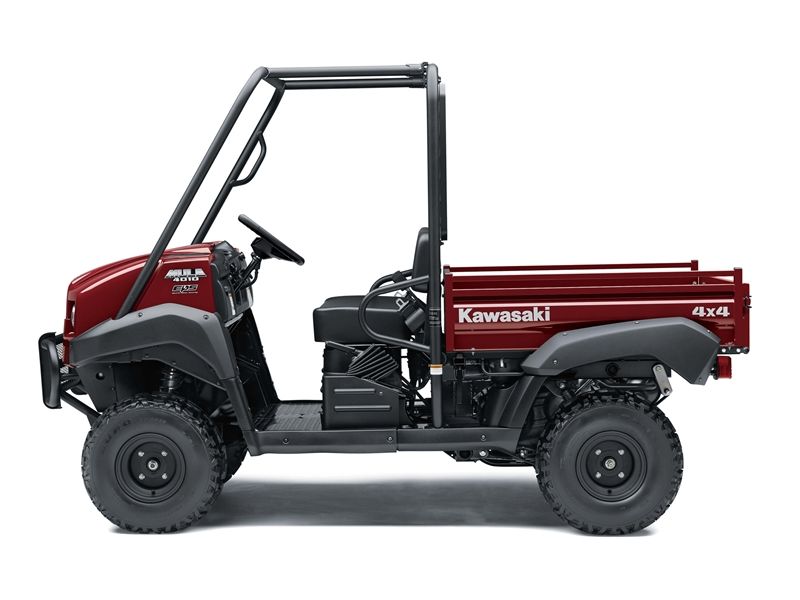

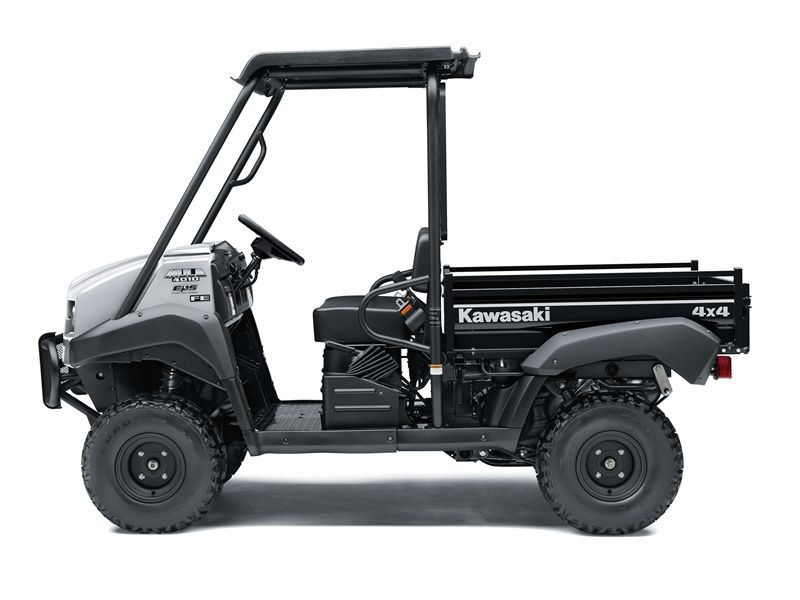

2025 Kawasaki Mule 4000/4010

Key Features

Features

KAF620ZSFNN FE Exclusive Features

• Plastic roof adds to occupant comfort and productivity.
• Universal key fits all FE models to simplify key management and reduce lost key downtime.
• Horn enhances vehicle presence and helps prevent incidents.
• Orange seat belts allows easy determination of safety equipment compliance.
• Bright White color provides contract for adding company badging.

Engine

Kawasaki Digital Fuel Injection (DFI) System

• The throttle body(ies) feature sub-throttle valves for optimum performance and drivability.  The sub throttle(s), located behind the operator-controlled main throttle valve(s), are controlled by the ECU so that the DFI system has smooth throttle response.
• Precise fuel injection reduces fuel consumption.
• Easy engine starting whether hot or cold since the ECU receives atmospheric pressure, air and engine temperature data and controls the fuel injection accordingly.  No more pulling a choke knob since the automatic fast idle speed control is activated when the engine is cold.
• Steady idle provided by fuel injection allows smoother, succinct shifting (KAF620MSFNN/KAF620ZSFNN)
• ECU controls maximum engine speed and eliminates the mechanical governor used on previous models for smoother operation at maximum speed. (KAF620MSFNN/KAF620ZSFNN)

Cab Frame Air Intake

• Draws engine air and converter cooling air from the top of the cab frame where there's less dust, so the air filter lasts longer. (KAF620PSFNN)

Transmission

Continuously Variable Transmission (CVT)

• Fully automatic for ease of use.
• The CVT is light and compact (KAF620MSFNN/KAF620ZSFNN)
• The CVT yields a wide drive ratio spread for ample pulling power and quick acceleration.
• An open sided drive pulley cools better for longer belt life.
• Belt deflection can be adjusted.
• Keeps engine rpm in most efficient range for any selected vehicle speed, load, or terrain.

4-Wheel Drive with 2-Speed Transfer Case (KAF620MSFNN/KAF620ZSFNN)

• Shit to 4-wheel drive and low range for maximum tractor under adverse conditions.
• Shift to 4-wheel drive and high range to cut running gear wear and increase fuel economy.

Dual Mode Differential

• Locked mode for maximum traction.  Unlocked mode to minimize ground disturbance.
• Independent Strut-Type Front Suspension (KAF620MPSNN/KAF620ZSFNN)
• Stiff springs prevent bottoming and increase ground clearance. (KAF620MSFNN/KAF620ZSFNN)

High Grade Electric Power Steering (KAF620MSFNN/KAF620ZSFNN)

• The electric power steering (EPS) reduces steering effort, especially at low speeds.  Input from a vehicle speed sensor and torque sensor determine the amount of steering assistance required from the system's electric motor, so at slow speeds or when stopped assistance is greatest, then reduced as vehicle speed increases for superior handling.

Suspension

Independent Strut-Type Front Suspension

• Stiff springs reduce bottoming and increase ground clearance.
• Comfortable ride and excellent load-carrying capability.


DeDion Rear Suspension

• Overload-style leaf springs allow a good ride and are durable under maximum loads.

Ergonomics

Compact Size

• Easy to transport to the job.  Harrow track easily fits in the bed of a full sized-pickup.
• Sized to the job, no too big and not too small.

Ample Storage

• Large storage tub under the hood with 4 D-rings to secure the load.
• Passenger side glove box.
• Cup holders located at each side of the front hood.

Cargo Bed

• 1" square tube rails on the top of the cargo bed side walls provide easy tie-down points for bungee hooks, and is compatible with the KQR accessory brackets that allow cargo storage boxes or other items to be snap-mounted to the cargo bed rails.
• Thick tailgate panel reduces vibration and noise, and adds durability.
• Tailgate locking pins reduce vibration and noise, providing a secure latch.
• Adjustable bed latches.

Rugged Bodywork

• Body style provides a rugged, modern truck-like look.
• Made of tough termoplastic olefin (TPO) that has a high gloss finish for great looks.
• Front hood design helps provide a deep storage area.

Simple Maintenance

• The oil dipstick and filler tube are accessed under the seat.
• Cyclone0type engine air cleaner has meter to indicate when to replace the filter.
• An automotive-style fuse box is convenient and used blade-type fuses.

Convenient Dashboard

• Fuel gauge/hour meter mounted in the center of the dash is highly visible and adds to operator convenience.
• Metes, gauges and buttons are easy to see.
• Dual glove boxes and dual cupholders for both the driver and passenger.
• Steering wheel angle designed for added comfort and ease of movement in and out of the vehicle.

Simple Controls

• Fitted with a premium steering wheel for added comfort and appearance.
• 12V DC outlet with 10 amp capacity.
• Parking brake and coolant temperature warning lights are easier to see.
• Push button headlight switch activates 35-watt, non-reflective, headlights.
• Standard equipment hour meter and fuel gauge.
• Fuel gauge, oil temperature warning light, gear selector for H/L/N/R, differential locking lever, convenient parking brake, headlight switch.
