Features

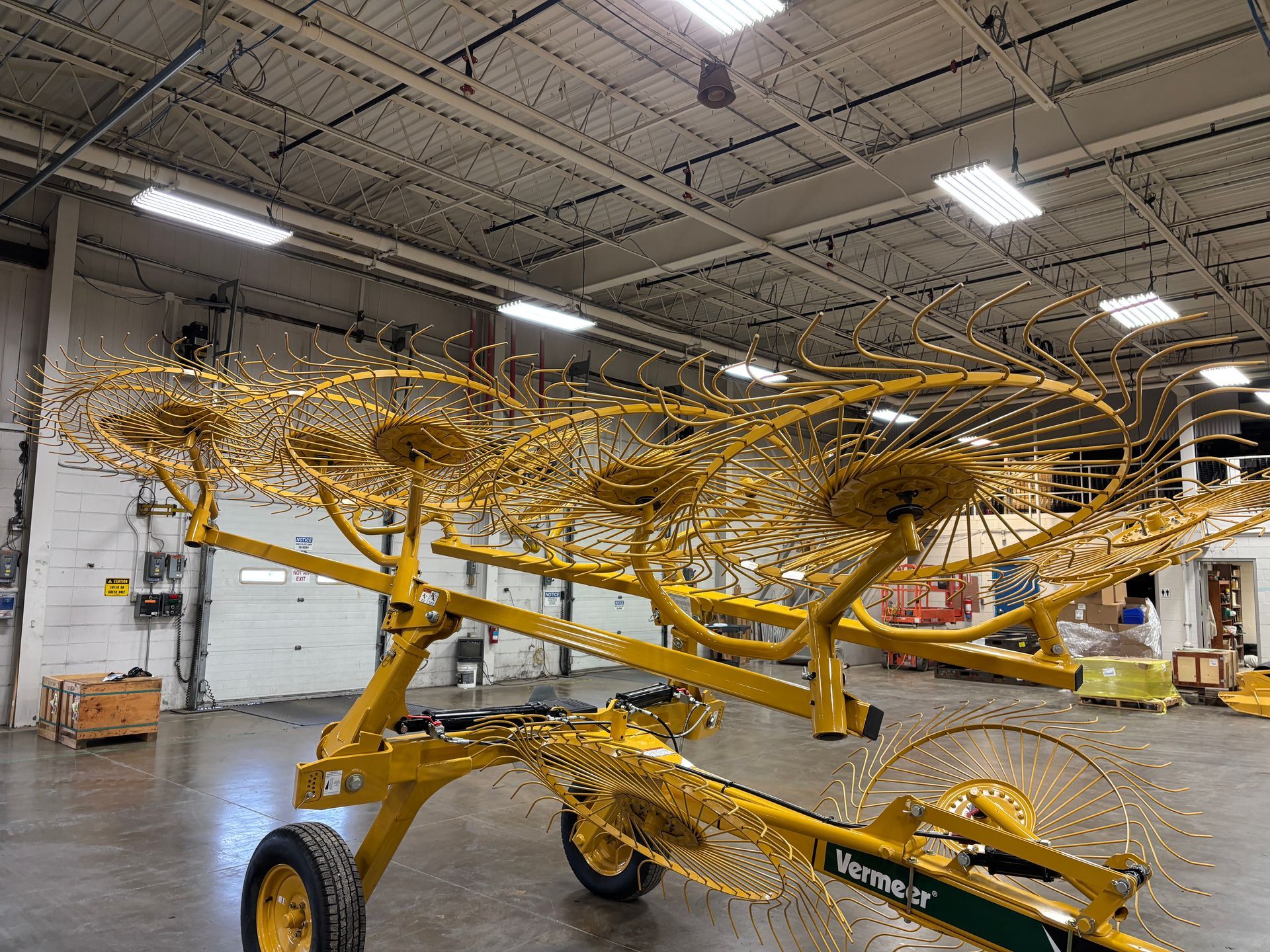

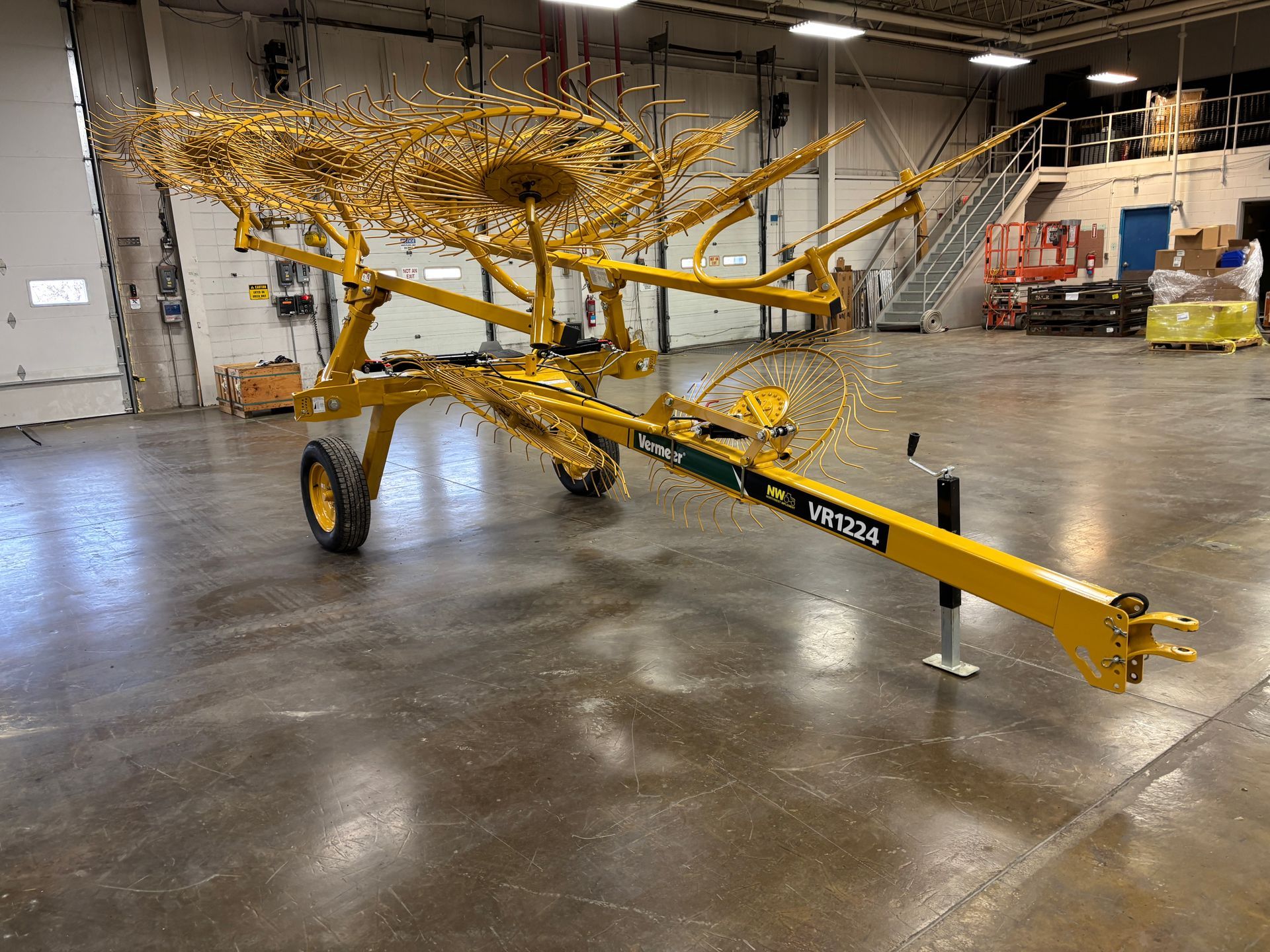

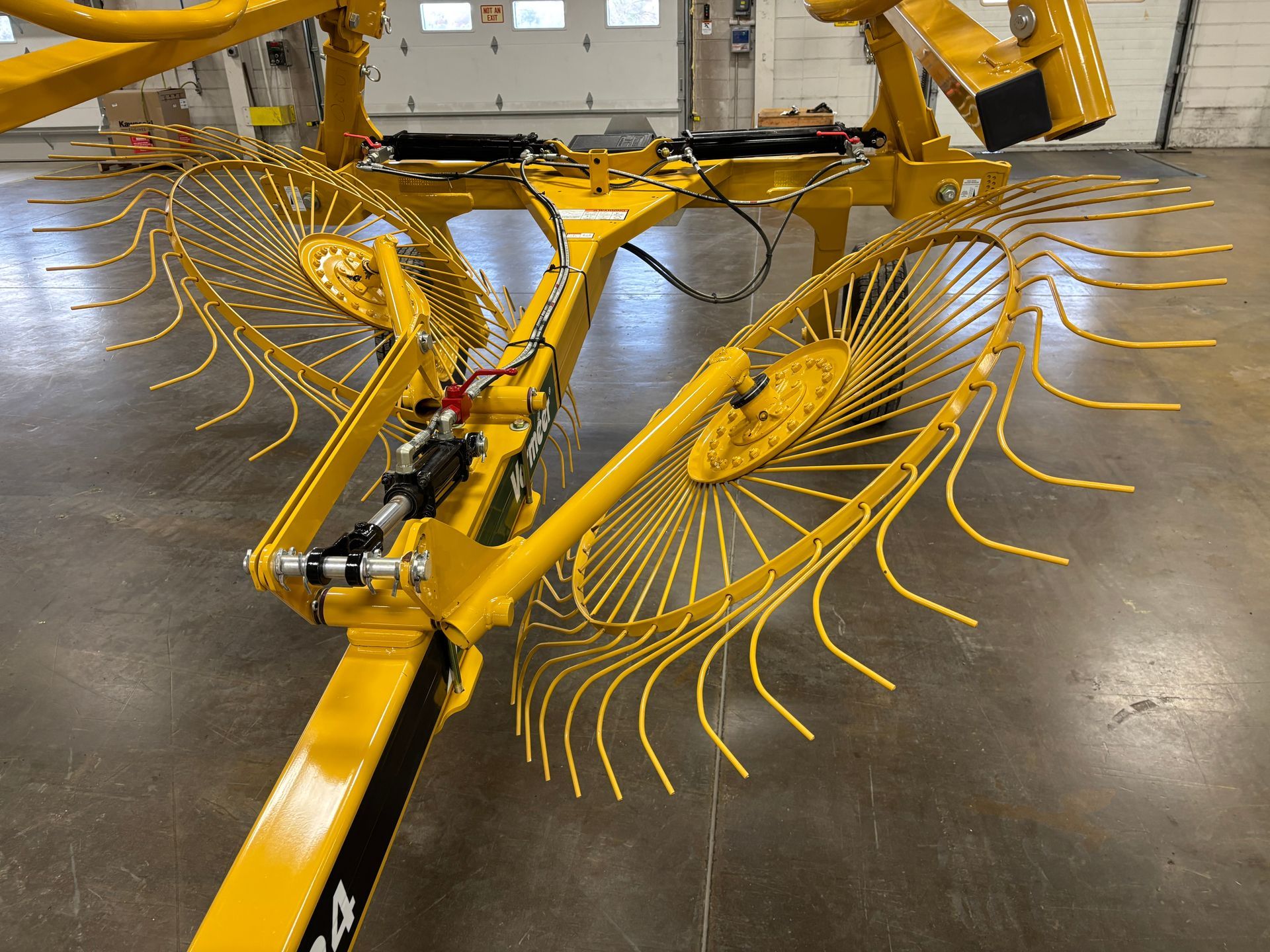

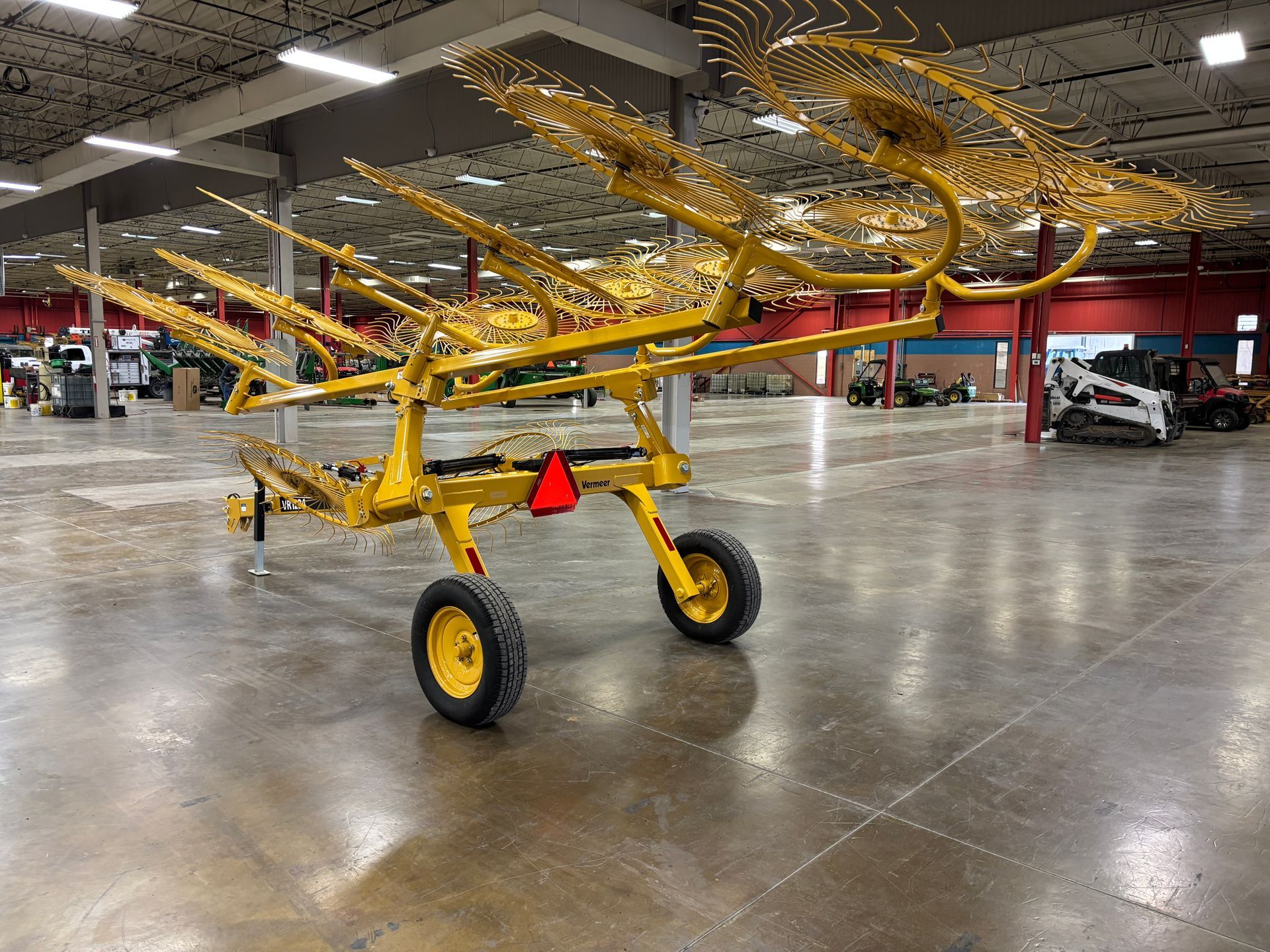

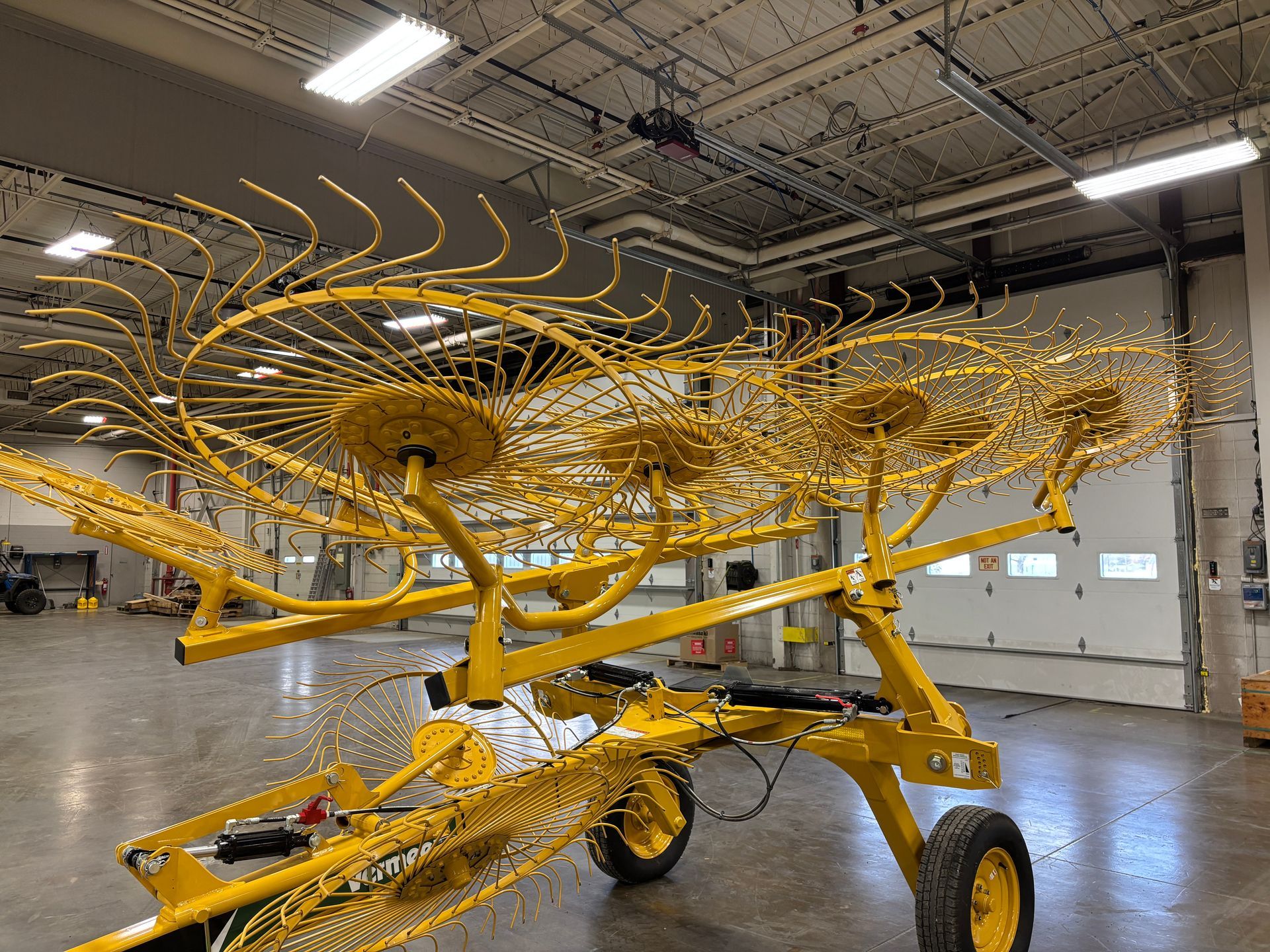

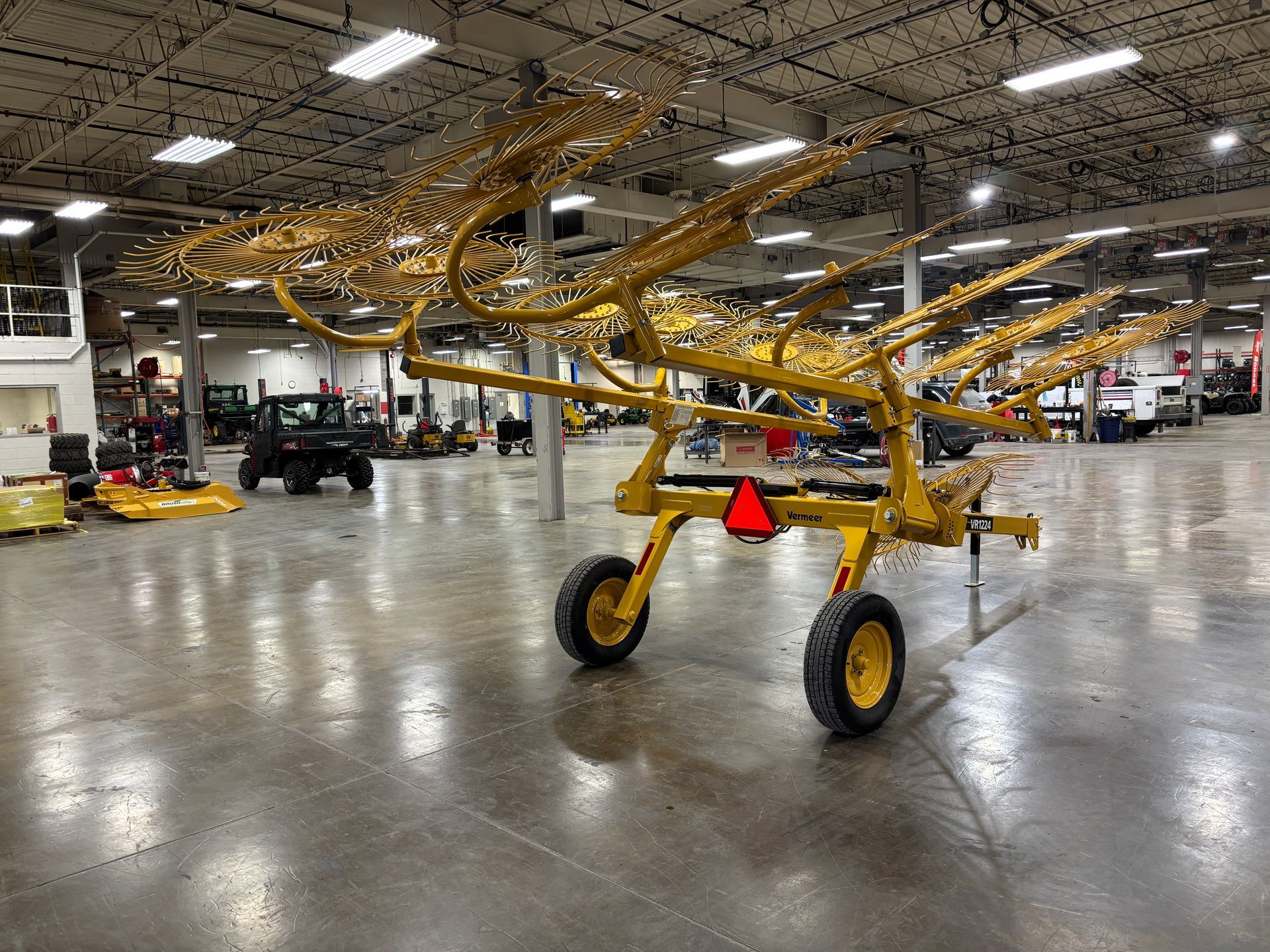

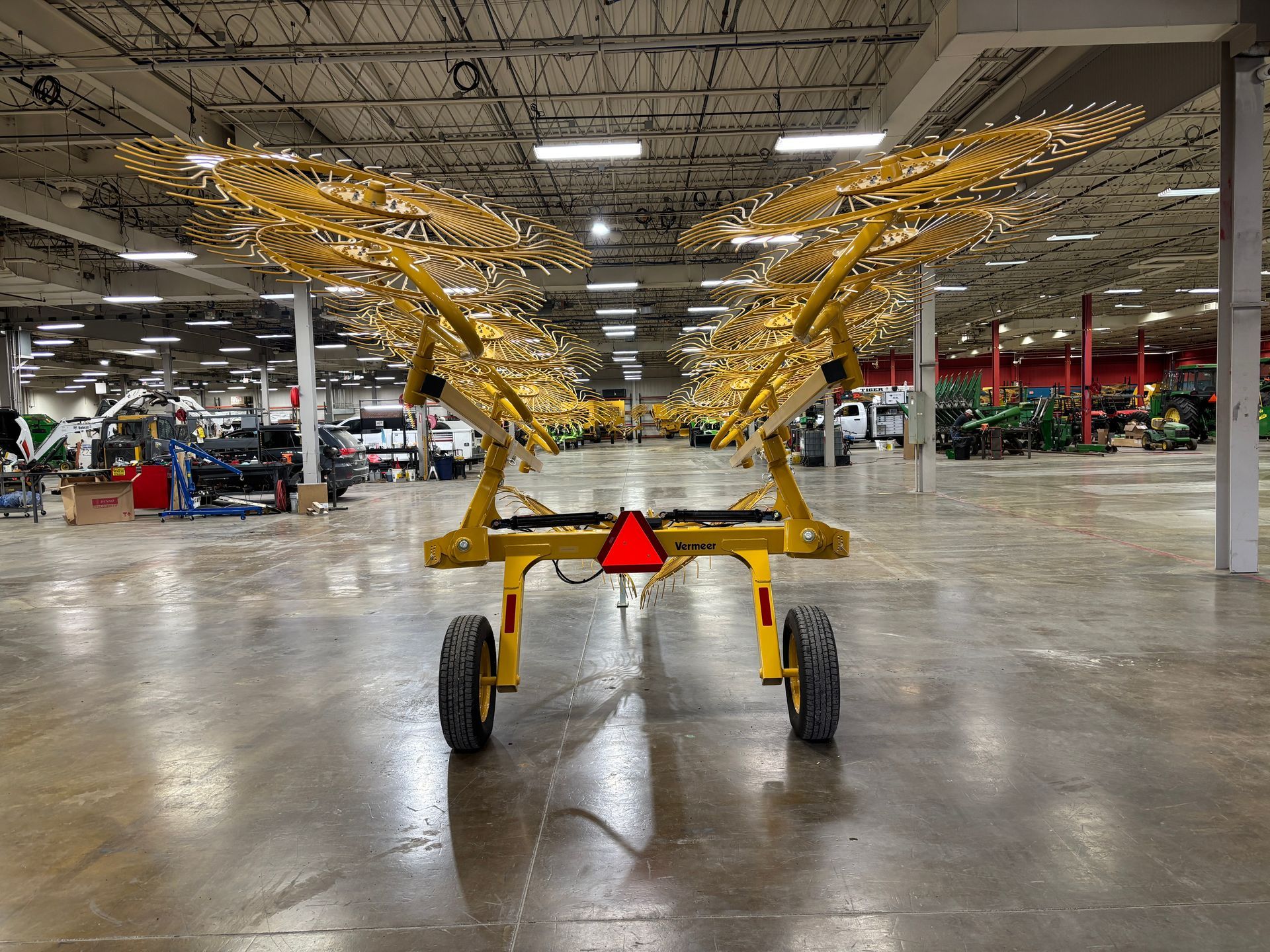

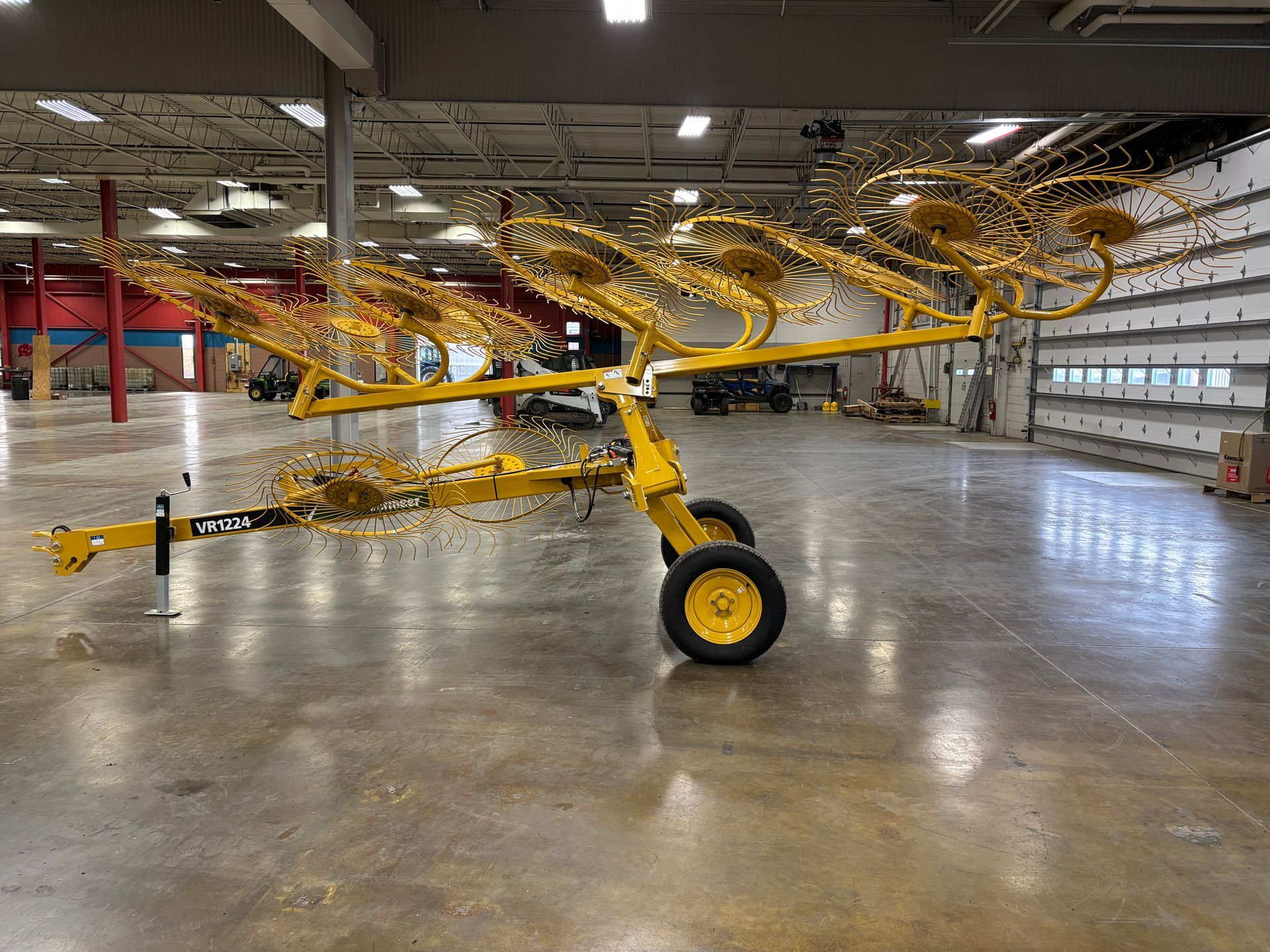

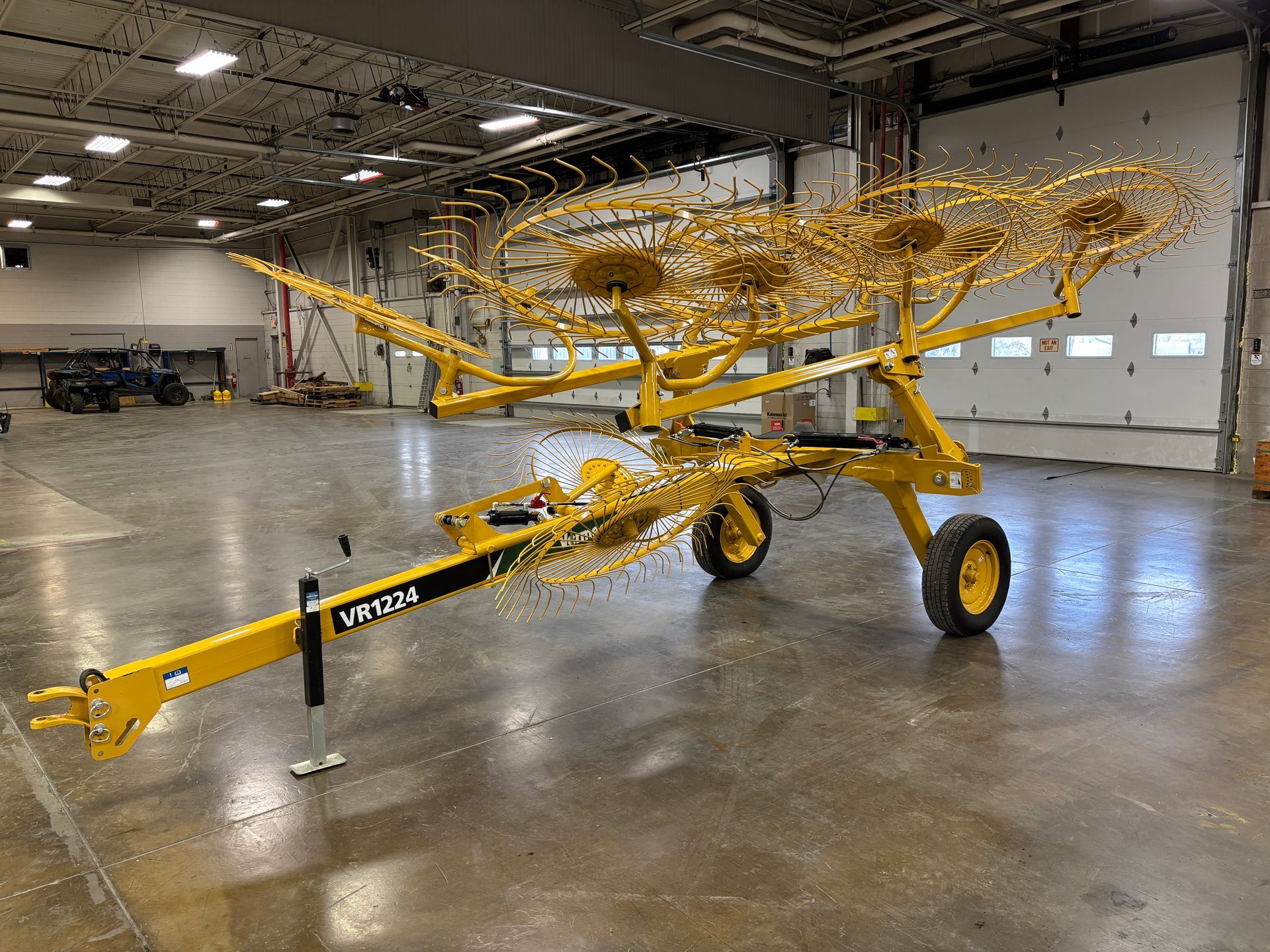

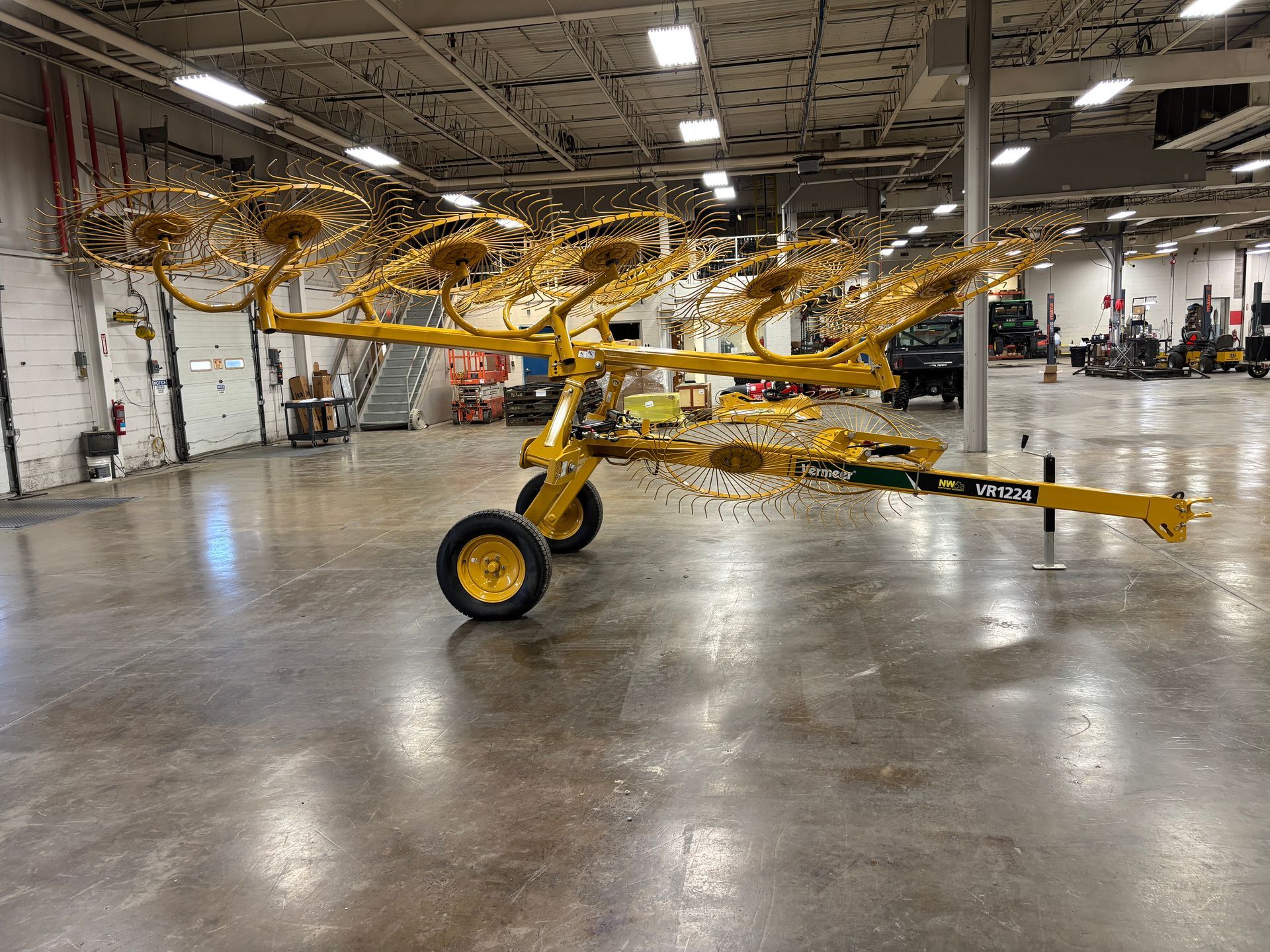

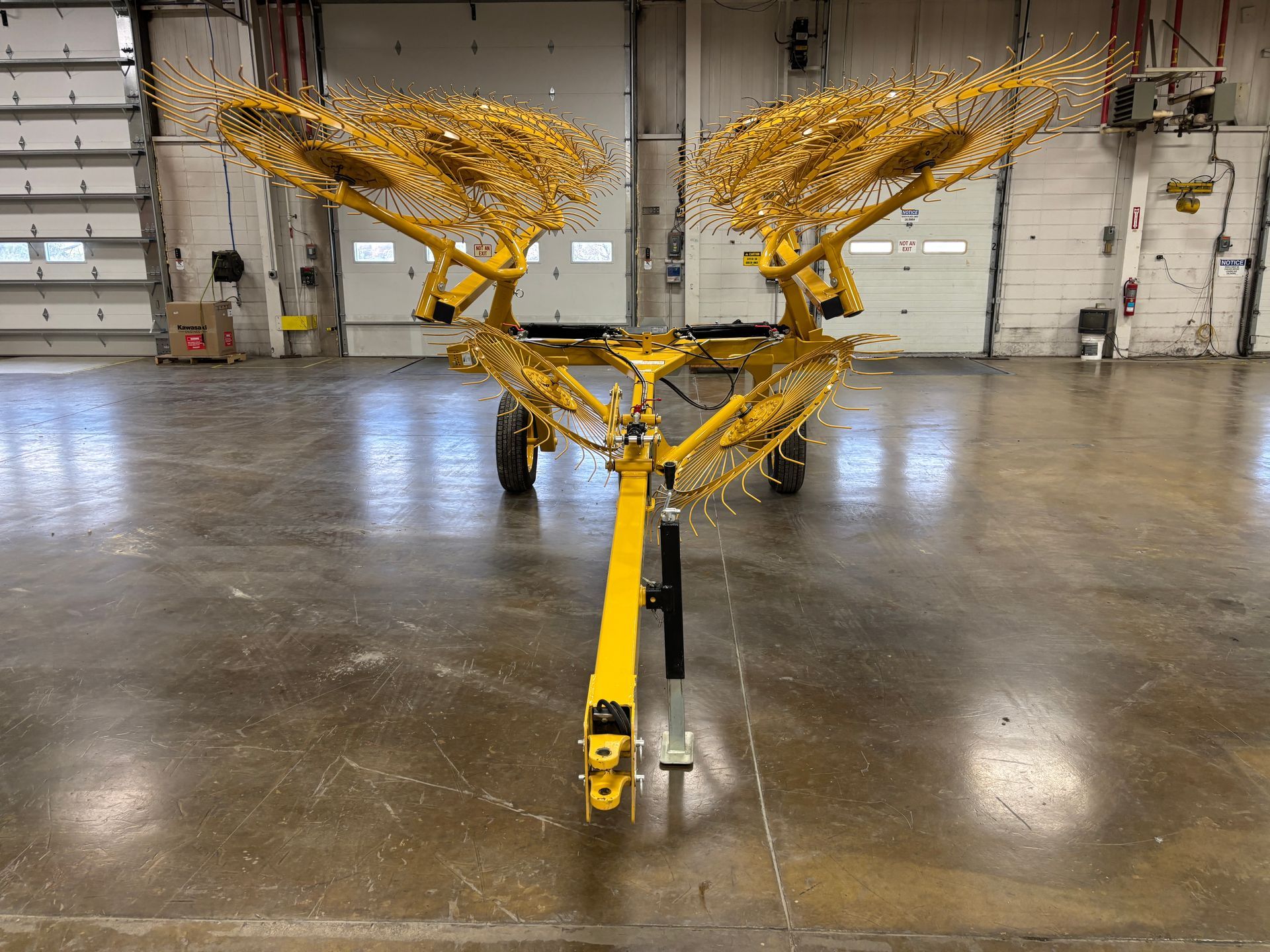

* 2020 Vermeer VR1224 Carted Wheel Rake
* Center Wheel Splitter Kit
* Very minimal use (paint hardly rubbed off the tines)
STANDARD DETAILS:
* Rake Style: Carted Wheel Rake
* Toolbar flotation: Rubber torsion
* Rake Wheel Quantity: 12
* Rake Wheel Diameter: 55 in (140 cm)
* Rake Wheel Hubs: Tapered roller bearings

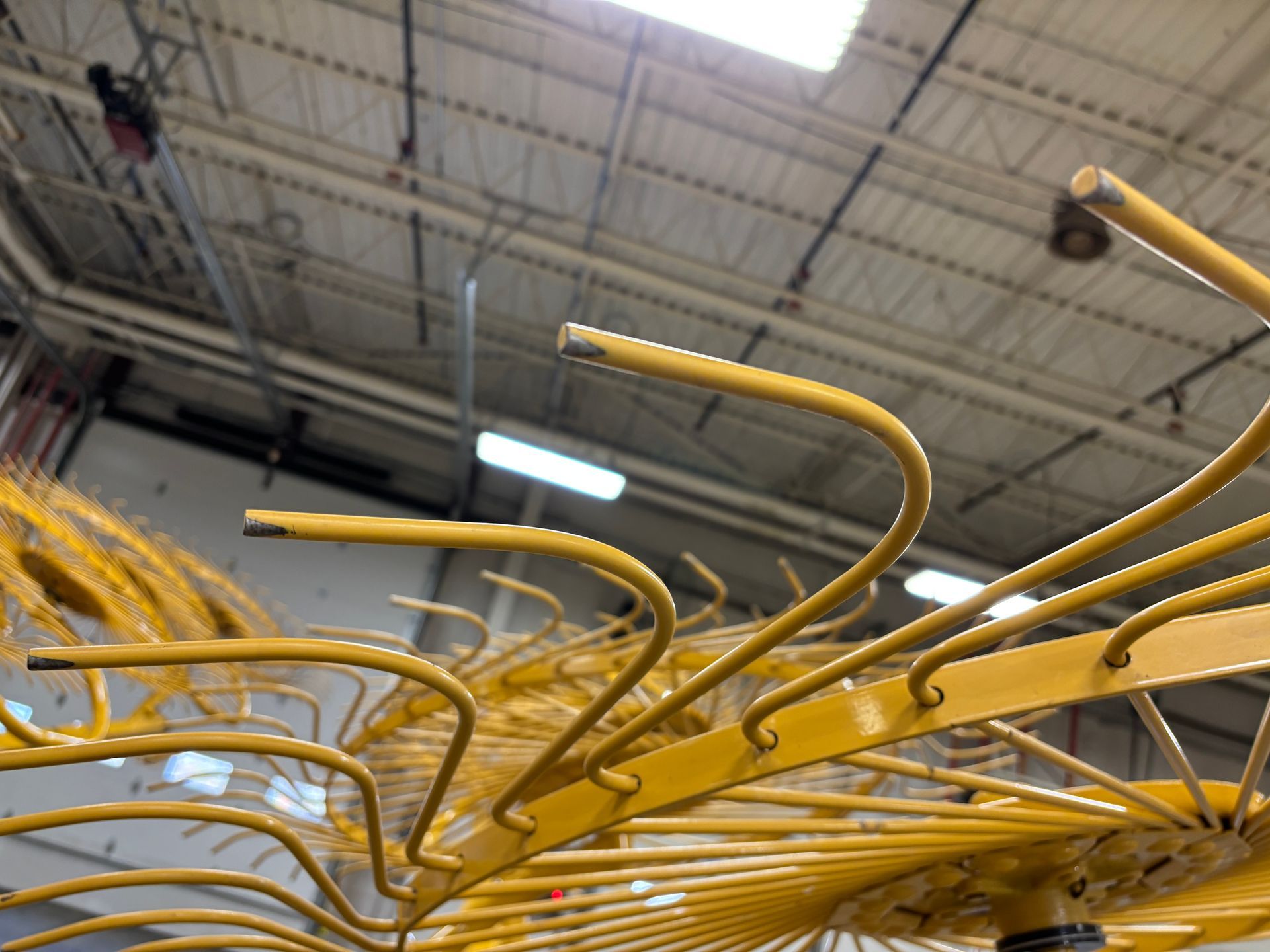

* Rake Wheel - Teeth per wheel: 40
* Rake Wheel - Tooth diameter: 0.3 in (7 mm)

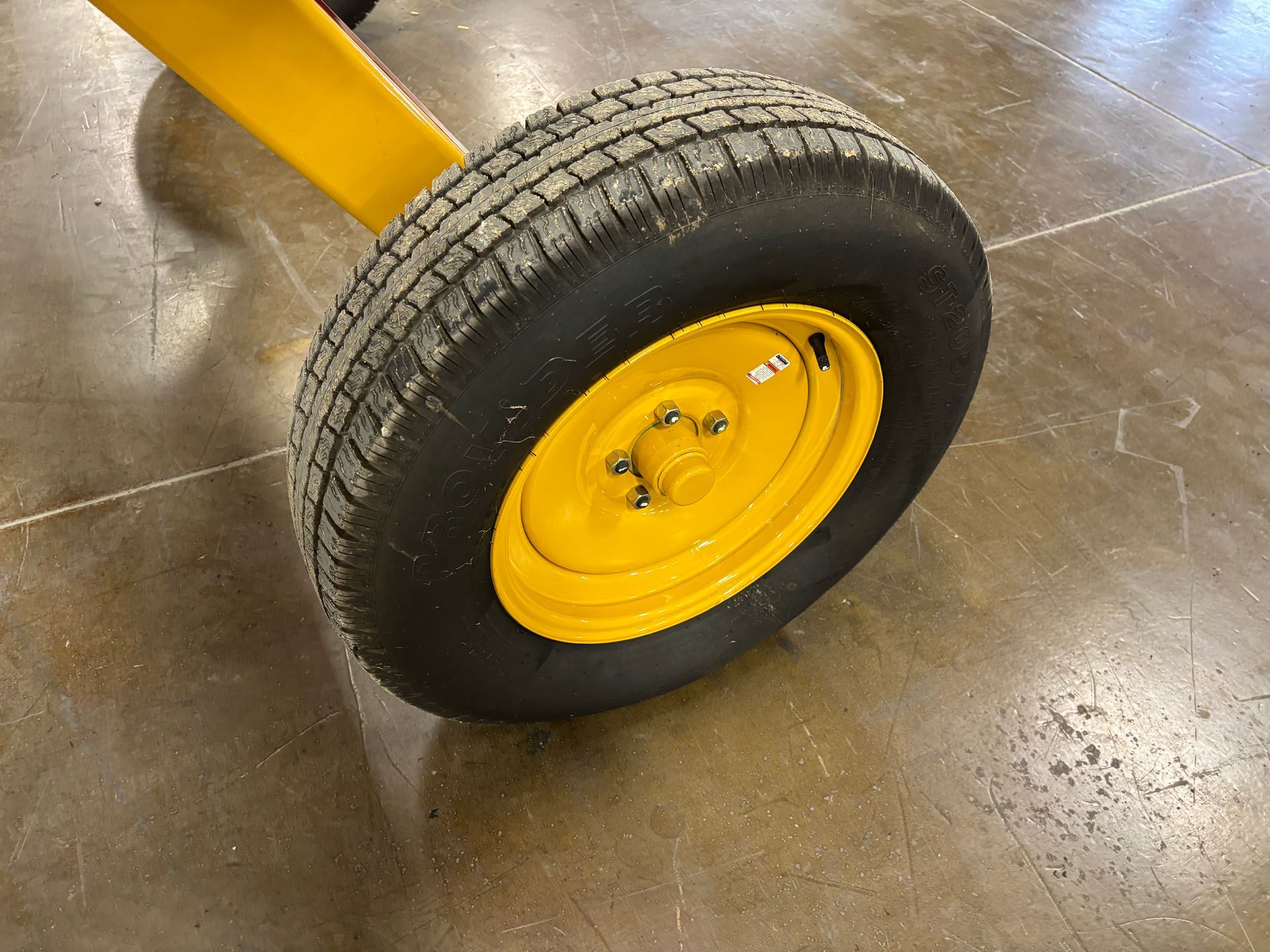

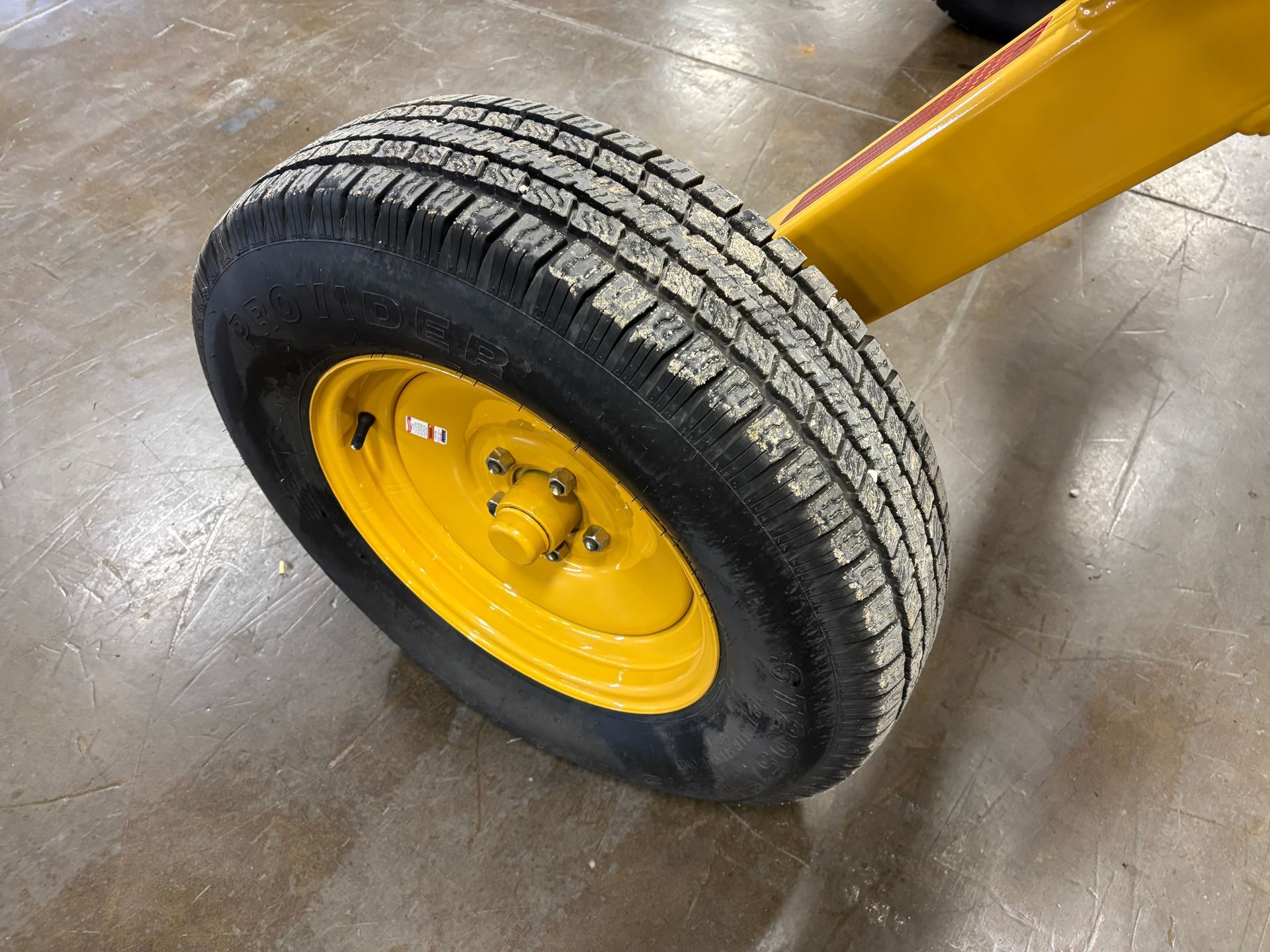

* Transport Wheel Size: ST205/75D15
* Single-side Raking: Standard left- or right-side
* Maximum Raking Speed: 14 mph (22.5 km/h)
DIMENSIONS AND WEIGHTS:
* Raking Width Minimum: 19.9 ft (6.1 m)
* Raking Width Maximum: 24.4 ft (7.4 m)
* Windrow Width Minimum: 21 in (53 cm)
* Windrow Width Maximum: 98 in (249 cm)
* Transport Width: 10.2 ft (3.1 m)
* Transport Length: 23 ft (7.0 m)
* Transport Height: 8.5 ft (2.6 m)
* Total Weight: 1812 lb (822 kg)
* Tongue Weight: 203 lb (104 kg)
TRACTOR REQUIREMENTS:
* Minimum Tractor Horsepower: 30 hp (22 kW)
* Hydraulics Type: 1 Double Acting
* Hydraulic Pressure: 1500 psi (103 bar)
* Hydraulic Flow Rate: 5 gpm (19 l/min)
