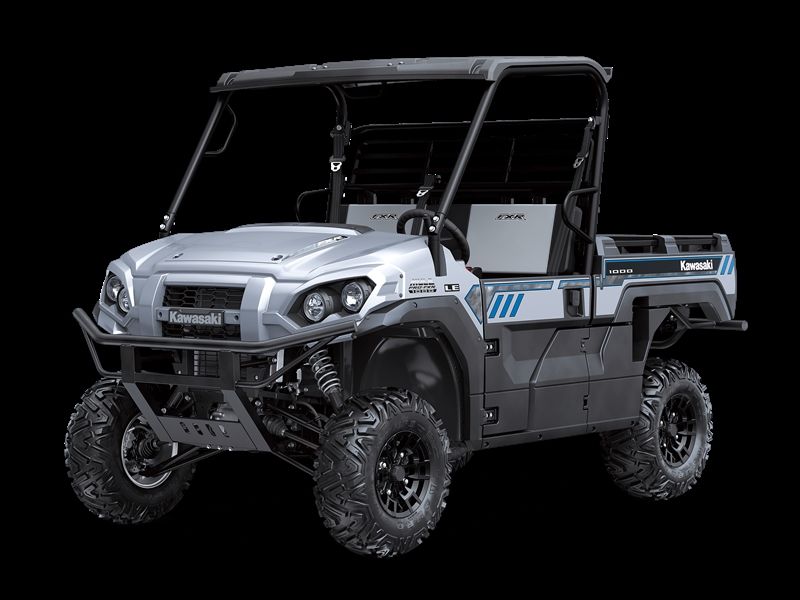

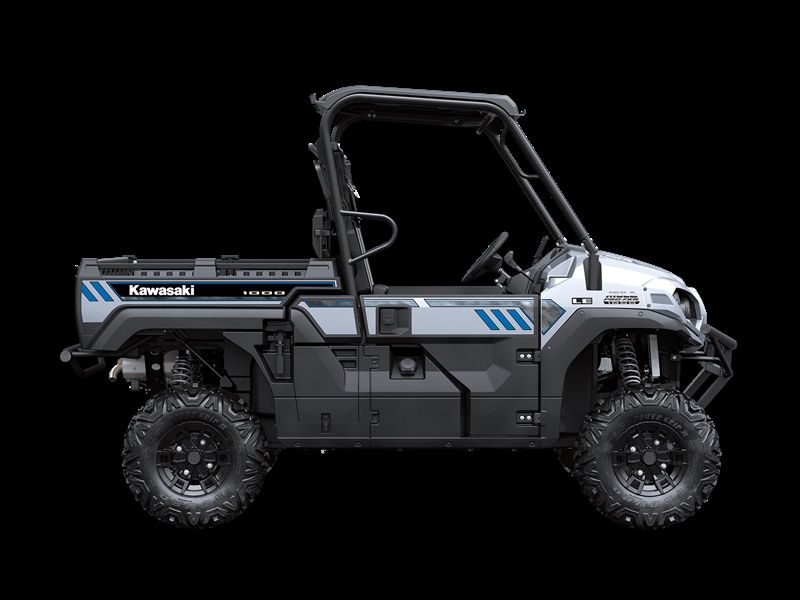

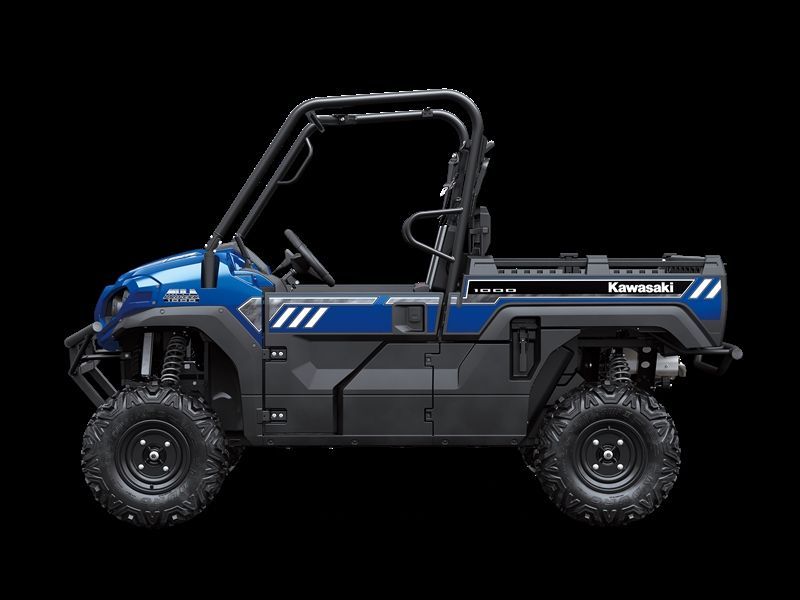

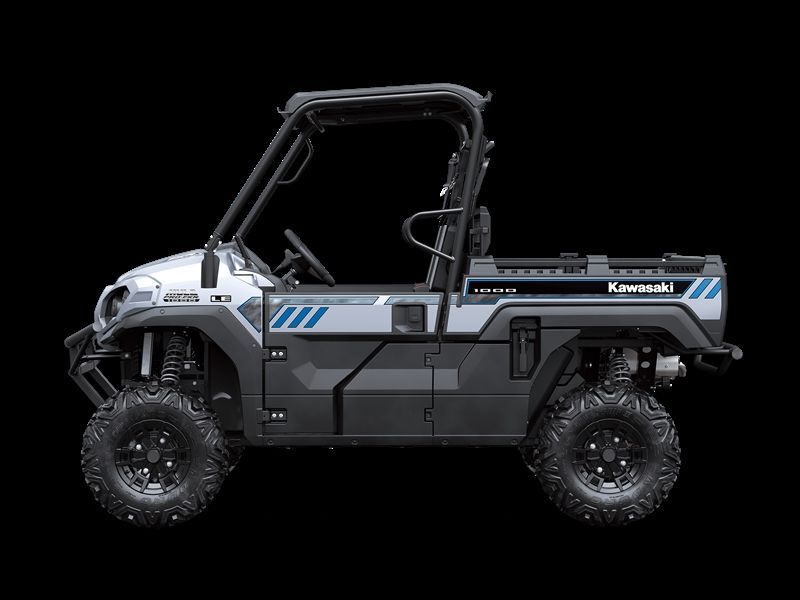

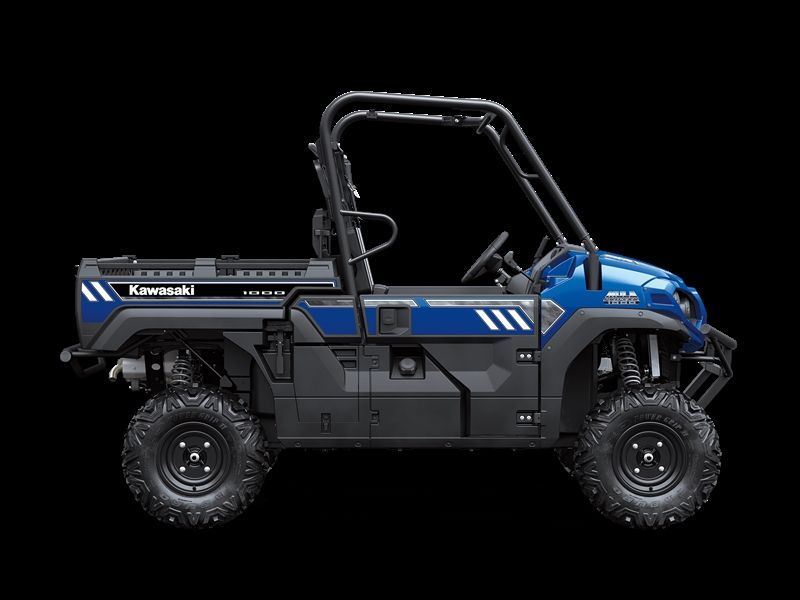

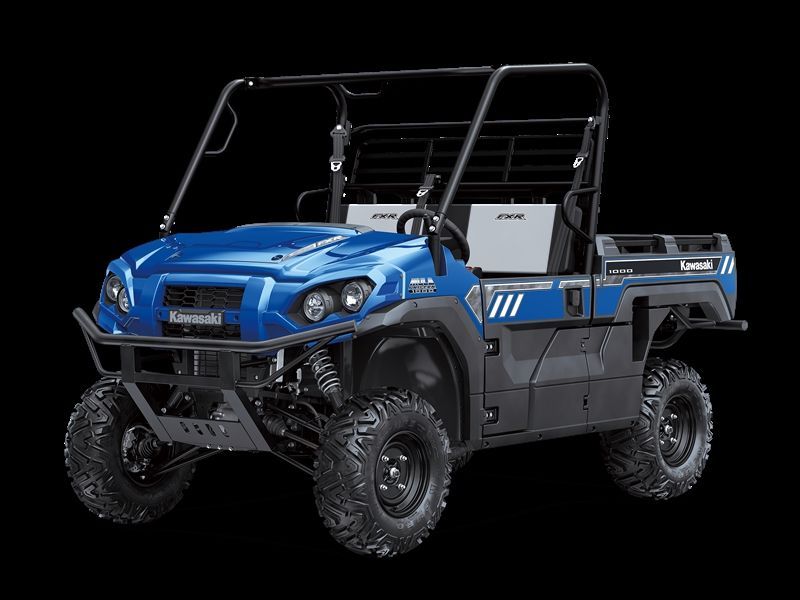

2025 Kawasaki MULE PRO-FXR

Key Features

Features

Unique MULE PRO-FXR Features

• A 12-inch shorter wheelbase than the MULE PRO-FX/MULE PRO-FXT tightens the turning radius for more nimble handling on tight trails.
• Large 27" tires with aggressive off-road tread on stylish rims add to ground clearance and help the MULE PRO-FXR 1000 drive better over obstacles.
• Optimized suspension setting provide enhanced balance for a superb ride feel.
• Small-diameter headlights help create a high-end pickup truck image.
• Rugged front bumper further contributes to the aggressive, high-quality image.
• The MULE PRO-FXR 1000 features a standard rear bumper that combined with finished rear wheel wells contribute to the high-end image.
• Three-person, two-tone bench seat has leg contours for the driver and right-side passenger for increased holding performance and comfort.  Two-tone seat cover with excellent elasticity and tear resistance contributes to the sporty, high-end image.  The seat accommodates three adults comfortably during extended use.

Engine

• Liquid-cooled, SOHC, 4-valve, fuel-injected, single cylinder engine pumps out superb power and torque for a wide range of uses
• Ample low-end torque contributes to smooth, responsive power at low speed, contributing to easy throttle control and excellent low-speed maneuverability
• Air intake is located high up under the dashboard.  Intake air travels through a sealed labyrinth layout and efficient paper filter to prevent any dust from reaching the engine.
• Stainless steel exhaust system for high durability.

Fuel Injection System

• The fuel injection system monitors coolant temperature, air intake temperature, throttle position, air intake pressure, vehicle speed and crankshaft angle and automatically meters the ideal amount of fuel for extremely stable power delivery - regardless of the conditions.  The system automatically adjusts for changes in altitude, idle adjustments are unnecessary, and starting hassle-free.
• Fuel delivery is instantaneous through the 44mm throttle body, contributing to predictable throttle response for smooth control.
• Helps provide easy starting in various conditions

Transmission

Continuously Variable Transmission (CVT)

• Fully automatic for ease of use.
• CVT tuned to provide engine braking regardless of engine RPM.
• Utilizes a centrifugal clutch that helps provide precise control of power, smooth acceleration and reduces strain on the CVT belt since it is always in tension with the drive sheaves.
• Keeps engine rpm in most efficient range for selected vehicle speed, load or terrain.
• CVT transmission has very smooth response, adding to ease of control.
• Tuned to provide engine braking when descending hills.
• N7-grade CVT belt is highly durable.
• CVT drive and driven shafts are both hard chrome plated for long-lasting durability.
• CVT air cooling duct designed to prevent water from entering the CVT.

Electrically Selectable 4WD & Rear Differential Lock

• Electrically Selectable 2WD/4WD and dual-mode rear differential system allow easy changes between drive systems to suit changing terrain and applications.
• Flipping the switches causes the systems to be engaged instantly, ensuring the driver has full control of 4WD or rear differential lock activation.
• Dual-mode rear differential provides maximum traction when in locked mode and minimizes ground disturbance when unlocked.

Chassis

Ideal Chassis Size & Dimensions

The Mule PRO-FXR 1000 features chassis design that help provide a comfortable ride without compromising maneuverability or performance.

• A 12" shorter wheelbase than the MULE PRO-FX/MULE PRO FXT 1000 models tightens the turning radius for more nimble handling on tight trails.
• Wide track contributes to vehicle performance.
• Optimized wheelbase contributes to a relatively tight turning radius, which makes it easier to maneuver in close confines.
• Combined with the MULE PRO-FXR 1000's ground clearance, the wheelbase dimension also contributes to a more favorable breakover angle, which reduces the chance of bottoming out when cresting a ridge or driving over obstacles.
• High approach and departure angles also contribute to the MULE PRO-FXR 1000's off-road performance.  Minimizing bodywork overhang (positioning the wheels as close to the bumpers as possible) reduces the chance of hitting the bumper or scraping the tail when negotiating steep terrain.

Frame Stiffness Balance for Superb Handling

• The MULE PRO-FXR 1000's rugged frame construction offers great durability as well as superb handling.
• The frame features a ladder-type construction and is built from square tubes of high-quality steel.  The frame components are joined together using a combination of welds and bolts to achieve highly predictable chassis performance and high durability.
• High-load areas such as the suspension mounting plates are constructed of high-tensile steel.
• After undergoing extensive stiffness balance testing, the resulting frame offers a good balance between lateral and torsional stiffness.  This delivers high durability while allowing just the right amount of chassis flex to be able to handle variations in terrain and provide a high level of ride comfort.

High Cargo & Towing Capacity

• The cargo bed's flat bottom facilitates loading.  The highly durable bed is made of diamond-plate steel.
• Gas-assisted tilting cargo bed with prop rod provides quick engine access.
• Cargo bed features a two-lever tailgate release system.  The tailgate's blow molded design includes built0in cup holders that come in handy when the tailgate is down.
• The cargo bed walls are designed with slots that can accommodate cargo dividers, allowing cargo to be separated and stowed more securely.
• One inch square tubing running along the top of the cargo bed side walls provides easy tie-down points for bungee hooks, and is compatible with the KQR Accessory Mount System brackets that allow toolbox or other items to be snap-mounted to the cargo bed rails.
• Standard two-inch tow hitch receiver is compatible with a wide range of accessory hitches and allows the MULE PRO-FXR 1000 to tow up to 2,000 pounds.

4-Wheel Disc Brakes

• Front & rear disc brakes provide strong, sure stopping power.
• 212mm front discs are gripped by two-piston calipers with 27mm pistons.
• 212mm rear discs are slowed by single-piston calipers with 34mm pistons.
• Semi-metallic brake pads offer a balance between braking power and long life.

High-Grade Electric Power Steering

• The electric power steering system (EPS) reduces steering effort, especially at low speeds.  Input from a vehicle speed sensor and torque sensor determine the amount of steering assistance required from the system's electric motor.  At slow speeds, or when stopped assistance is greatest.  Assistance is reduces as vehicle speed increases.  It all adds up to superior handling.
• The EPS system also enhances ride comfort and control by acting as a damping system.  The inertia of the electric motor significantly reduces bump steer and kickback to the steering wheel often caused when encountering rocks or ruts.
• Since the system is electric, it works immediately, without the time lag sometimes associated with hydraulic systems that, when the engine is first started, require time to pump engine oil to the power steering system.
• Because the EPS system does not rely on oil pumped from the engine, there is no engine power loss.

Tilt Steering Wheel

• Steering wheel has a stepless range of approximately 40 degrees, allowing drivers to set its position to suit their preference, as well as lift it out of the way to facilitate entering and exiting the vehicle.
• Thickly cushioned steering wheel contributes to comfort as well as the high-quality feel of the MULE PRO-FXR 1000.

Rugged Styling

• Designed to reflect its tough construction and strong performance, the MULE PRO-FXR 1000 features rugged, no-nonsense styling similar to that found on high-quality pickup trucks.
• Complementing its wide stance, the angular form of the MULE PRO-FXR 1000 adds to its imposing physique.
• Door decals are color-matched to the bodywork, creating a design that flows continuously from the front to the rear.
• Clean dashboard design includes switches for the lamps, selectable 4WD, and rear differential lock.  Additional spaces for additional accessory switches are provided.
• Smaller four-post ROPS is two inches shorter than that of the MULE PRO-FX 1000 HD for a more compact and sporty profile.
• Sun roof on LE model can be left intact for towing and helps channel water to the outside edges during inclement weather.

Comfort & Convenience

Complementing the MULE PRO-FXR 1000's superb performance, there are also a number of comfort and convenience features to ensure that passengers are able to relax and enjoy the ride.

Standard Doors

• The MULE PRO-FXR 1000 comes standard with doors to facilitate entering and exiting the vehicle.
• The doors also offer protection from the elements.
• Simple latch mechanism facilitates opening and closing the doors.

Roomy Interior

• The MULE PRO-FXR 1000's wide-body chassis creates a roomy interior space that offers the shoulder and legroom for three adults to comfortably sit side-by-side.
• Seat material has a superb elasticity, comfort and slip resistance.  The material is also resistant to cold, allowing it to maintain its suppleness when temperatures drop and reducing the chance of tearing/ripping when exposed to cold temperatures.
• Grab handles integrated into the ROPS frame for the passengers contribute to comfort.
• Each seating position is equipped with a three-point seat belt.
• Three-person, two-tone bench seat has leg contours for the driver and right-side passenger for increased holding performance and comfort.  Two-tone seat cover with excellent elasticity and tear resistance contributes to the sporty, high-end image.  The seat accommodates three adults comfortably during extended use.
• Shoulder guards are integrated into the ROPS frame.

High-Level Ride Comfort

• Low Vibration, excellent bump absorption when tackling obstacles on the trail and quiet-running engine help increase the comfort level.
• In addition to a fully rubber mounted engine, a thorough analysis of the rubber mount responsiveness was conducted to ensure engine vibration is kept to a minimum.
• Torque rod helps minimize the tendency of the engine and rear gear case to roll when torque is generated by the engine.
• Four-wheel independent, double-wishbone suspension allows each of the wheels to drive over certain obstacles with minimum effect of hte chassis for a more comfortable ride.
• Twin-tube shock absorbers provide excellent bump absorption and rough road handling performance.
• Suspension setting help minimize chassis body roll.
• Deflector shield behind the radiator and dual-wall exhaust pipe with a sandwich-type heat cover help keep  heat away from the passenger compartment.
• Dual-wall construction of the muffler also helps keep exhaust noise to a minimum so that passengers are able to converse in the cabin while riding.

Storage

• Passenger-side glove box provides enclosed storage for small items.
• Three dashboard pockets provide a handy place to put small items.  The center pocket is large enough to accommodate the accessory audio system.
• Two drink holders are built into the bodywork in front of the dashboard.
• Standard storage bins under the front bench seat provide convenient covered storage.

DC Sockets

• Two DC sockets integrated into the dashboard provide a power supply (up to 120W) for accessory items or personal devices.

Parking Brake

• Parking brake lever is conveniently located on the dash to the left of the steering wheel.
• ECU features a fuel-injection control that limits engine speed should the driver attempt to drive away with the parking brake still engaged.

Easy Maintenance Access

• Front hood allows quick access to key  electrical components like the ECU and fuse case, as well as easy access to the radiator cap.
• Quick-release maintenance cover allows easy access to check the oil level and air cleaner.
• Engine is easily accessed by lifting the cargo bed.
• CVT belt can be accessed without lifting the cargo bed, and may be changed without removing the rear suspension.

Digital Instrumentation

• Multi-function display built into the dash features digital speedometer, digital fuel gauge, odometer, hour meter, clock, dual trip meters, 2WD/4WD indicator, parking indicator, water temperature warning indicator, fuel injection warning indicator, CVT warning indicator, EPS warning indicator, neutral indicator light, reverse indicator light and oil pressure warning light.

Durability

Kawasaki MULE side x sides vehicles are famous for their strength and the new MULE PRO FXR 1000 is no exception

Built Tough

• In addition to its tough engine and rugged frame construction, numerous features add to the MULE PRO-FXR 1000's strong build.
• Water-resistant engine backing plate, spark plug cover, CVT duct layout, and differential breather layout were all designed to prevent water intrusion.  Additionally, electrical components like the ECU and fuse box are located high on the vehicle in an enclosed container (under the hood) to keep them far from water and dust.  Front and rear wheel housing help keep mud, dirt and water from getting into the engine compartment and away from essential components.
• Efficient air cleaner design features a labyrinth layout, rubber seal and paper filter element to help keep the engine free from dust.
• Exhaust system is made of high-quality stainless steel.
• Drive shaft uses a flanged oil seal and is enclosed in metal plating for added durability.
• Large-gauge mounting bolts used at the A-arm pivots and suspension upper and lower mounts were chosen specifically for their contribution to suspension durability.
• The fuel tank is positioned well away from the wheels to help prevent it from being hit by flying debris, and features a guard for additional protection.
