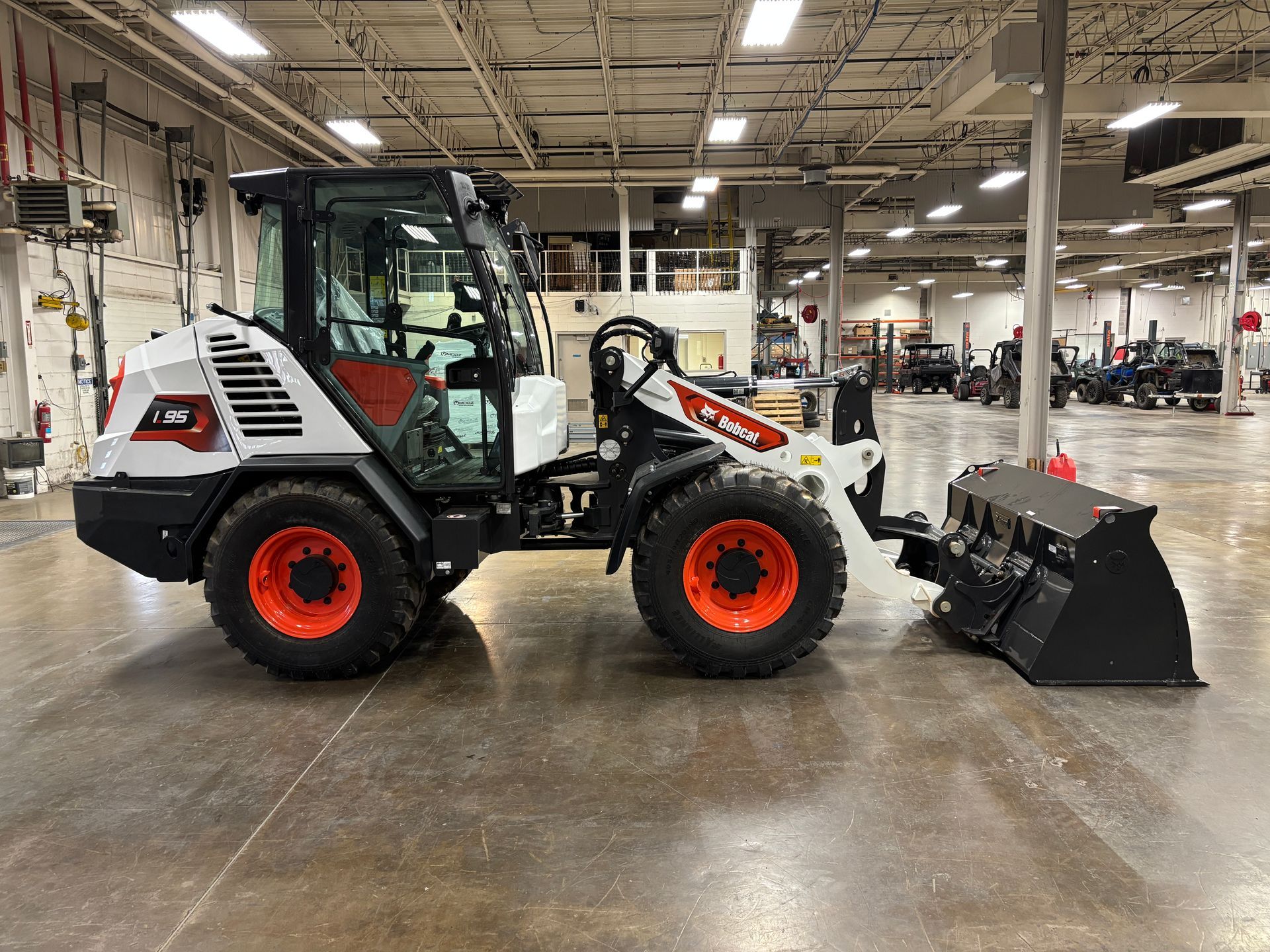

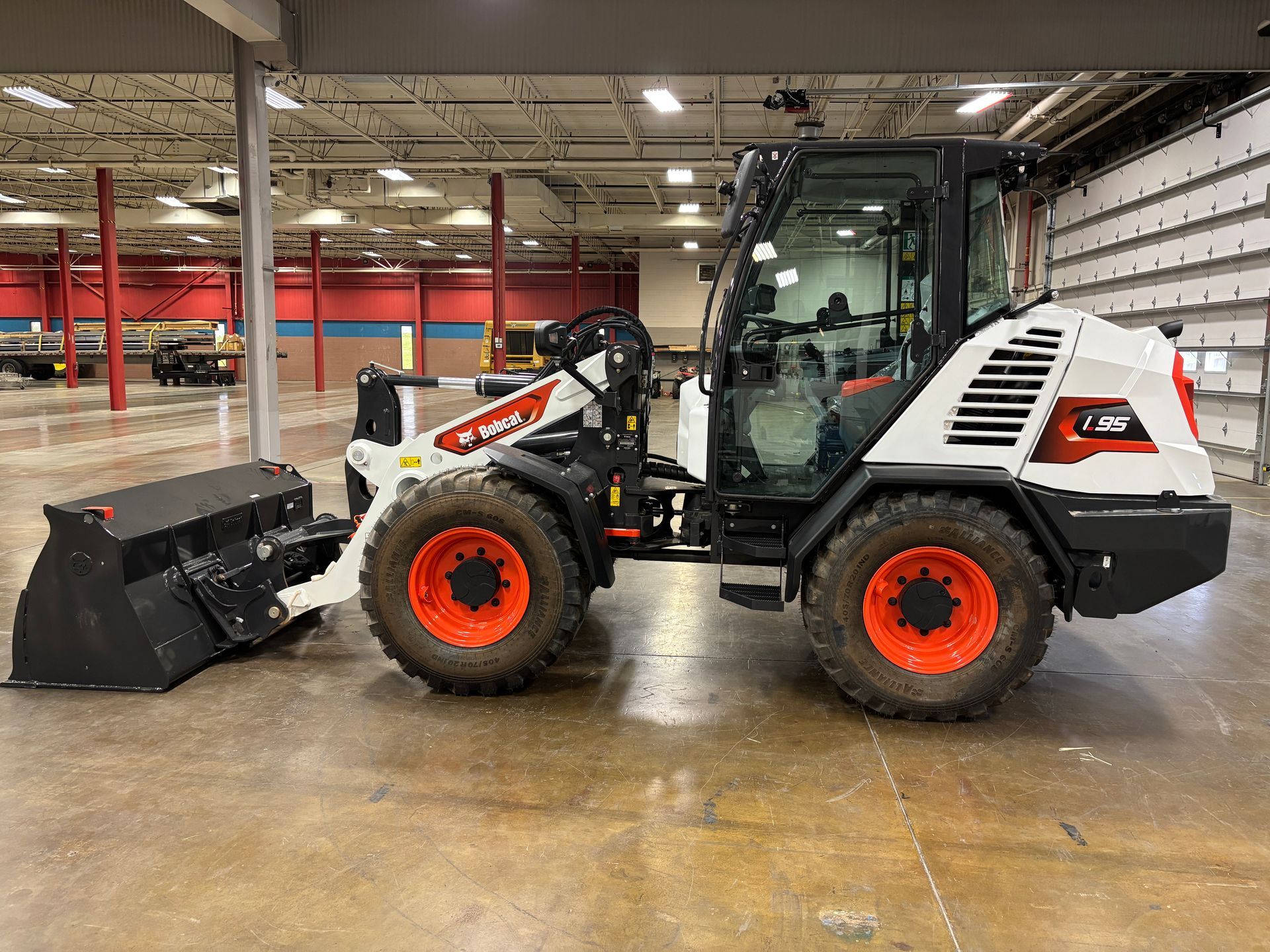

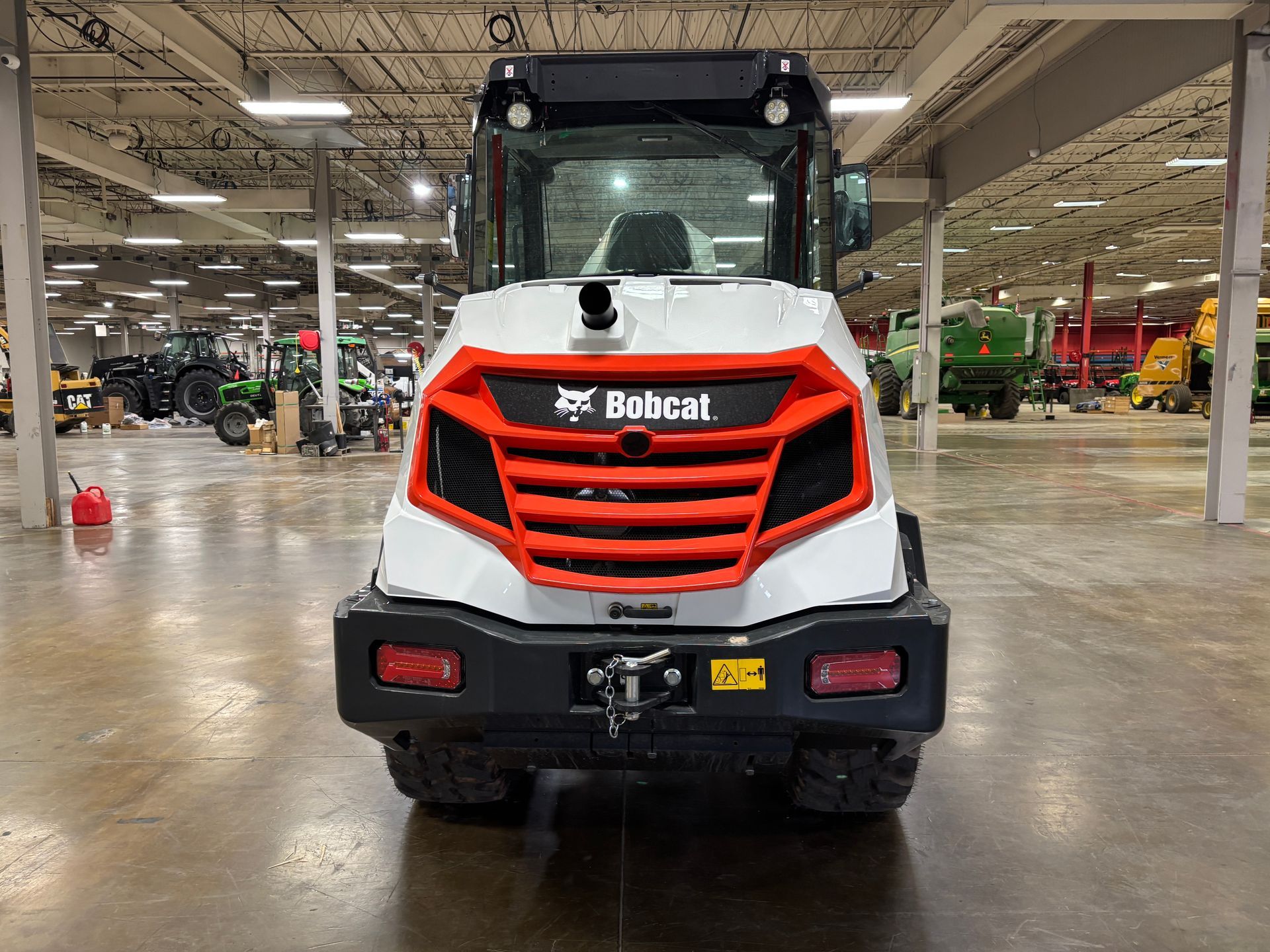

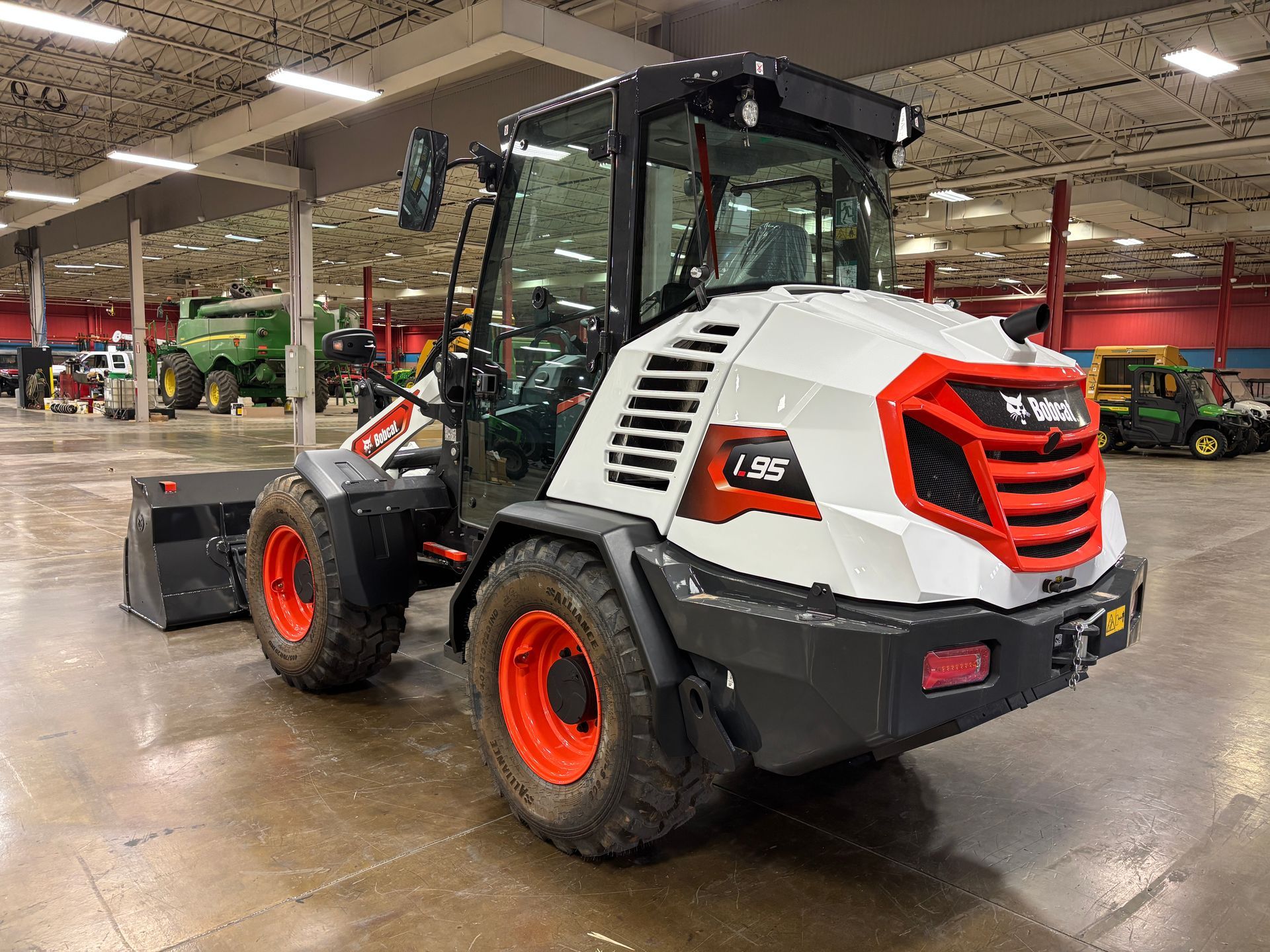

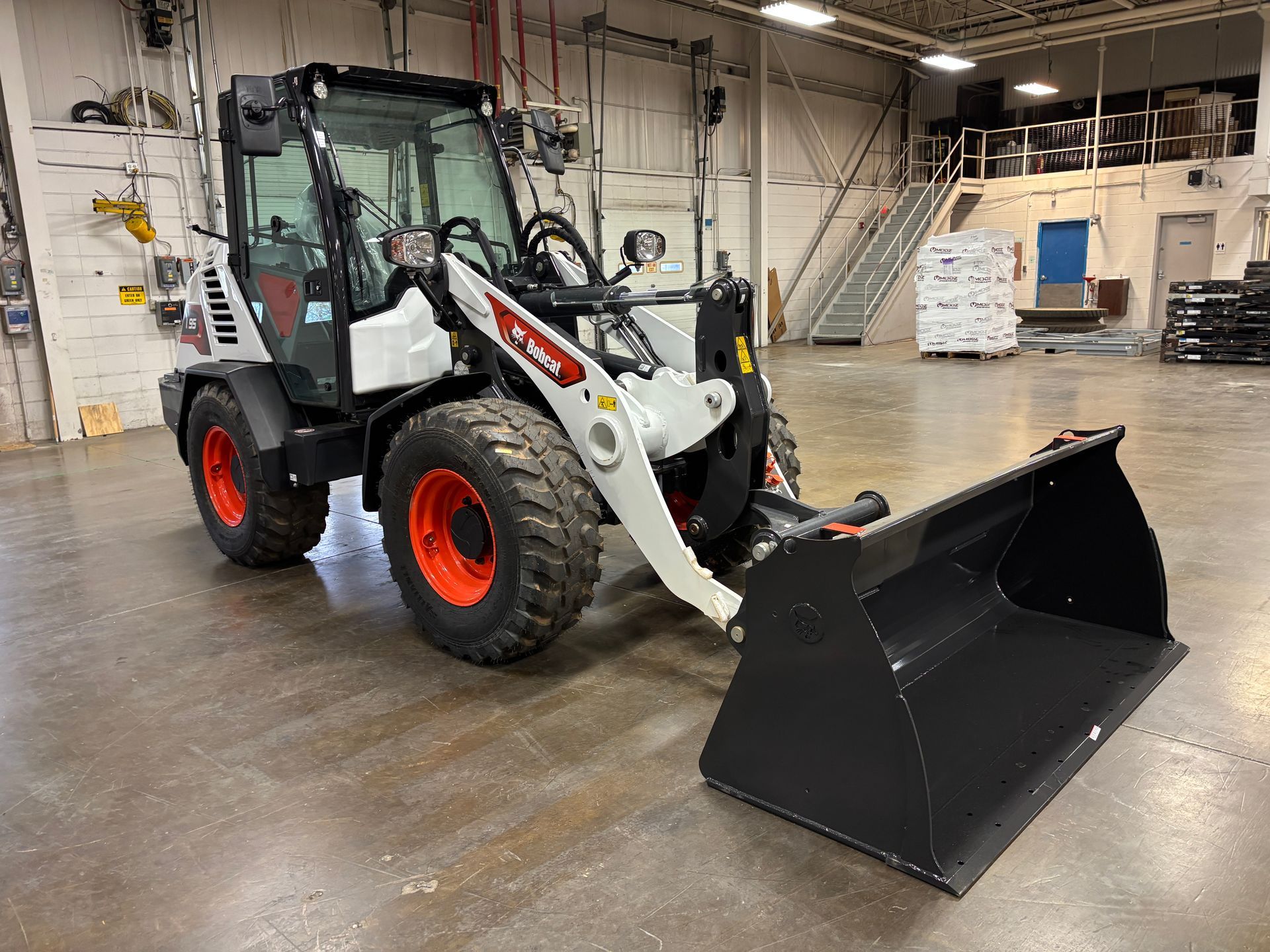

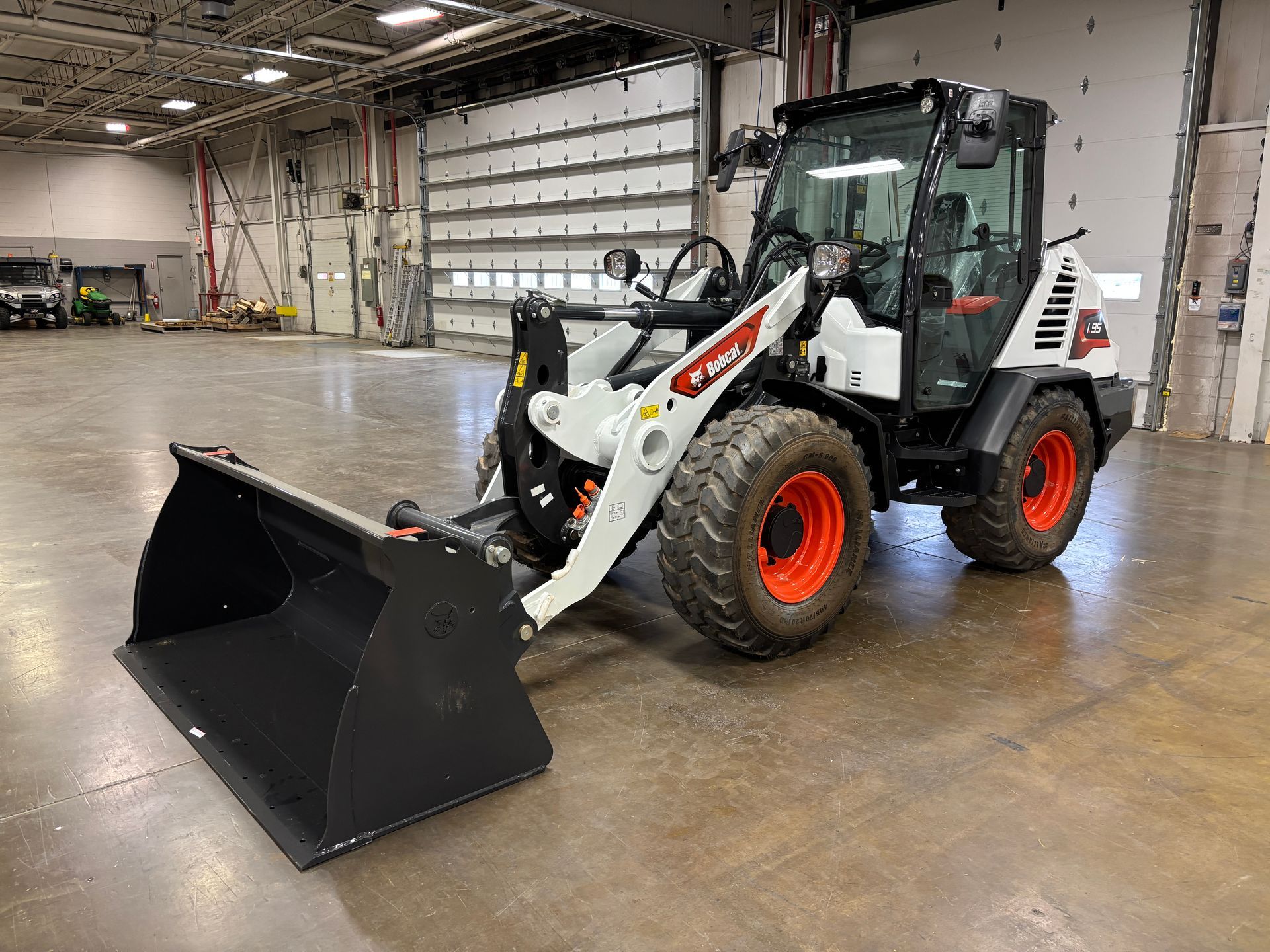

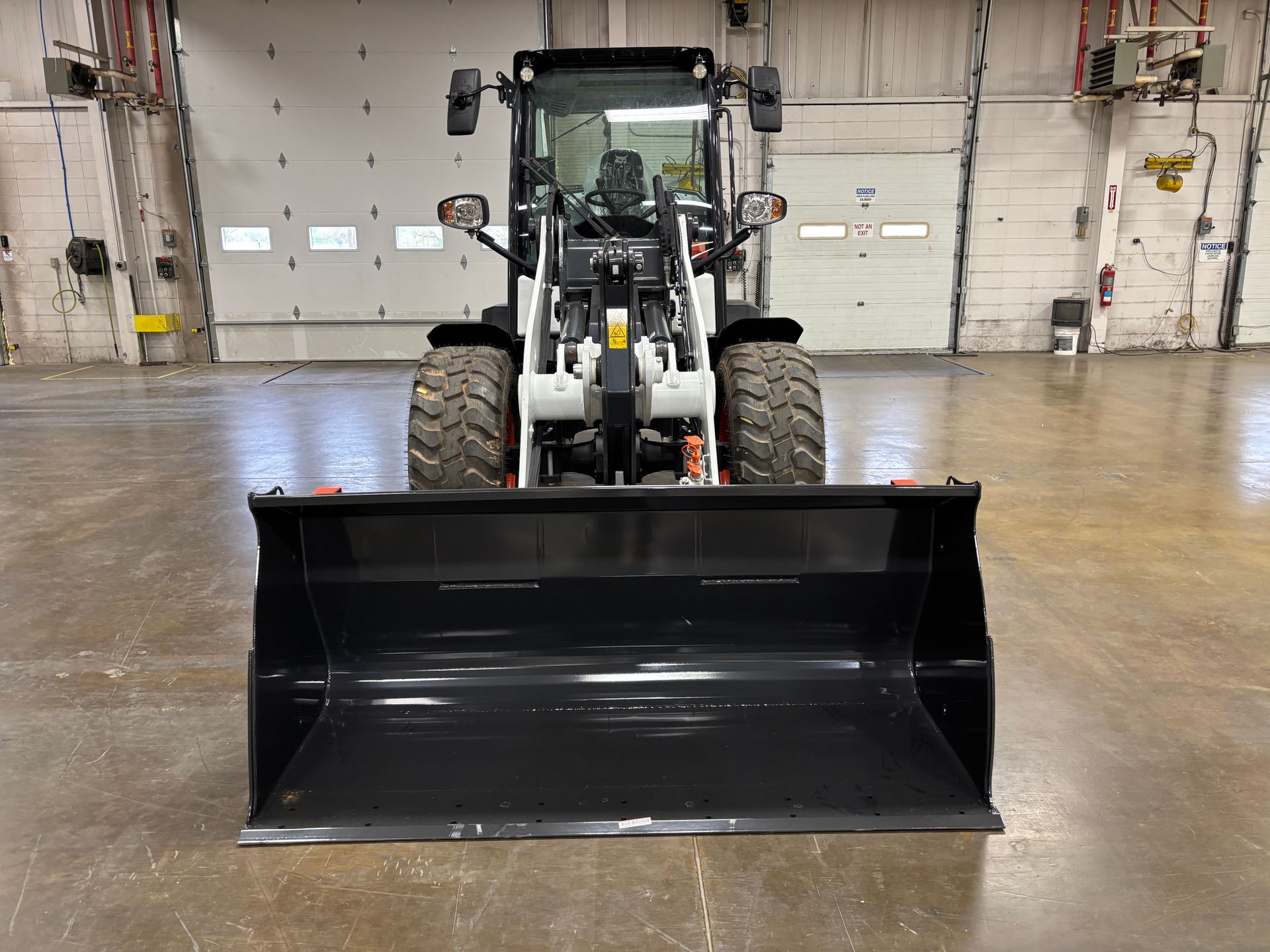

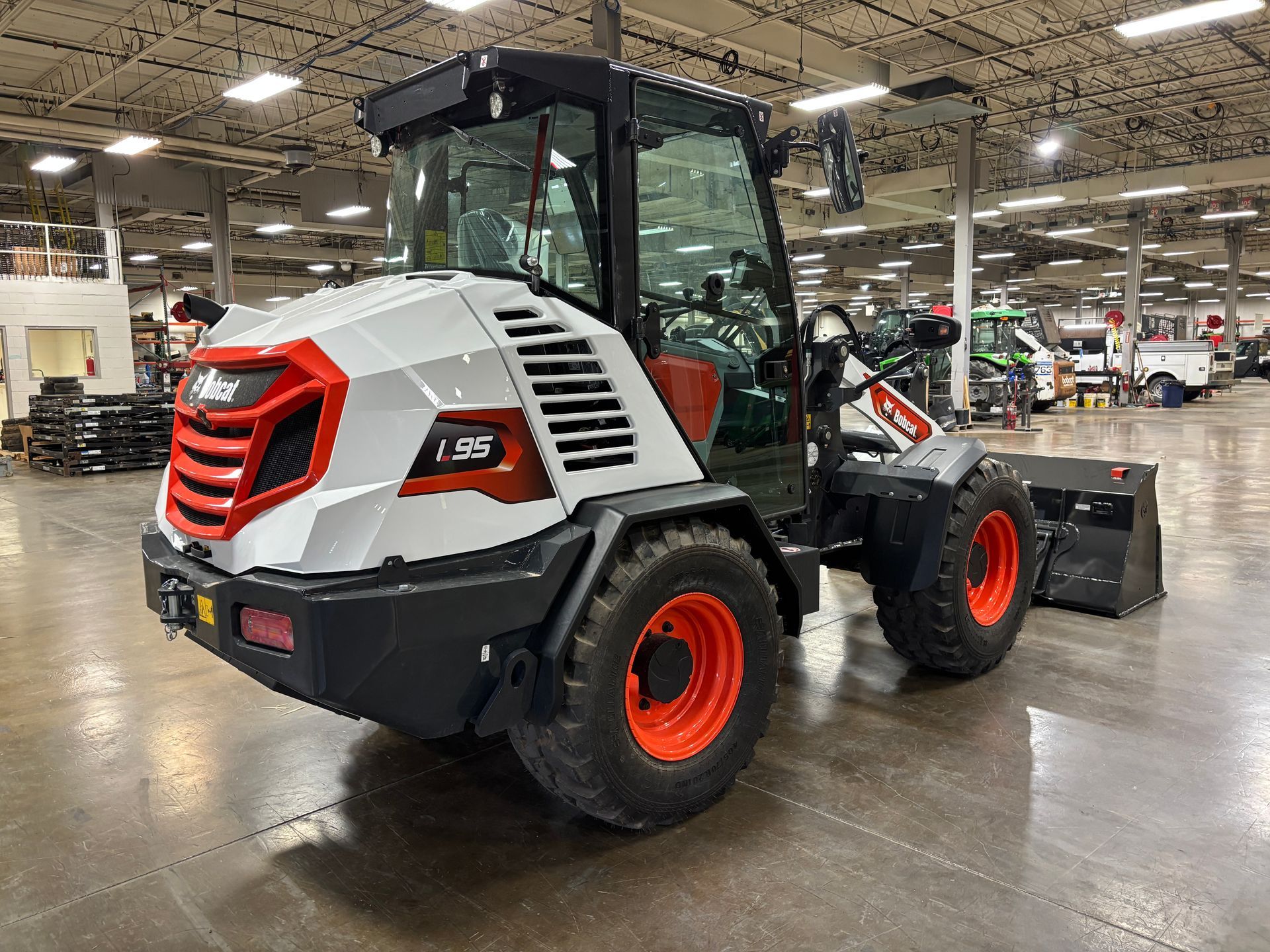

2024 Bobcat L95 Compact Wheel Loader $114,336
Features
* 2025 Bobcat L95 Compact Wheel Loader (MSRP - Call for best pricing)
* 1 Hour
* HVAC Cab Comfort Package
- Enclosed Cab with HVAC
- Front & Rear wiper / washer
- Dome Light
- Rear Defrost
- Radio Ready

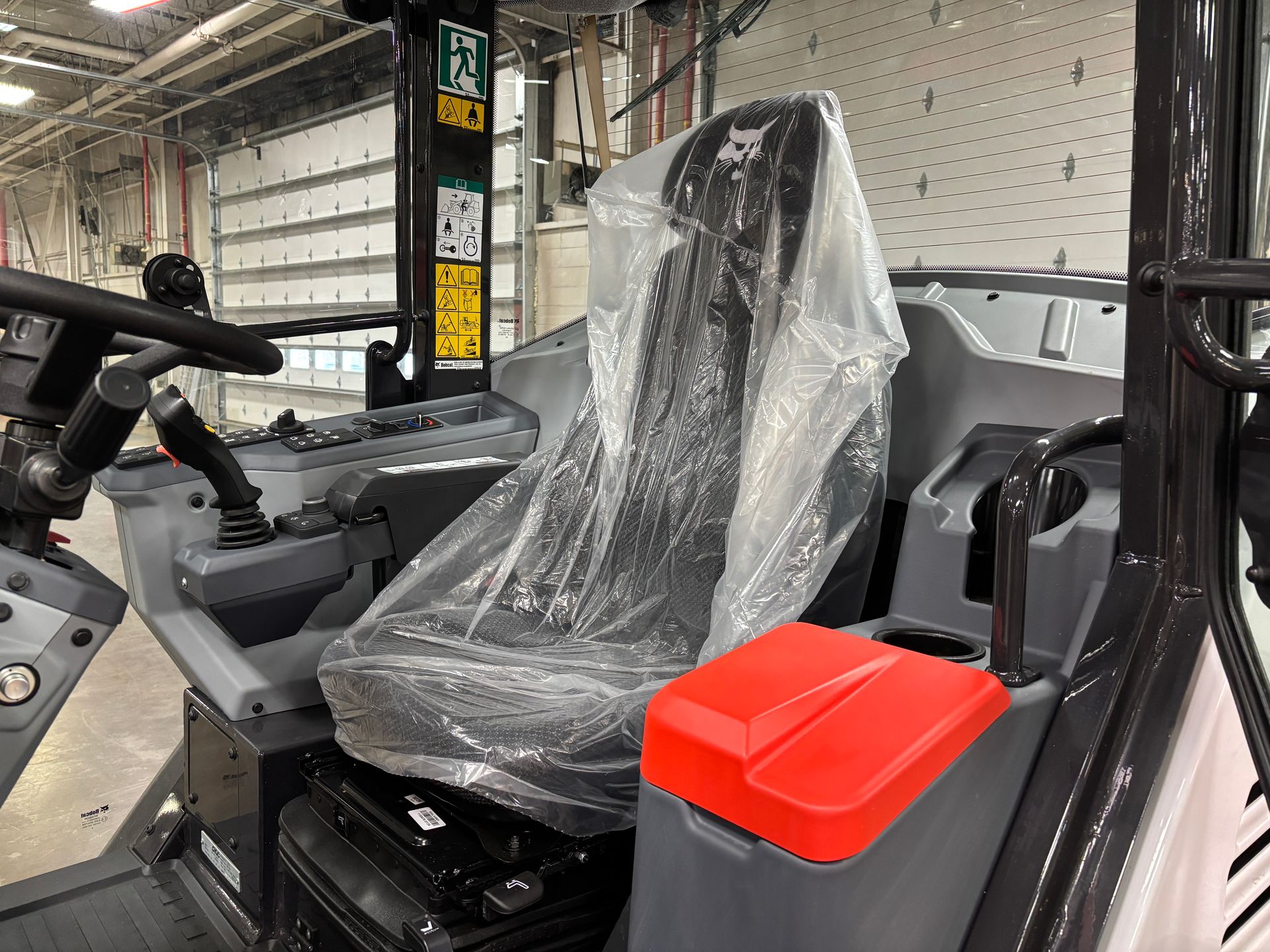

- Heated Air Ride Seat

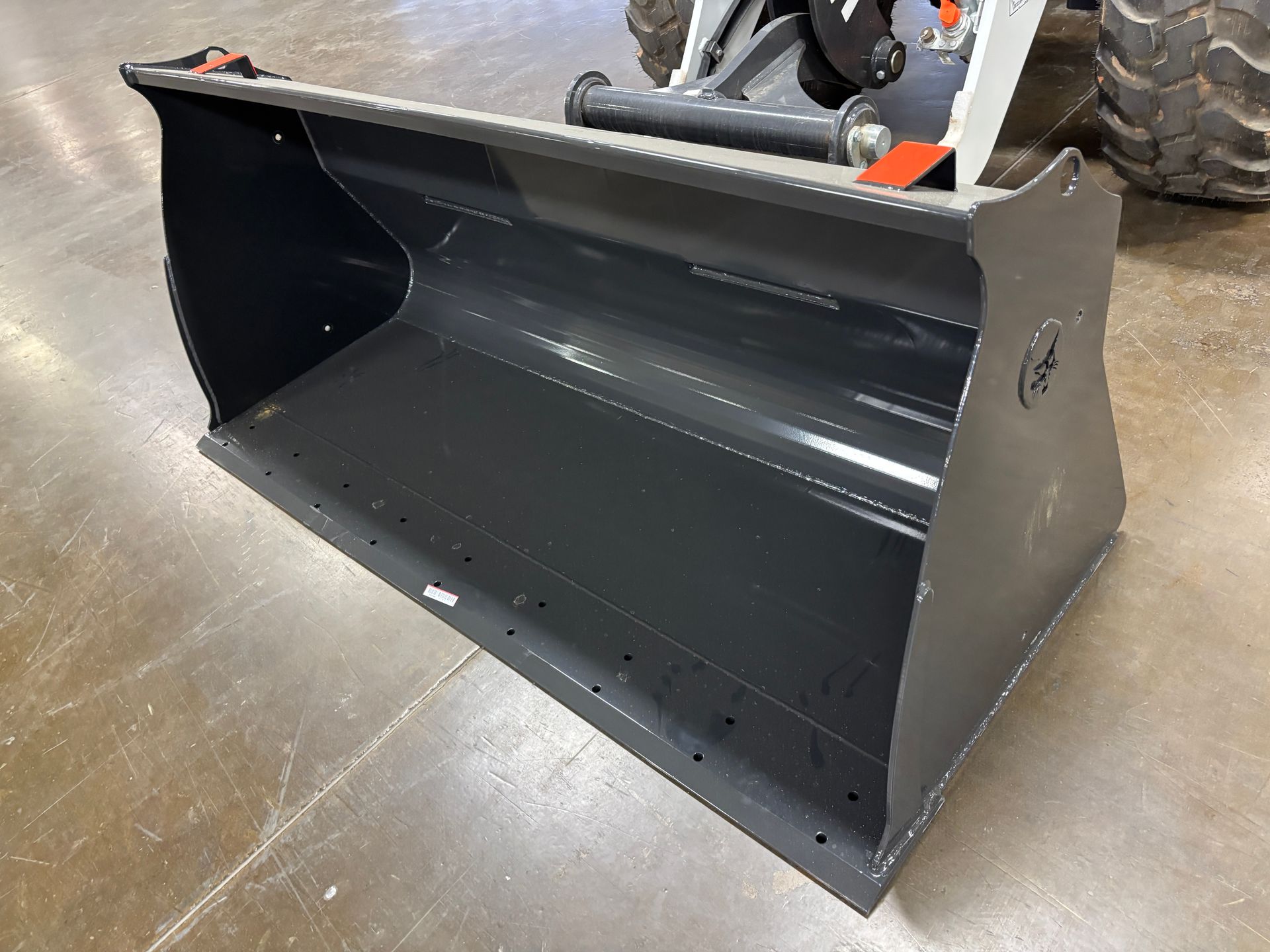

* Many bucket options for choose from
Standard Features
* 74 HP 2.4L Turbocharged Bobcat engine with integrated Diesel Oxidation Catalyst (DOC)
* Articulation Lock Bar
* Attachment Control Device
* Automatic Park Brake with Slope Assist
* Automatic Ride Control
* Auxiliary Hydraulics, High Flow with pressure release couplers
* Back-up Alarm
* Battery Disconnect Switch

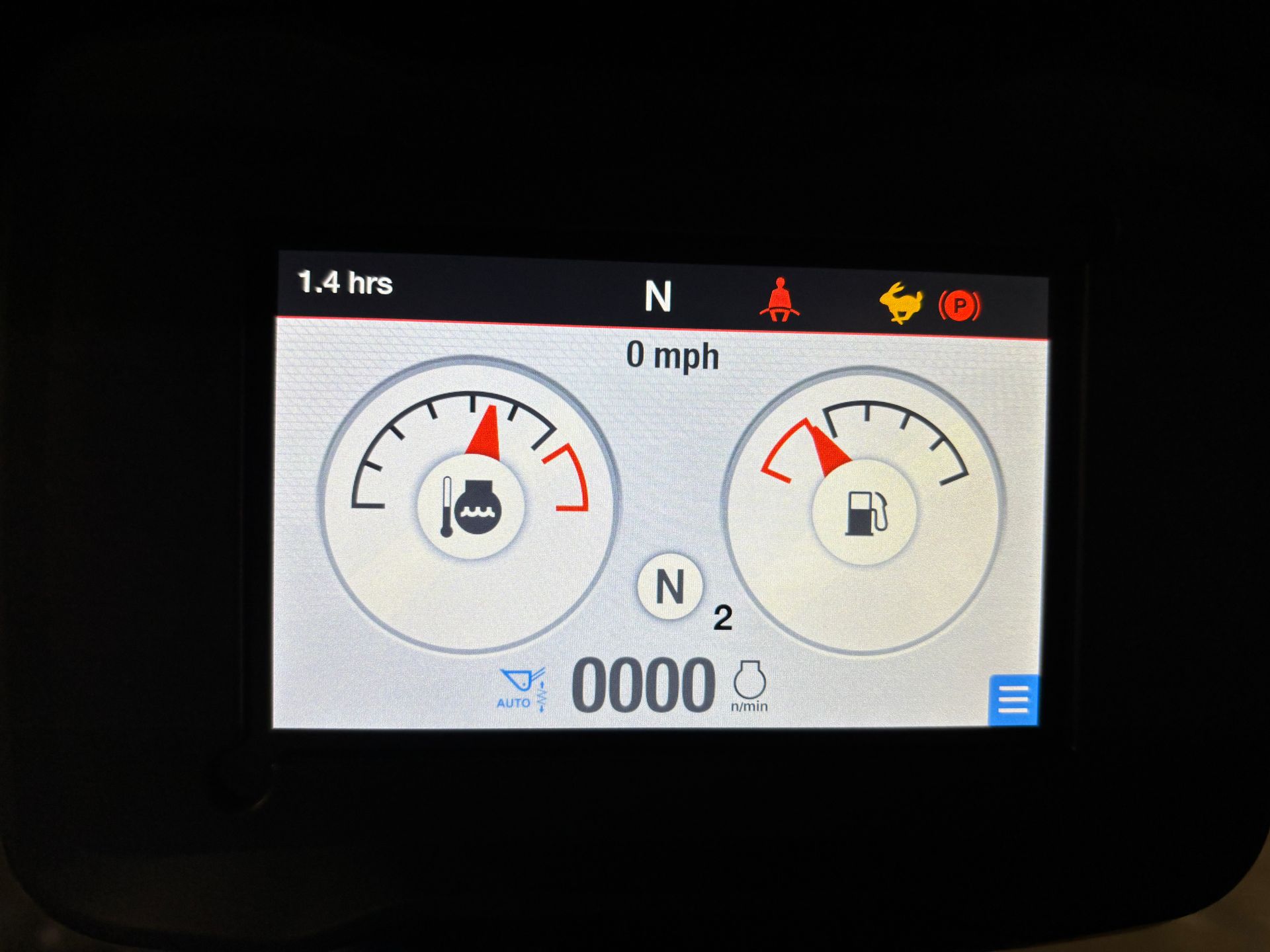

* Bobcat Standard 5" Display
* Bucket Level Indicator
* Canopy with:
- Cup Holders
- Dual Quick Charge USB / 12 V Power Outlet
- Interior Storage Compartments
- Keyless Ignition
- Retractable 2 Seat Belt

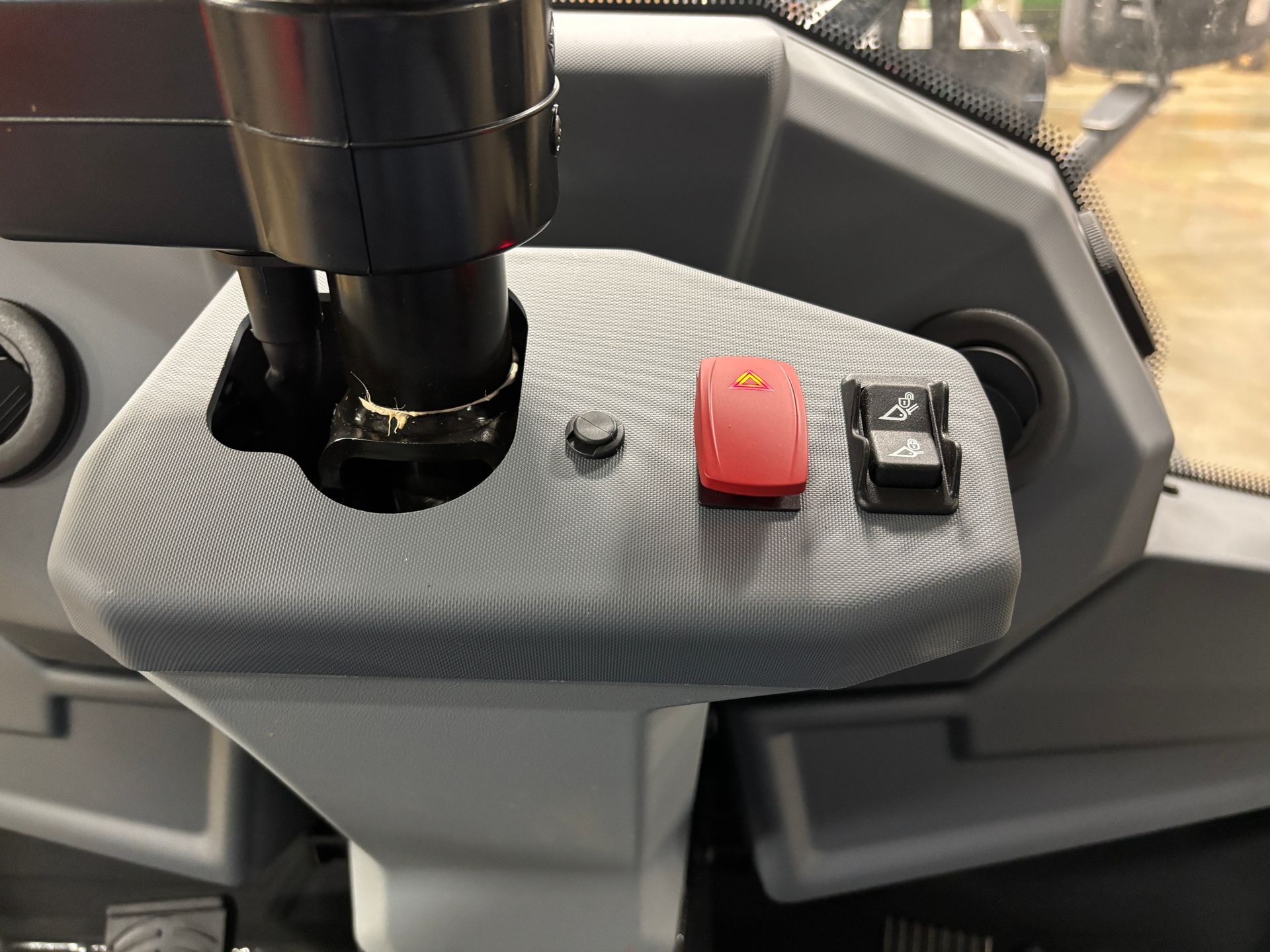

- Tilt & Telescoping Steering Column
- Vinyl Suspension Seat
* Differential Lock
* Engine & Hydraulics Systems De-Rate
* Front Horn
* Glow Plugs
* Hydrostatic Transmission with Electronic Gearbox, 4 speeds, Advanced Attachment Control & Flex Drive (Engine Speed Dial)
* Inching Pedal
* Instrumentation:
- Hour Meter
- RPM, System Voltage, Engine Temperature & Fuel Gages
- Warning Lights
* Lift Arm Support
* Machine IQ Ready (device is an accessory)
* Mirrors: Right & Left Side
* Operator Canopy
- Roll Over Protective Structure (ROPS) meets ISO 3471
- Falling Object Protective Structure (FOPS) meets ISO 3449 Level II

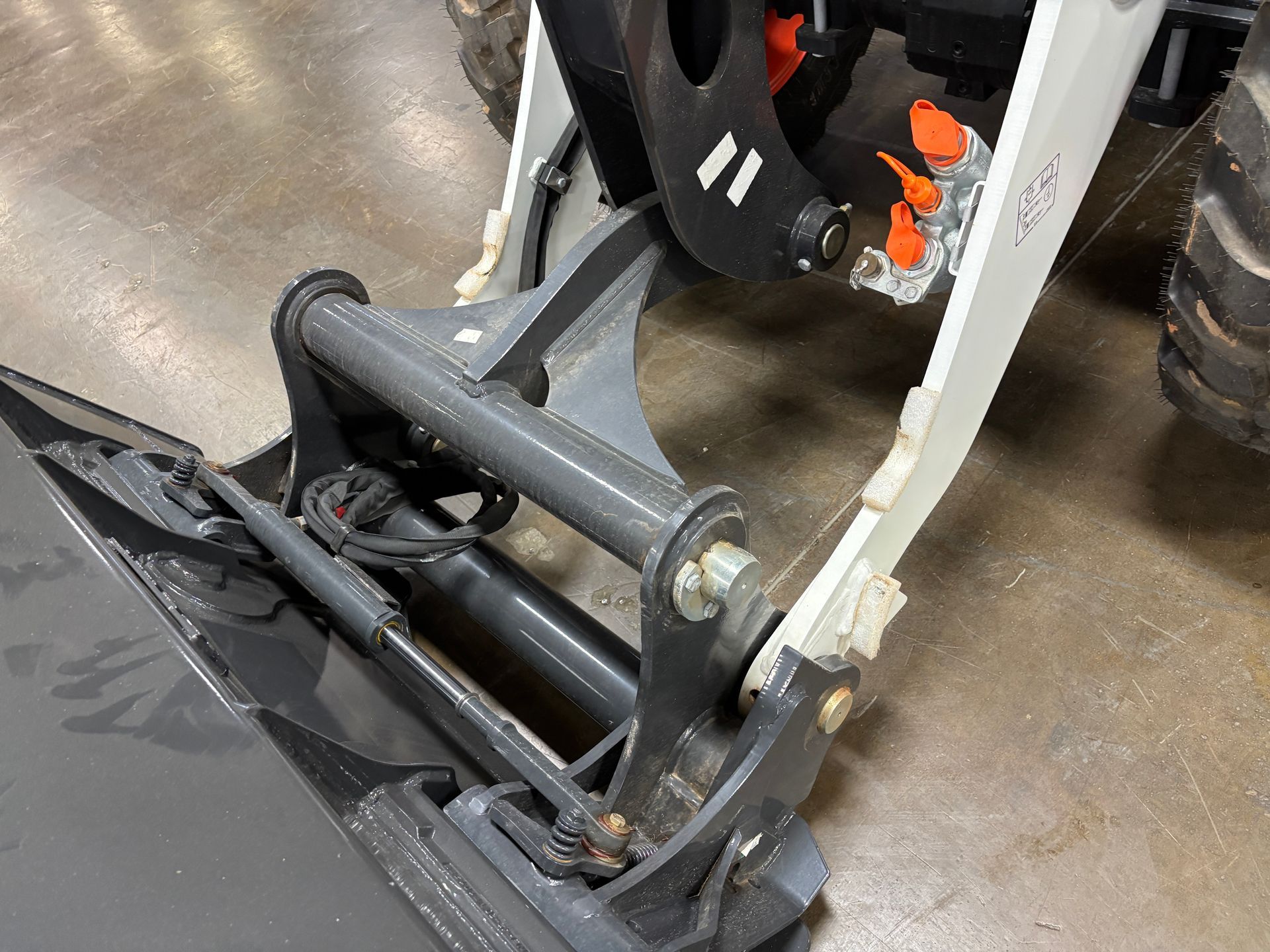

* Power Bob-Tach Attachment Mounting System
* Retrieval Pin
* Road Lights (Halogen - Front)
* Spark Arrestor Muffler

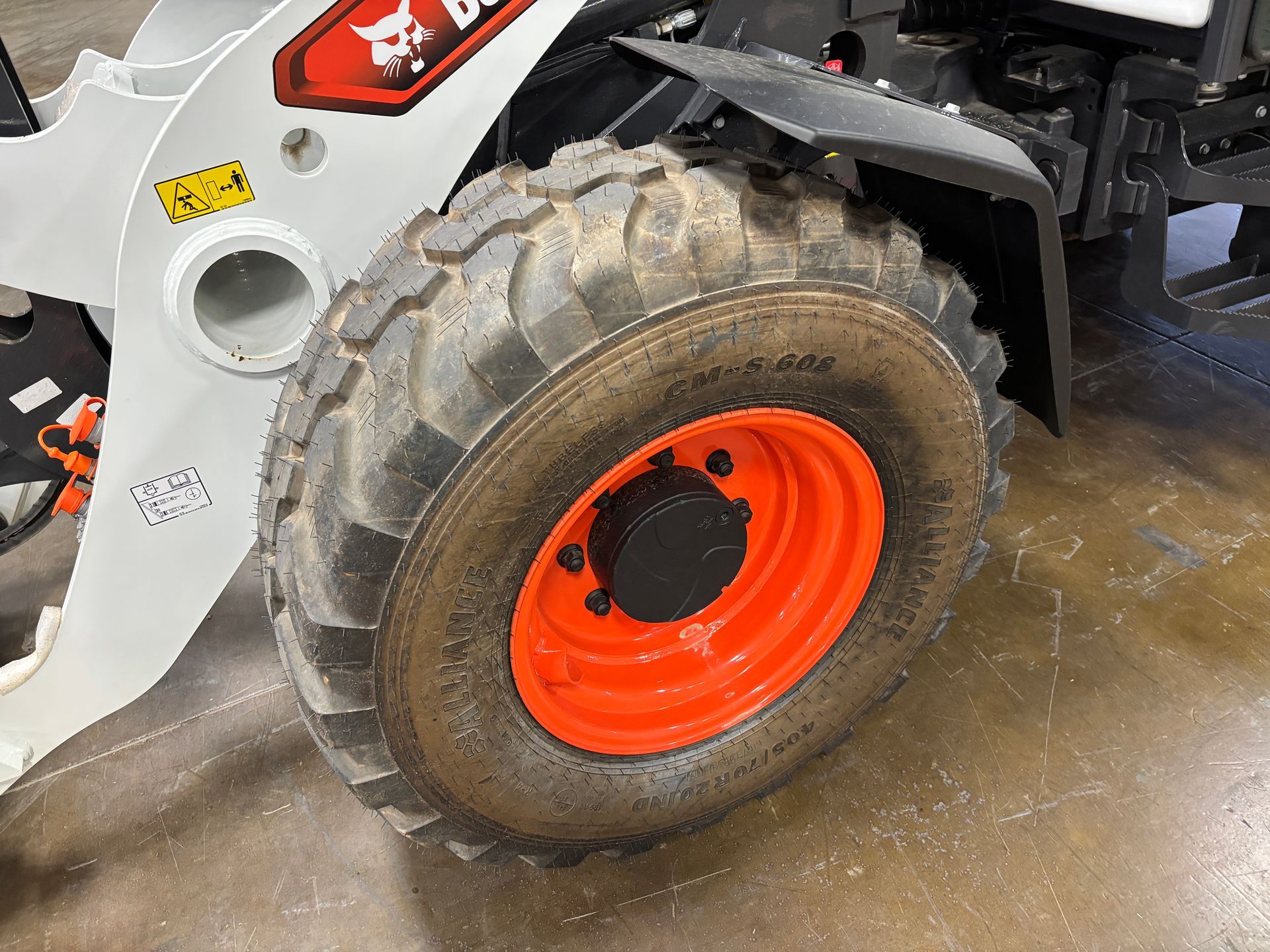

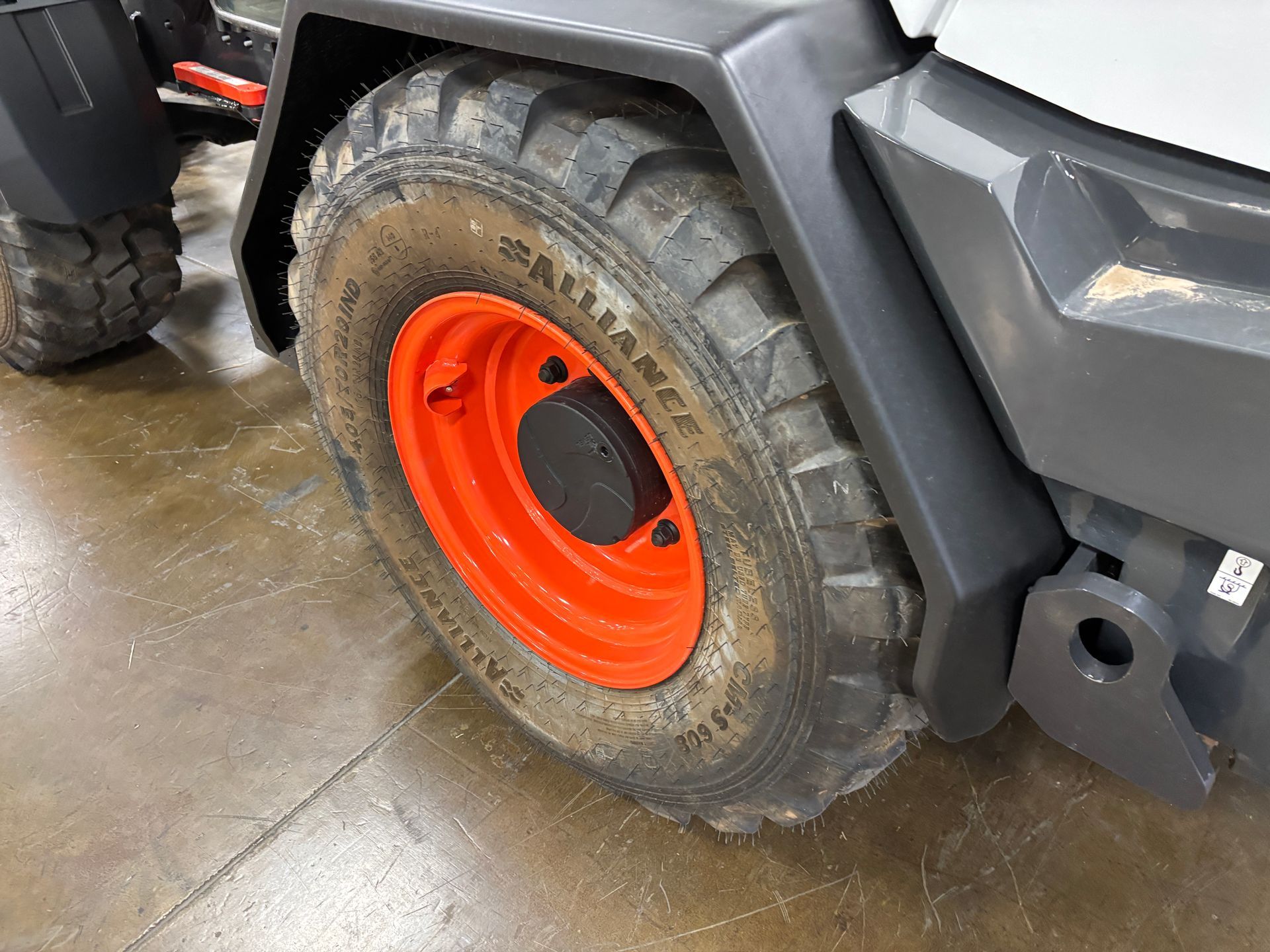

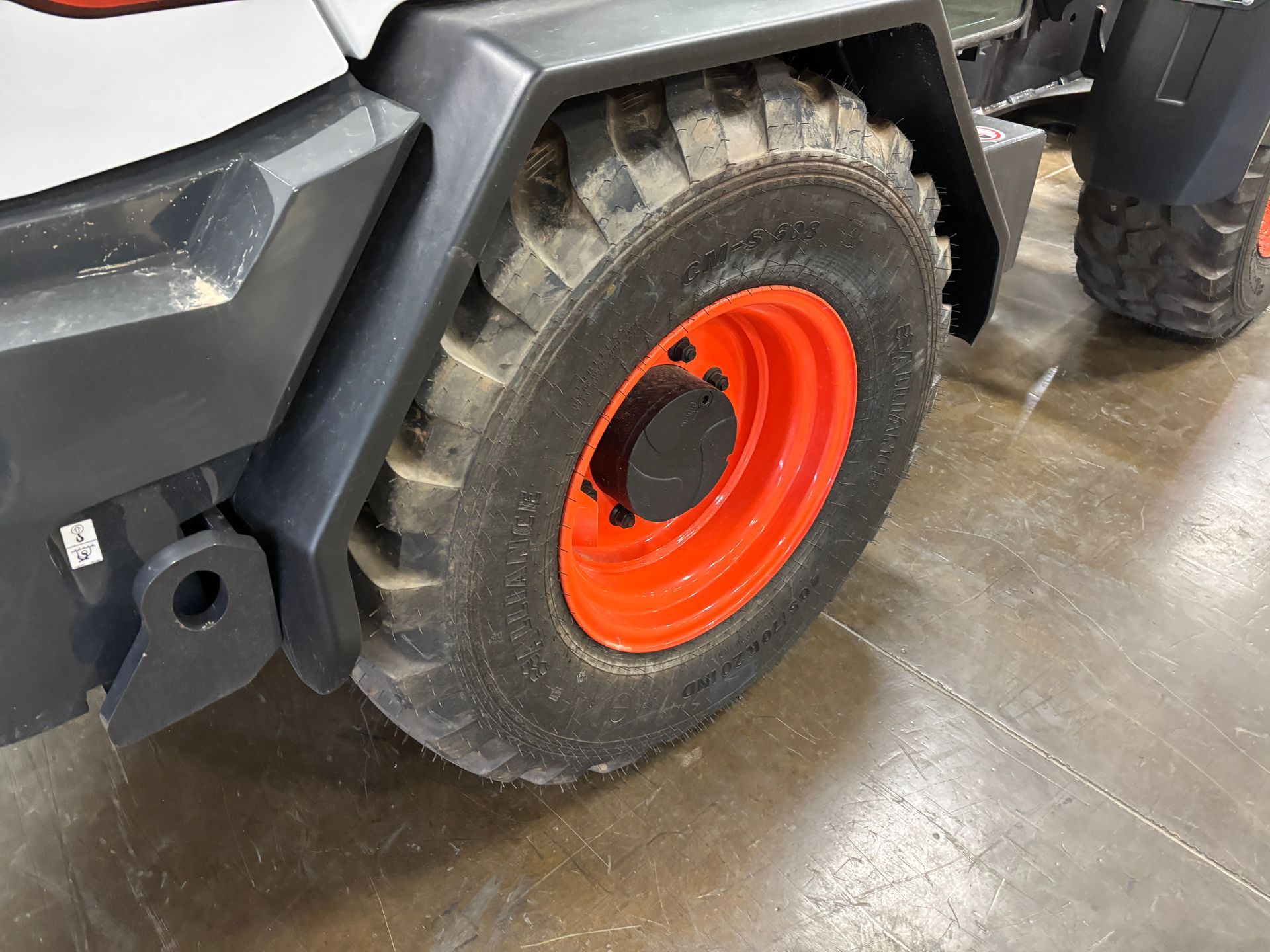

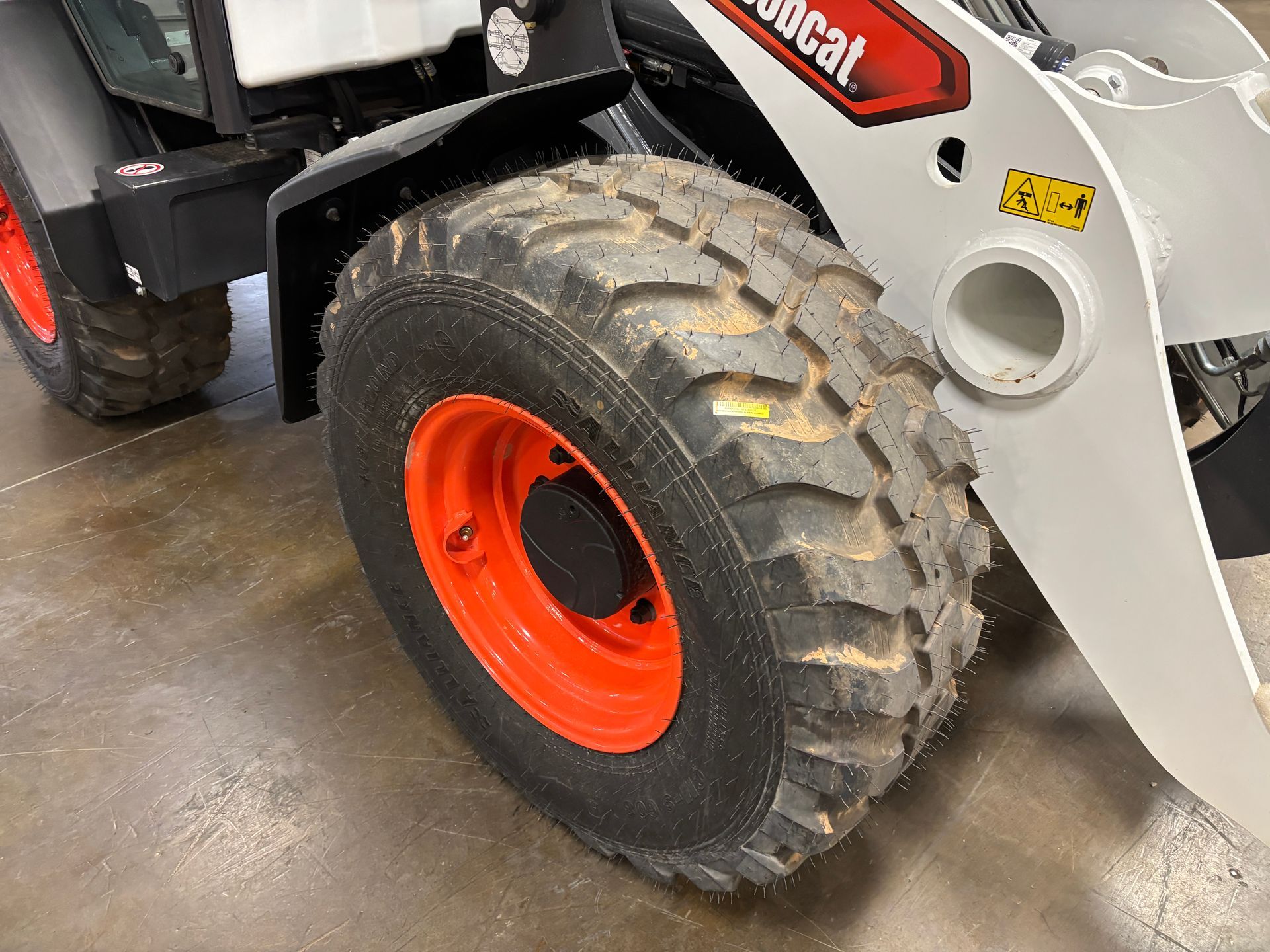

* Standard 405/70R18 Tires
* Tie Down Points
* Two Speed Travel (17.6 mph)
* Wheel Fenders
* Work Lights - LEF (2 front & 2 rear)
* Z-Bar Mechanical Self Leveling
Specifications
ENGINE
* Emissions Tier (EPA): Tier 4
* Engine Cooling: Liquid
* Engine Fuel: Diesel
* Horsepower: 74 HP
* Turbocharged Engine: Optional
PERFORMANCE
* Rated Operating Capacity with Bucket (Straight): 3,981 lb
* Rated Operating Capacity with Bucket (Articulated): 3,335 lb
* Rated Operating Capacity with Forks (Straight): 4,860 lb
* Rated Operating Capacity with Forks (Articulated: 4,127 lb
* Tipping Capacity with Bucket (Straight): 7,962 lb
* Tipping Capacity with Bucket (Articulated): 6,670 lb
* Bucket Capacities: 1.0-2.0 cubic yard
* Operating Weight: 11,993 lb
* Travel Speed - Low: 5.3 mph
* Travel Speed - High: 24.3 mph
CAPACITIES
* Fuel Tank: 20.8 gal
HYDRAULIC SYSTEM
* Auxiliary Standard Flow: 19.8 gal/min
* Auxiliary High Flow: 27.3 gal/min
* Pump Capacity: n/a
DRIVE SYSTEM
* Drive Type: Four-Speed hydrostatic with Advanced Attachment Control
DIMENSIONS
* Length without Attachment: 192.4"
* Length with Standard Bucket: 219.3"
* Width (over tires): 70.9"
* Width (with bucket): 74.8"
* Inside Turning Radius with Bucket: 1986 mm
* Turning Radius Outside: 150.7"
* Outside Turning Radius w Forks: 4591 mm
* Wheelbase: 82.7"
* Articulation Angle: 40 degree
* Oscillation Angle: 8 degree
* Dump Angle @ Maximum Height: 45 degree
* Ground Clearance: 13.3"
* Operating Height: 13.8'
* Height to Bucket Hinge Pin: 10.74'
* Rollback Angle: 49 degree
* Tire Size: 405/70R20
* Wheel Tread: 54.8"
* Height with Operator Cab: 98.3"
