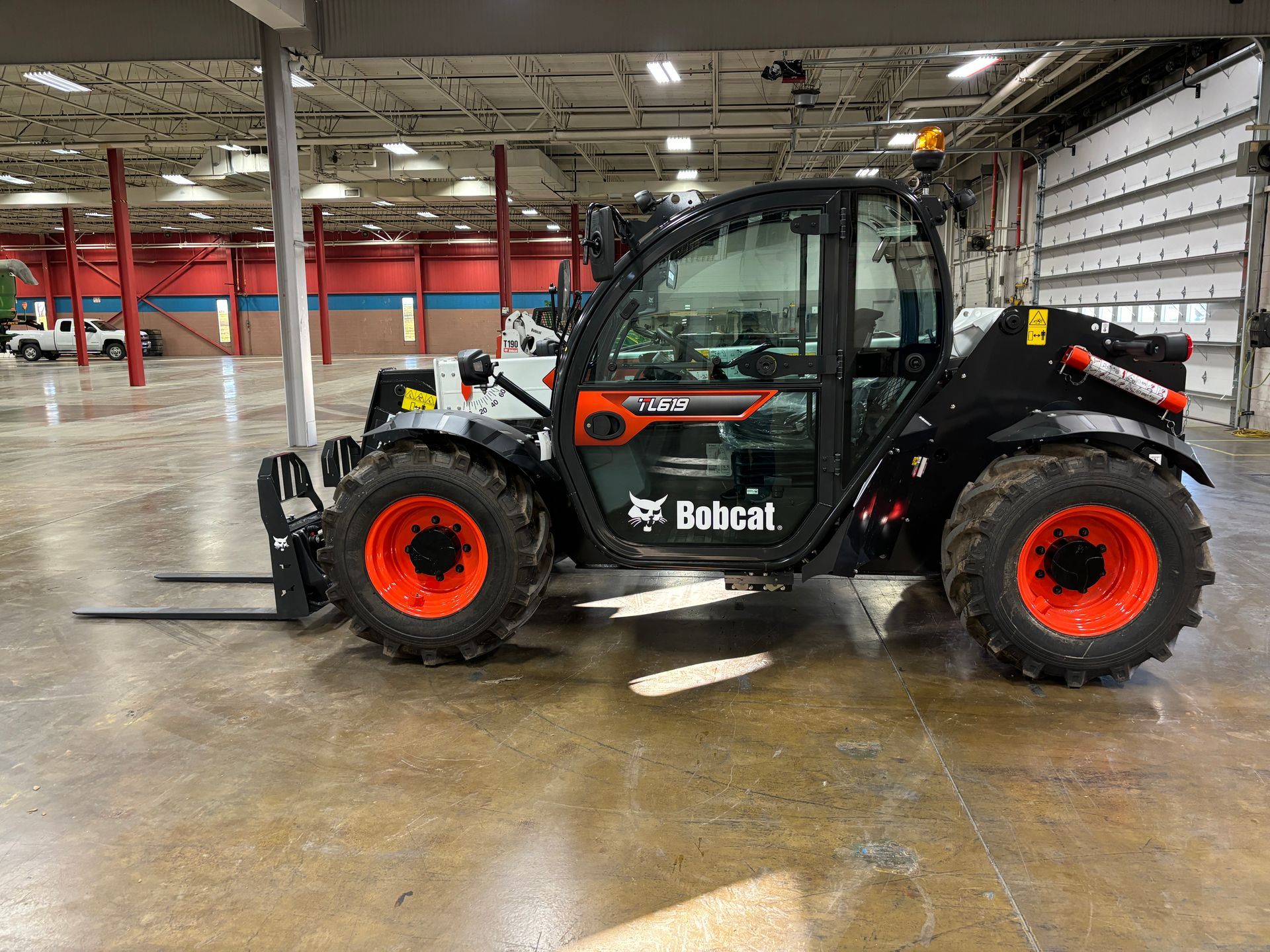

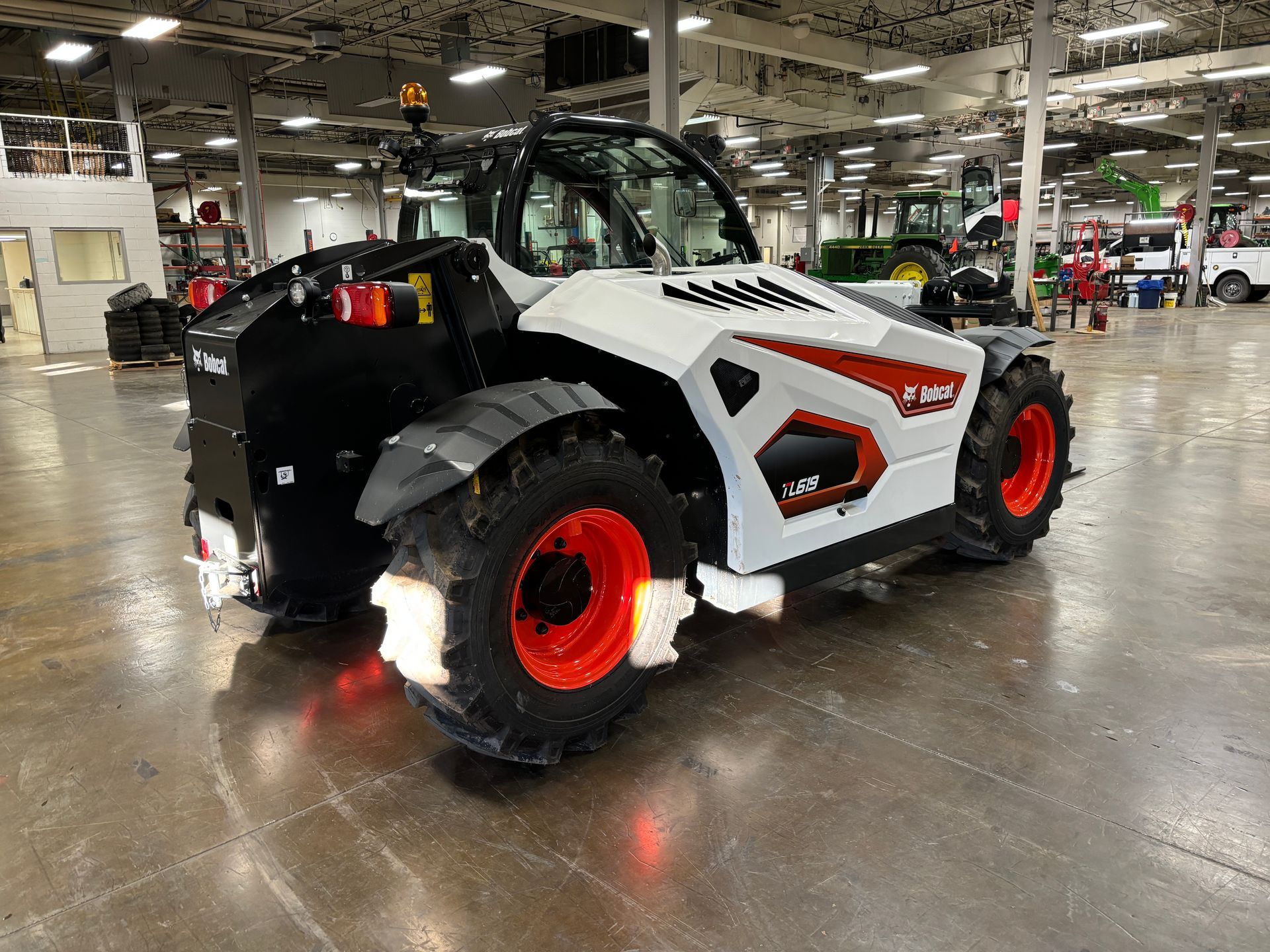

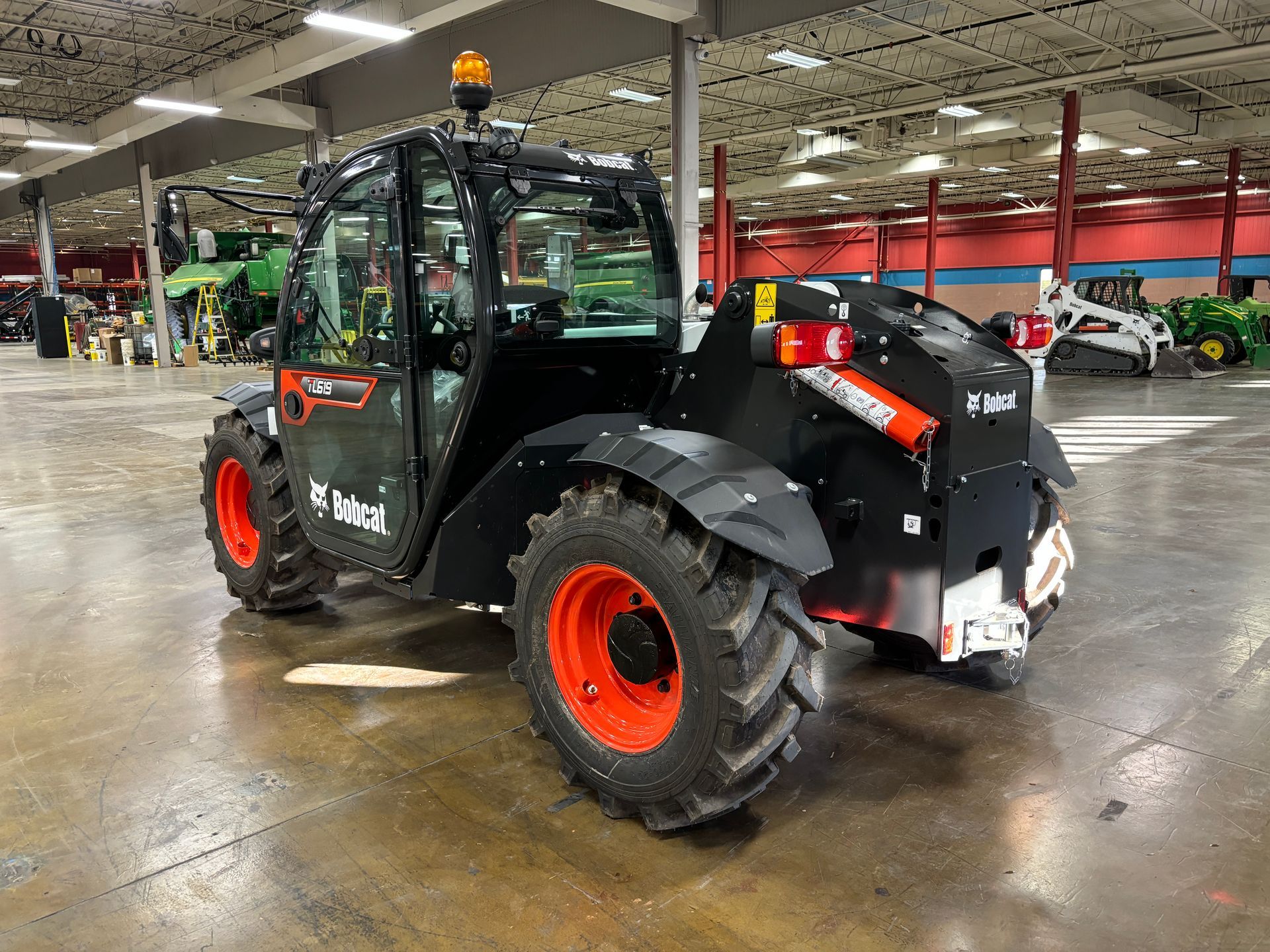

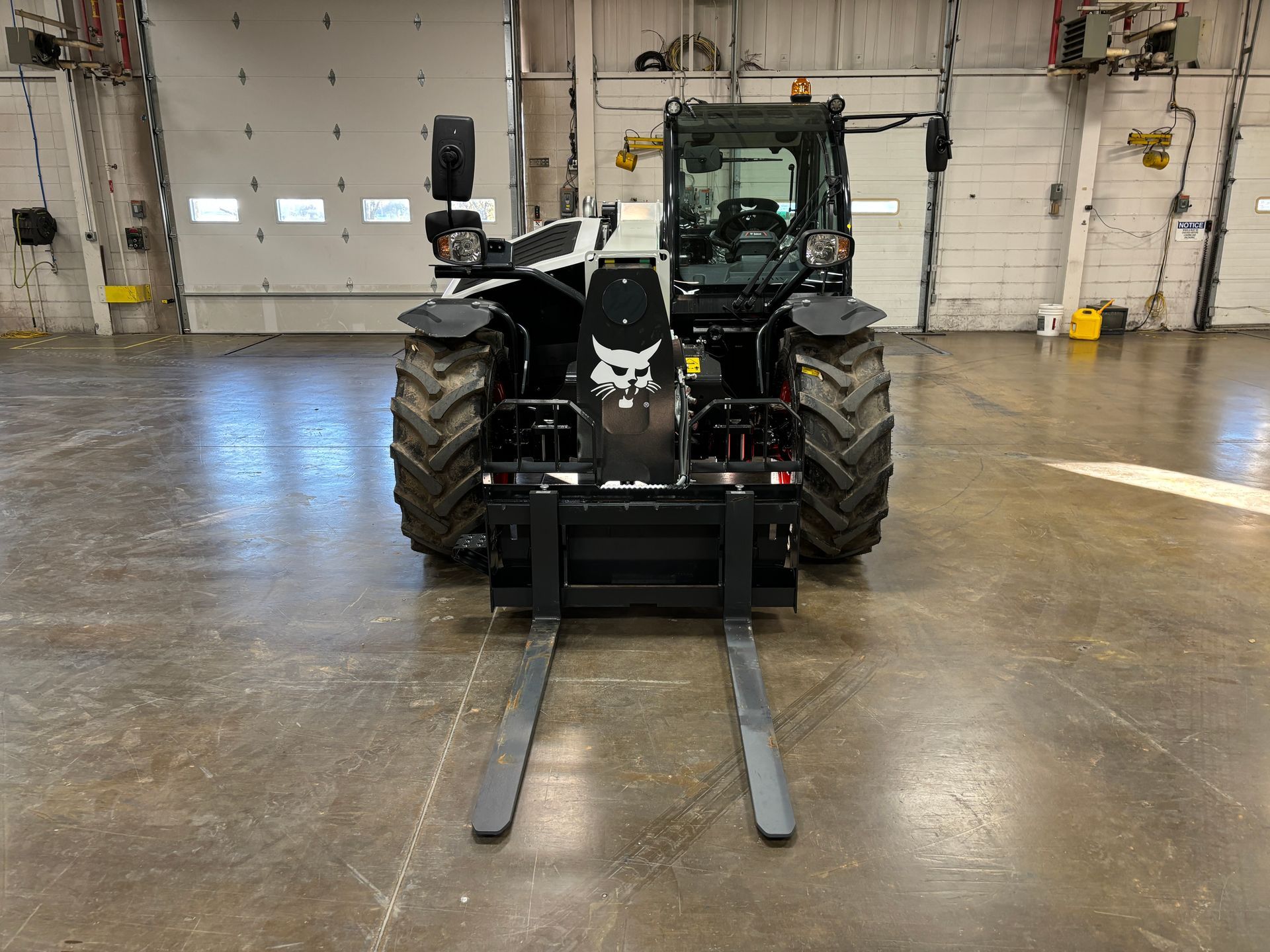

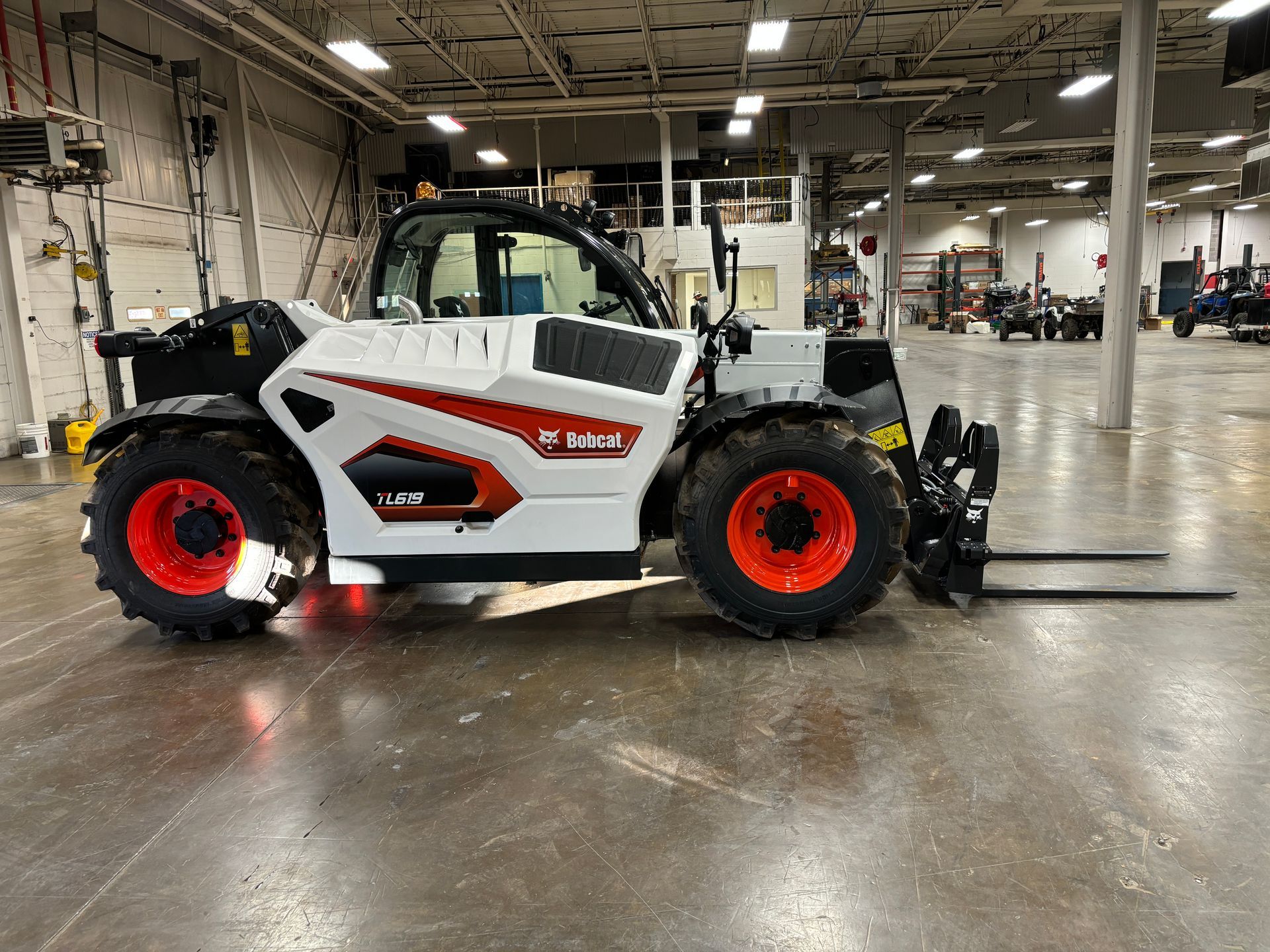

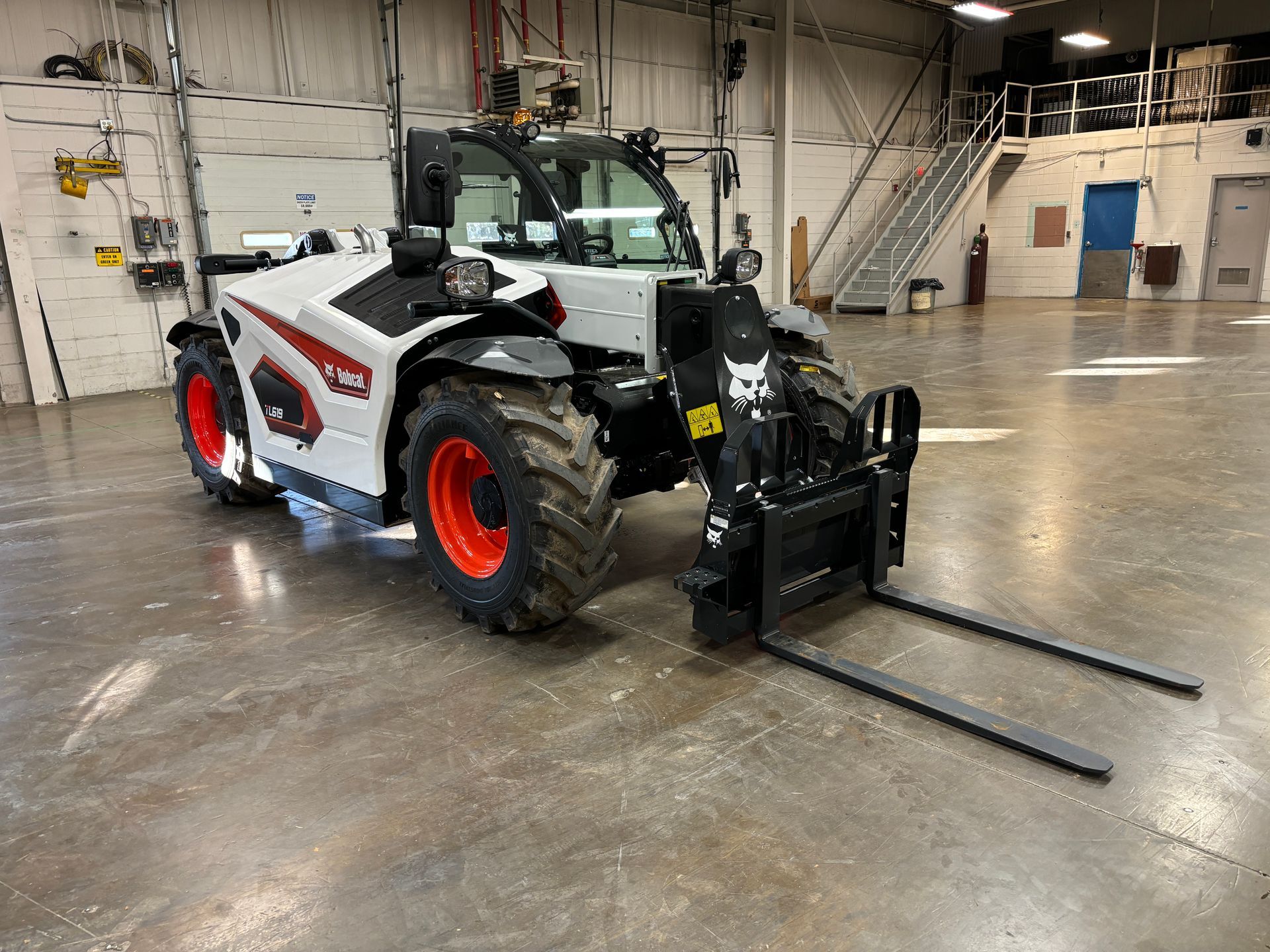

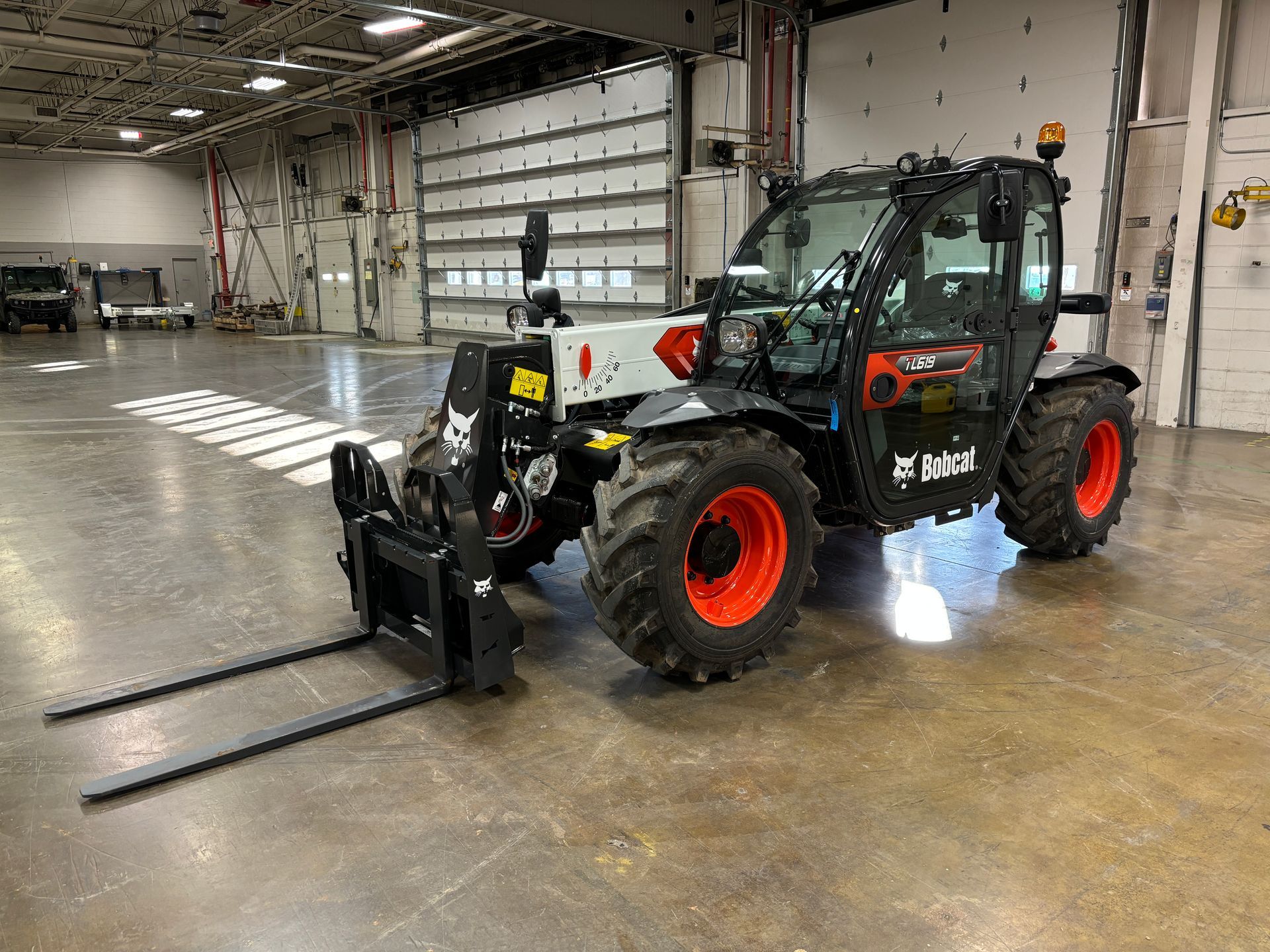

2024 Bobcat TL619 Telehandler $112,198
Features
* 2024 Bobcat TL619 Telehandler (MSPR - Call for best pricing)
* 1 Hour

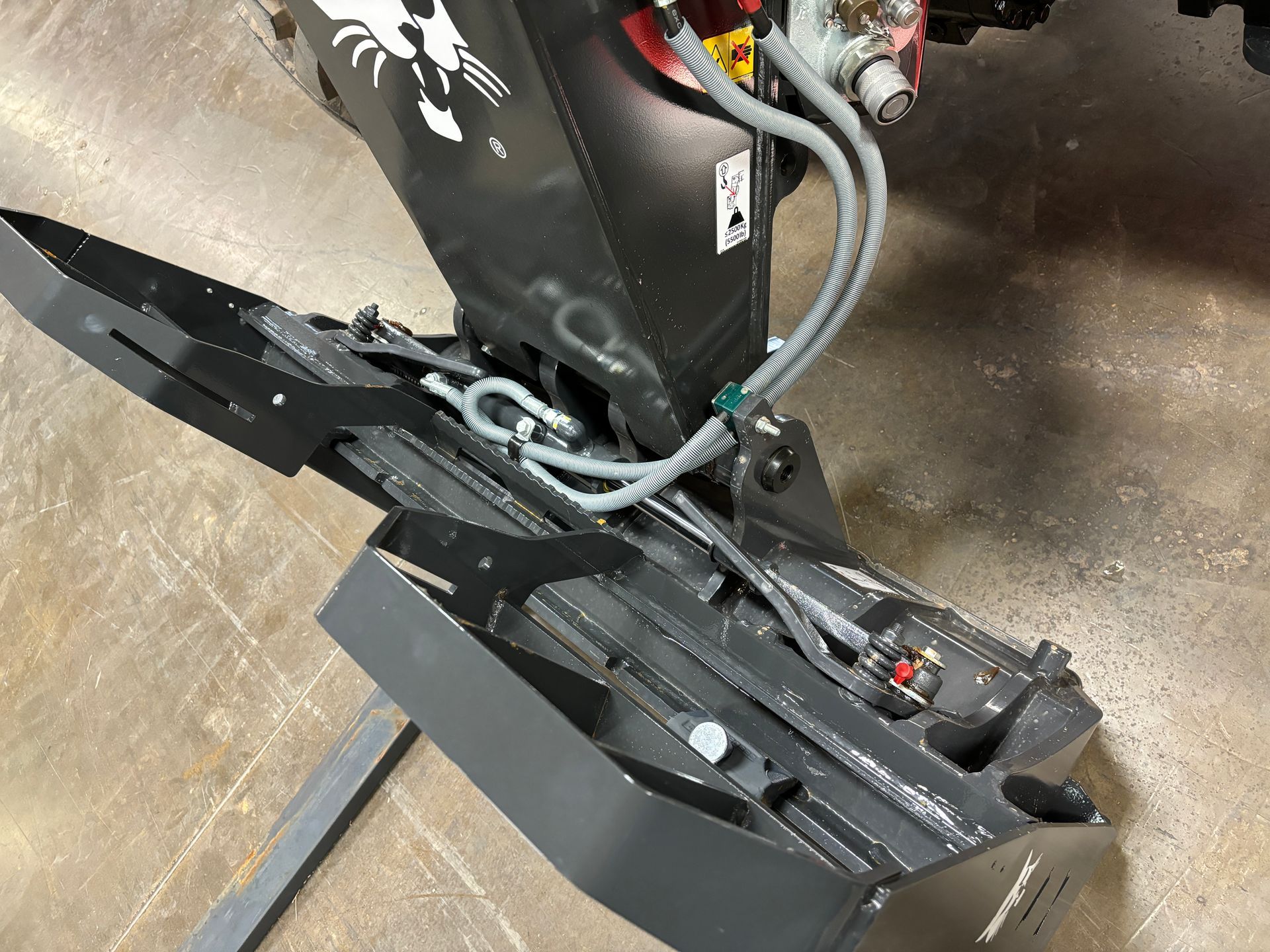

* Power Bob-Tach Package
- Power Bob-Tach Attachment Mounting System
- Auto Boom Suspension

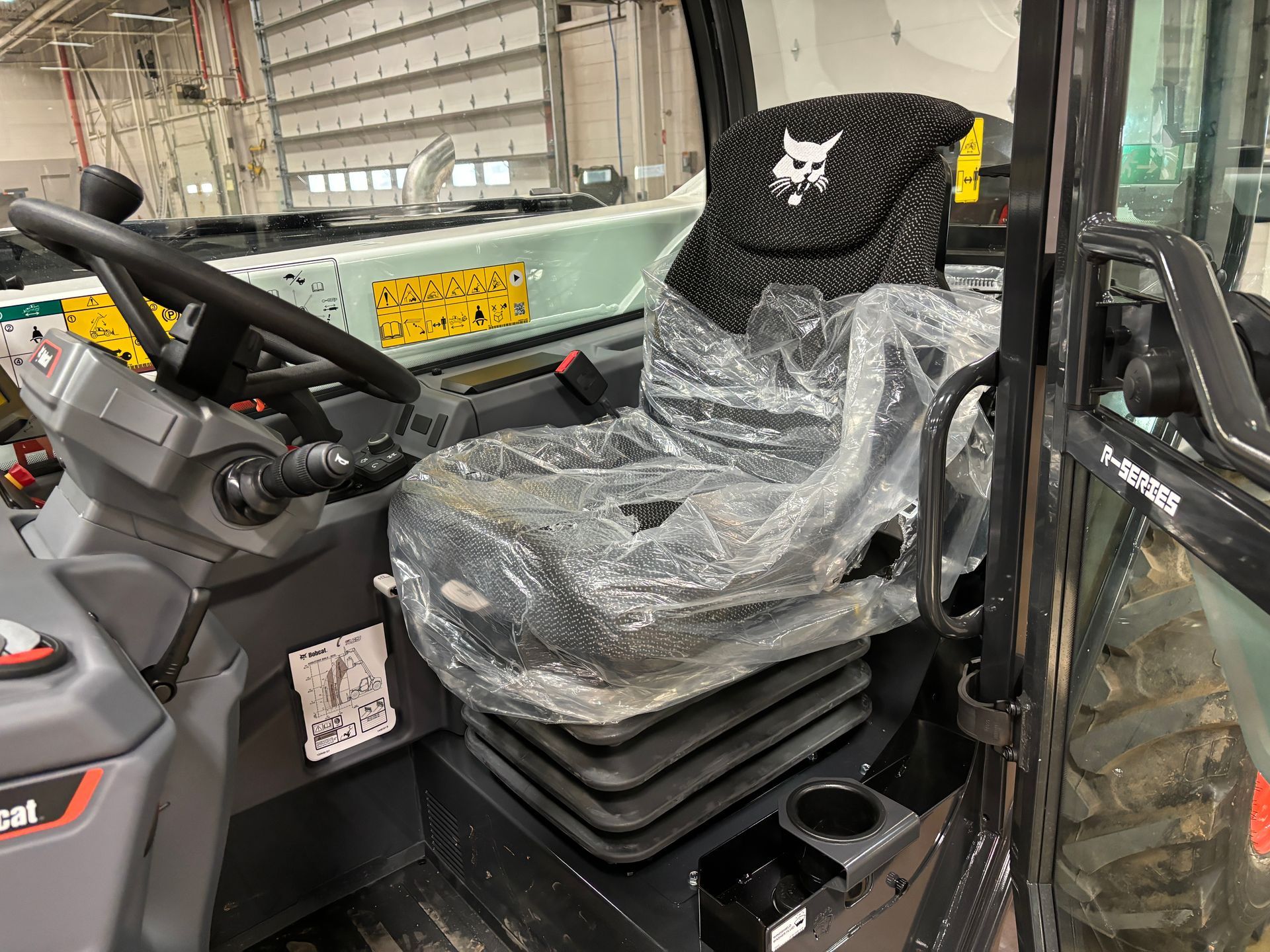

- Heated Air Suspension Seat
* Many attachment buckets/attachments to choose from
Standard Features
* Attachment Control Devices (7 pin)

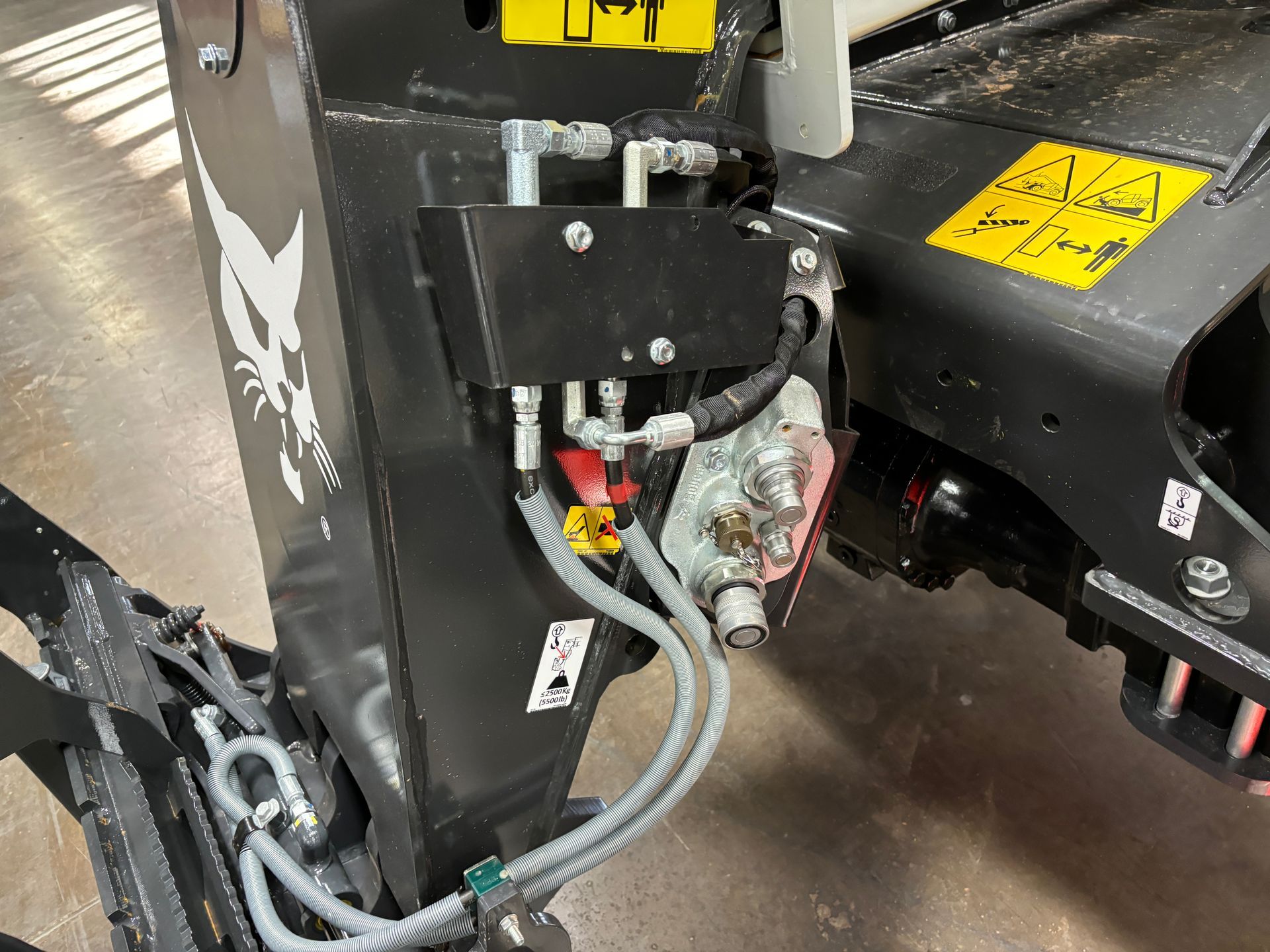

* Auxiliary Hydraulics w/ Coupler Release Block
* Back-up Alarm

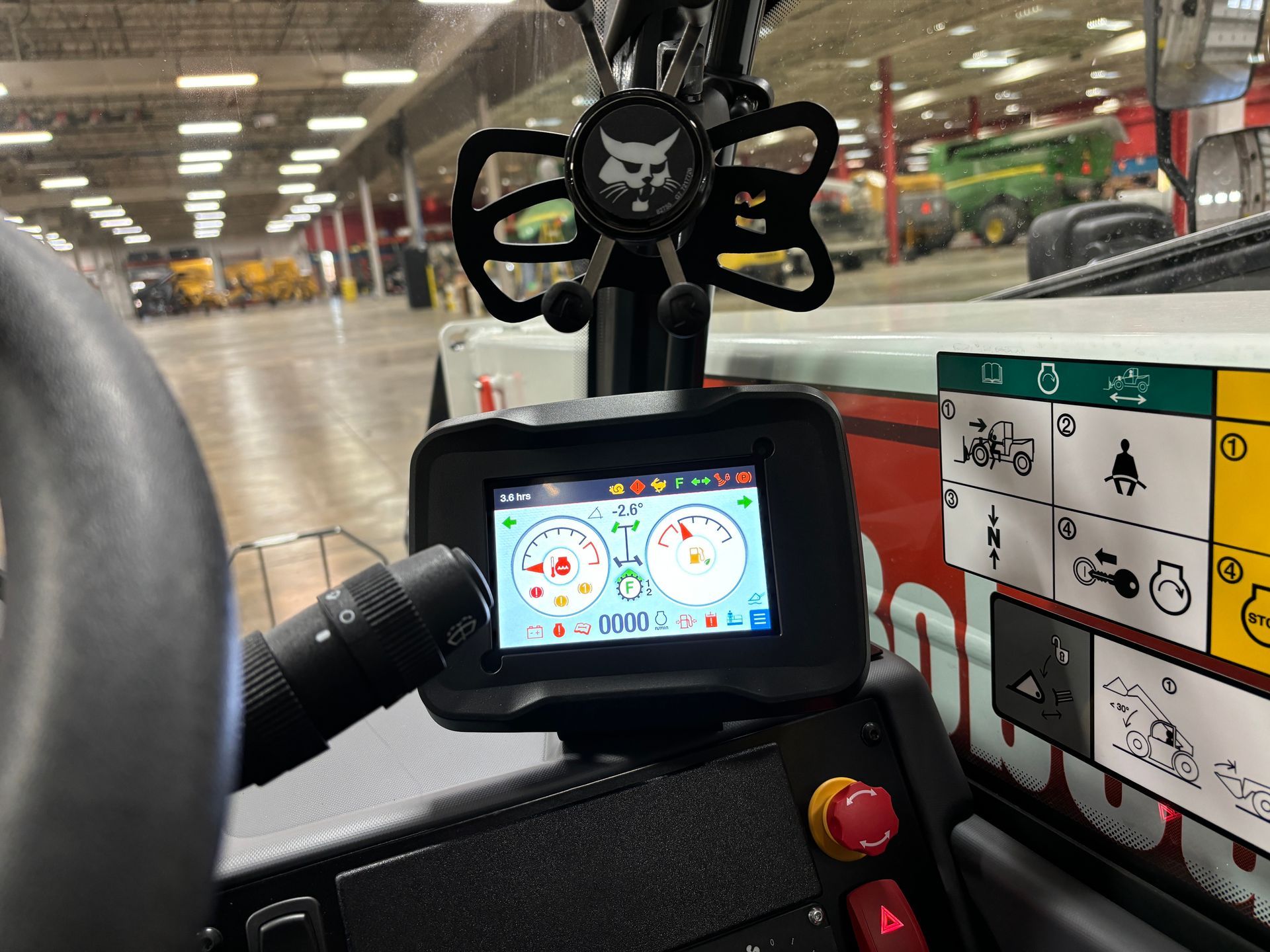

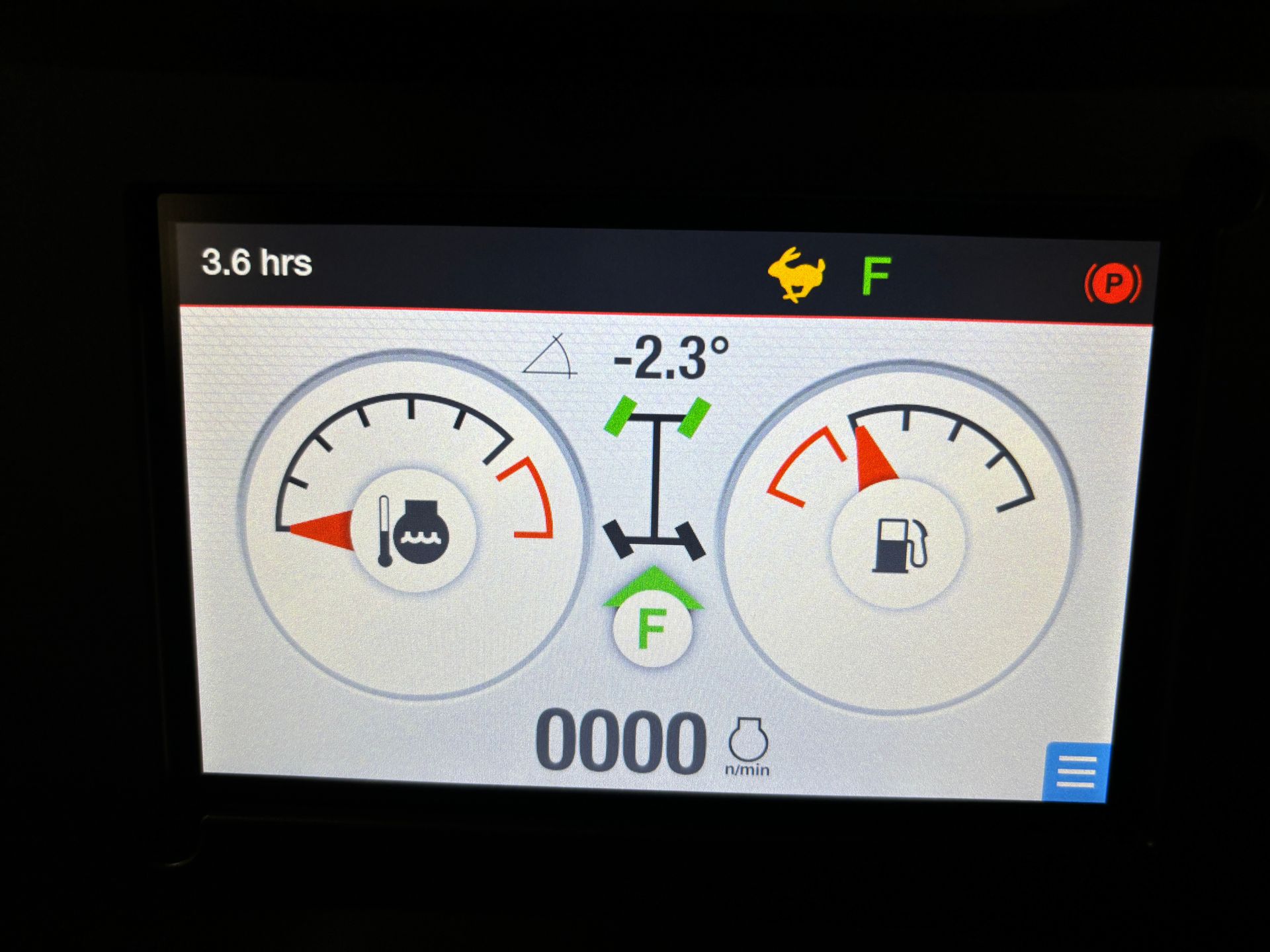

* Bobcat Standard 5" Display
* Bob-Tach Attachment Mounting System
* Boom Float
* Boom Stop
* Eco Mode
* Enclosed Cab with Heat/Air Conditioning
- Parking Brake
- Front, Rear and Roof Washer/Wipers
- Dome Light
- Power Port
- Mechanical Suspension Seat
- Retractable Seat Belt
- Tilt and Telescoping Steering
- Radio Ready
- Sun Visor
- Fixed Armrest
- ACD Keypad
* Front/Crab/Four-Wheel Steering

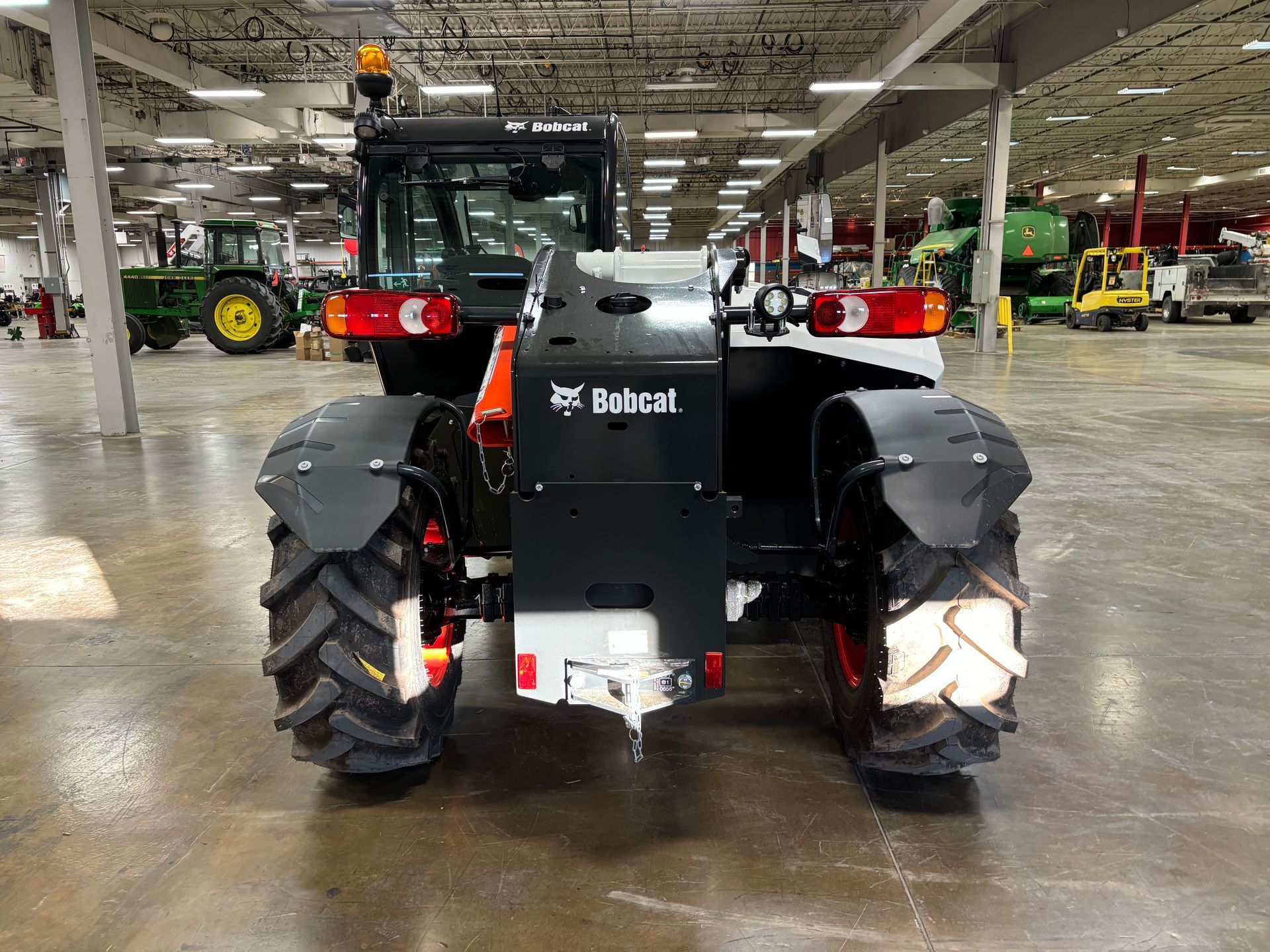

* Hitch, Rear Pin Type
* Hydrostatic Transmission with 2-Speed & Advanced Attachment Control
* Instrumentation:
- Hour Meter
- RPM, System Voltage, Engine Temperature and Fuel Gauges
- Warning Lights
* LED Work Lights
* Lights:
- Turn Signals
- Road Lights (Halogen)
- Work Lights
* Mechanical Suspension Seat
* Mirrors, Right & Left Side
* Reversible Cooling Fan with Manual and Automatic Control
* Right Hand Mirror
* Rotating Beacon
* Smart Handling System
* Spark Arrestor Exhaust System

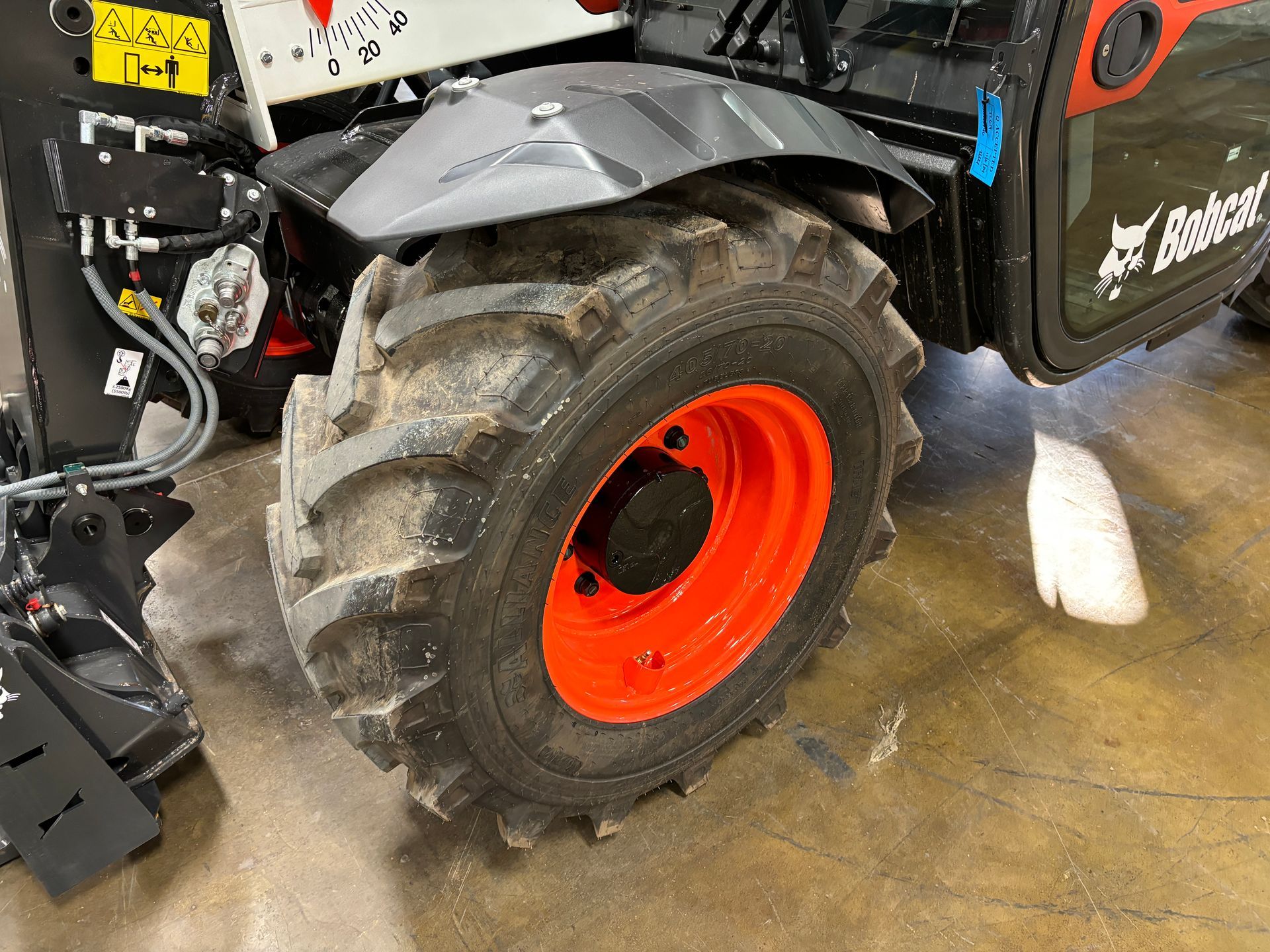

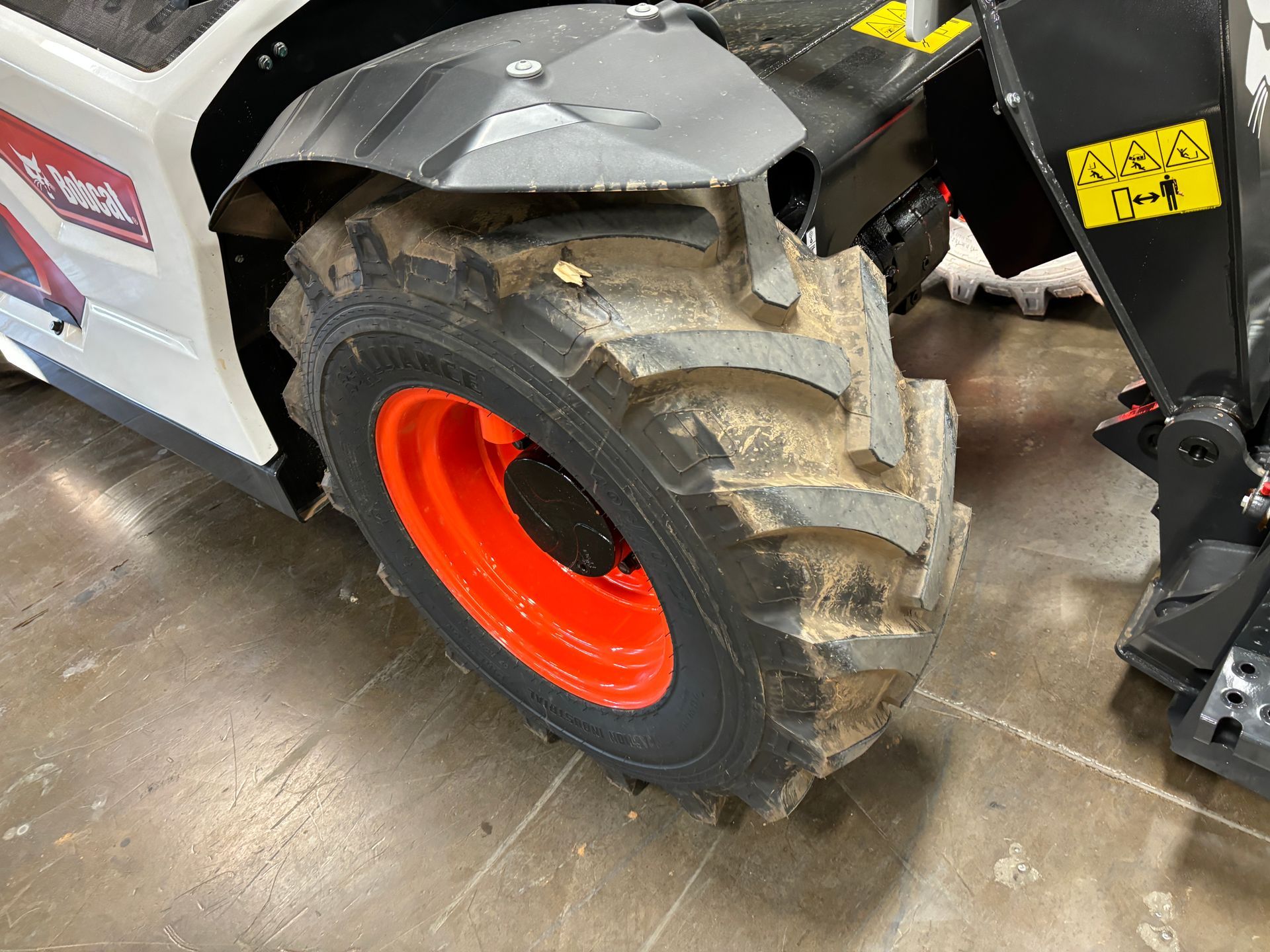

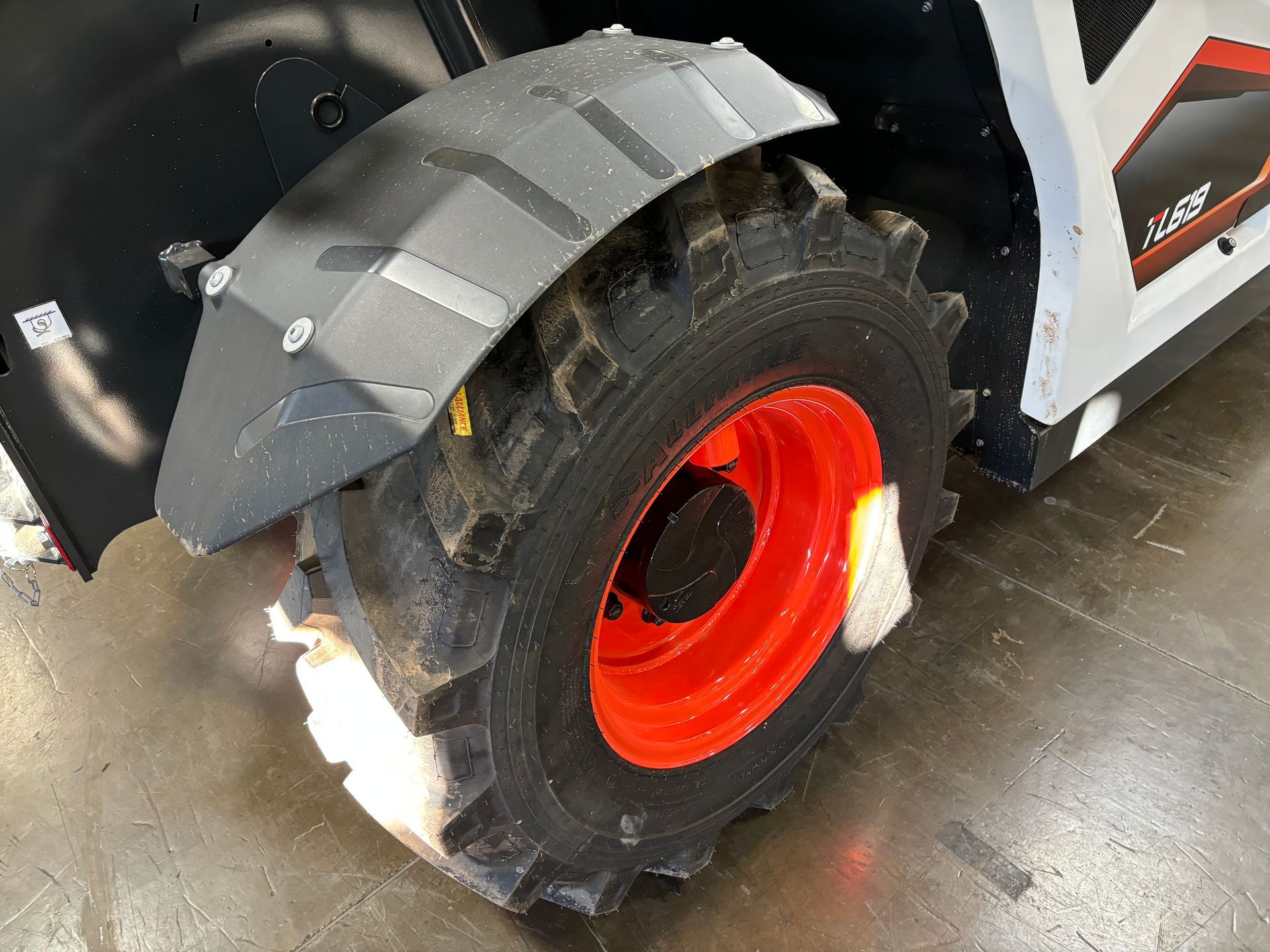

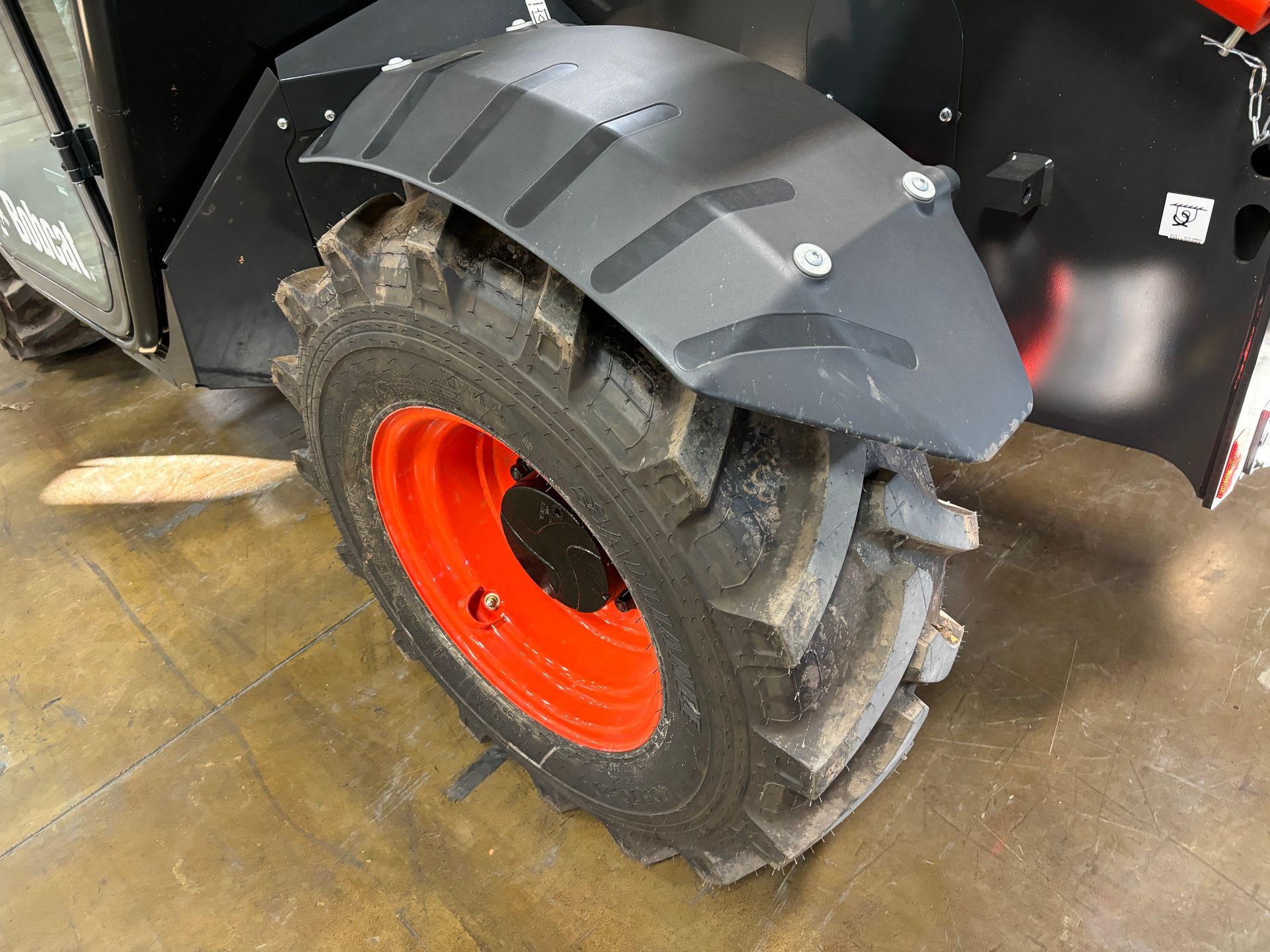

* Tires: 405/70 20
* Wheel Fenders
* Automatic Parking Brake with Slope Assist
* Warranty: 24 Months or Total of 2000 Hours (Whichever Comes First)
Specifications
ENGINE
- Emissions Tier (EPA): Tier 4
- Engine Cooling: Liquid
- Engine Fuel: Diesel
- Horsepower: 74HP
- Displacement: 207 cubic inches
- Turbocharged Engine: Optional
- Engine Make: Bobcat
- Number of Cylinders: 4
- Engine Model: Bobcat D34
- Net HP: 74HP
- Maximum Governed RPM: 2,400 RPM
- Torque RPM: 1,400 RPM
- Torque (SAE NET): 243.4 foot pounds
PERFORMANCE
- Operating Weight: 10,428 lb
- Travel Speed - High: 18.3 MPH
- Travel Speed - Low: 4.7 MPH
- Rated Capacity: 5,512 lb
- Lift Height: 230"
- Lift Height at Rated Capacity: 230"
- Max Reach: 123.3"
- Rated Capacity at Full Height: 5,512 lb
- Rated Capacity at Max Reach: 2,205 lb
- Bucket Breakout Force: 10,341 lbf
- Max Draw Bar Pull: 6,744 lb
- Boom Breakout Force: 6,519 lbf
- Reach at Maximum Height: 17.9"
- Frame Tilt: N/A
CAPACITIES
- Fuel Tank: 30.4 gal
HYDRAUILC SYSTEM
- Auxiliary Standard Flow: 21.1 gal/min
- Auxiliary Pressure: 3,626 psi
DRIVE SYSTEM
- Transmission Type: Hydrostatic
- Brake Type: Spring Applied Pressure Release (SAPR)
- Number of Forward Speeds: 2
GENERAL
- Contract Codes: VersaHandler TTC
- First Year of Production: 2021
CONTROLS

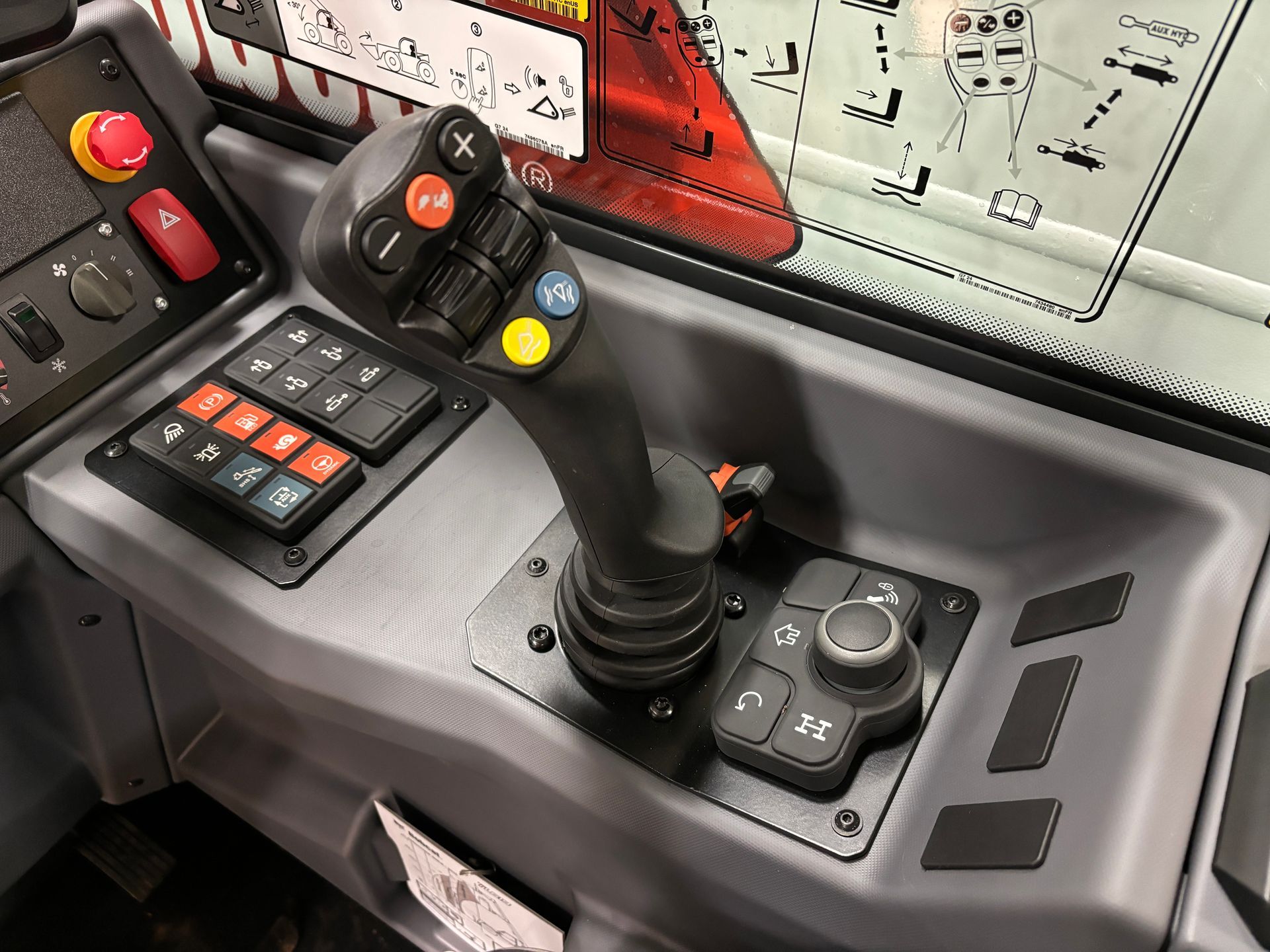

- Lift and Tilt: Multi-Function Joystick
DIMENSIONS
- Length: 184.5"
- Length Fork Heel to Rear: 175.3"
- Width: 82.7"
- Height: 84.9"
- Height with Operator Cab: 84.9"
- Cab Height with Beacon: 90.2"
- Wheelbase: 111"
- Tire Size: 405/70-20
- Outer Wheel Turn Clearance: 146.3"
- Ground Clearance: 10.4"
FEATURES
- Hydrostatic Transmission: Standard
- Enclosed Operator Cab (ROPS/ROPS): Standard
- Heater/Air Conditioning: Standard
- Operating Lights: Standard
- Quick Tach System: Optional
- Auxiliary Hydraulics: Standard
- Joystick Control: Standard
- Boom Stages: 2
- POWER Qtach: N/A
