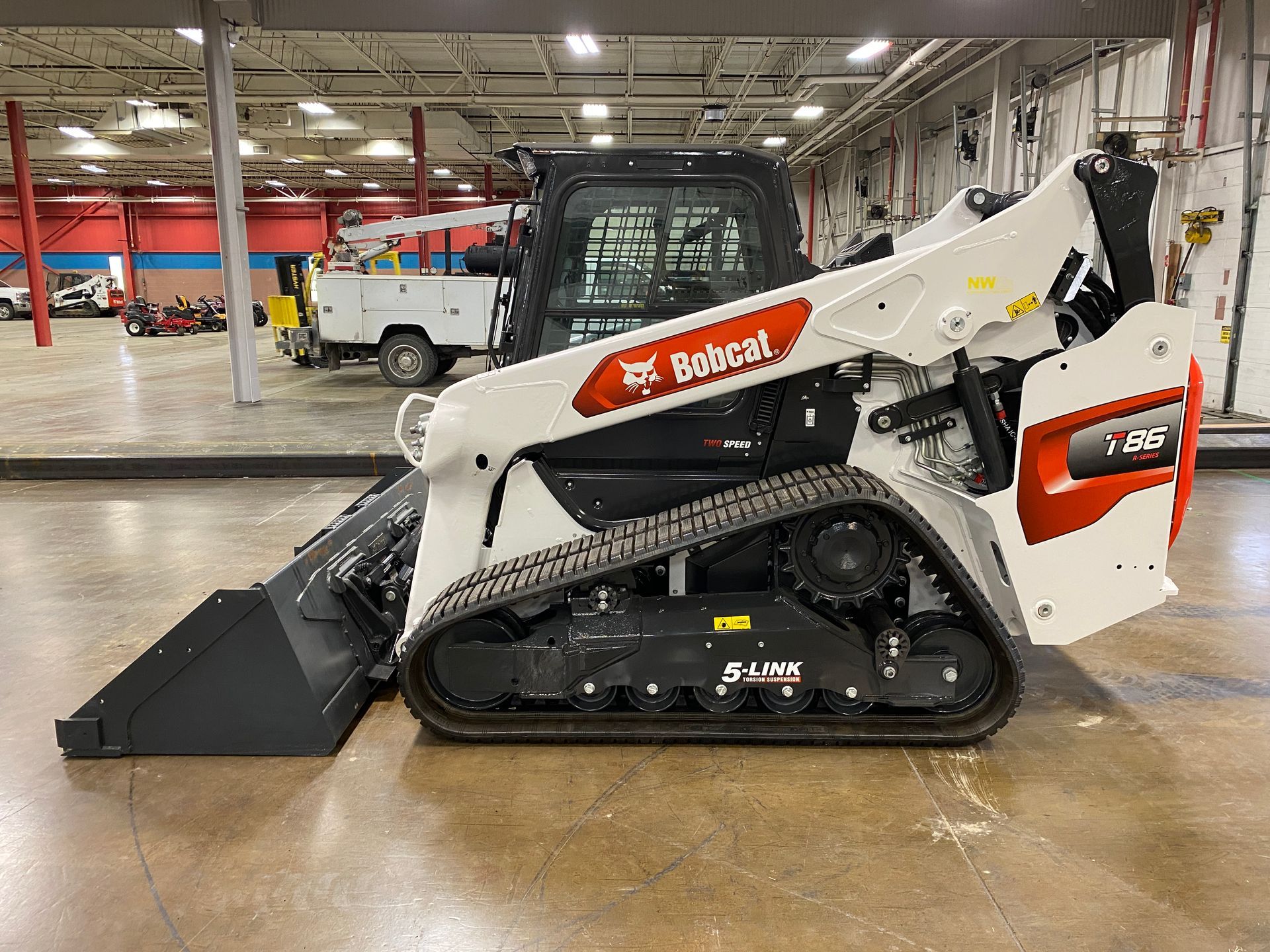

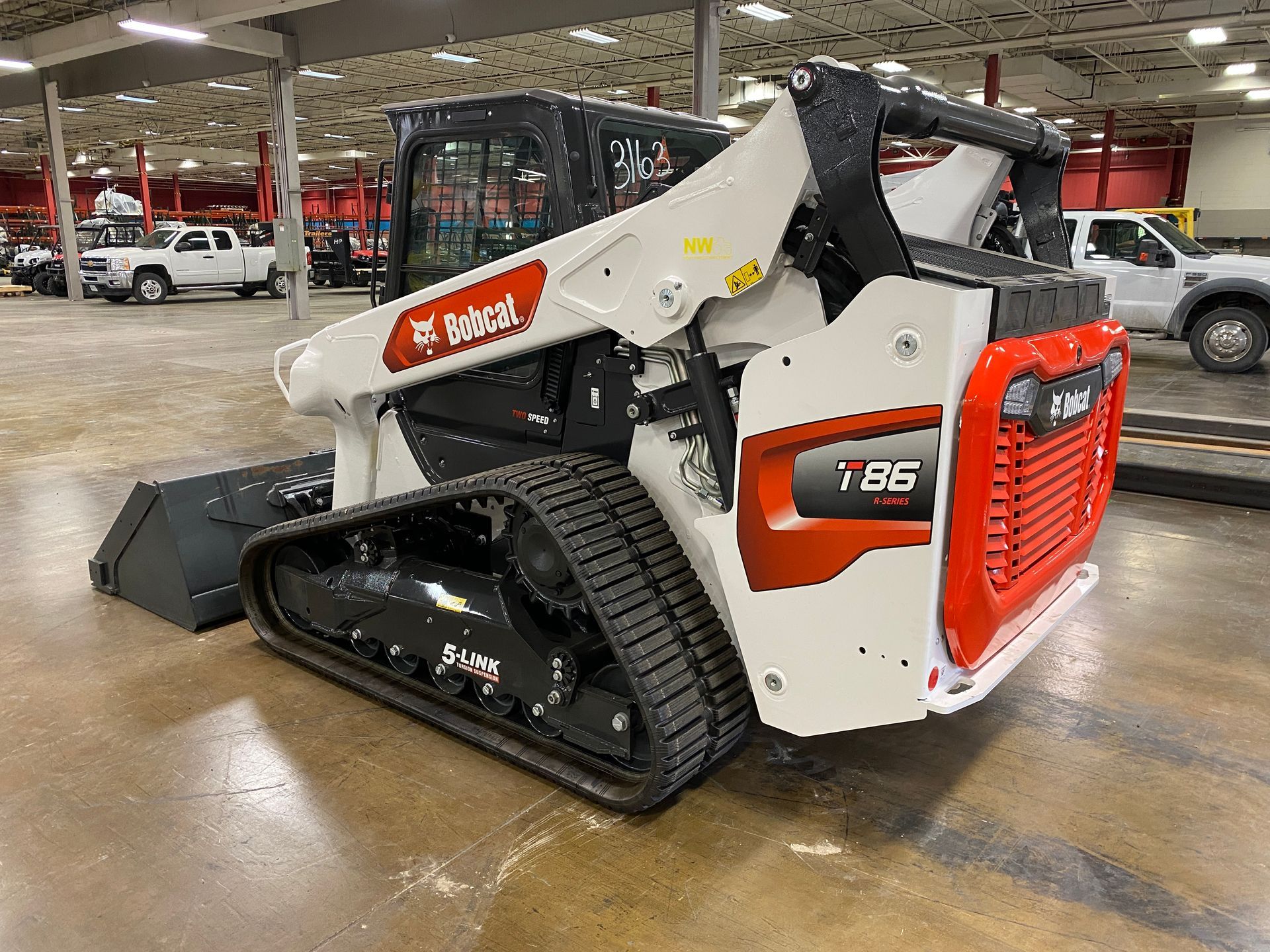

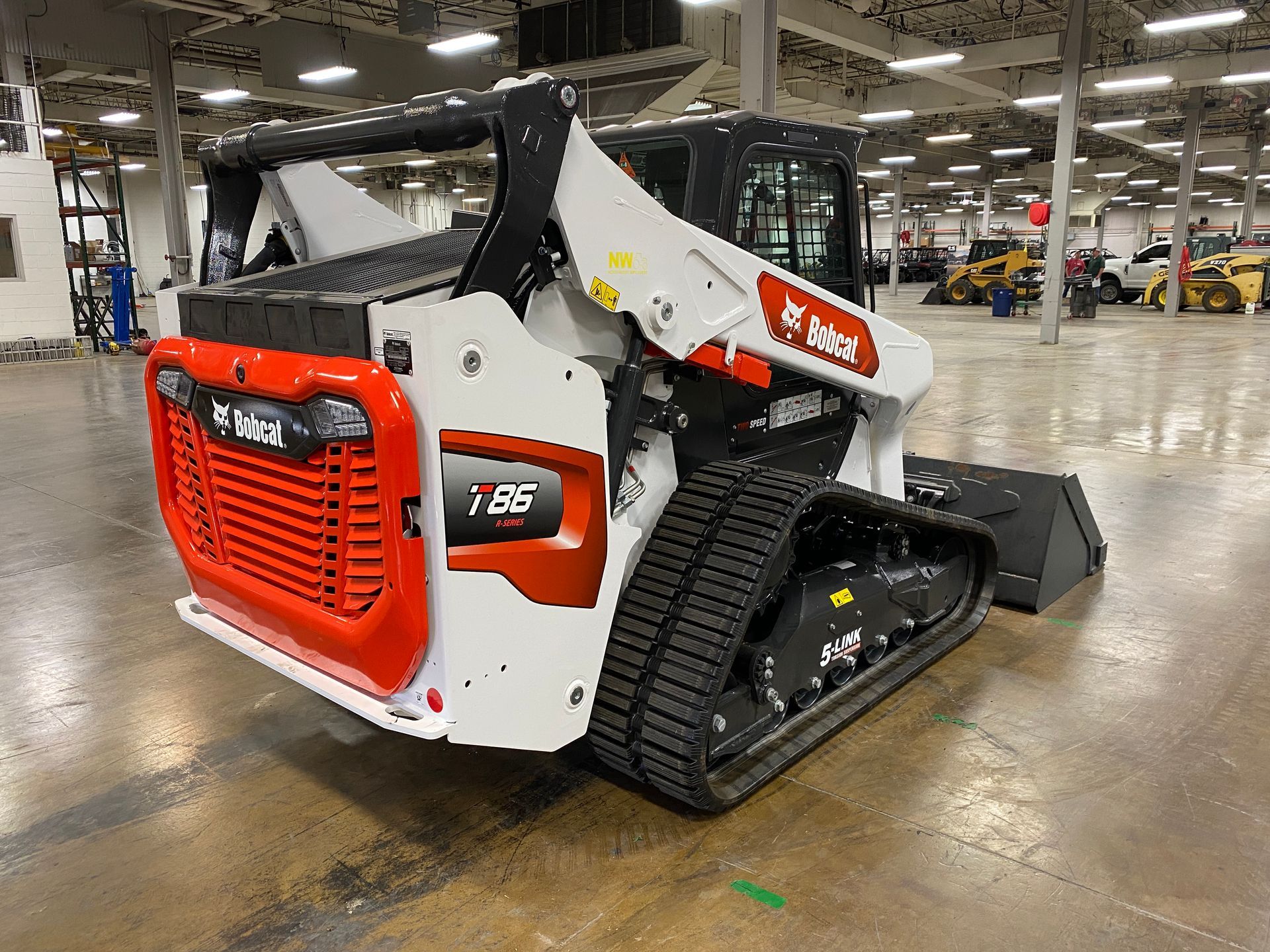

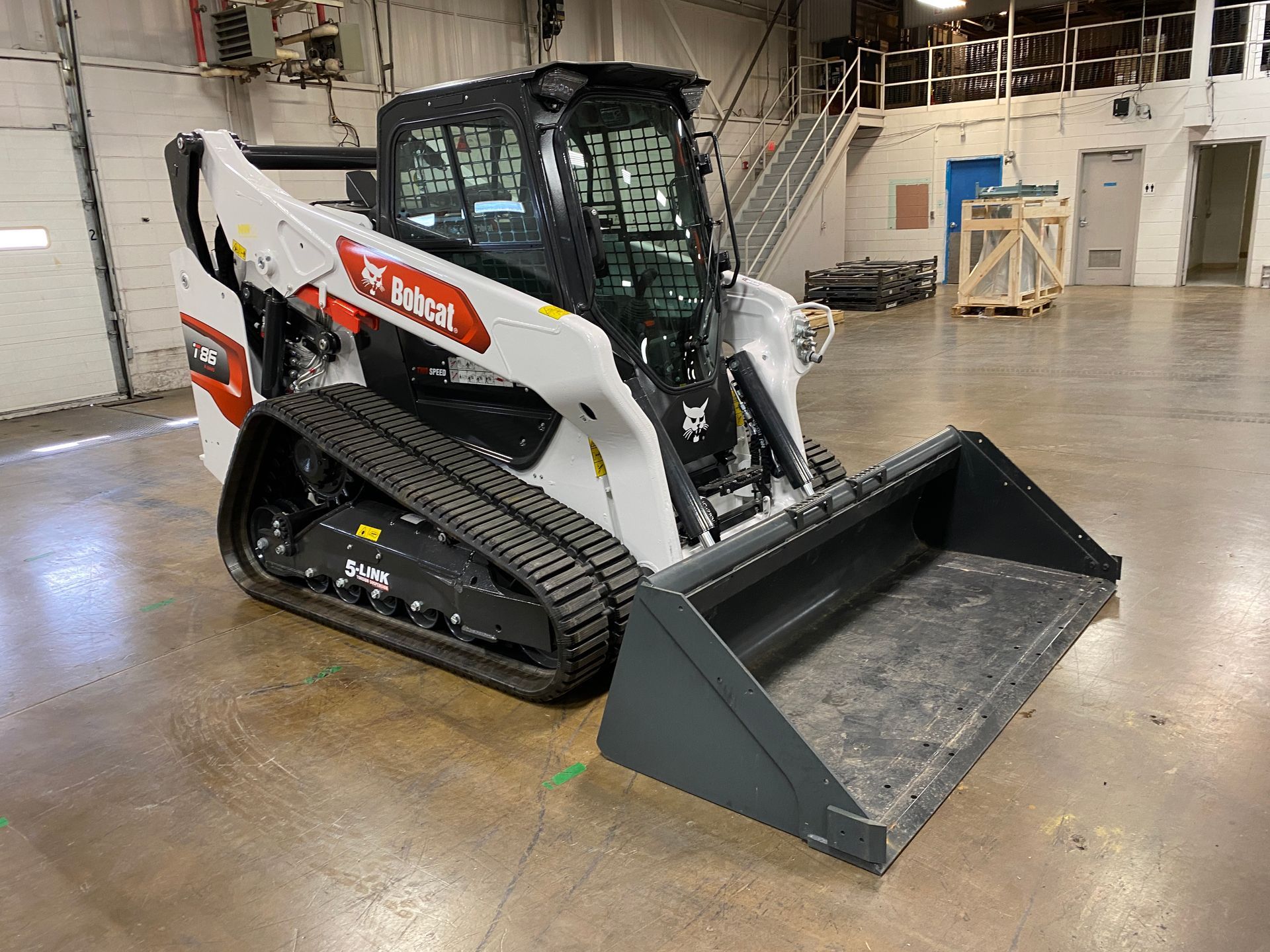

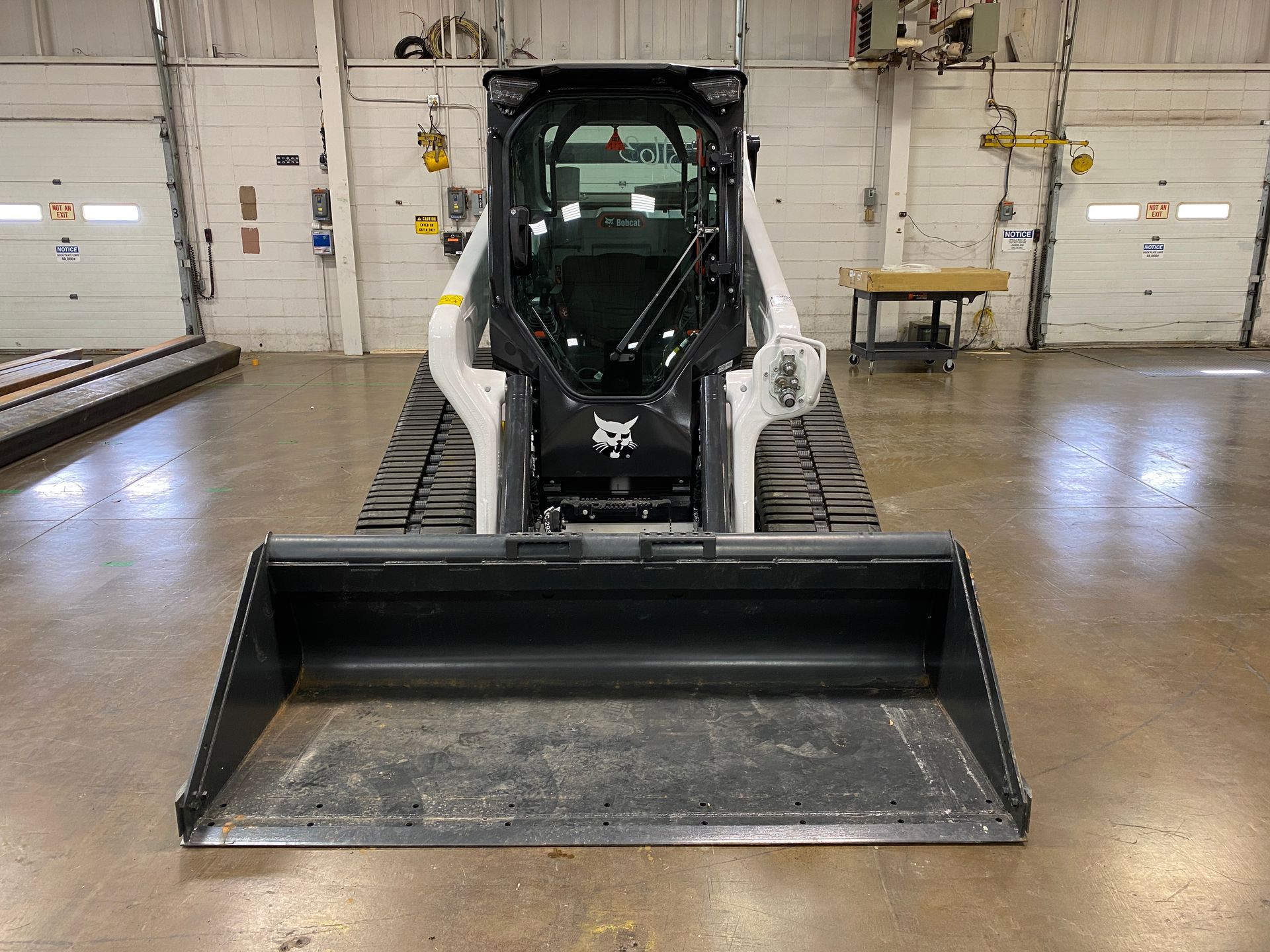

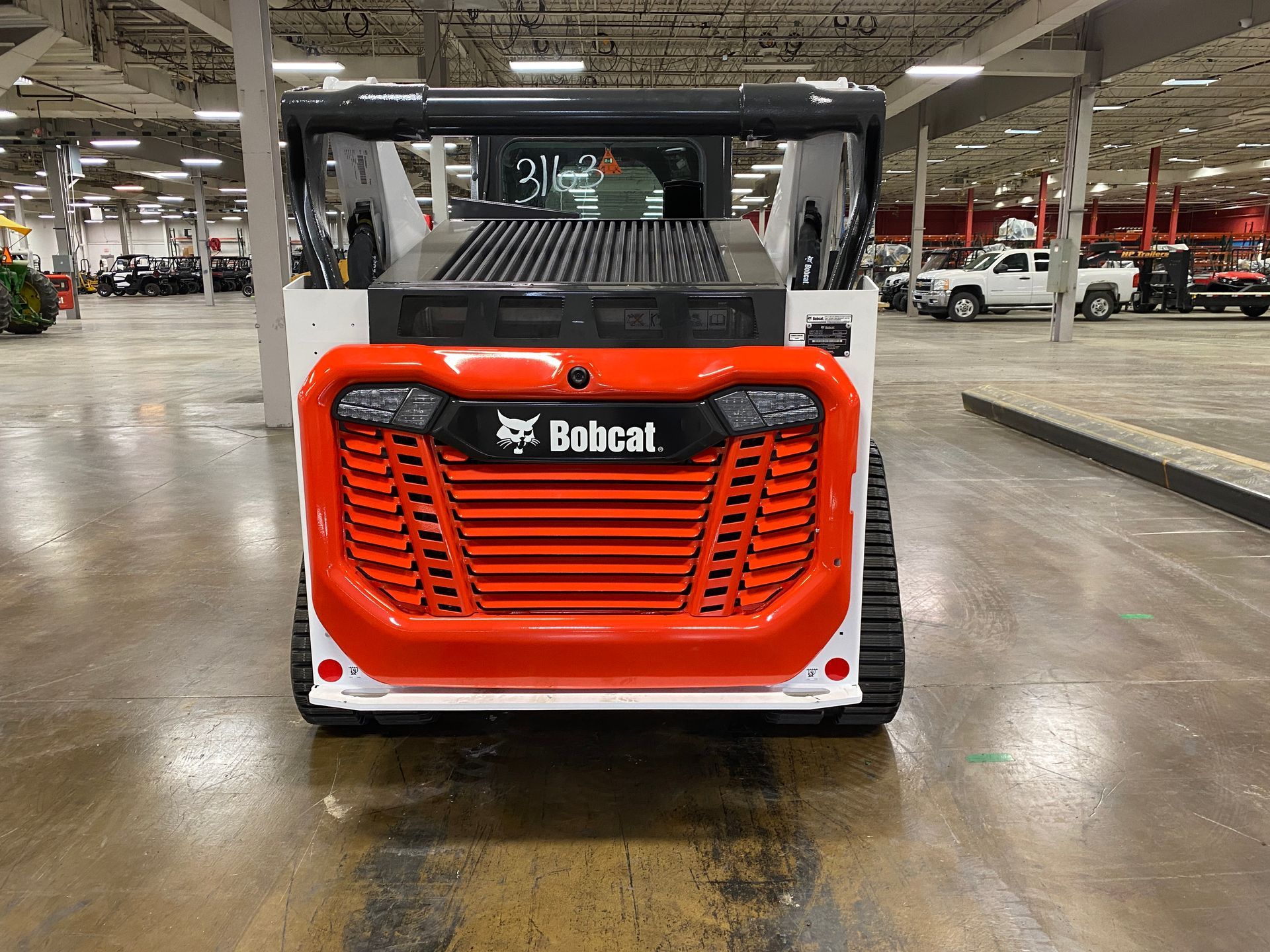

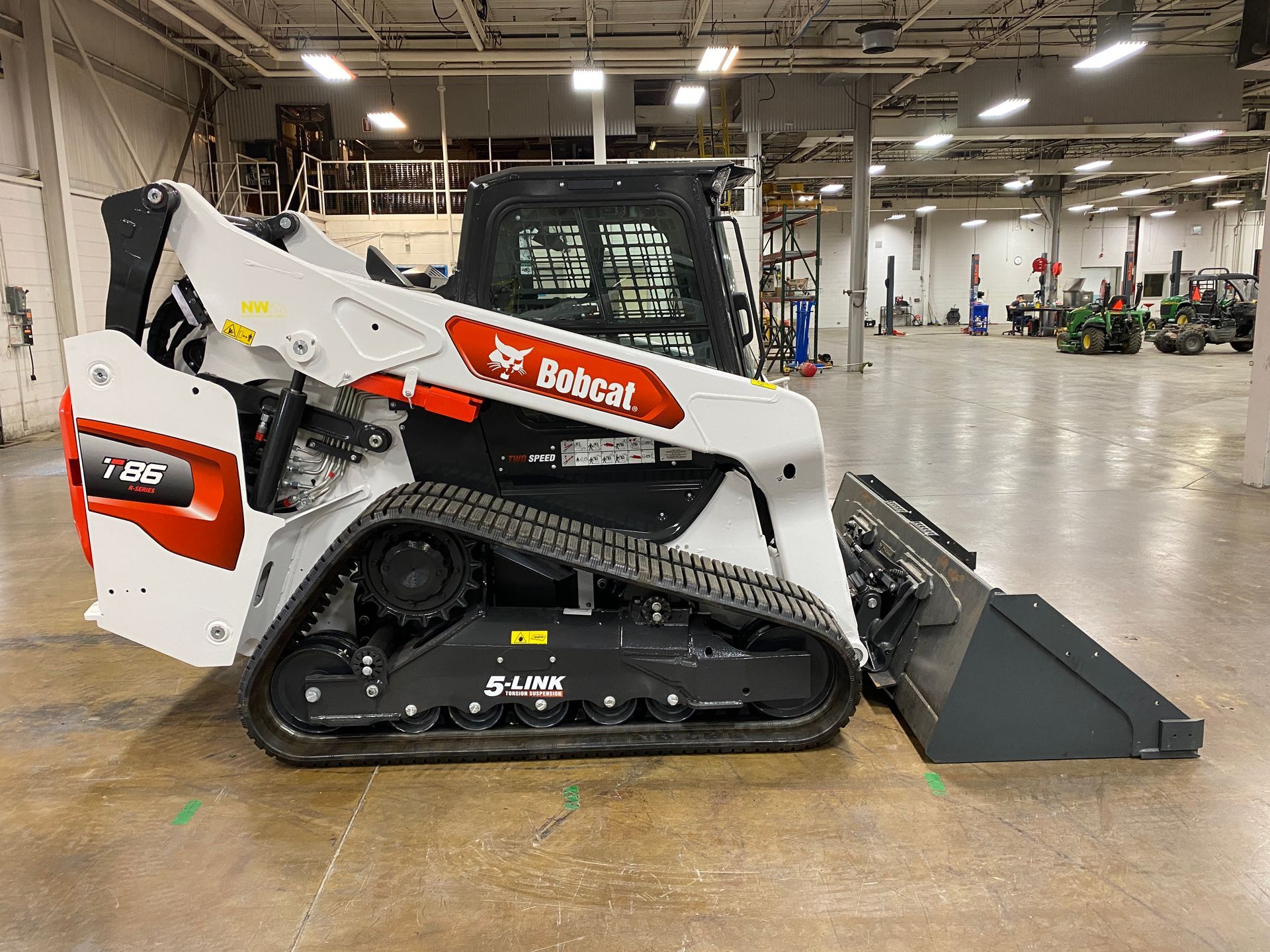

2024 Bobcat T86 R-Series Compact Track Loader $133,119
Features
* 2024 Bobcat T86 T4 Compact Track Loader
* 1 Hour
* Comfort Package

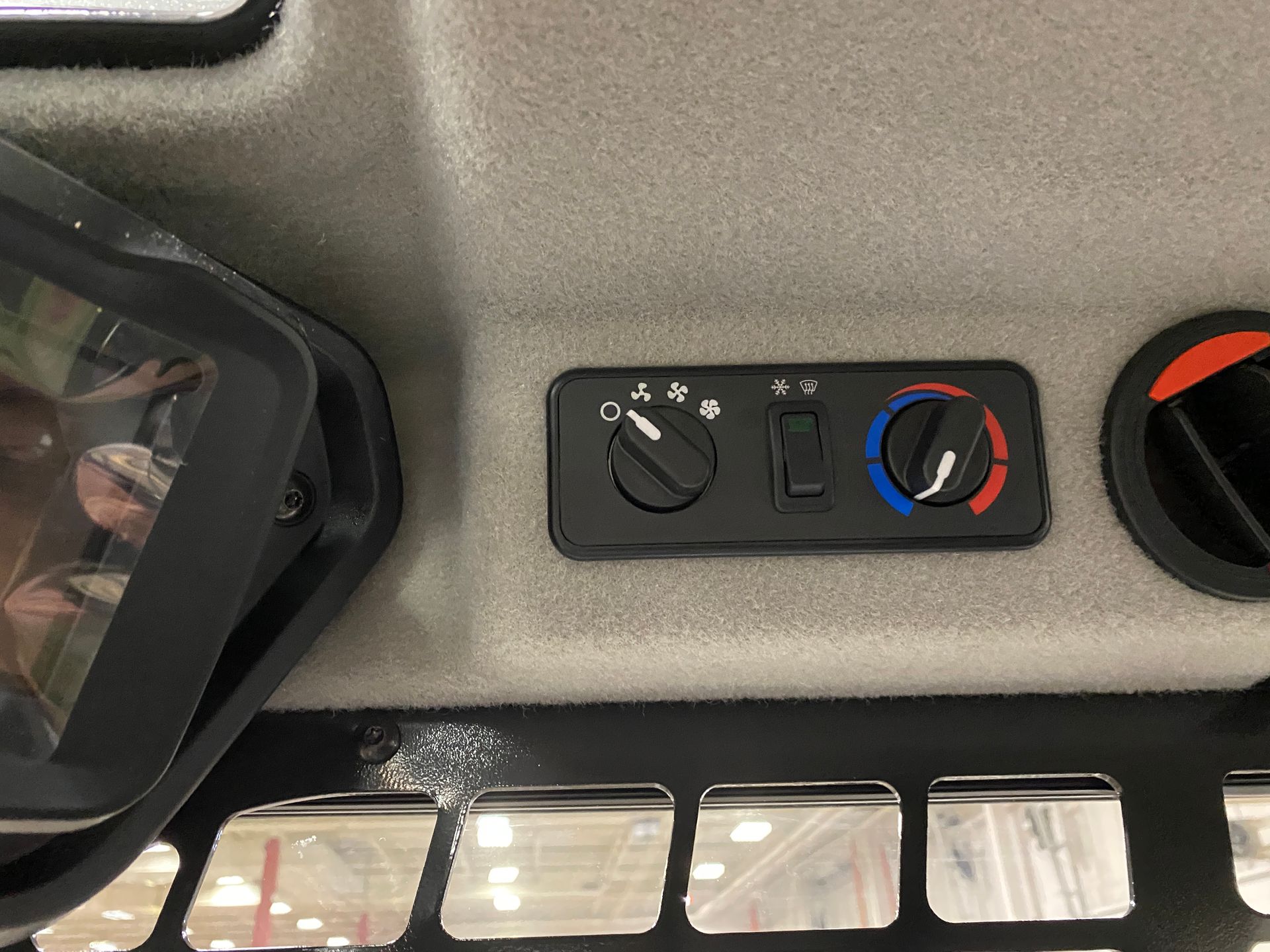

- Enclosed Cab with HVAC

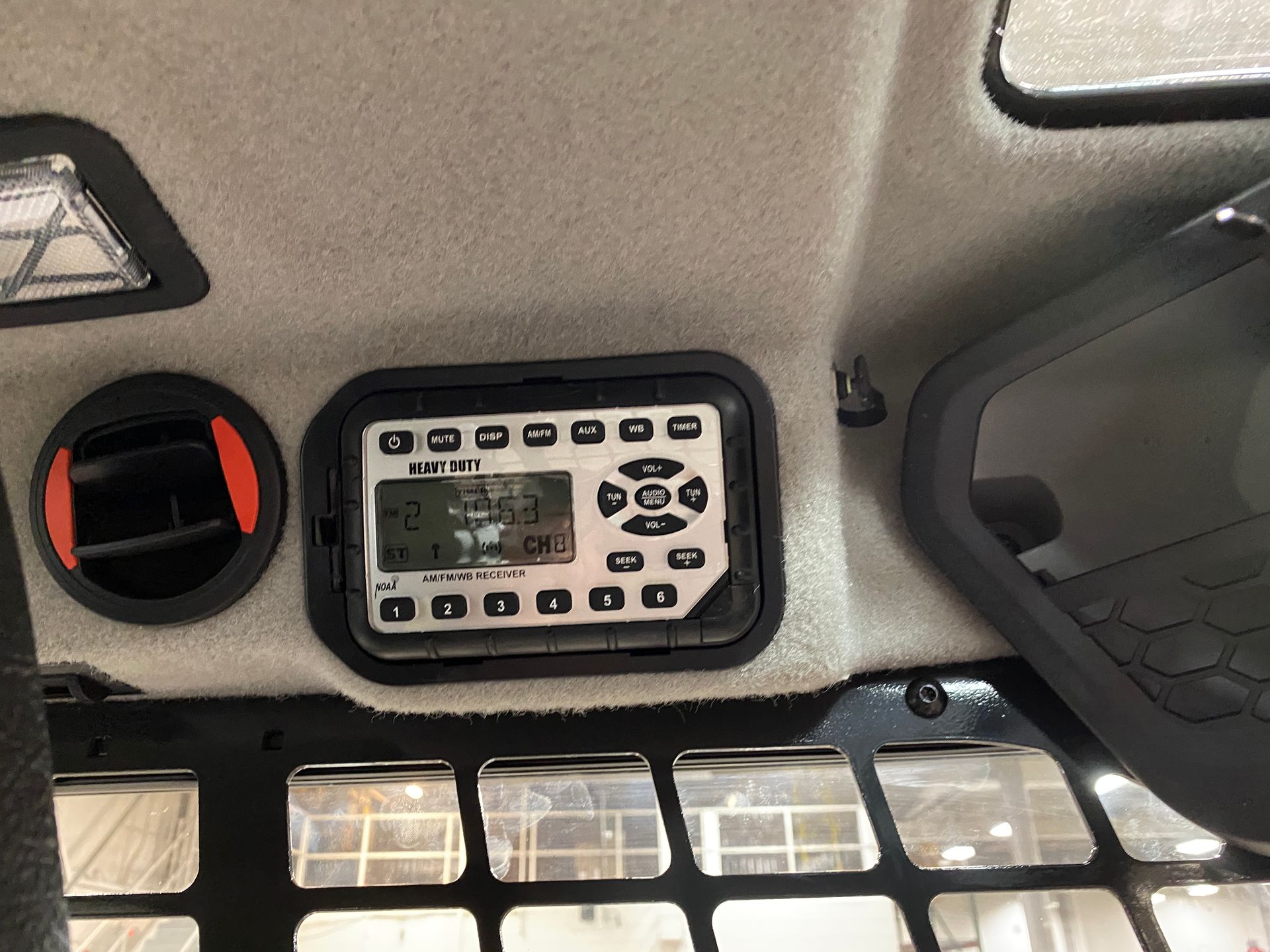

- Radio

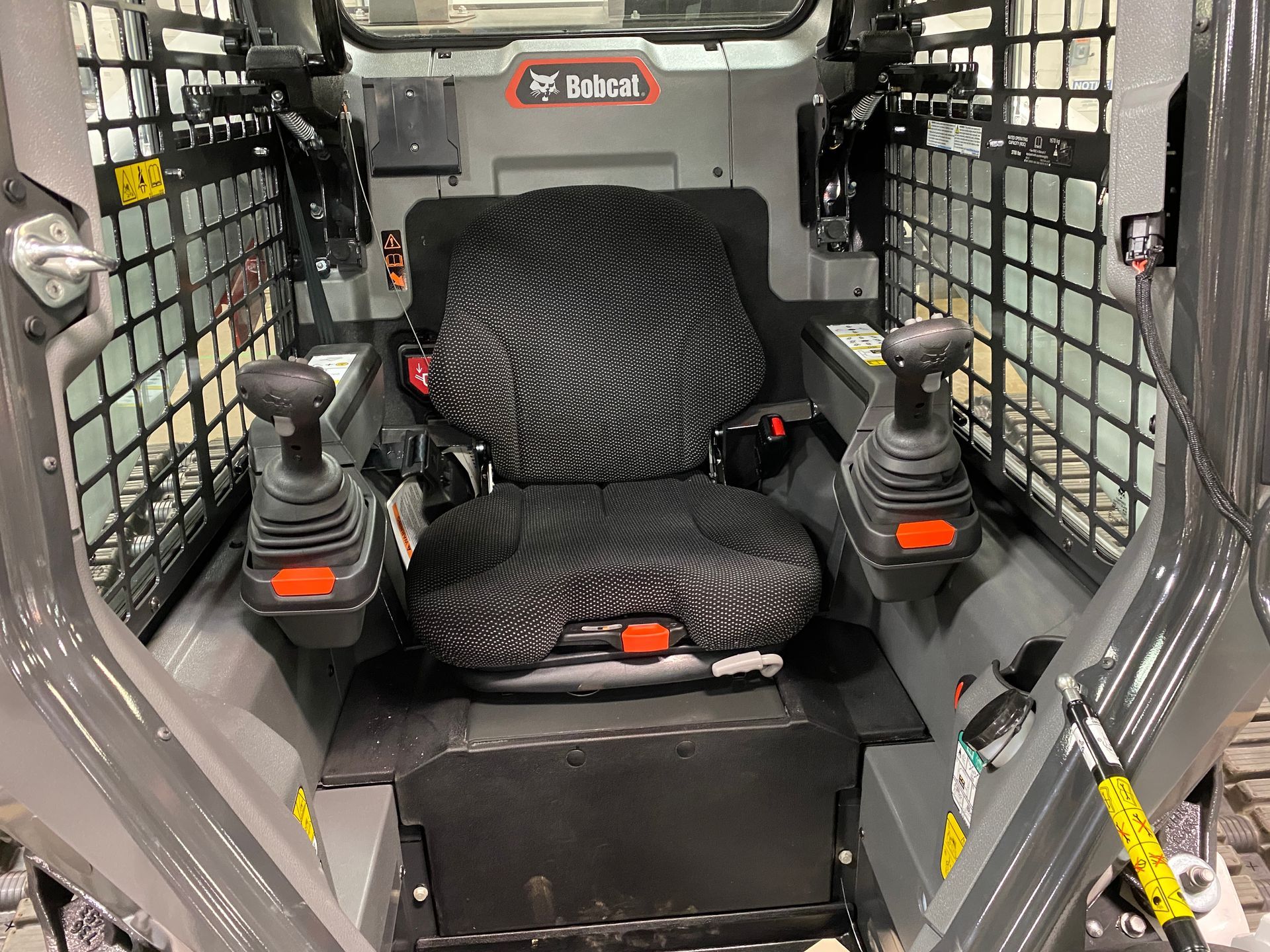

- Adjustable Heated Cloth Air Ride Seat

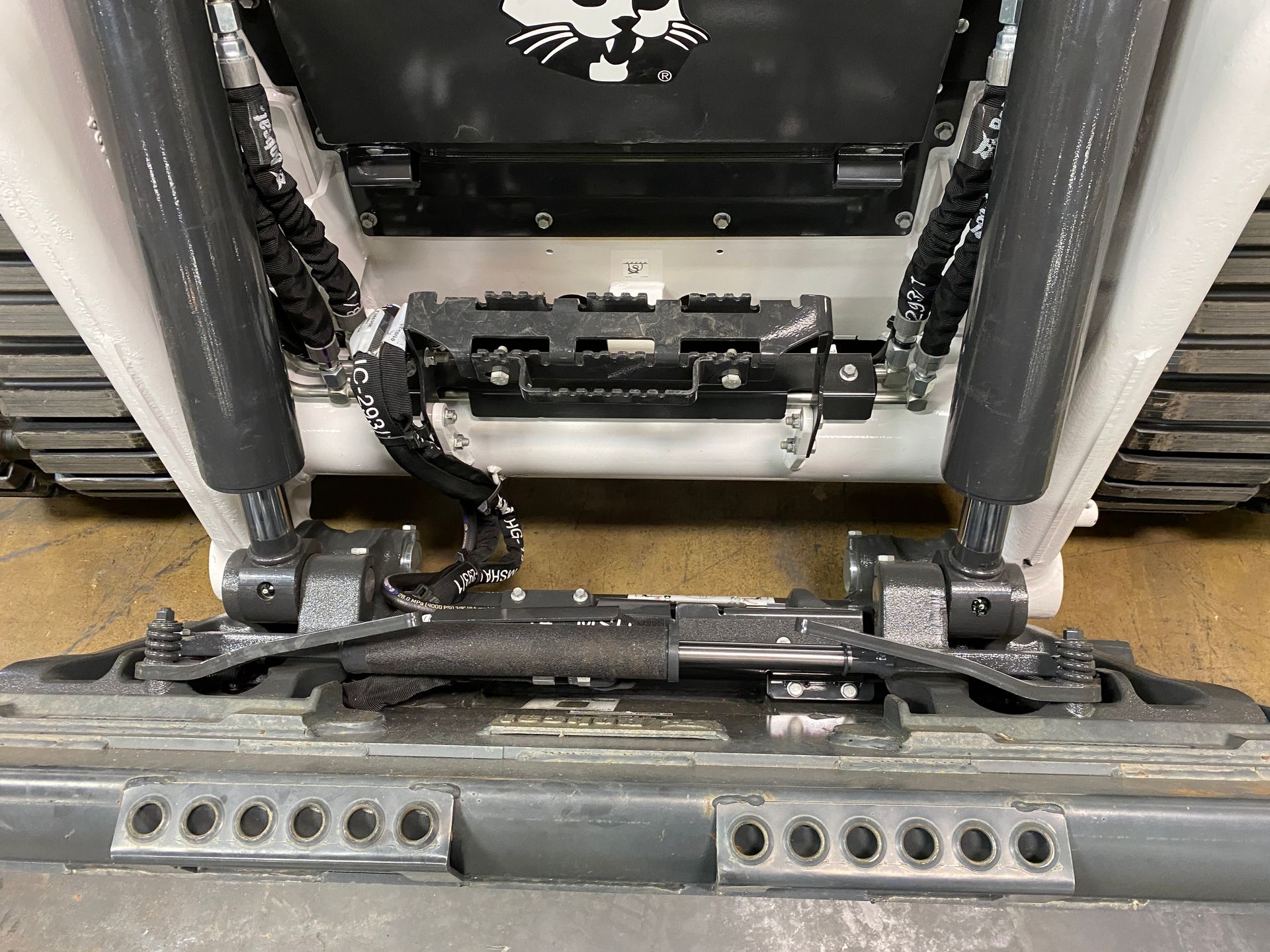

- Power Bob-Tach
- Solid Undercarriage
- 5" Display
- Premium Lights

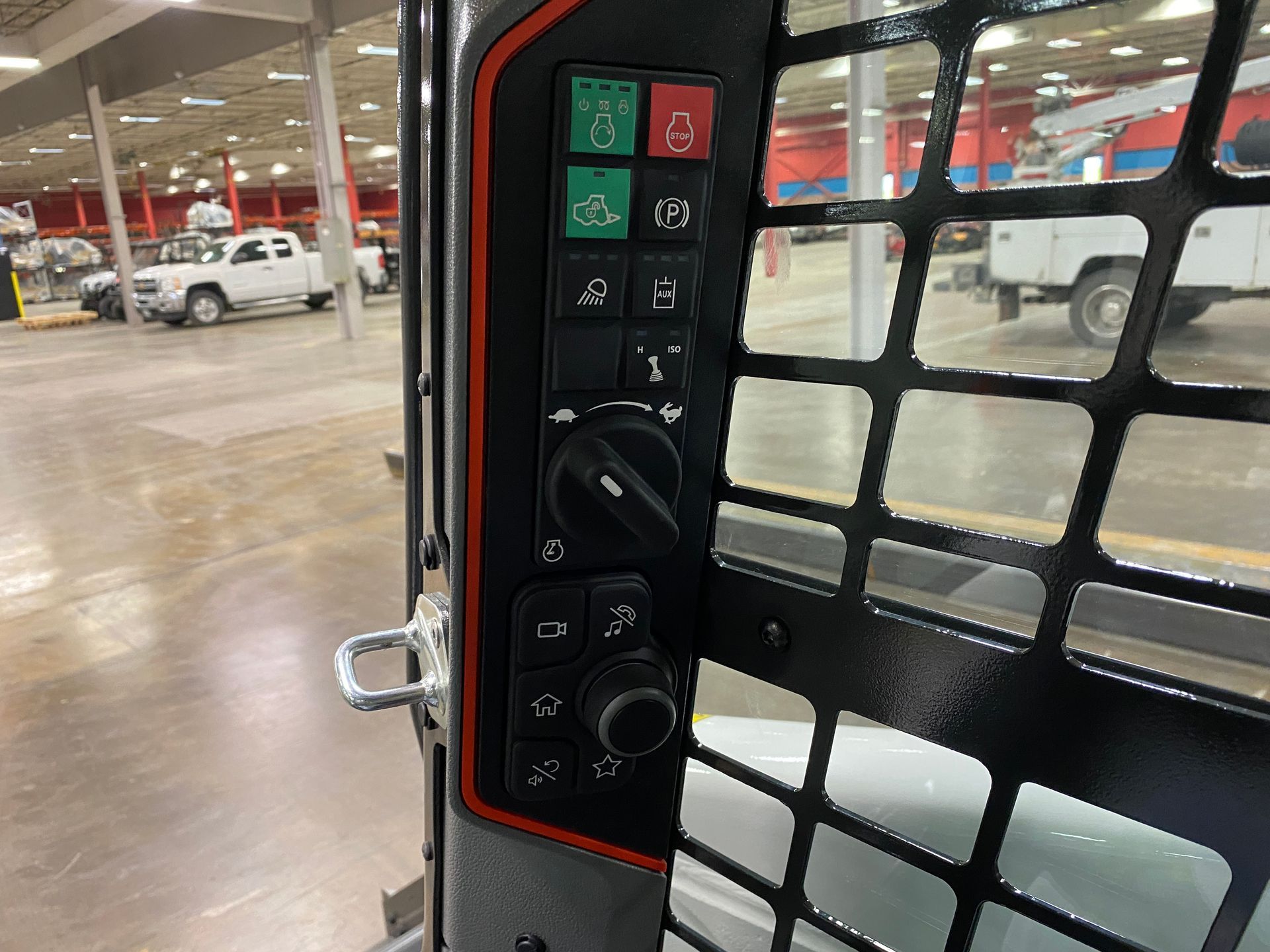

- Keyless Start
- Two-Speed Travel
- 7-Pin Attachment Control
- Dual Direction Bucket Positioning
- Rear Camera
- Sound Reduction

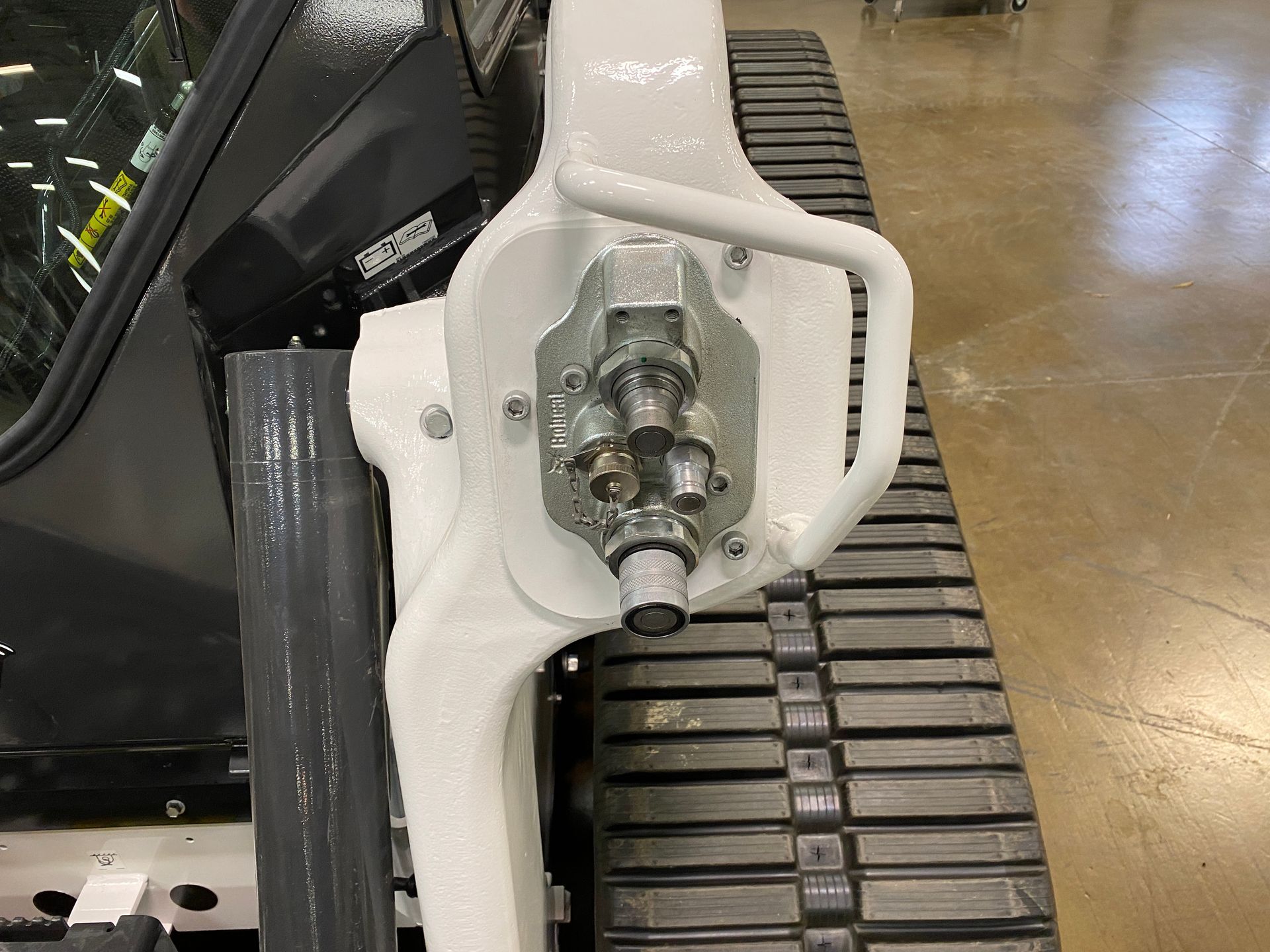

* High Flow Hydraulics
- Includes Two Auxiliary Hydraulics Functions, 36.6 gpm/3500 psi High Flow and 23 gpm/3500 psi Standard Flow
- Includes Premium Power & Performance Hardware for intelligent power management, yielding improved productivity cycle time and engine-to-workgroup efficiency.

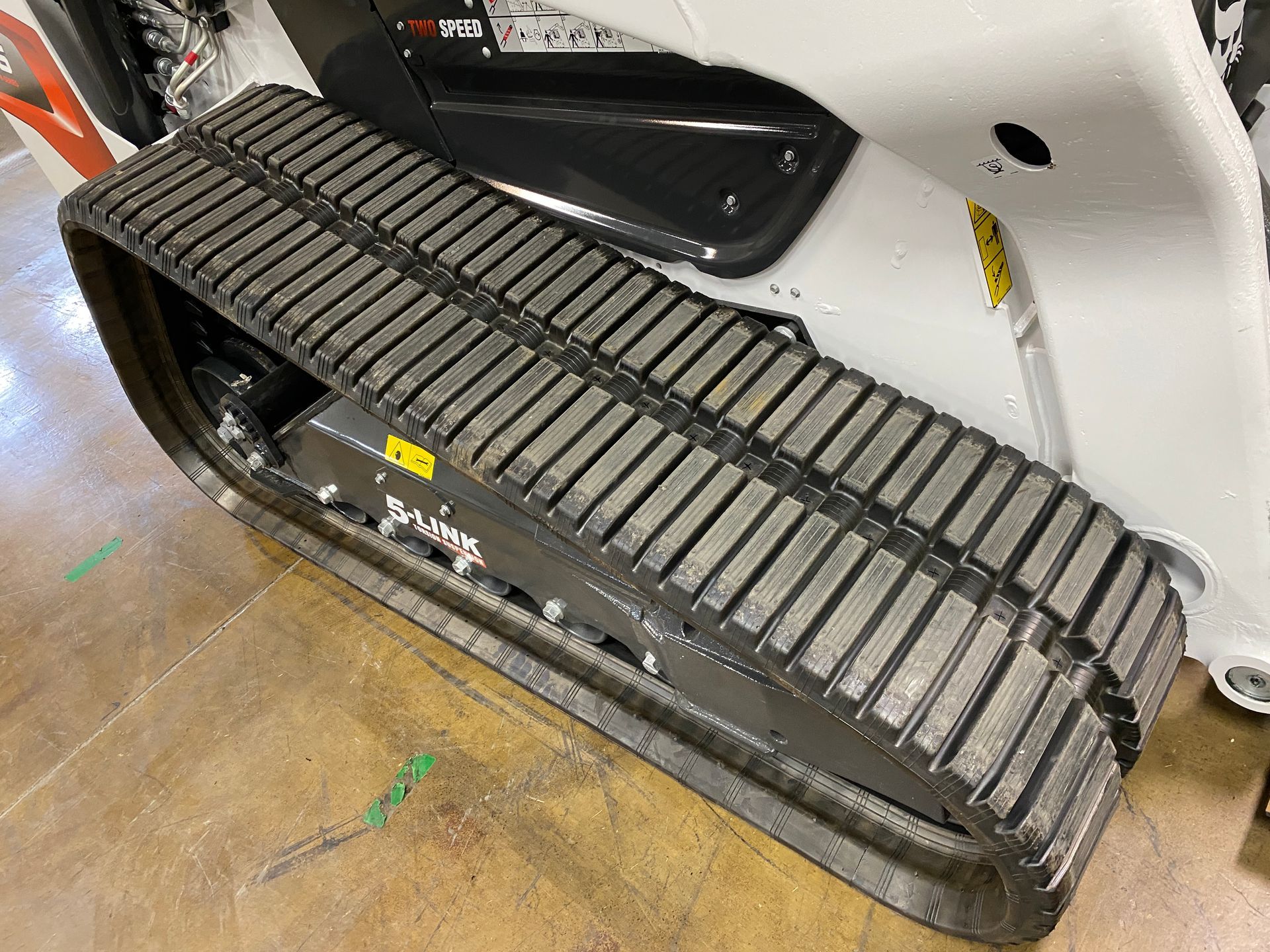

* 5-Link Torsion Suspension
* 17.7" Multi-Bar Tracks
- Compatible with Solid Mounted or Torsion Suspension Carriages. Loader width is 78"

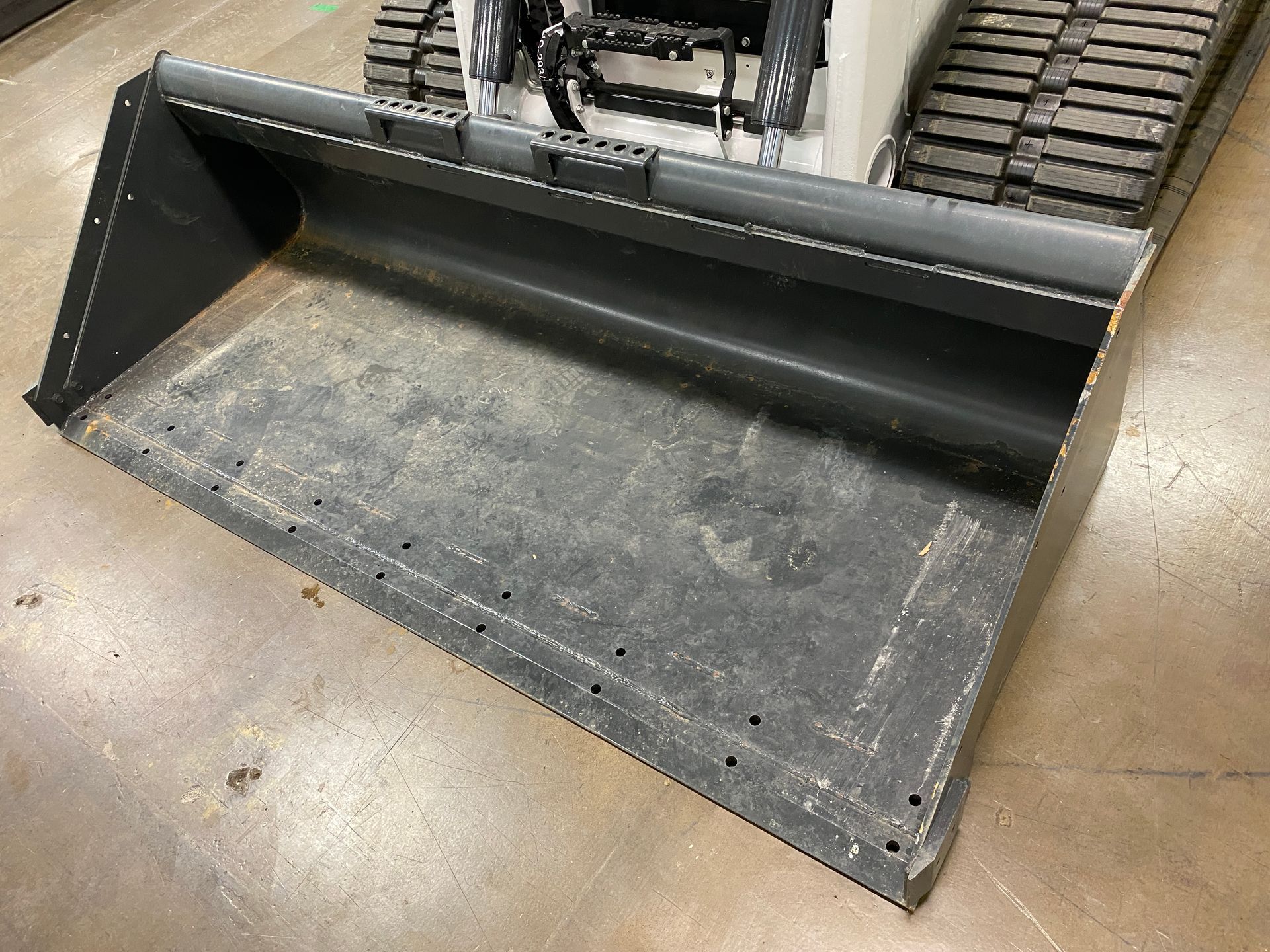

* Many bucket options to choose from
Standard Equipment
* 105.0 HP Tier 4 V2 Bobcat Engine
* Auxiliary Hydraulics: Variable Flow
* Two-Speed Travel
* Rear Camera
* Backup Alarm
* Bob-Tach Mounting System
* Bobcat Interlock Control System (BICS)

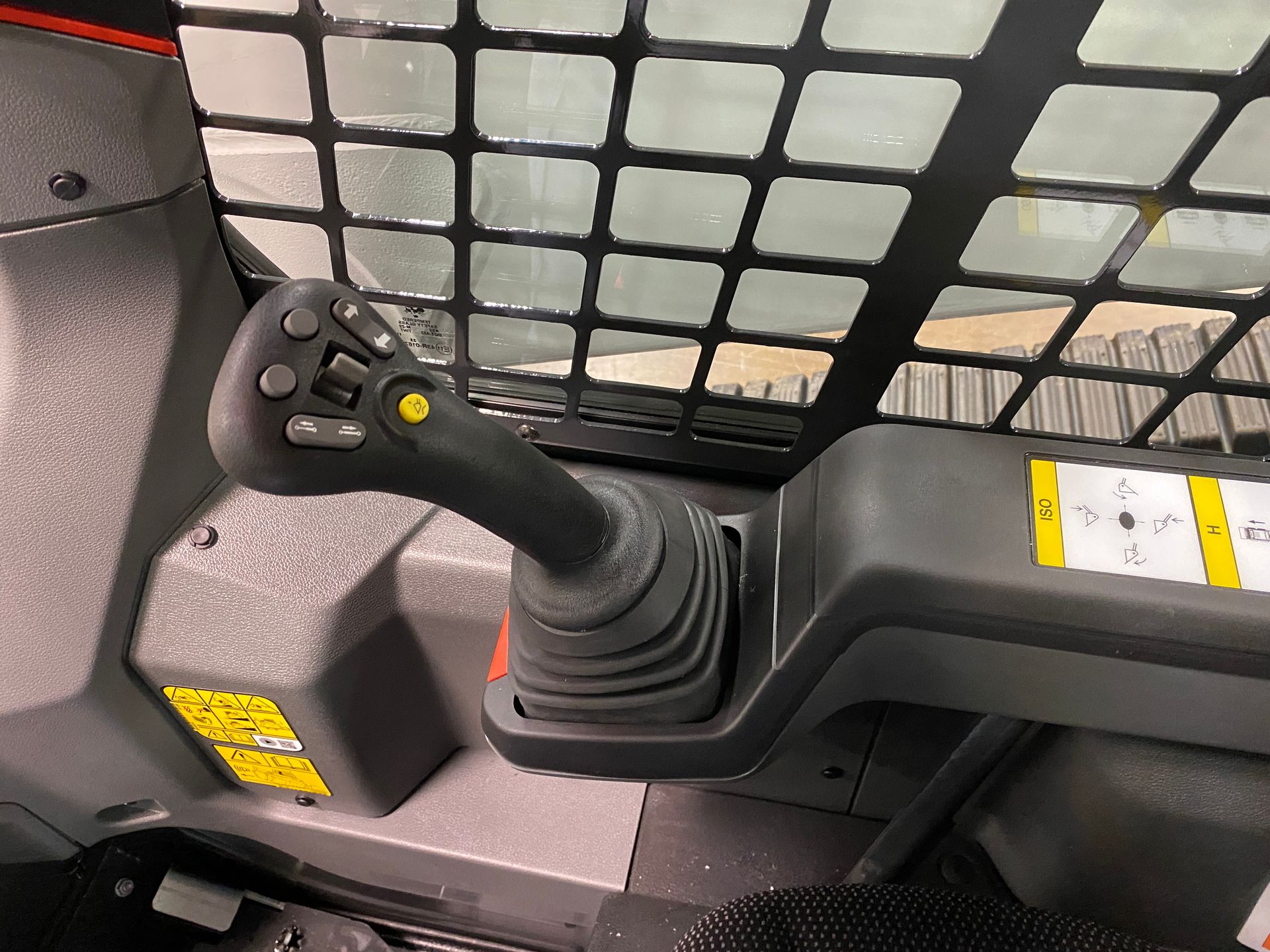

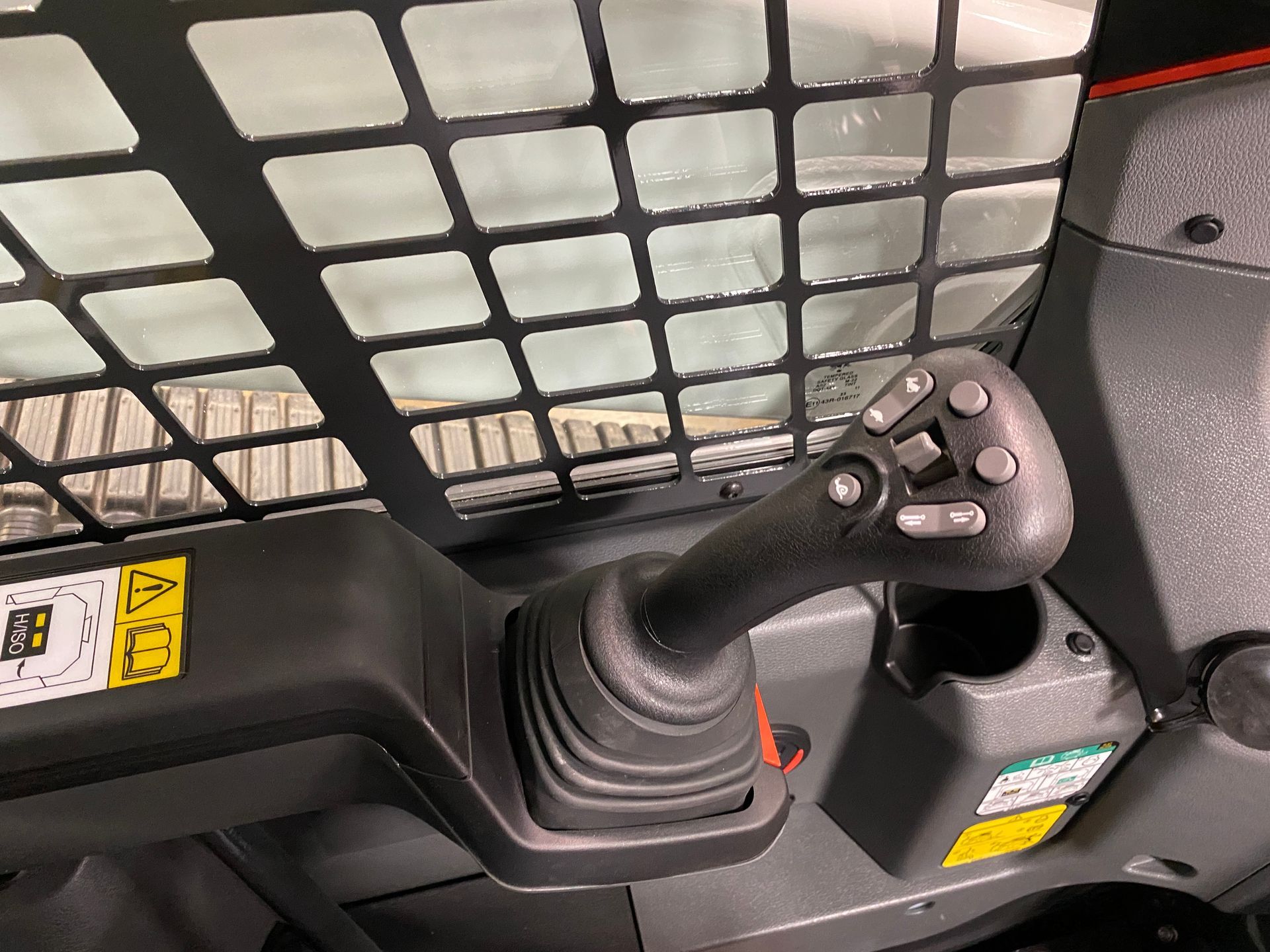

* Controls: Selectable Joystick Controls
* Cylinder Cushioning - Lift, Tilt
* Engine/Hydraulic Performance De-rate Protection
* Glow Plugs (Automatically Activated)
* Horn
* Instrumentation

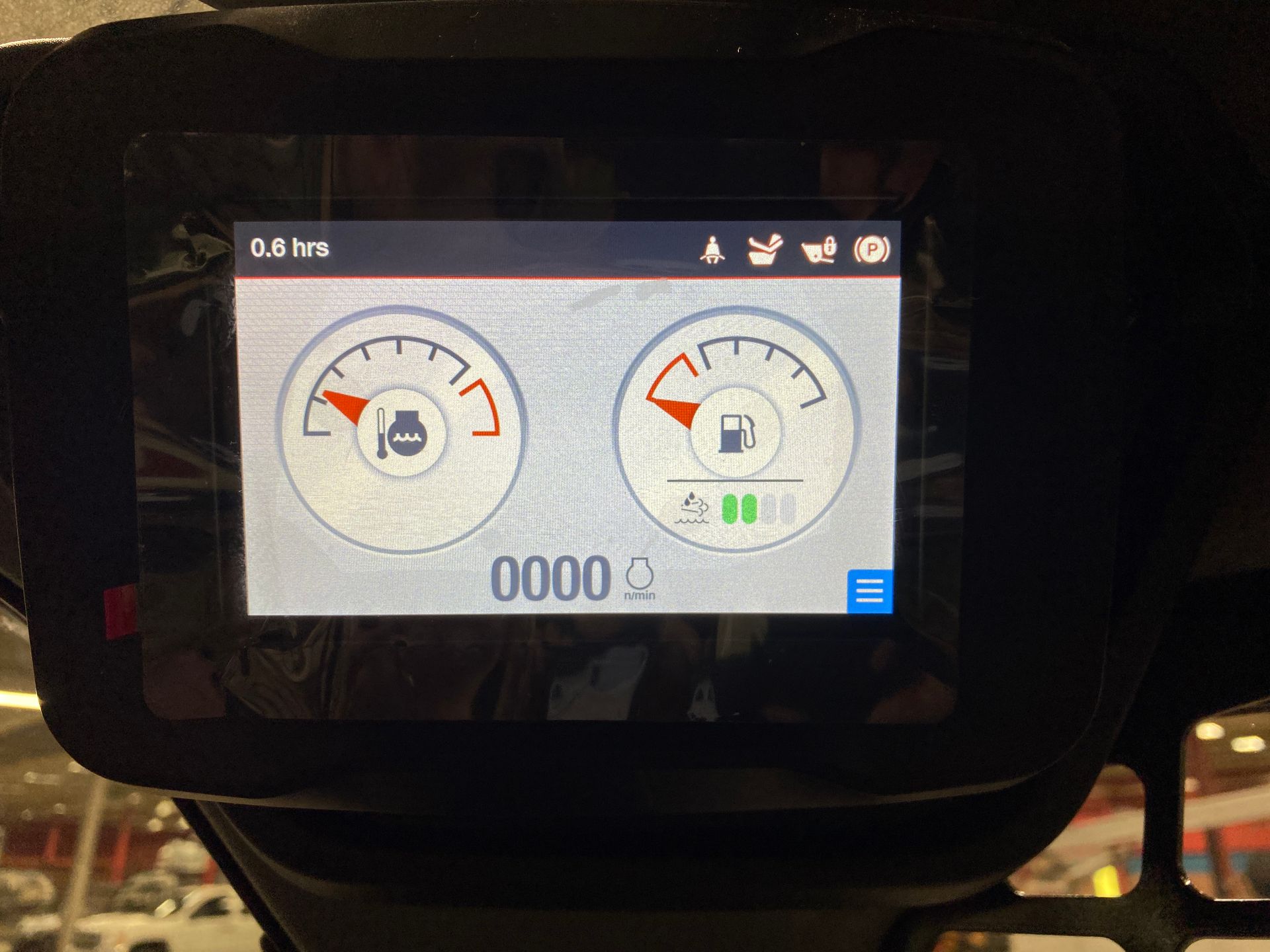

- Keyless Start with 5" Display Panel
- Engine Temperature Gauge
- Fuel Gauge
- Hourmeter
- RPM & Warning Indicators and Other Vitals
* Lift Arm Support
* Lift Path: Vertical
* Lights: Front & Rear LED
* Operator Cab:
- Enclosed Cab with Heat & AC
- Includes:
* Adjustable Vinyl Suspension Seat
* Top & Rear Windows
* Parking Brake
* Seat Bar & Seat Belt
* Sound Reduction
* Radio Ready
* SAE-J1040 & ISO 3471
* Falling Object Protective Structure (FOPS) meets SAE-J1043 & ISO 3449, Level I (Level II is available through Bobcat Parts)
* Parking Brake: Spring Applied, Pressure Released (SAPR)
* Solid Mounted Carriage with 5 Rollers
* Tracks: Rubber 17.7" Wide
* Telematics - Machine IQ
* Warranty: 2 years or 2000 hours whichever occurs first
Specifications
ENGINE
* Emissions Tier (EPA): Tier 4
* Engine Cooling: Liquid
* Engine Fuel: Diesel
* Horsepower: 105 HP
* Turbocharged Engine: Optional
PERFORMANCE
* Rated Operating Capacity (ISO): 3,800 lb
* Rated Operating Capacity 200 lb Counterweight: 3,950
* Rated Operating Capacity 300 lb Counterweight: 4,025
* Rated Operating Capacity 400 lb Counterweight: 4,100
Rated Operating Capacity with Torsion: 3,700 lb
* Operating Capacity (50% of Tip): 5,429 lb
* Tipping Load: 10,857 lb
* Operating Weight: 12,393 lb
* Travel Speed: 5.4 mph
* Travel Speed (2-Speed Option): 10.4 mph
* Ground Pressure (Rubber): 4.8 psi
CAPACITIES
* Fuel Tank: 31.6 gal
HYDRAULIC SYSTEM
* Hydraulic System Pressure (Standard & High Flow: 3,500 psi
* Hydraulic System Pressure (Super Flow): 4,061 psi
* Hydraulic Standard Flow: 23.6 gal/min
* Hydraulic High Flow (Optional): 36.6 gal/min
* Hydraulic Super Flow (Optional): 42 gal/min
* System Relief @ Quick Couplers: 3,450 psi
* Auxiliary Standard Flow: 23.6 gal/min
* Auxiliary High Flow: 36.6 gal/min
DIMENSIONS
* Length without Attachment: 120.4"
* Width: 78"
* Width (with bucket): 80"
* Height with Operator Cab: 83.1"
* Height to Bucket Hinge Pin: 132"
* Reach @ Maximum Height: 38.4"
* Length of Track on Ground: 66.3"
* Track Width: 17.7"
* Track Width - Optional: 17.7"
* Ground Pressure (Optional Track): 4.8psi
FEATURES
* 5-Link Torsion Suspension Undercarriage: Optional
* Radio Remote Control (SJC Required): Optional
* Reversing Fan: Optional
* Standard Display (includes keyless start): Standard
* Speed Management: Standard
* Heated Cloth Air Ride Seat: Standard
* LED Front & Rear Lights: Standard
* Joystick Control: Standard
* Air Conditioning: Standard
* Backup Alarm: Standard
* BICS System (Interlock): Standard
* Suspension Seat: N/A
* Two Speed Travel: Standard
* Auxiliary Hydraulics: Standard
* Bob-Tach Attachment System: Standard
* Power Bob-Tach: Standard
* Ride Control: Optional
* Horn: Standard
* Sound Option: Standard
* Dual-Direction Bucket Positioning: Standard
