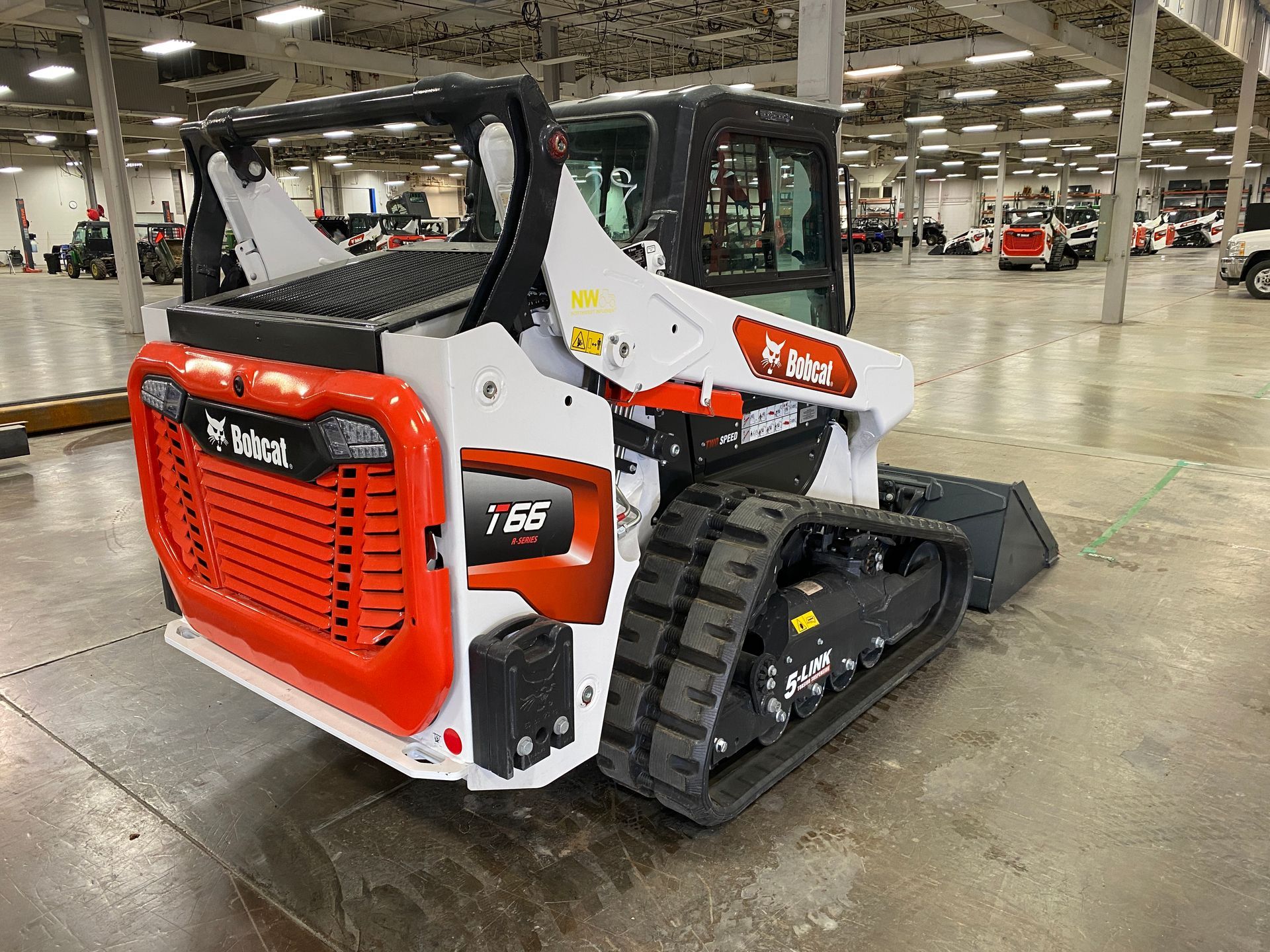

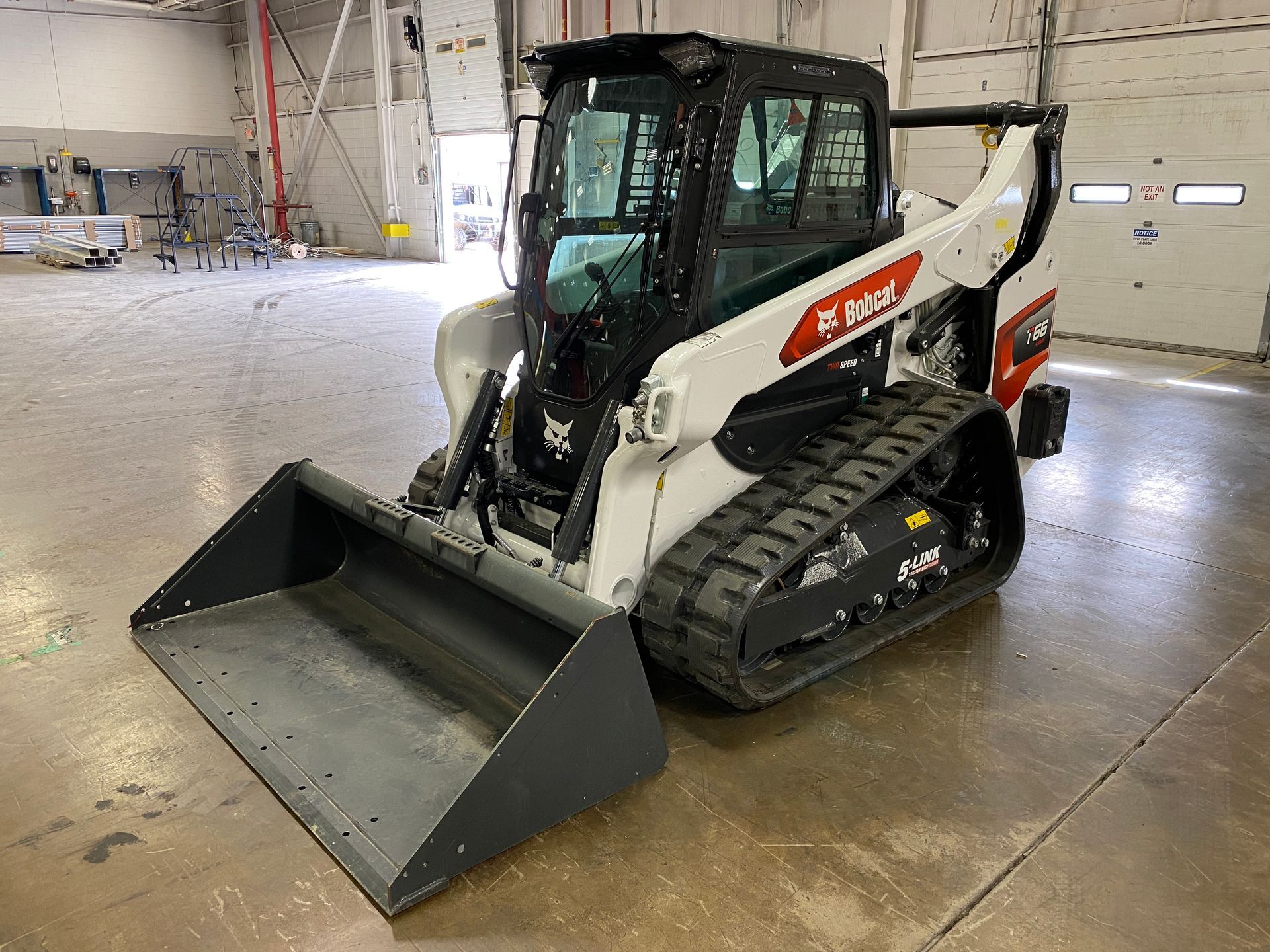

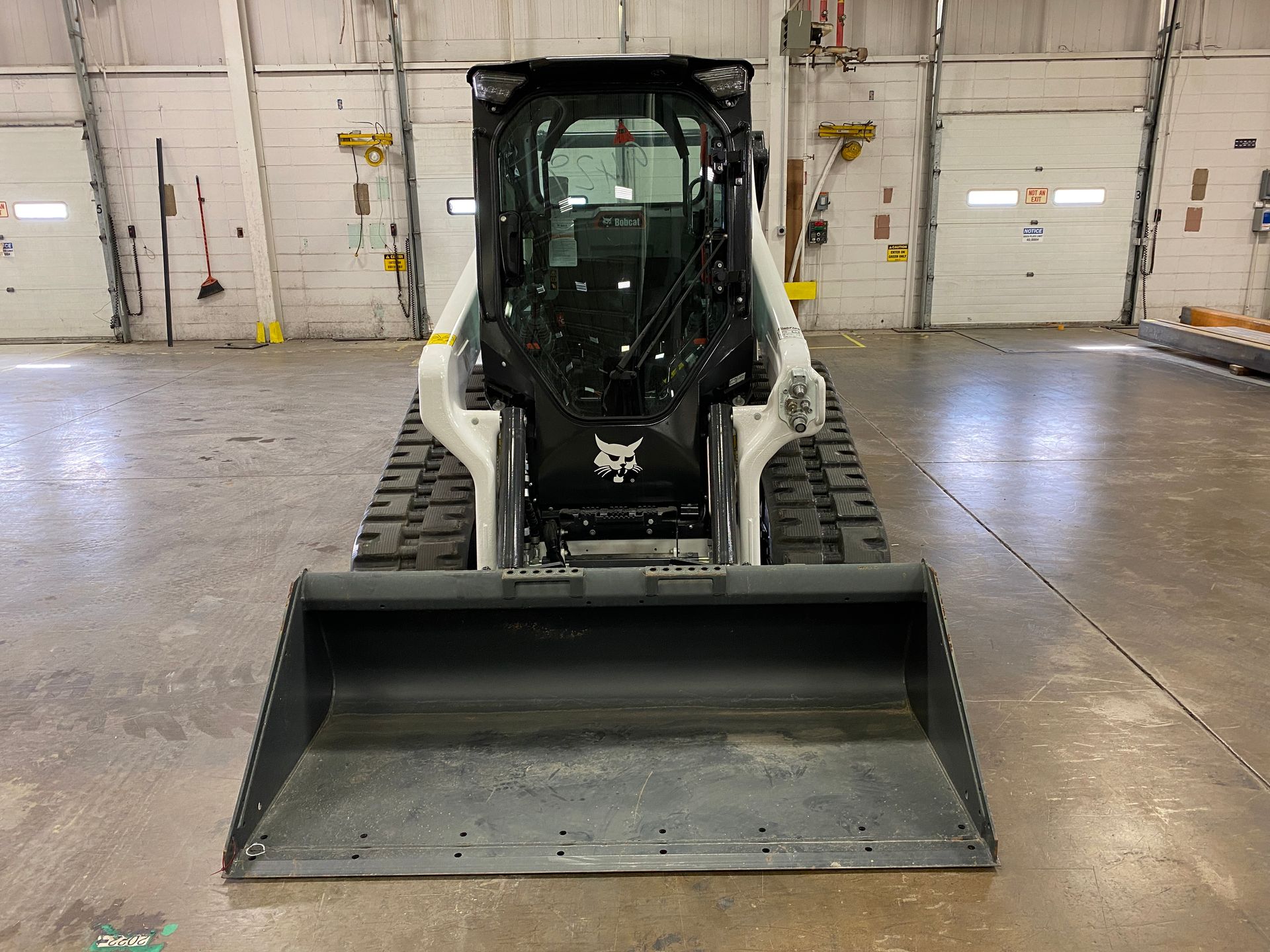

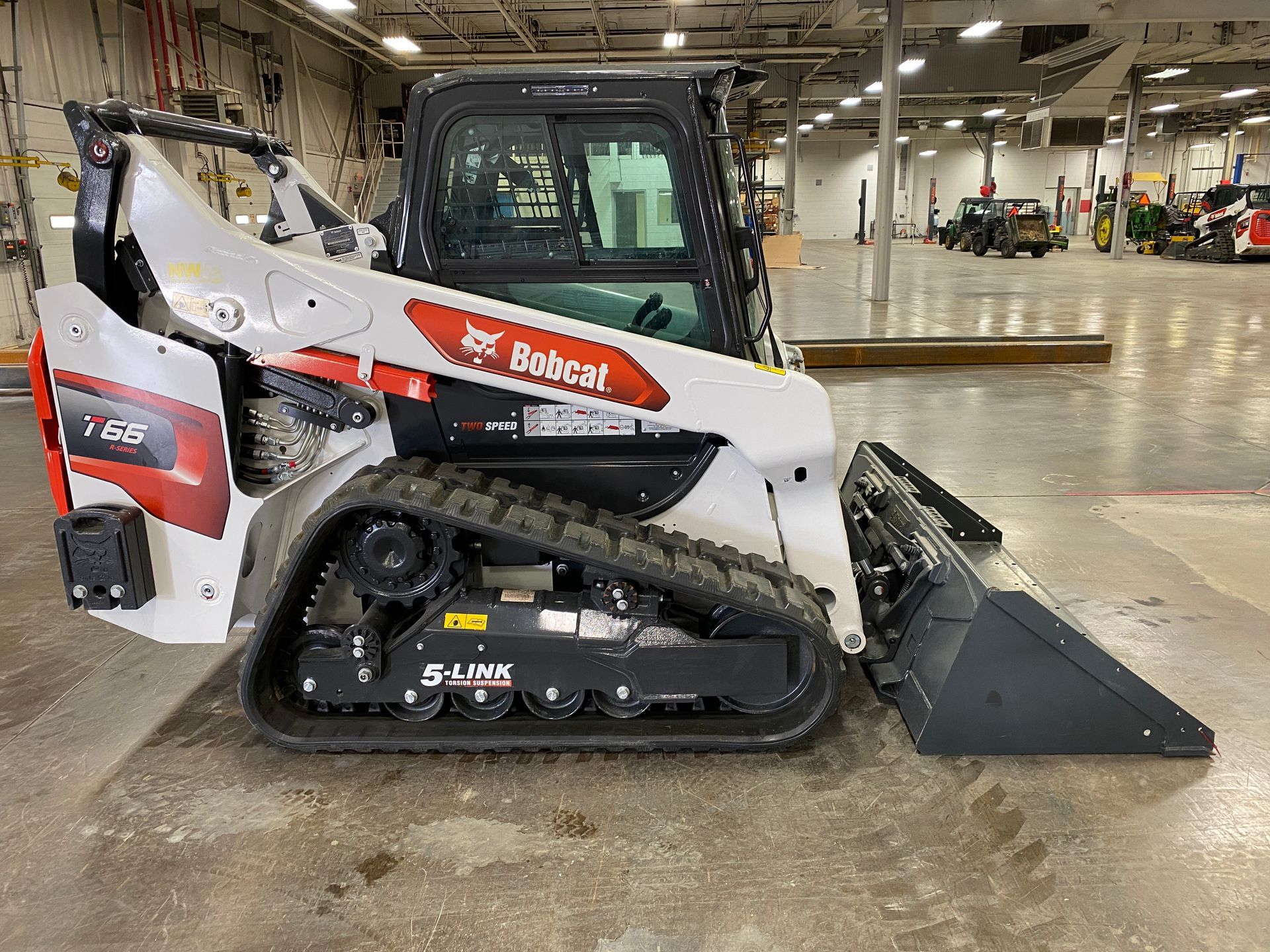

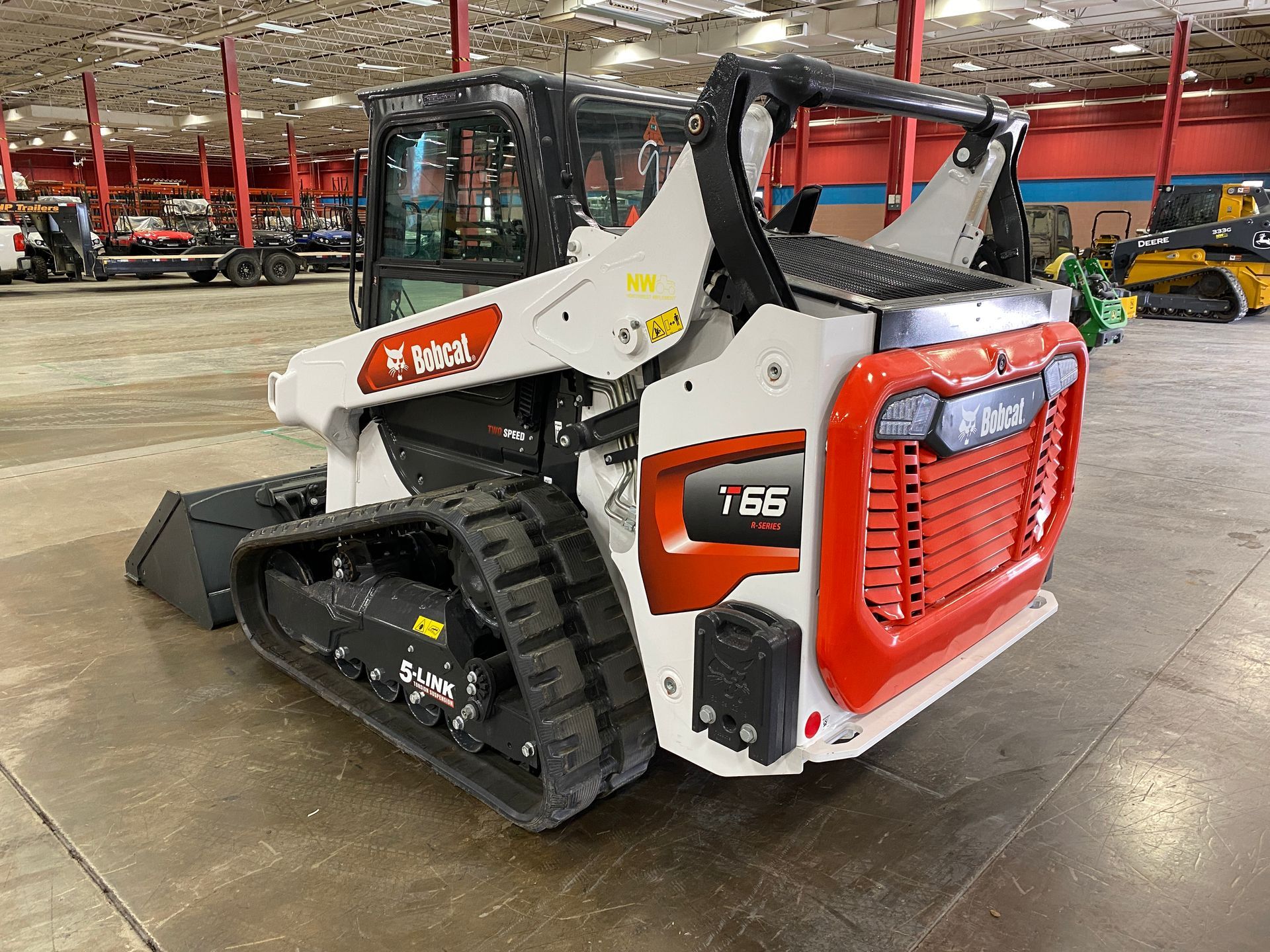

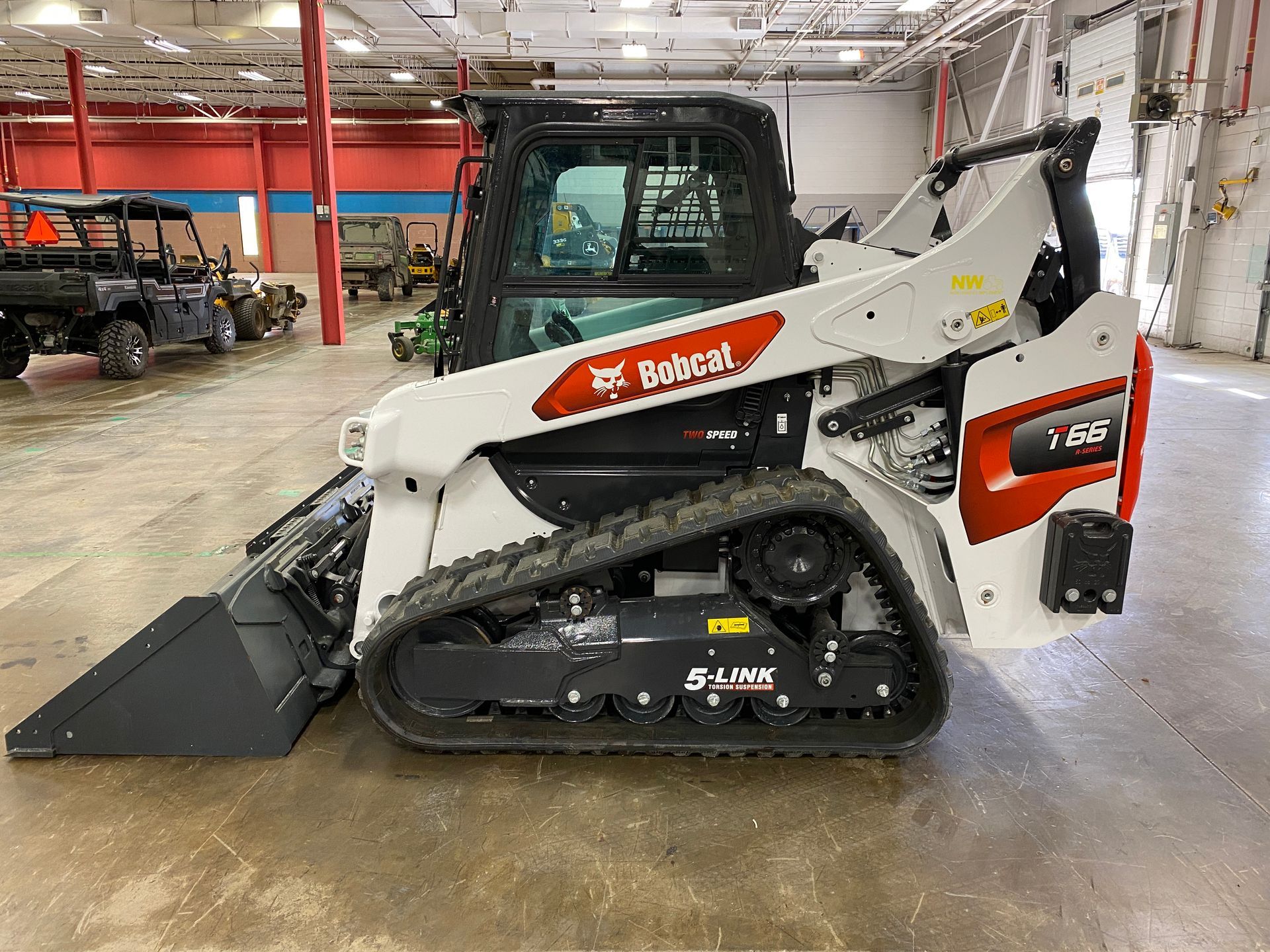

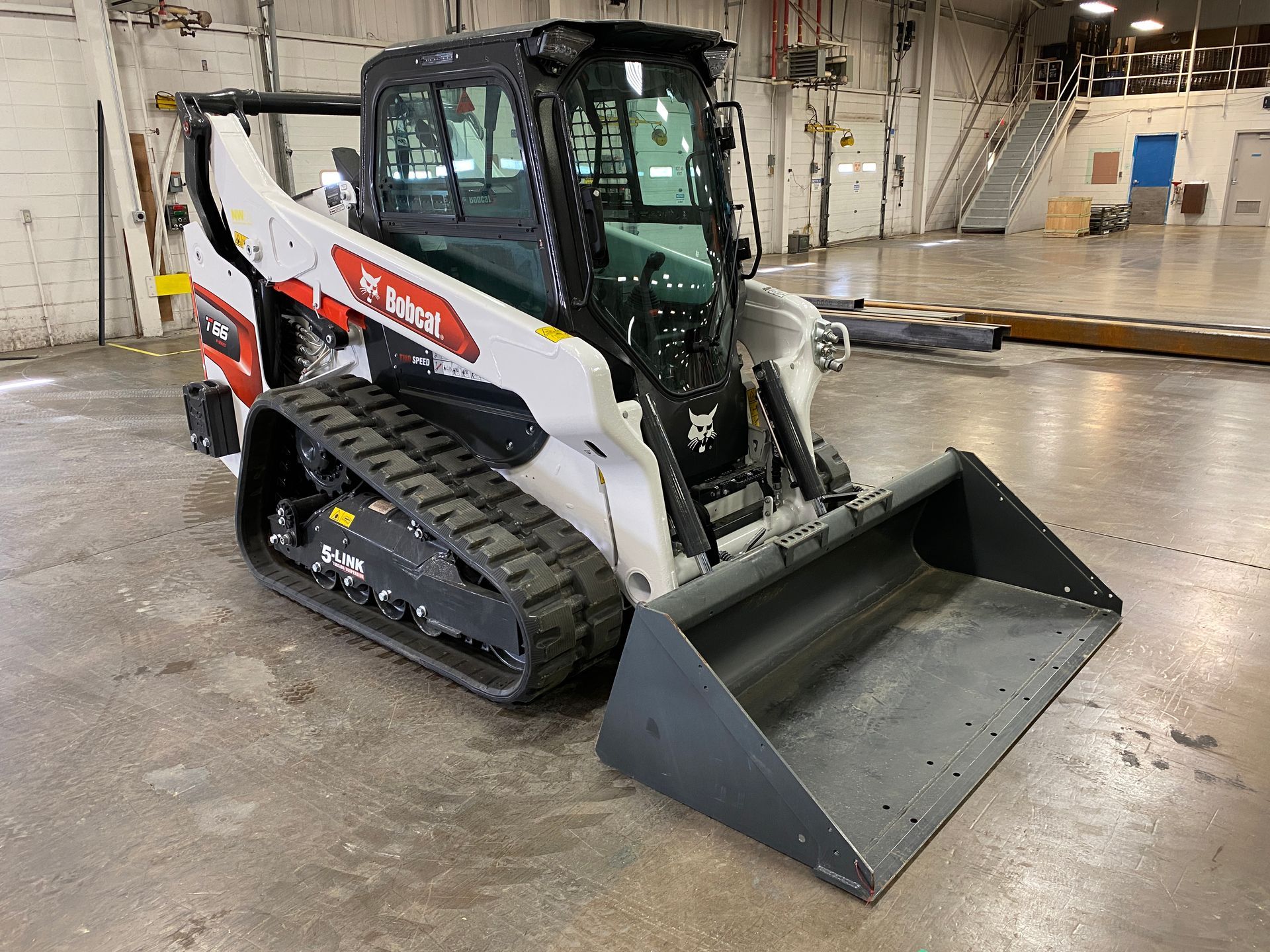

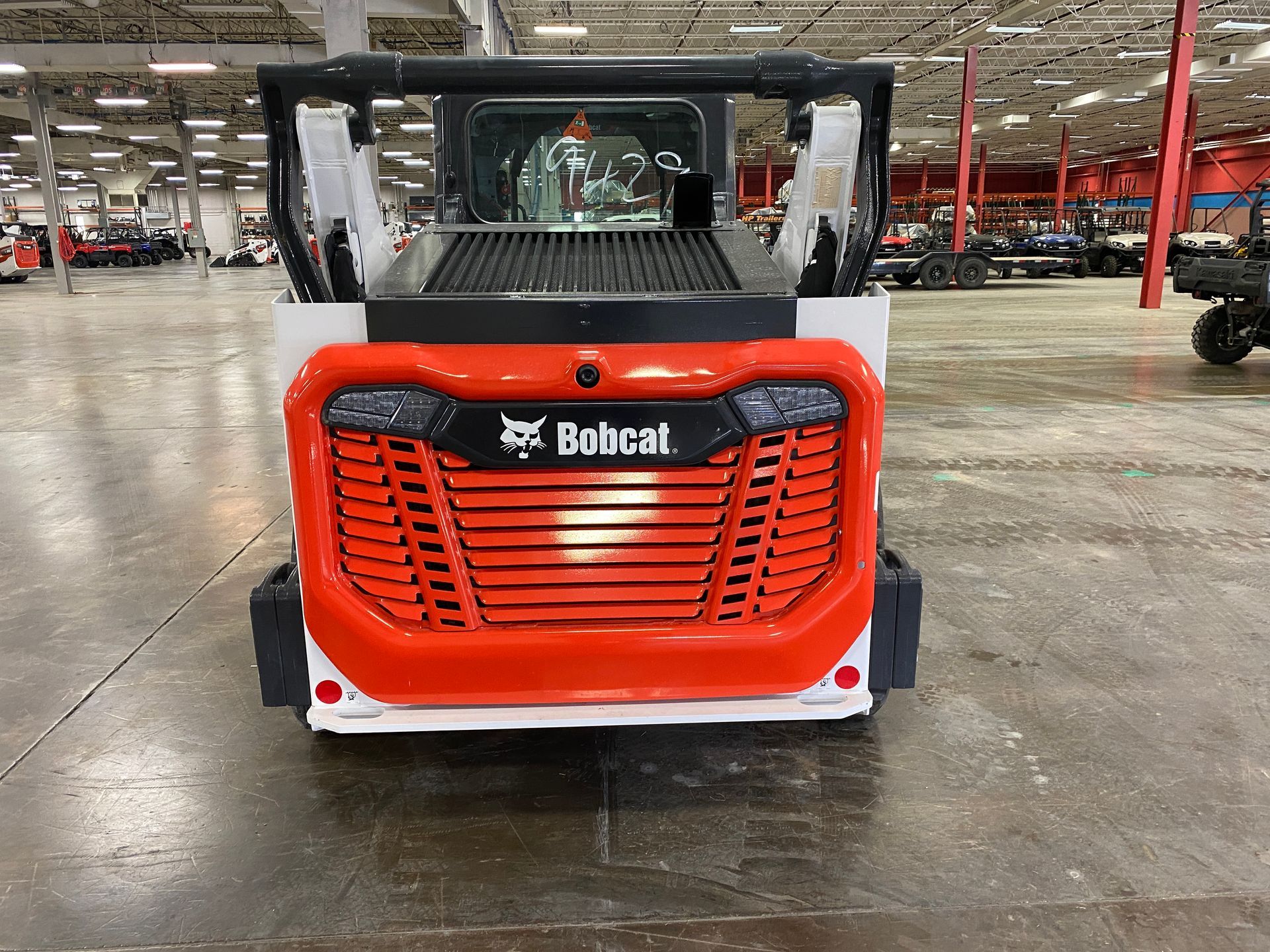

2024 Bobcat T66 R-Series Compact Track Loader
Features
* 2023 Bobcat T66 T4 Compact Track Loader
* 1 Hour
* C68 Comfort Package
- Enclosed Cab with HVAC
- Sound Reduction

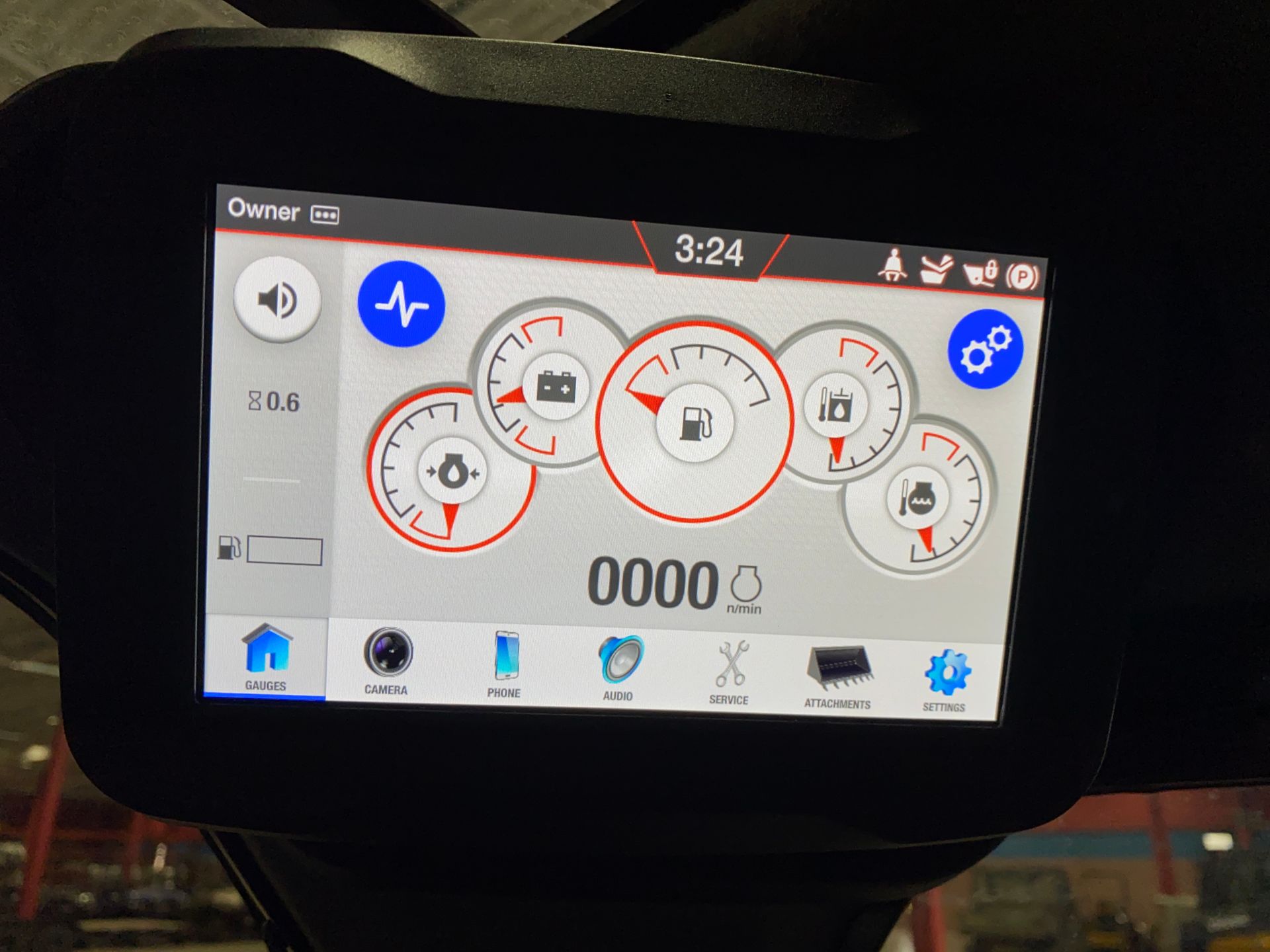

- Touch Display with Radio & Bluetooth

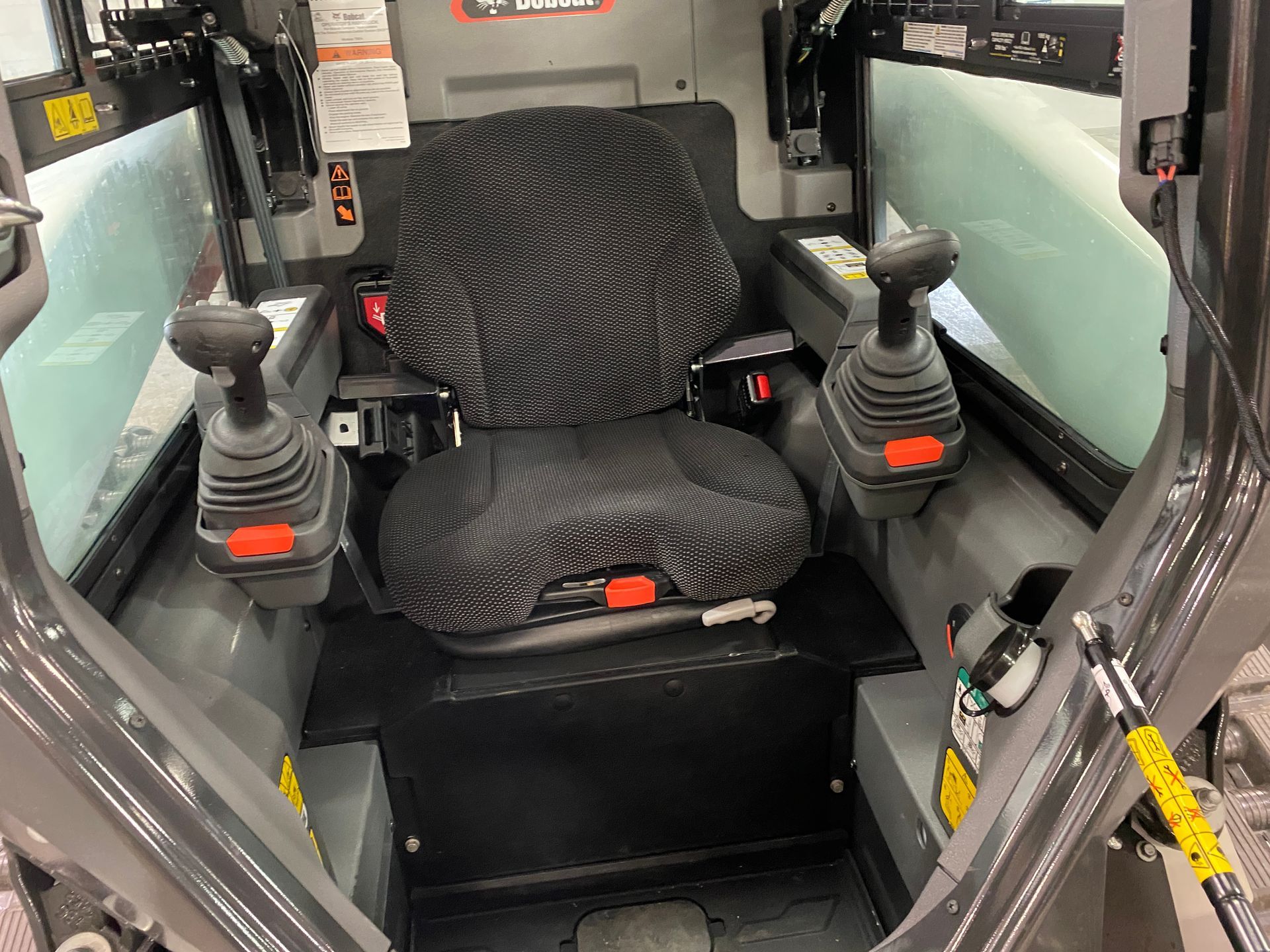

- Heated Cloth Air Ride Suspension Seat
- Premium LED Lights
- Rear View Camera
* P69 Performance Package

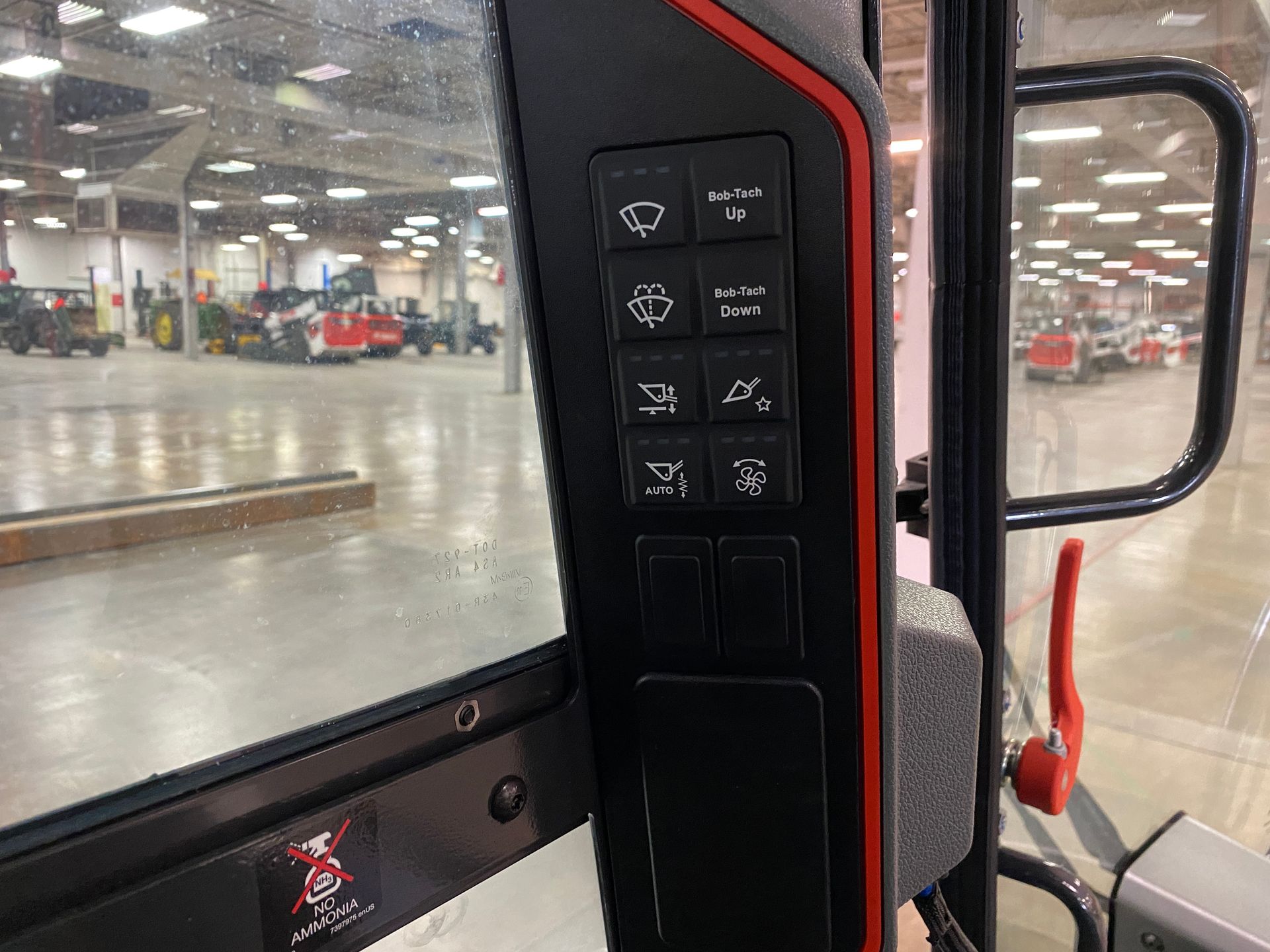

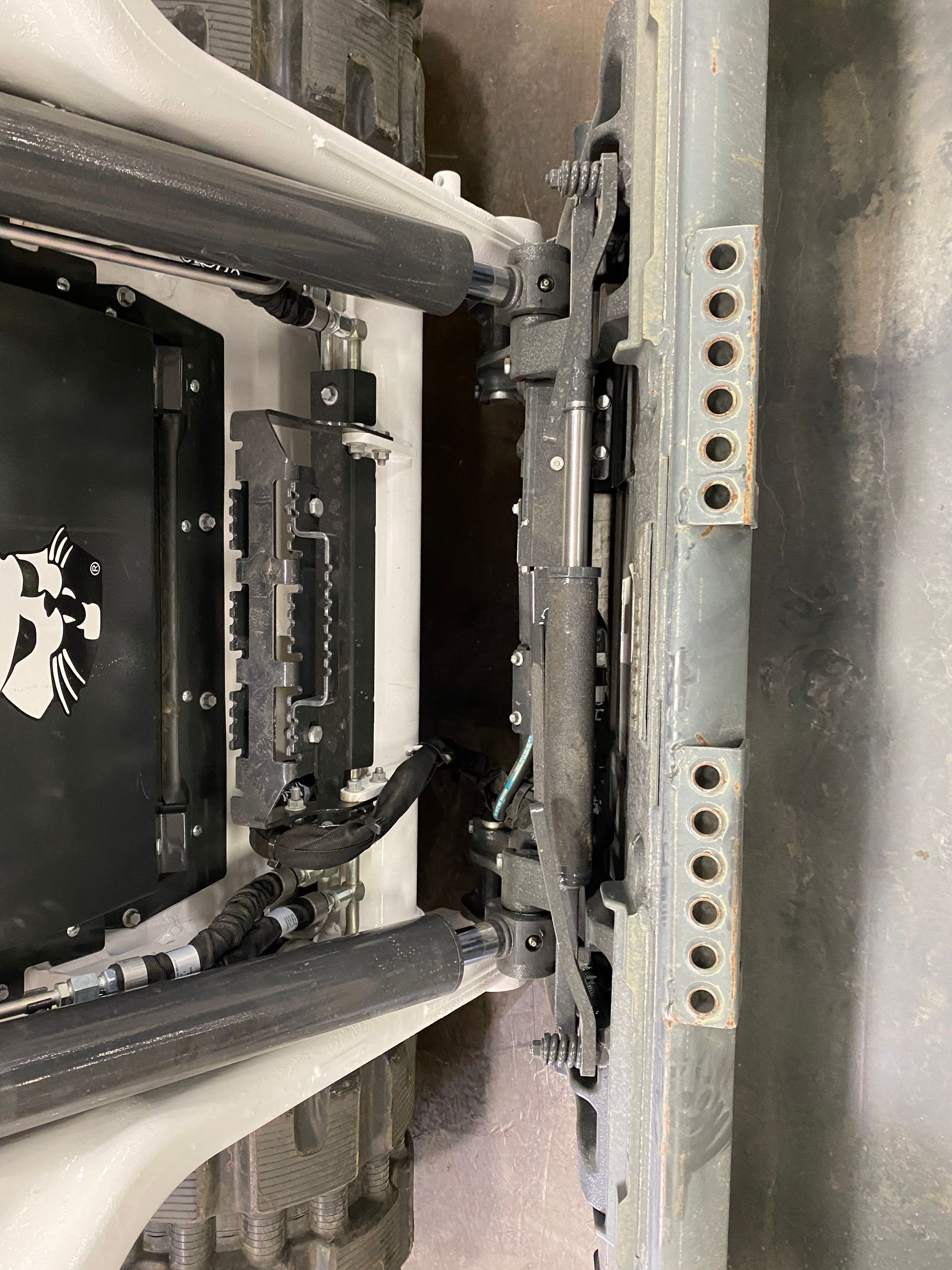

- Power Bob-Tach
- 7-Pin Attachment Control
- High Flow
- Two-Speed
- Dual Direction Bucket Positioning
- Automatic Ride Control
- Reversing Fan

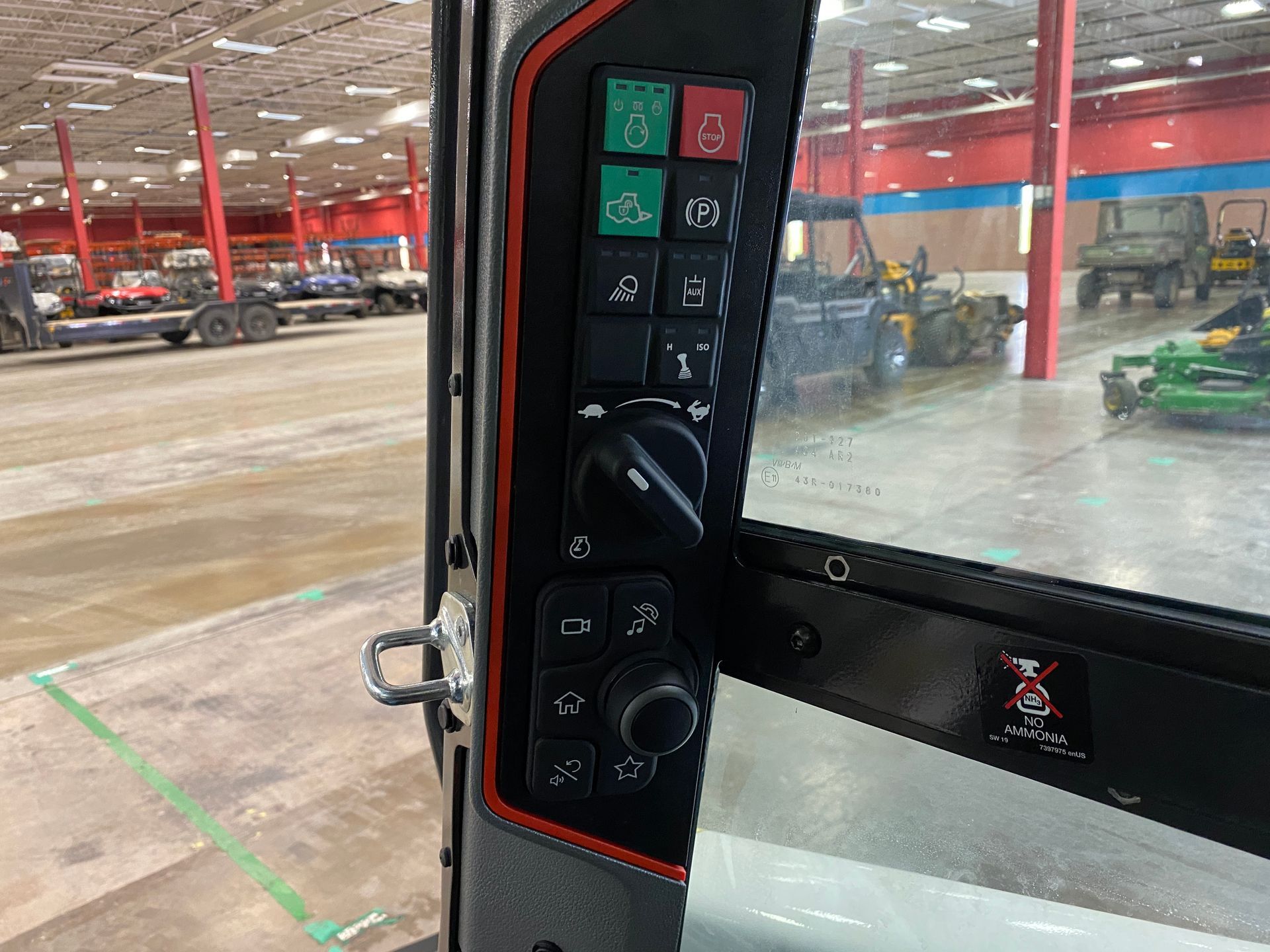

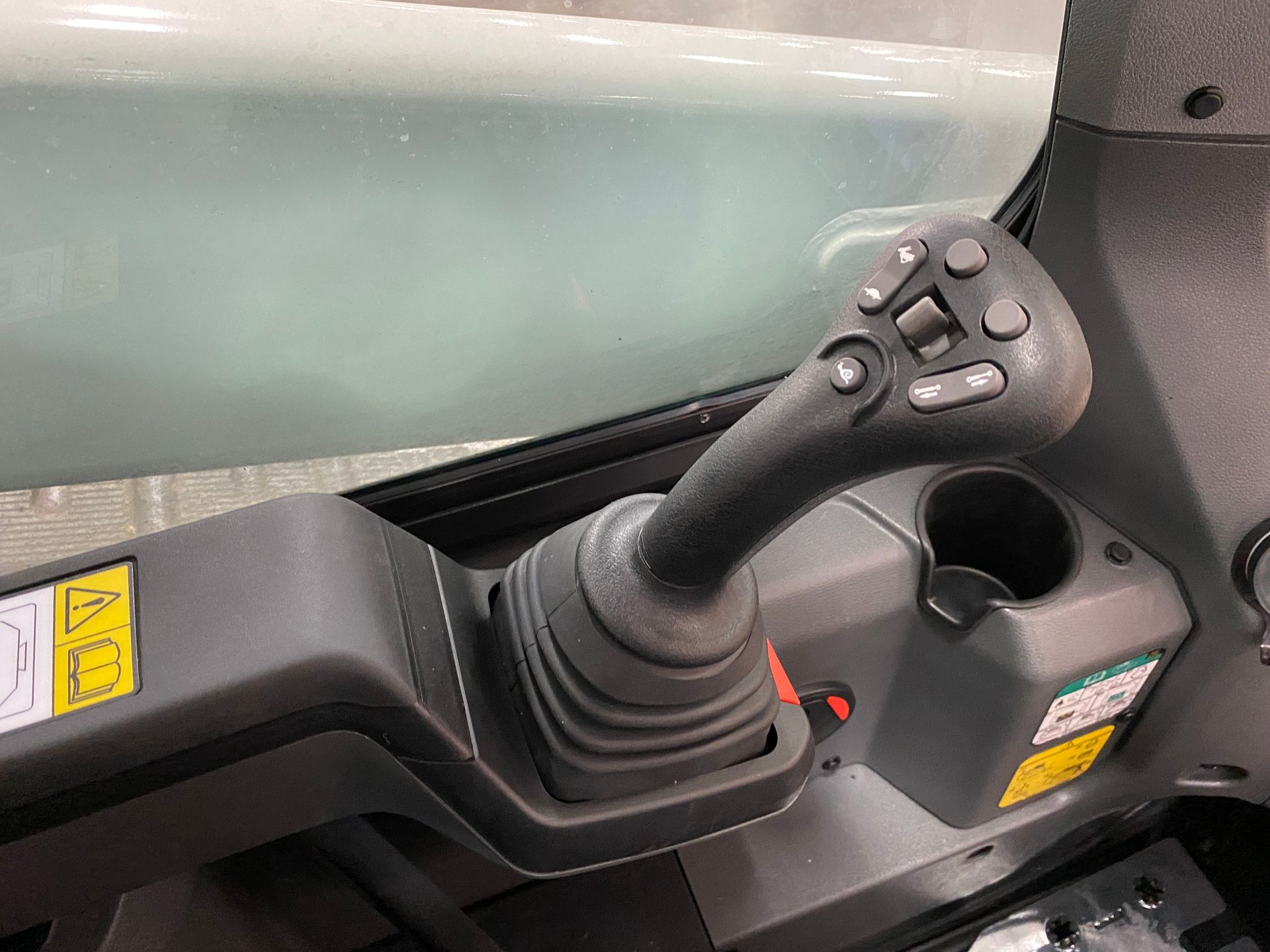

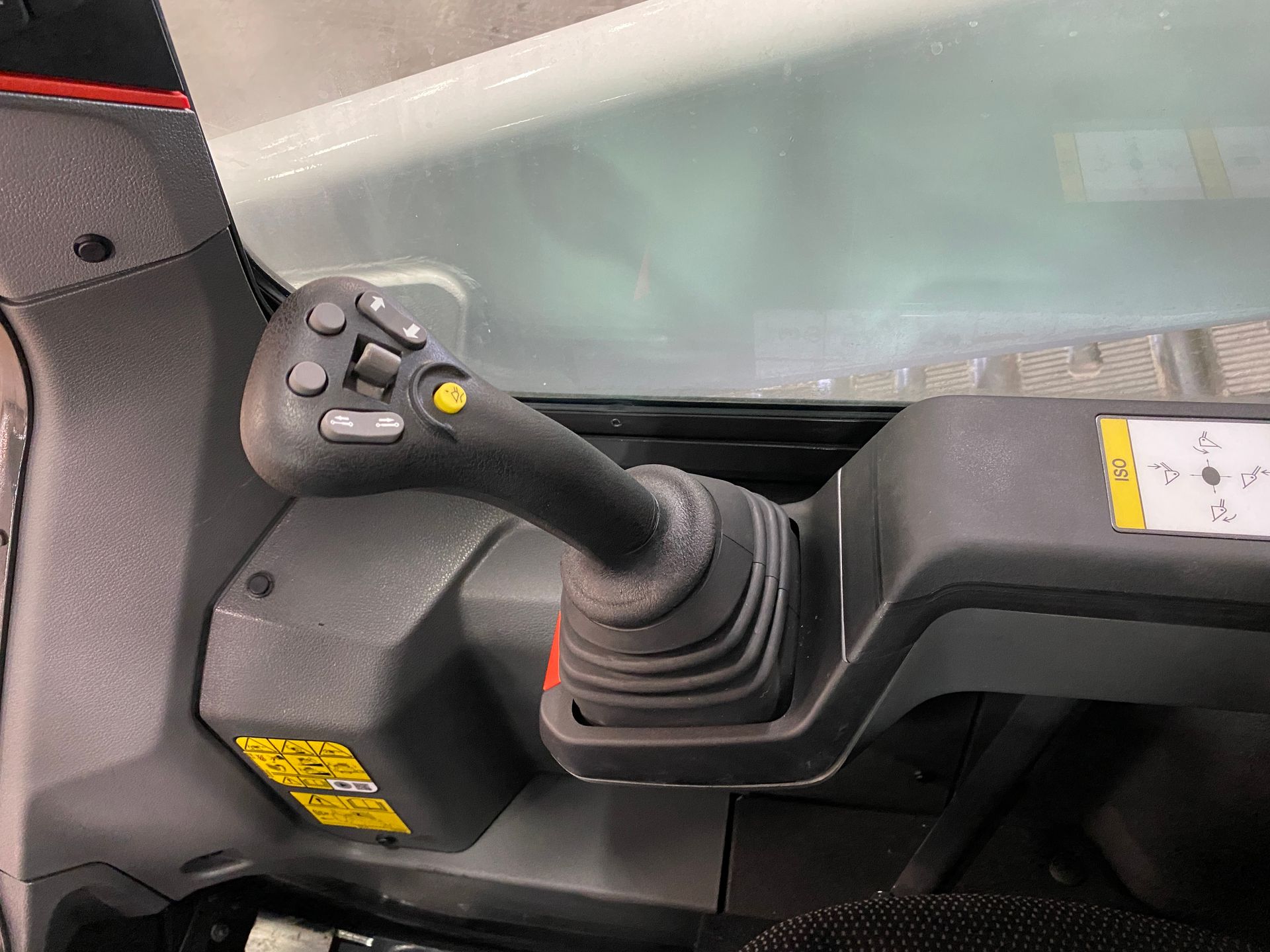

* Selectable Joystick Controls
- Selectable Patterns (ISO or H-Pattern)
- Auto Idle
- Horsepower Management
- Speed Management
- Drive Response
- Drift Compensation
- Foot Pedal for Engine Speed Control

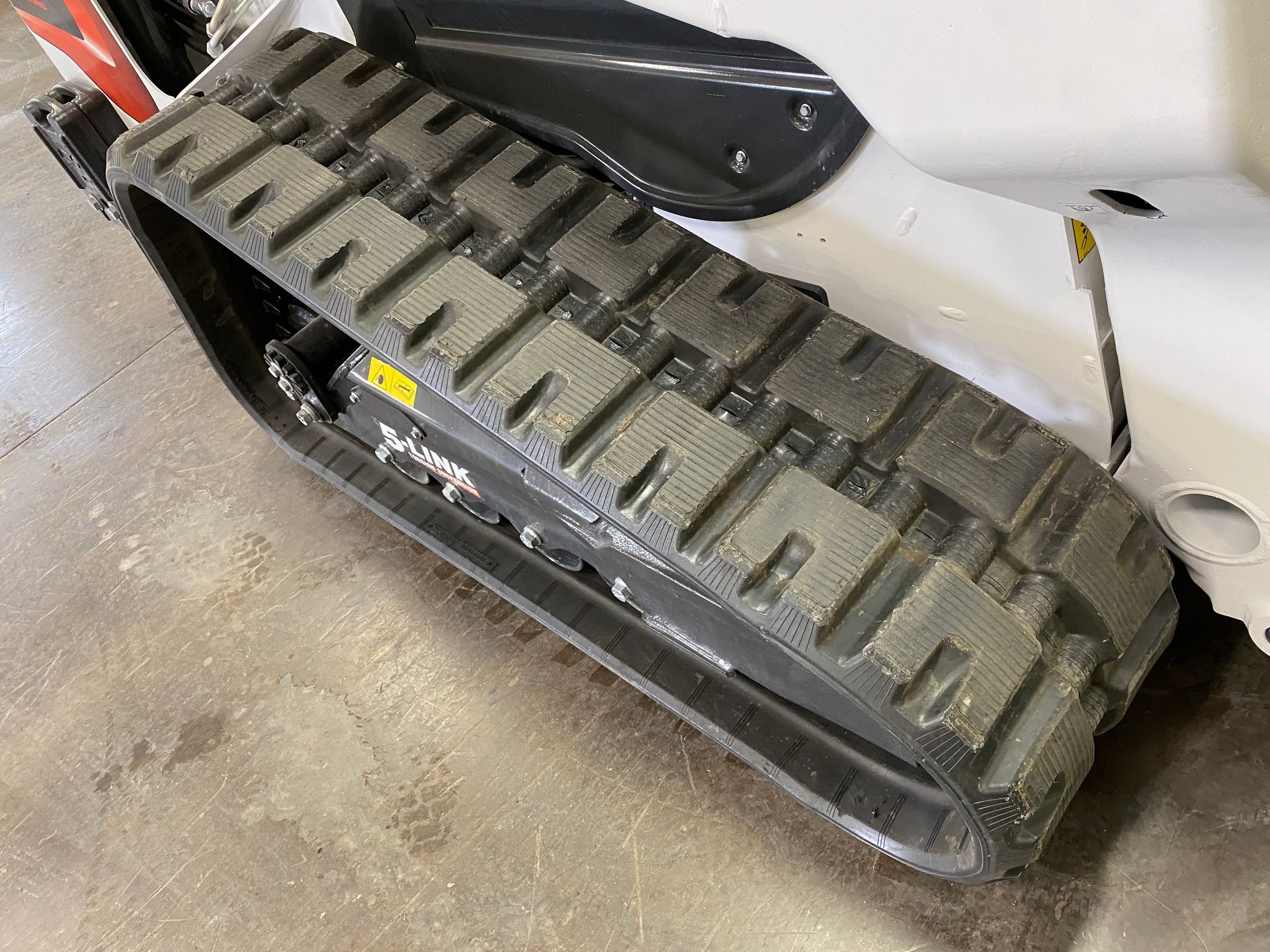

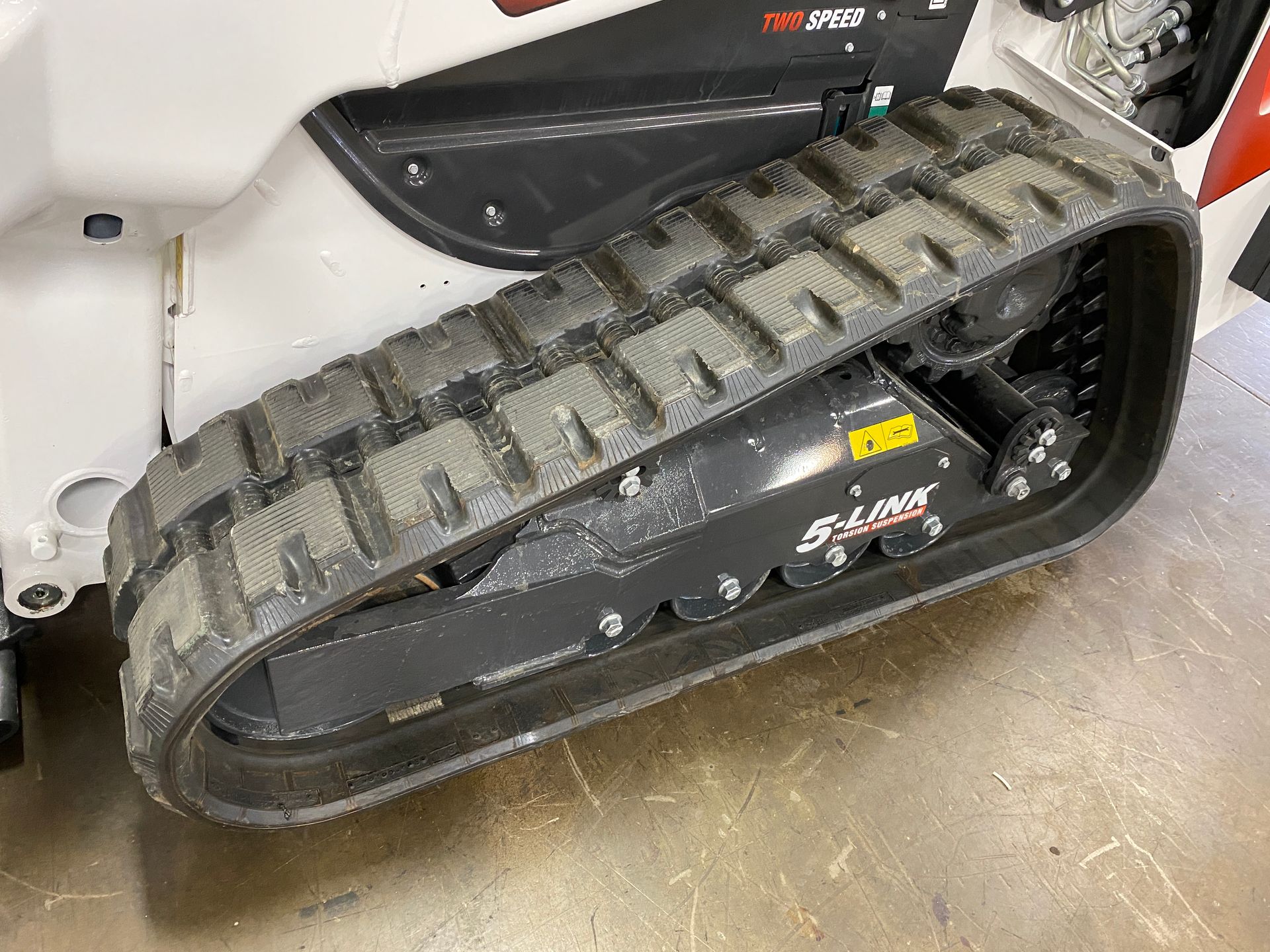

* 15.7" C-Pattern Rubber Track
Standard Features
* 74.0 HP Tier 4 V2 Bobcat Engine
* Auxiliary Hydraulics: Variable Flow
* Backup Alarm
* Bob-Tach
* Bobcat Interlock Control System (BICS)
* Controls: Bobcat Standard
* Cylinder Cushioning - Lift, Tilt
* Engine/Hydraulic Performance De-rate Protection
* Flow Plugs (Automatically Activated)
* Horn
* Instrumentation:
- Standard 5" Display (Rear Camera Ready) with Keyless Start
- Engine Temperature & Fuel Gauges
- Hour Meter
- RPM & Warning Indicators
- Maintenance Interval Notification
- Fault Display
- Job Codes
- Quick Start
- Auto Idle
- Security Lockouts
* Lift Arm Support
* Lift Path: Vertical
* Lights, Front & Rear LED
* Operator Cab:
- Includes Adjustable Suspension Seat
* Top & Rear Windows
* Parking Brake
* Seat Bar
Seat Belt
* Roll Over Protective Structure (ROPS) meets SAE-J1040 & ISO 3471
* Falling Object Protective Structure (FOPS) meets SAE-J1043 & ISO 3449, Level I (Level II is available through Parts)
* Parking Brake: Spring Applied, Pressure Released
* Solid Mounted Carriage with 4 Rollers
* Tracks: Rubber, 12.6" Wide
* Counter Weights - 200 lbs
* Telematics - Machine IQ
* Warranty: 2 years or 2000 Hours whichever occurs first
Specifications
ENGINE
* Emissions Tier (EPA): Tier 4
* Engine Cooling: Liquid
* Engine Fuel: Diesel
* Horsepower: 74HP
* Turbocharged Engine: Optional
* Engine Model: D24BSH T4 74HP DM02-LEL00Bobcat V2
* Engine Make: Bobcat
* Displacement: 146 cubic in
* Torque RPM: 1,800 rpm
* Number of Cylinders: 4
PERFORMANCE
* Rated Operating Capacity (ISO): 2,450 lb
* Operating Capacity (50% of Tip): 3,500 lb
* Rated Operating Capacity (35% of Tip): 2,450 lb
* Tipping Load: 7,000 lb
* Operating Weight: 8,927 lb
* Travel Speed: 7.2 mph
* Travel Speed (2-speed option): 10.2 mph
* Ground Pressure (Rubber): 5.9 psi
CAPACITIES
Fuel Tank: 28.3 gal
HYDRAULIC SYSTEM
* System Relief @ Quick Coupler: 3,500 psi
* Auxiliary Standard Flow: 17.6 gal/min
* Auxiliary High Flow: 26.9 gal/min
GENERAL
* Contract Codes: Compact Track Loader
* First Year of Production: 2020
CONTROLS
* Hydraulic (Lift & Tilt): Dual Levers
* Control Option: Selectable Joystick Controls
* Auxiliary Hydraulics: Finger Tip Control
DIMENSIONS
* Length: 134.9"
* Length without Attachment: 107"
* Length with Standard Bucket: 134.9"
* Width: 67"
* Width (with bucket): 68:
* Height: 80.5"
* Height with Operator Cab: 80.5"
* Height to Bucket Hinge Pin: 120"
* Reach @ Maximum Height: 36.7"
* Turning Radius: 81.5"
* Length of Track on Ground: 54.3"
* Track Width: 12.6"
* Track Width - Optional: 15.7"
* Ground Cleance: 7.5"
* Standard Tracks: 12.6"
* Dump Angle @ Maximum Height: 37 degrees
