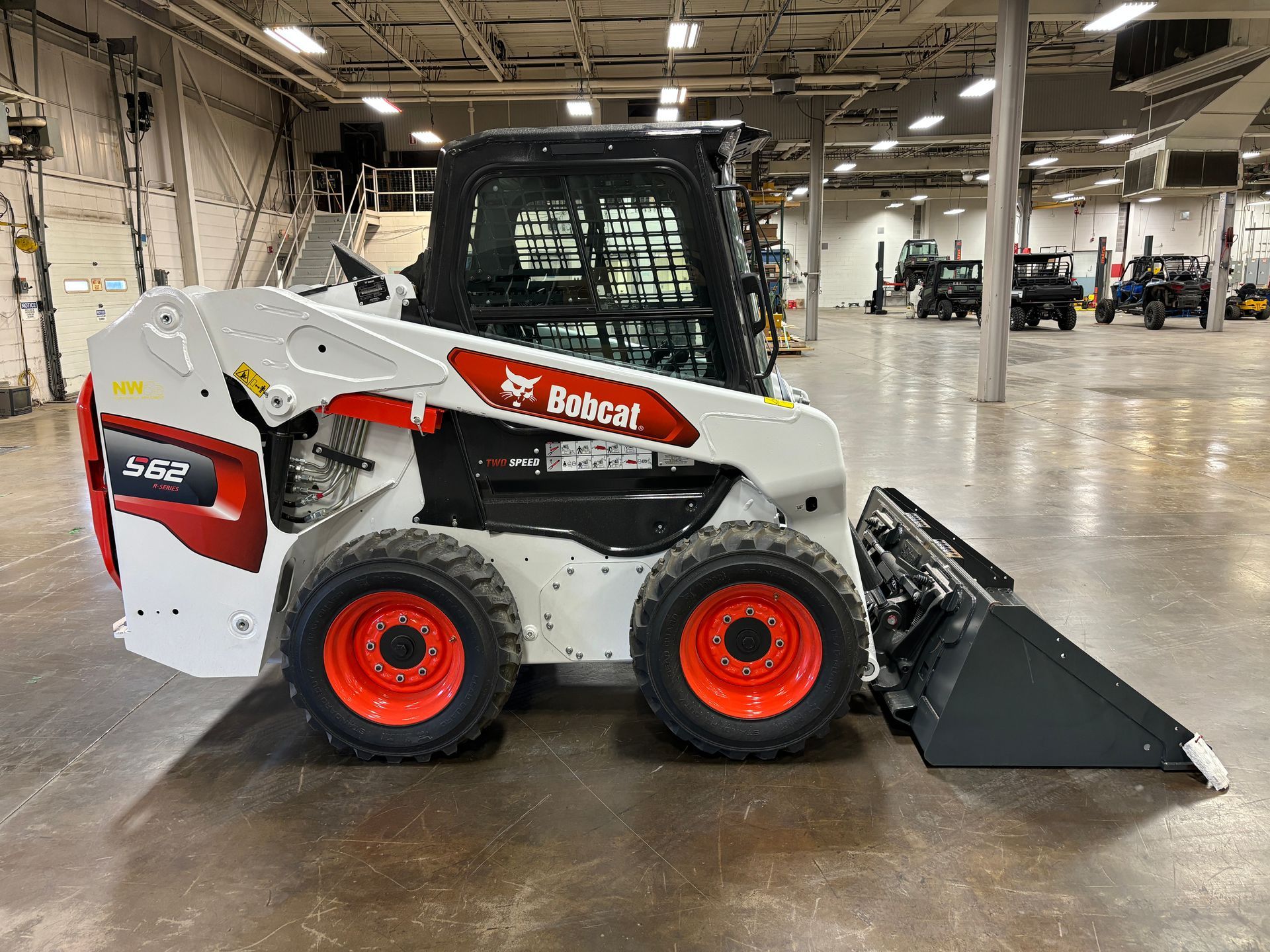

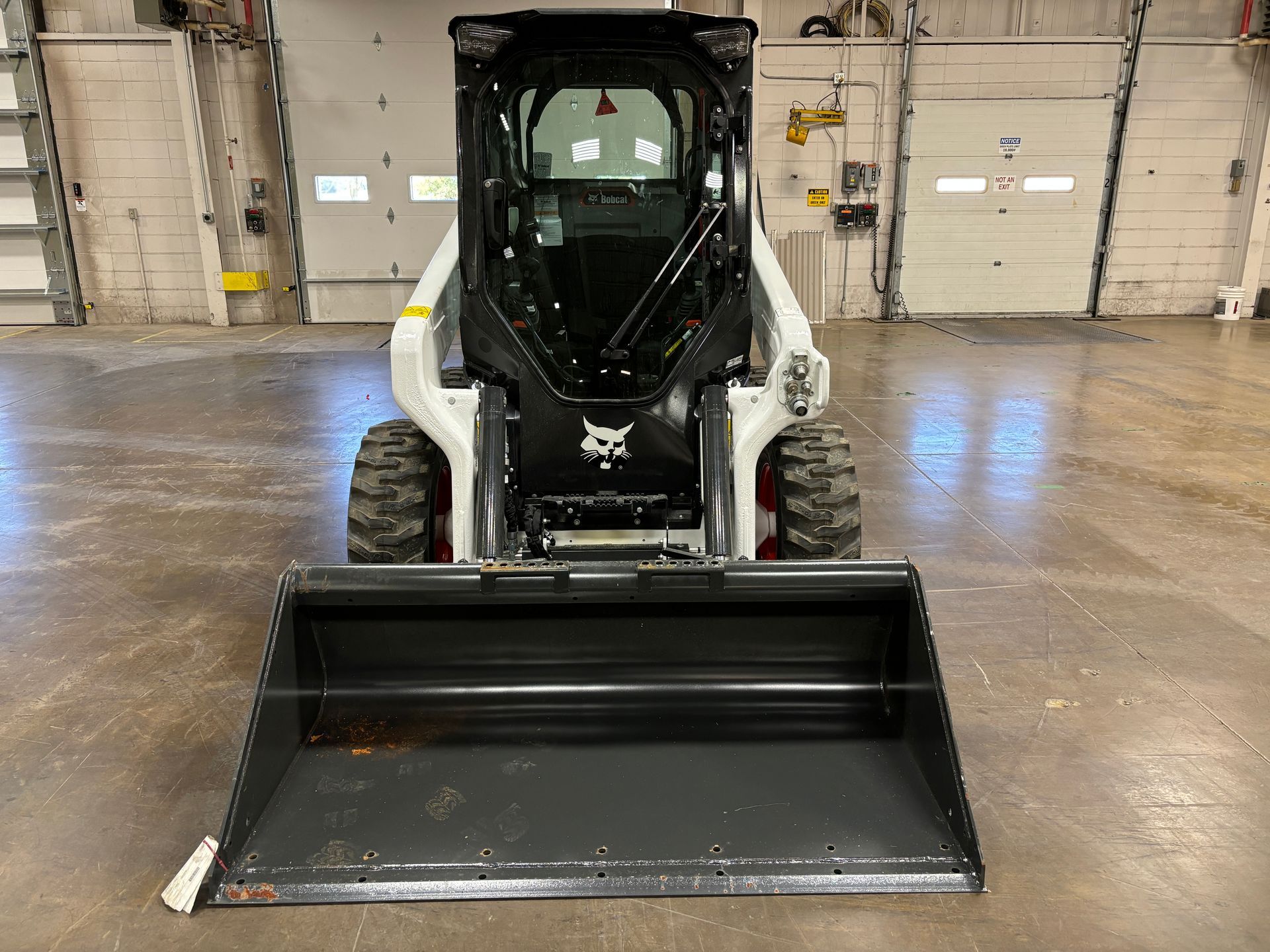

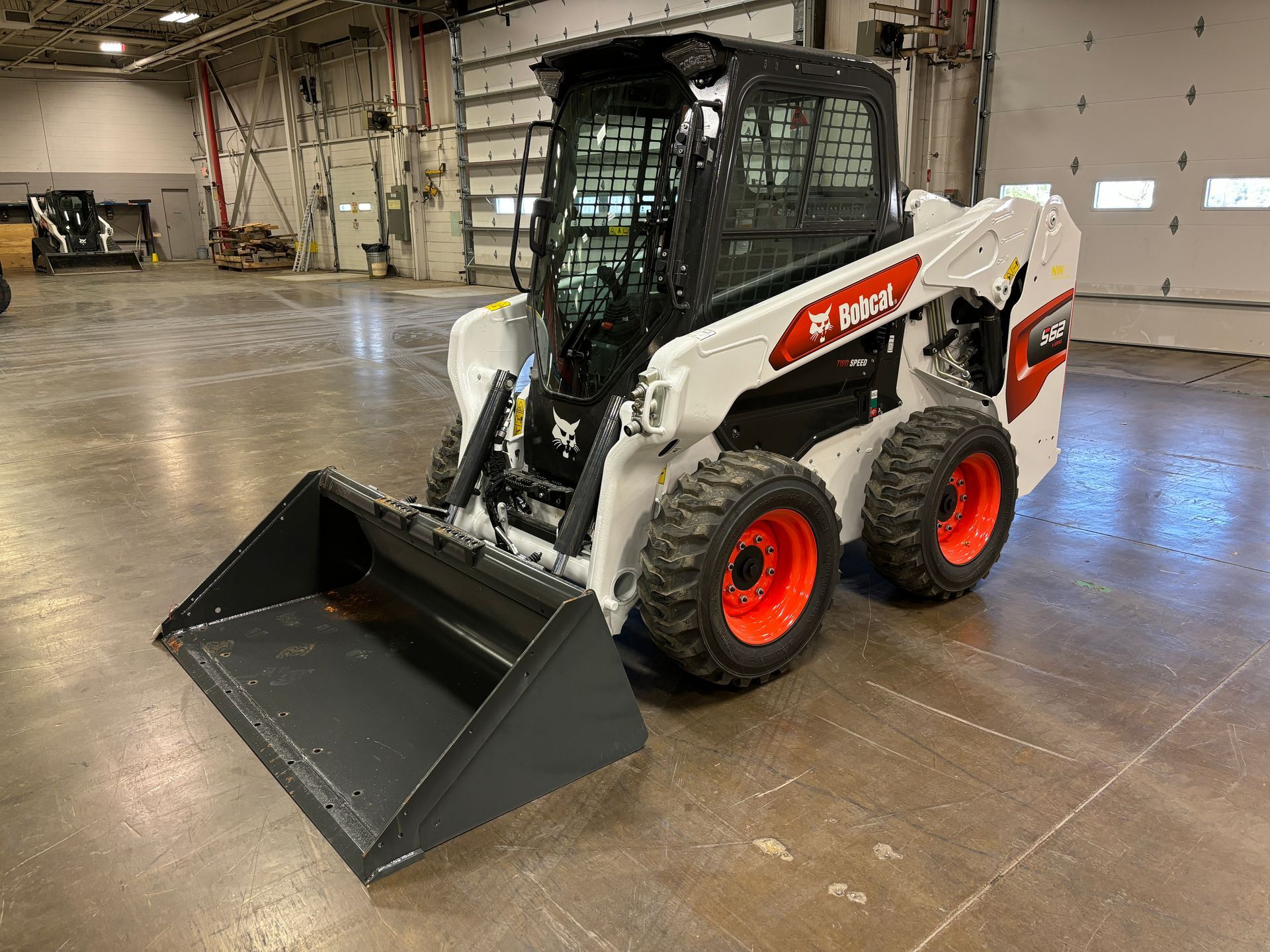

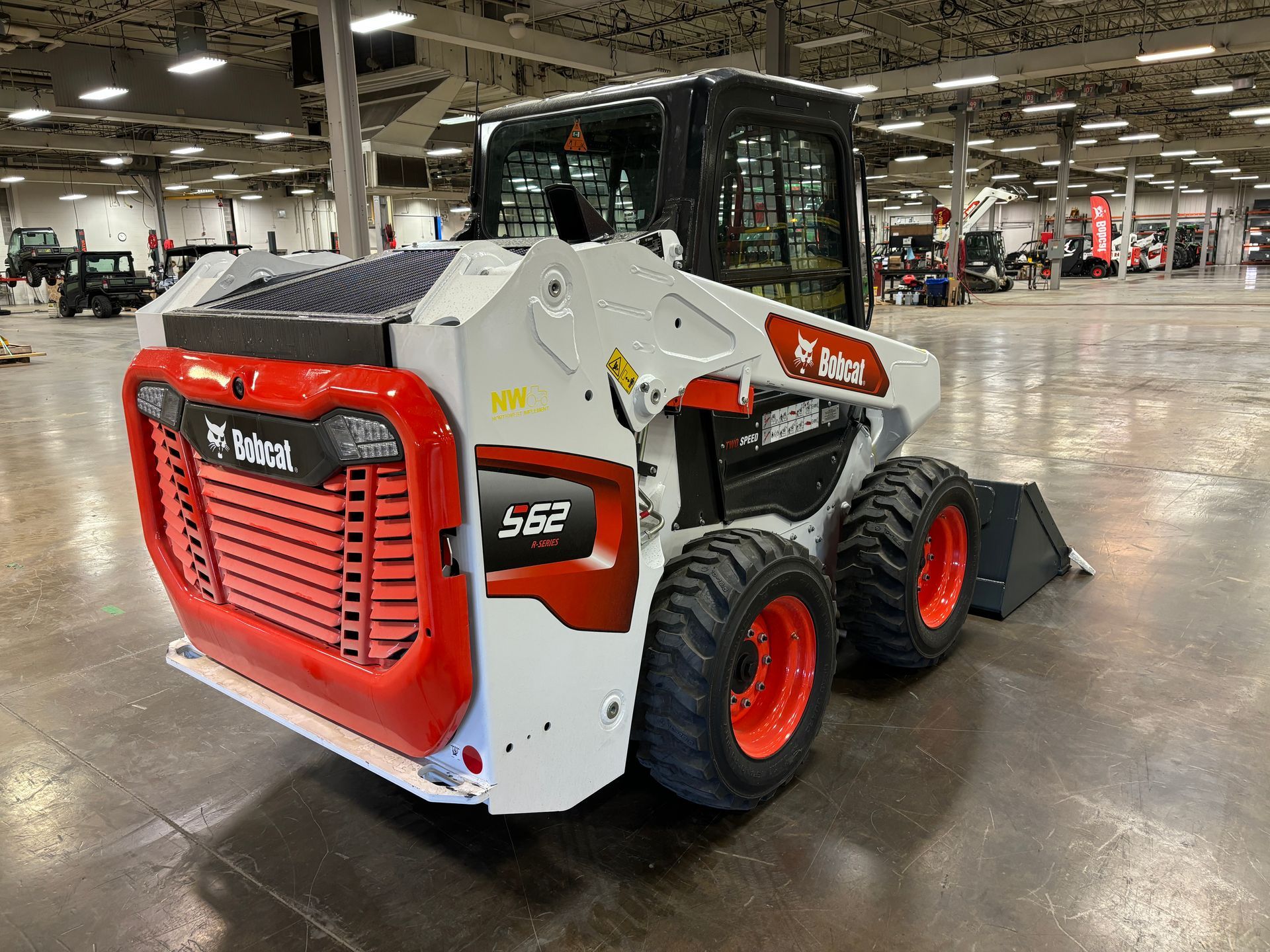

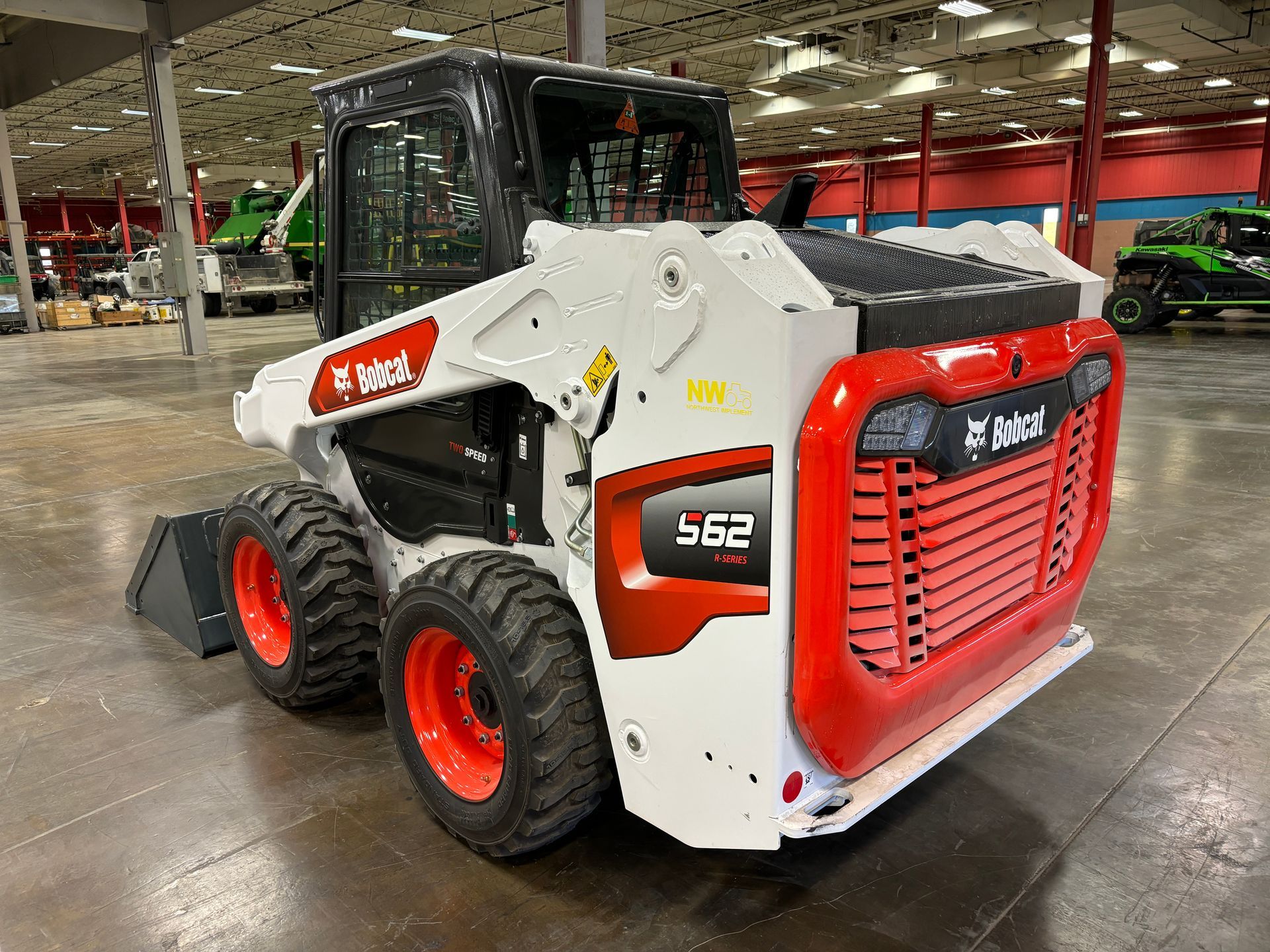

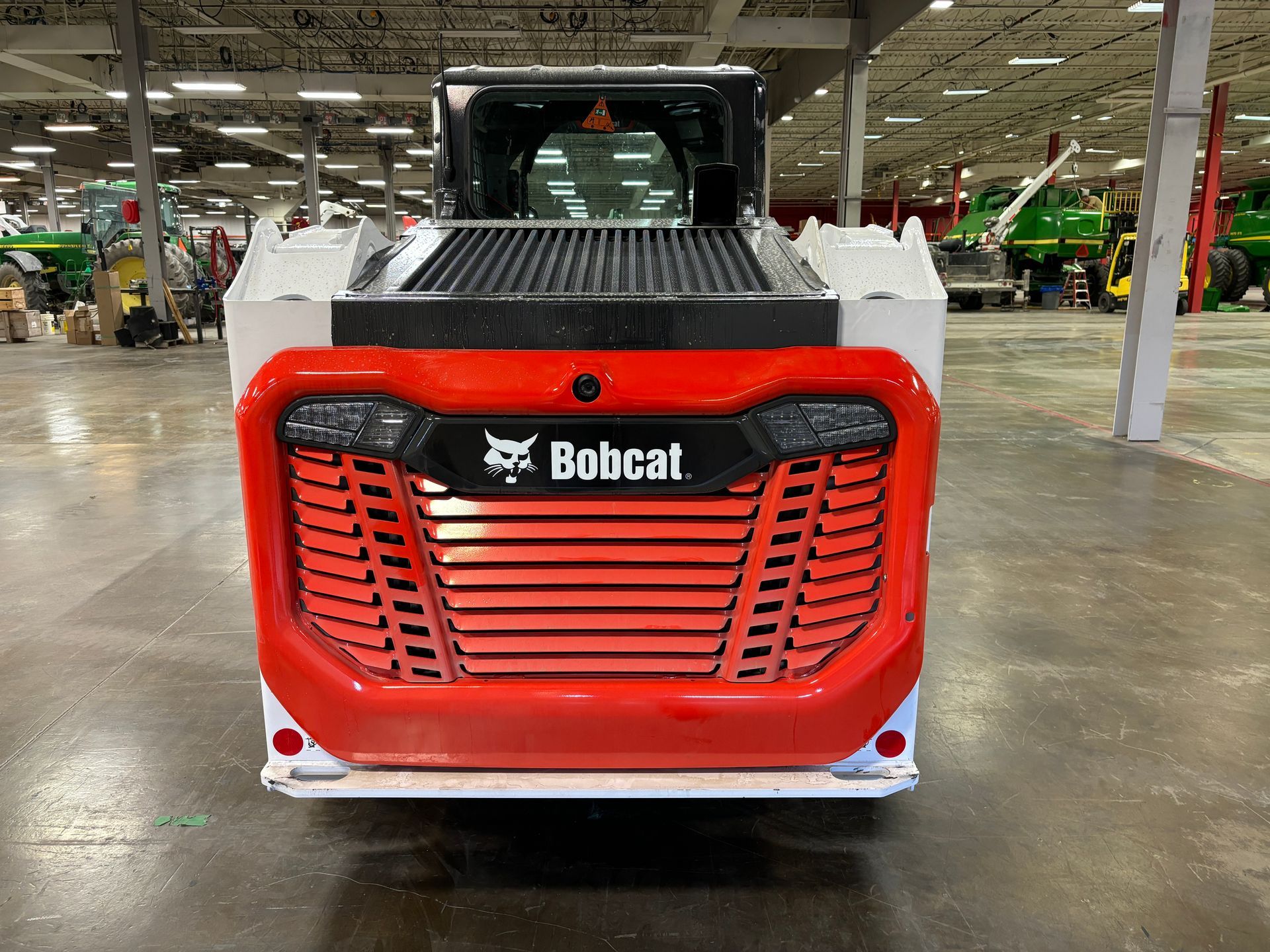

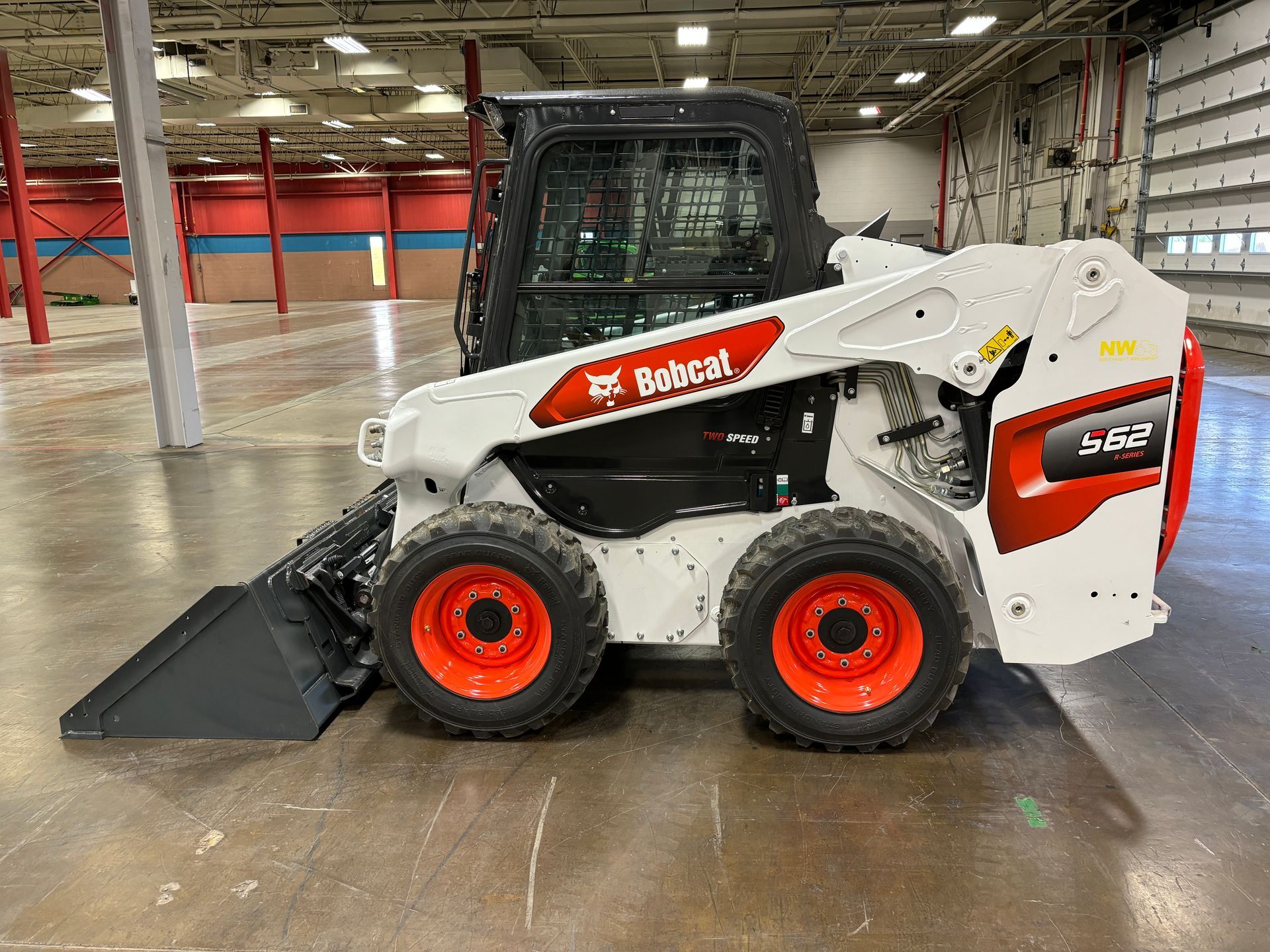

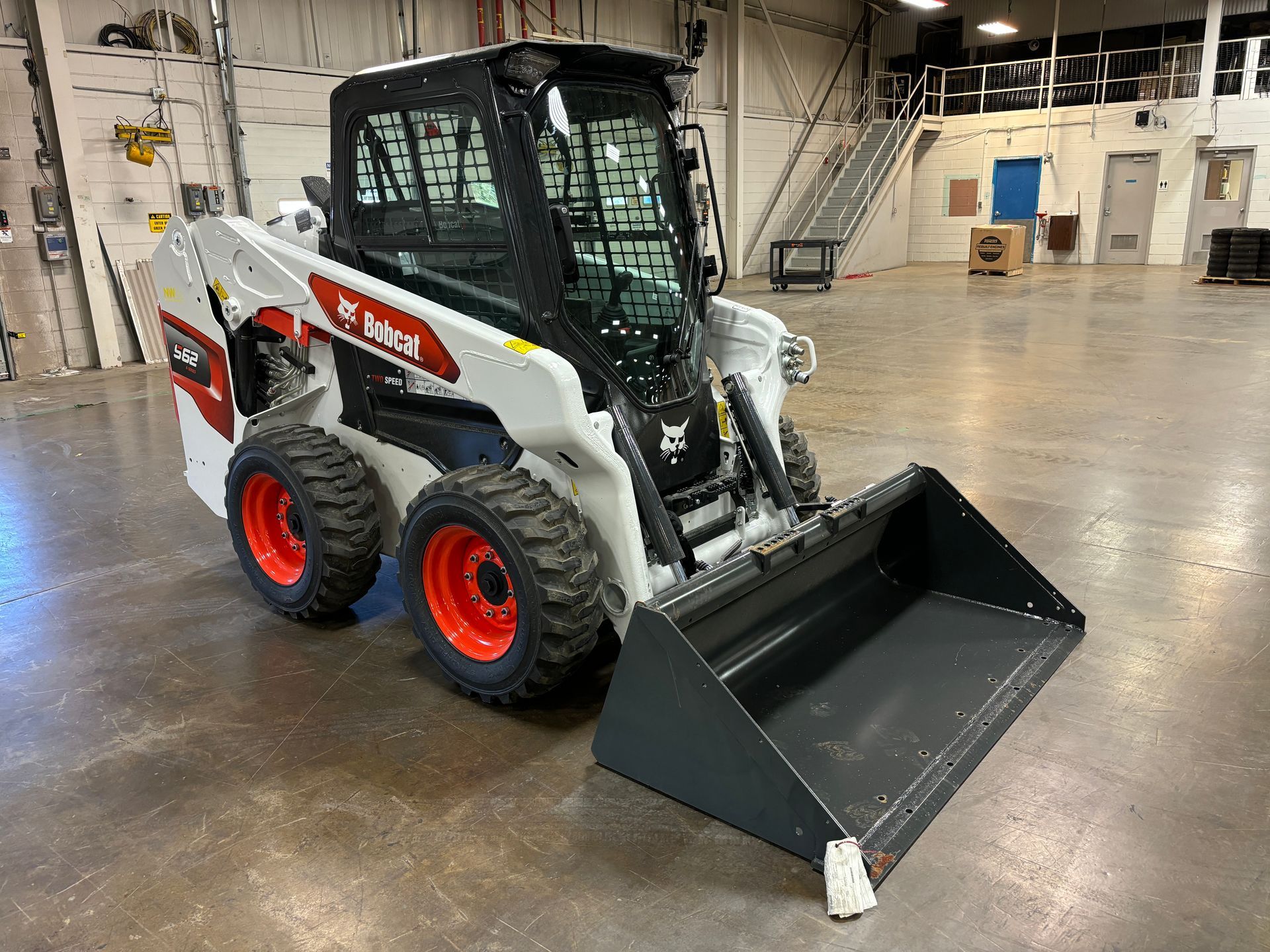

2024 Bobcat S62 R-Series Compact Skid Steer Loader $63,088
Features
* 2024 Bobcat S62 Skid Steer Loader (MSRP - Call for Best Pricing)
* 1 Hours
* Comfort Package
- Enclosed HVAC Cab
- Radio
- Adjustable Heated Cloth Air Ride Seat

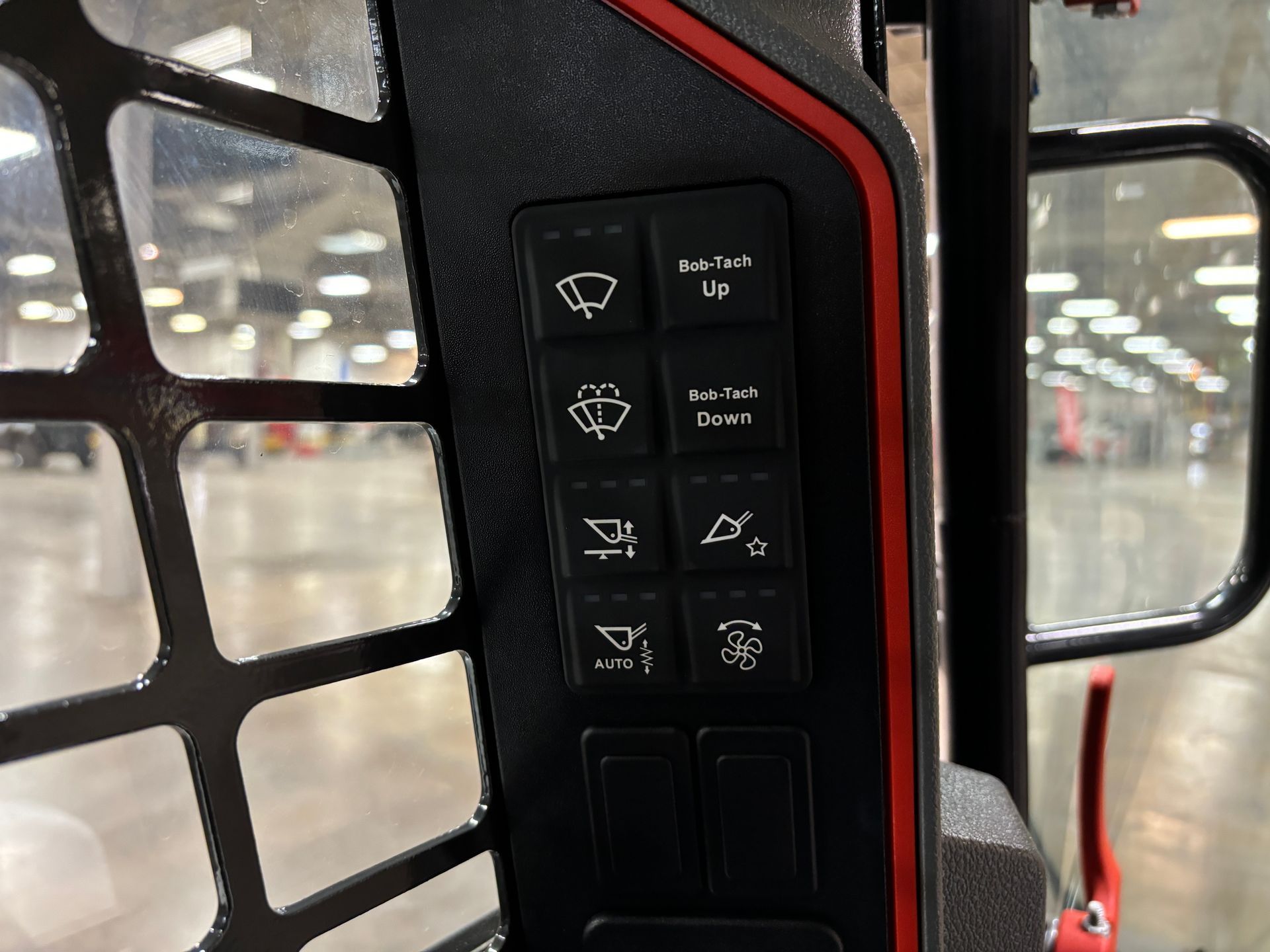

- Power Bob-Tach
- Instrumentation:

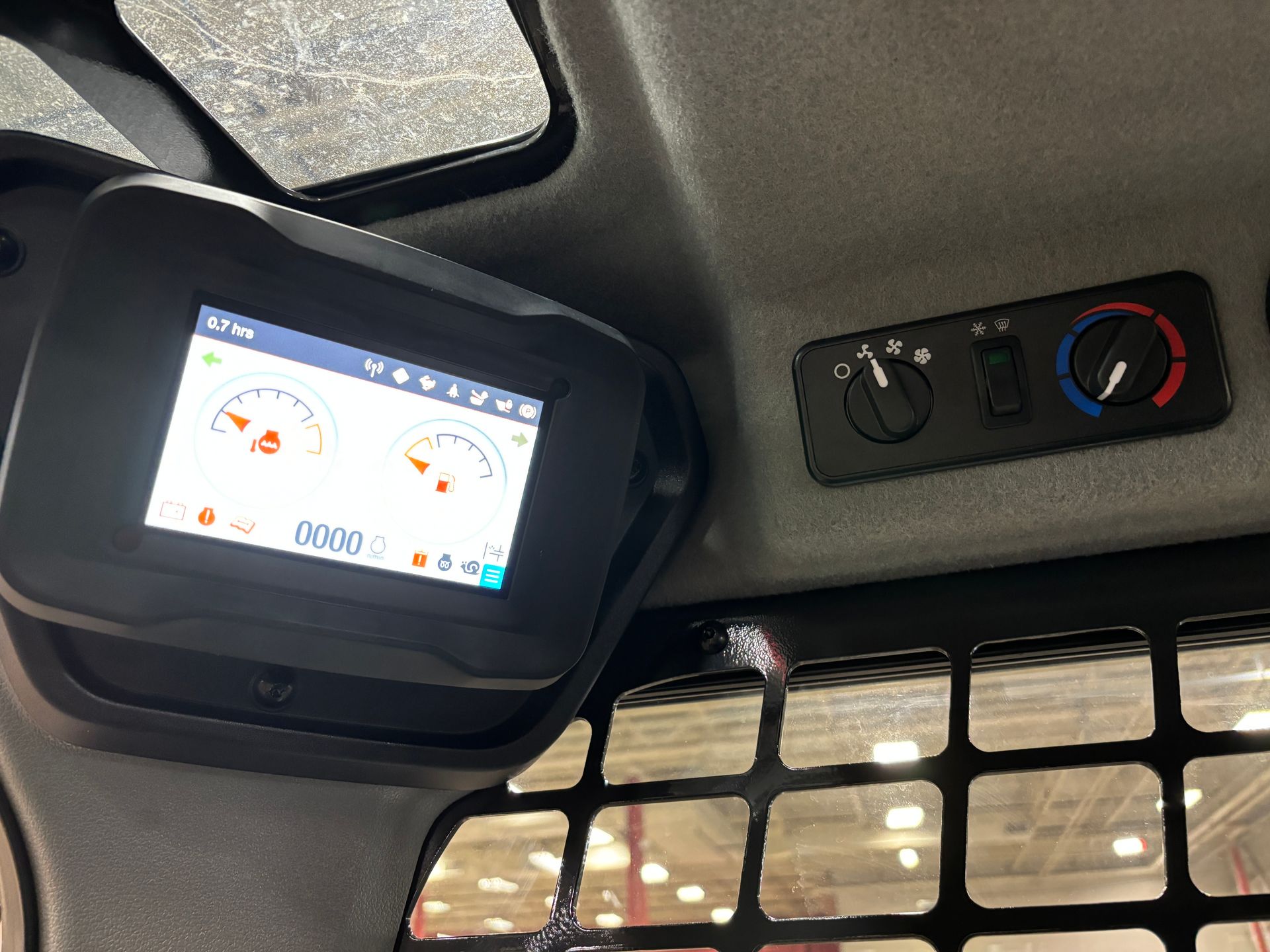

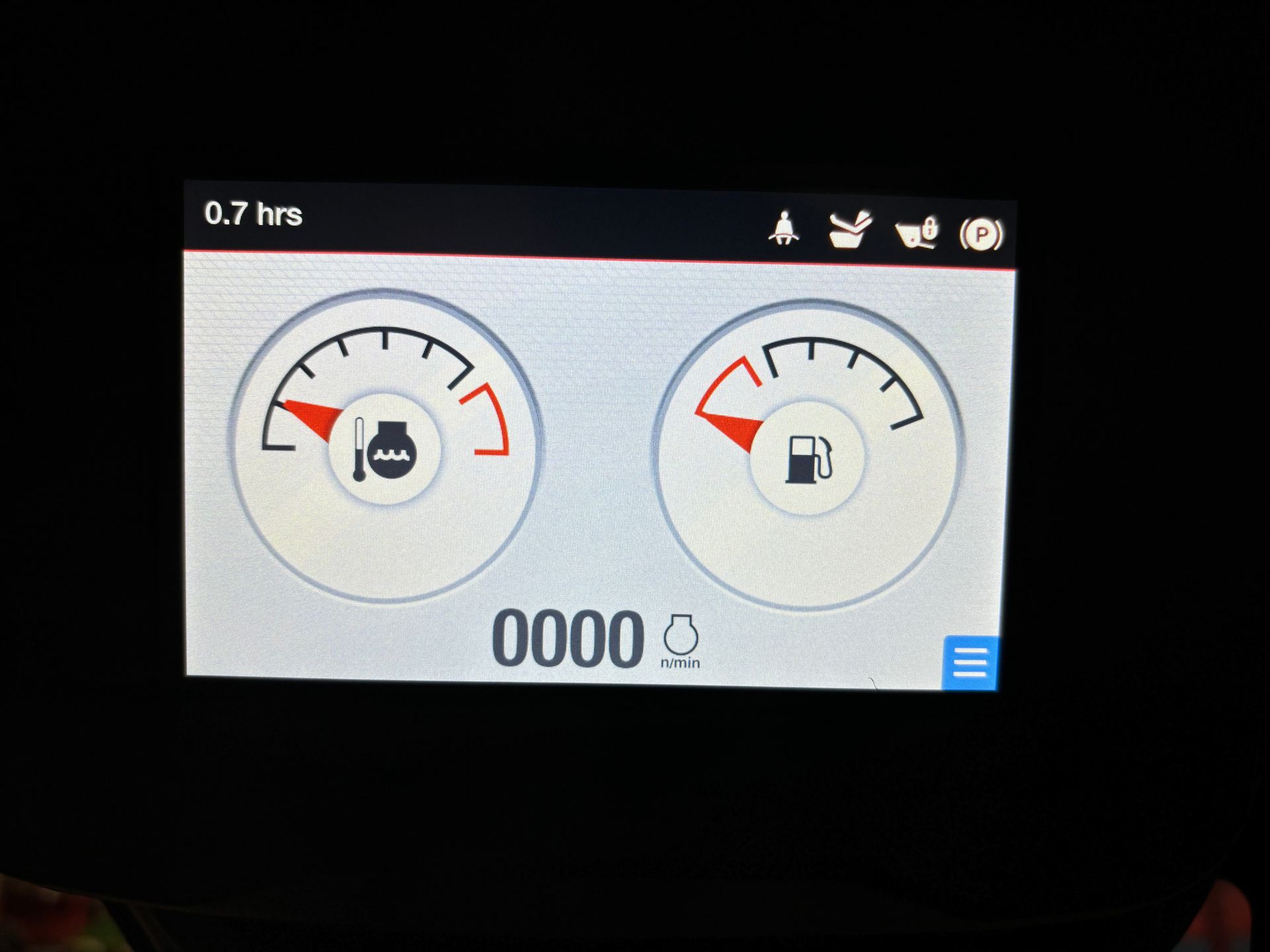

* Standard 5" Display
* Engine Temperature and Fuel Gauges
* Hour Meter, RPM and Warning Indicators
* Includes maintenance interval notification, fault display, job codes, quick start and security lockouts
- Premium LED Lights

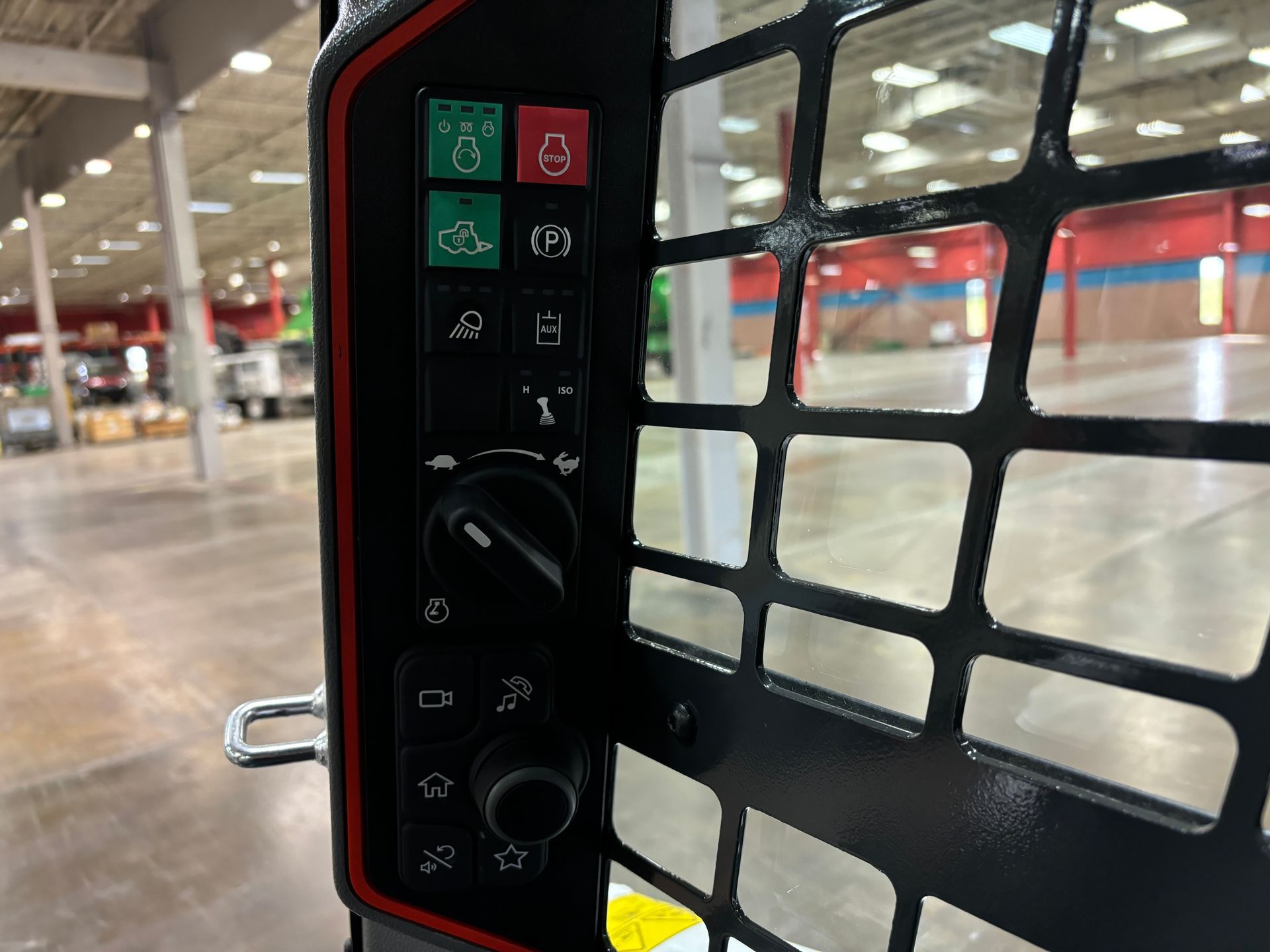

- Keyless Start
- 7-Pin Attachment Control
- Dual Direction Bucket Positioning
- Rear Camera
- Sound Reduction
- Automatic Ride Control

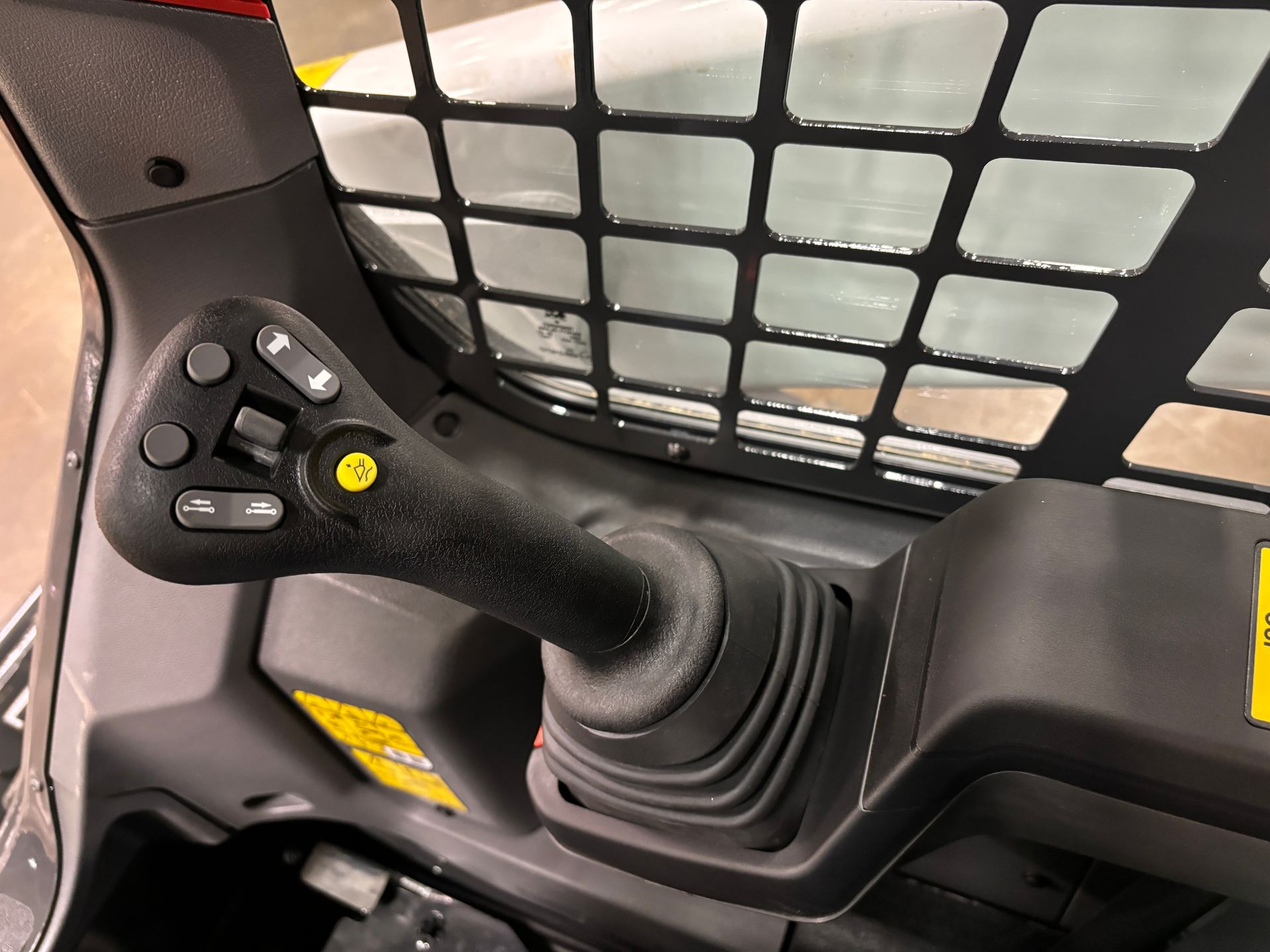

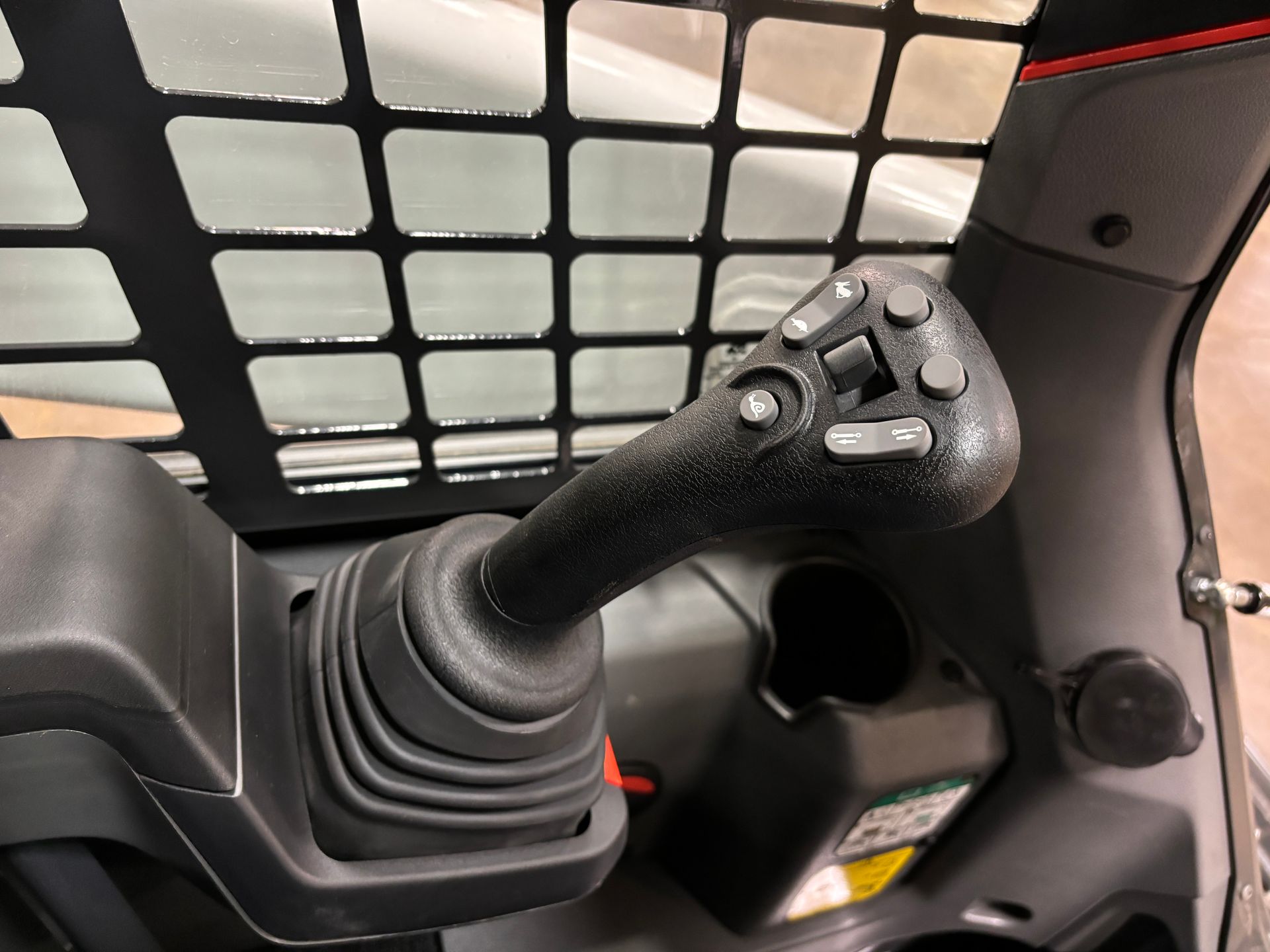

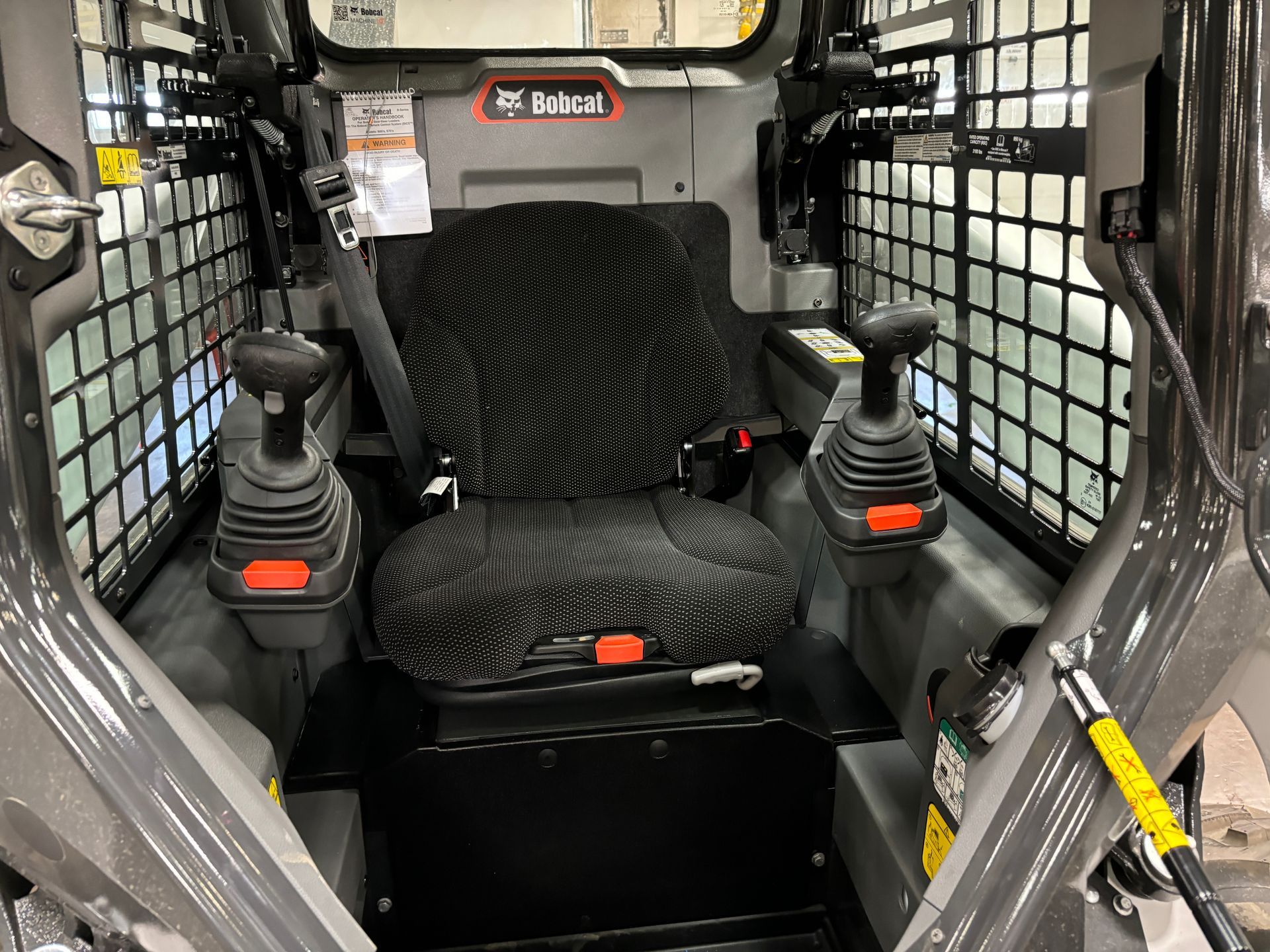

* Selectable Joystick Controls
- ISO or H-Pattern
- Auto Idle
- Horsepower Management
- Speed Management
- Drive Response
- Drive Response
- Drift Compensation
- Foot Pedal for Engine Speed Control
Standard Features
* 68.0 HP Tier 4 V2 Bobcat Engine

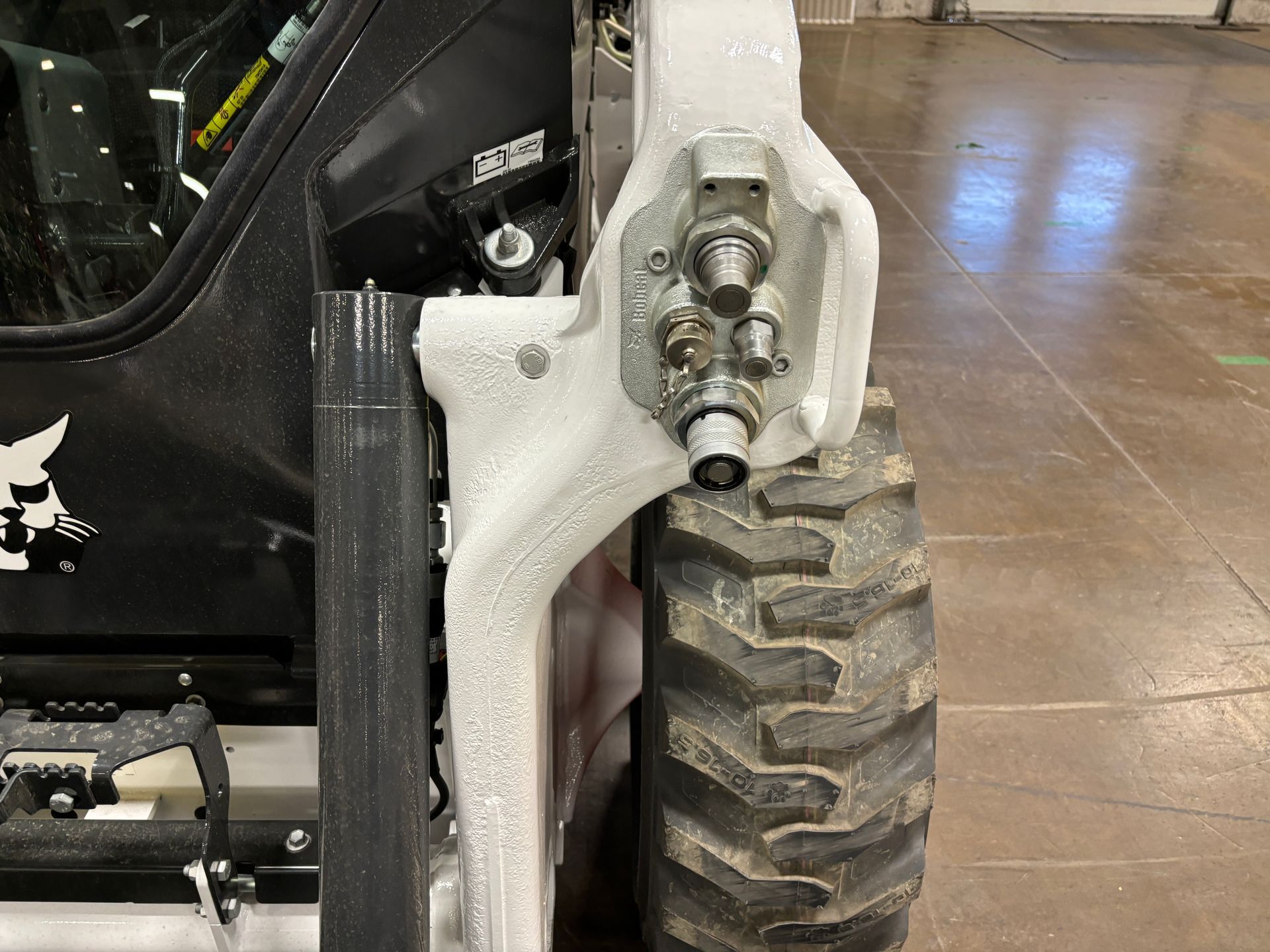

* Auxiliary Hydraulics: Variable Flow
* Backup Alarm

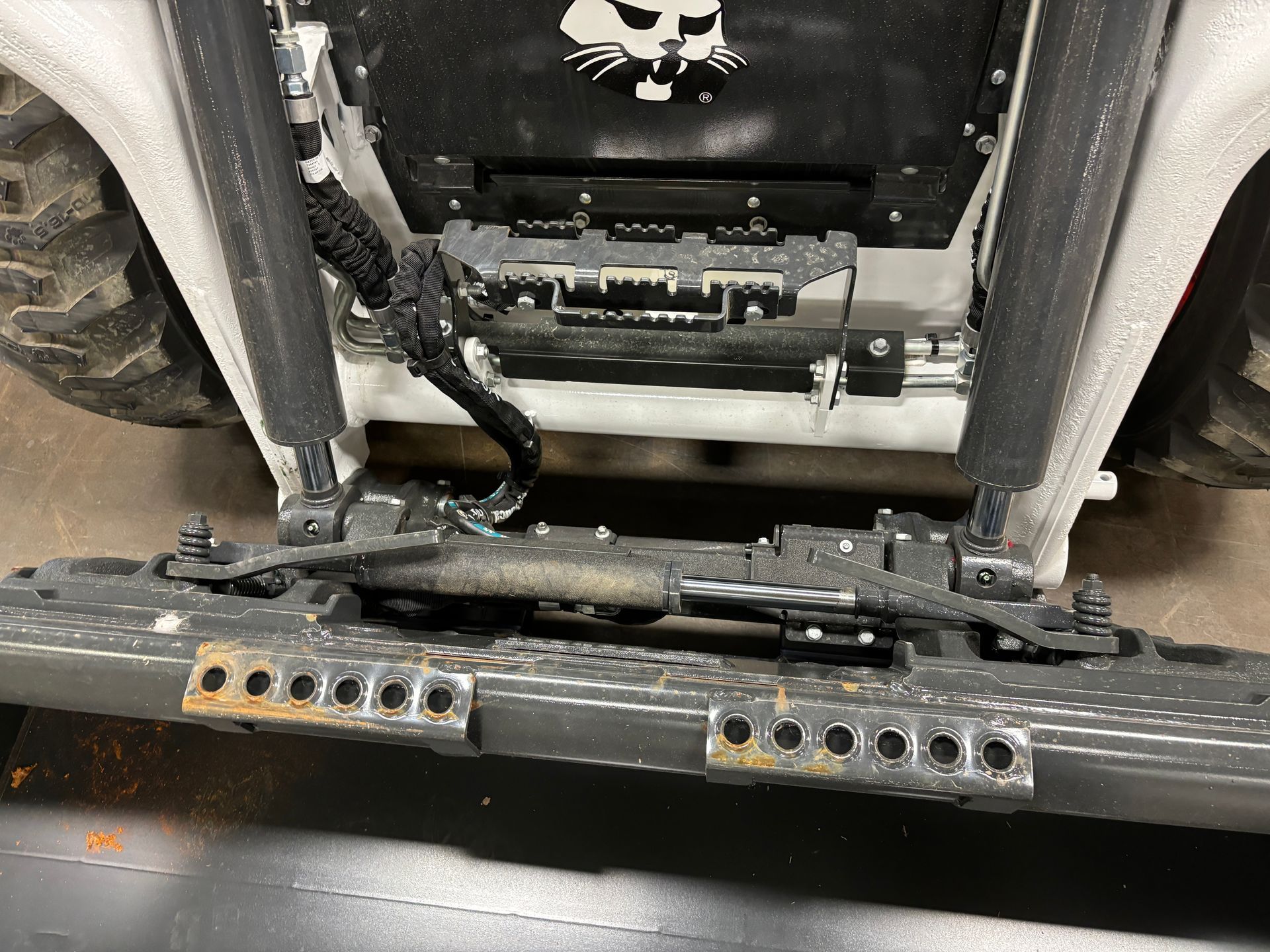

* Bob-Tach
* Bobcat Interlock Control System (BICS)
* Controls: Hand & Foot (Manual)
* Cylinder Cushioning - Lift & Tilt
* Engine/Hydraulic Performance De-Rate Protection
* Glow Plugs (Automatically Activated)
* Horn
* Lift Arm Support
* Lift Path: Radius
* Lights, Front & Rear LED
* Operator Cab
- Includes:
* Adjustable Vinyl Suspension Seat
* Top & Rear Windows
* Parking Brake
* Seat Bar & Seat Belt
* Roll Over Protective Structure (ROPS) meets SAE-J1040 & ISO 3471
* Falling Object Protective Structure (FOPS) meets SAE-J1043 & ISO 3449, Level !; (Level II is available through Bobcat Parts)
* Parking Brake

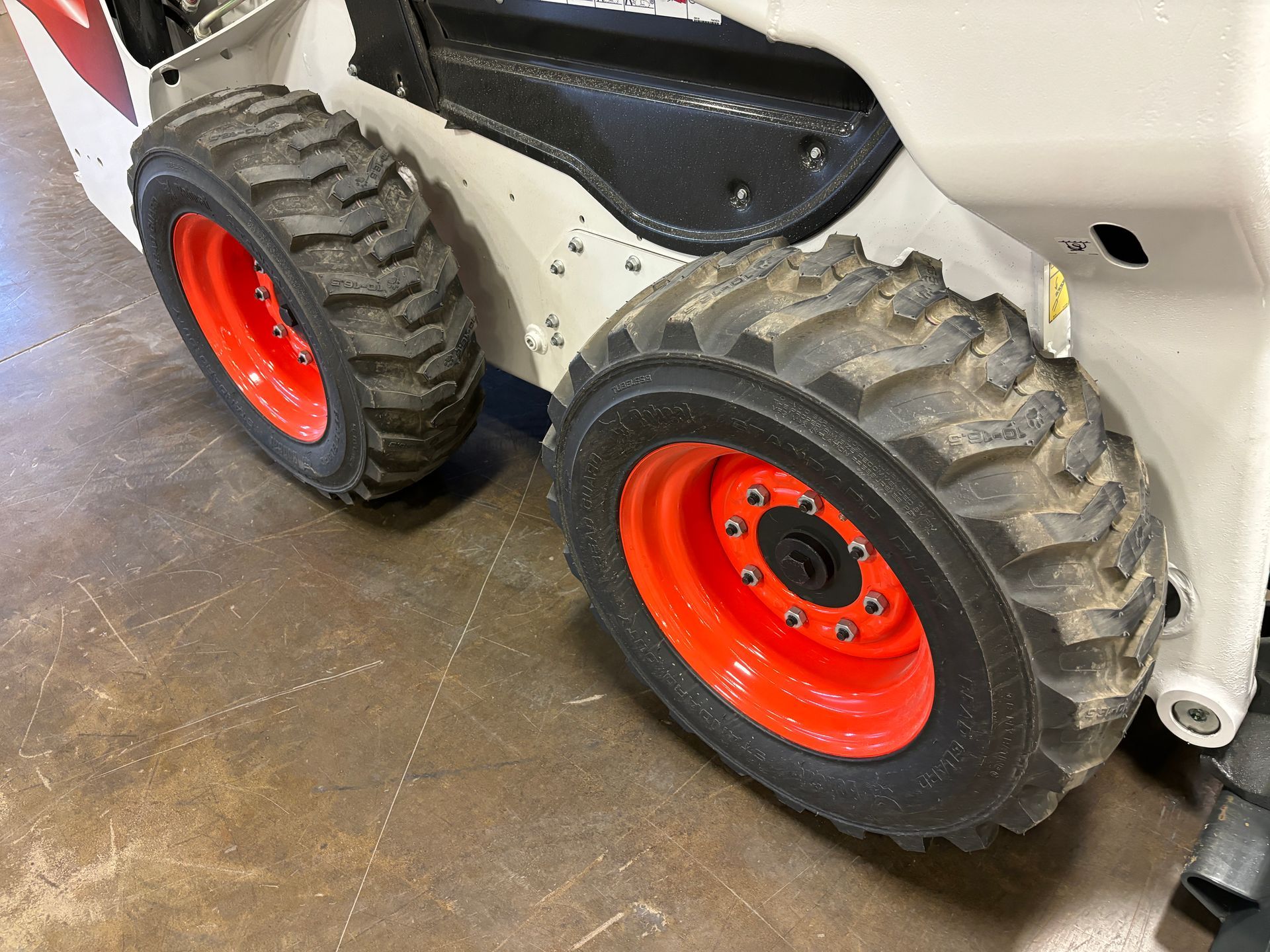

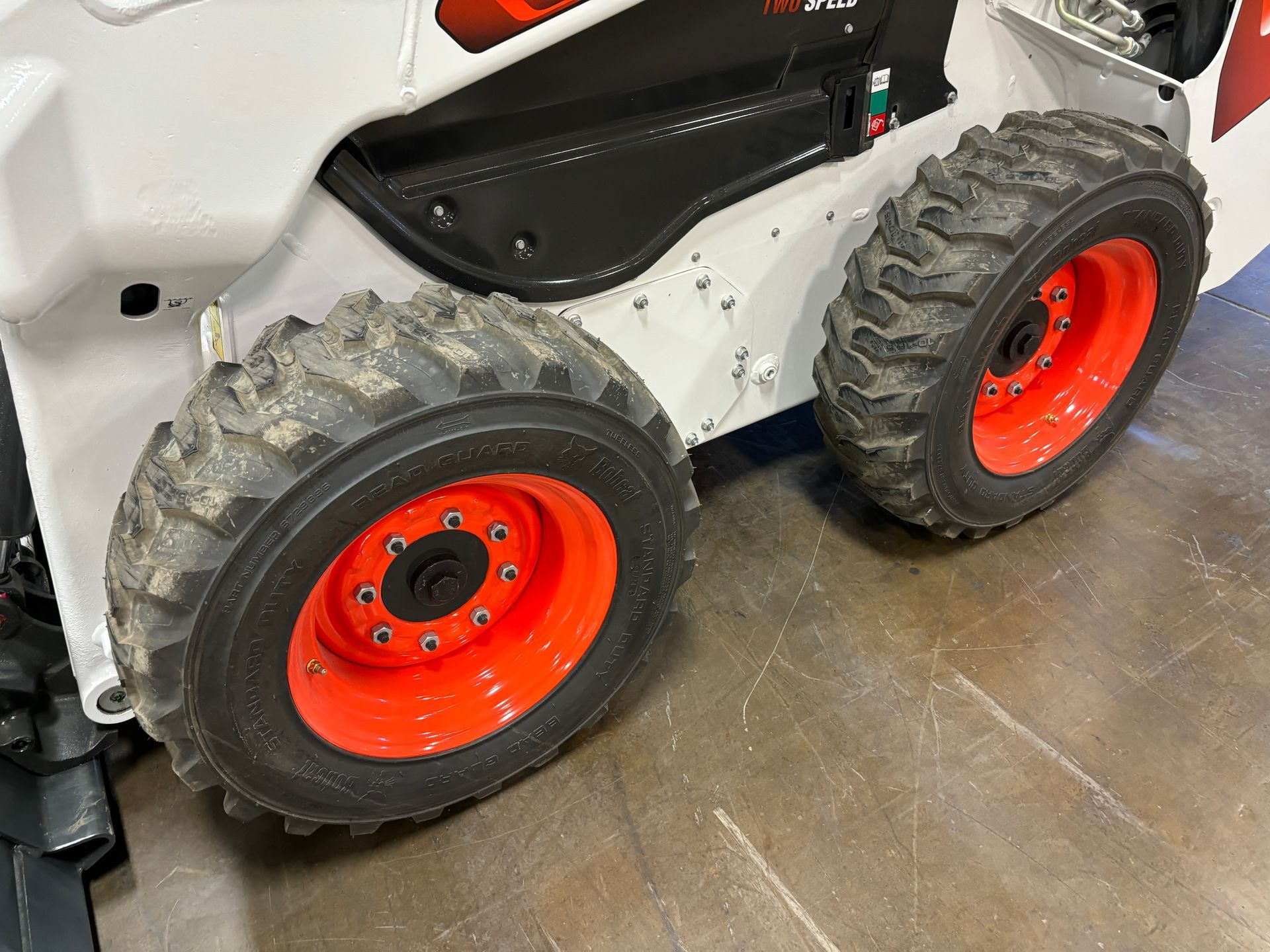

* Tires: 10-16.5, 8 PR, Bobcat Standard Duty
* Telematics - Machine IQ - 2-year Basics
* Warranty: 2 years or 2000 hours, whichever occurs first
Specifications
ENGINE
* Emissions Tier (EPA): Tier 4
* Engine Cooling: Liquid
* Engine Fuel: Diesel
* Horsepower: 68hp
* Turbocharged Engine: Optional
* Engine Model: 2.4L V2
* Engine Make: Bobcat
* Cooling System: 2.8 gal
* Gross HP: 68hp
* Net HP: 64.9hp
* Number of Cylinders: 4
* Displacement: 146 cubic inches
* Torque (SAE NET): 174.3 foot pounds
* Torque RPM: 1,800 rpm
* Starter Horsepower: 3.6 hp
* Horsepower Management: Included with SJC Option
PERFORMANCE
* Rated Operating Capacity: 2,100 lb
* Rated Operating Capacity 200 lb Counterweight: 2,250 lb
* Tipping Load: 4,200 lb
* Operating Weight: 6,884 lb
* Travel Speed: 7.4 mph
* Travel Speed (2-Speed): 11 mph
* Bucket Breakout Force: 5,093 lbf
* Lift Breakout Force (ISO) 4,186 lbf
* Lift Arm Path: Radial
CAPACITIES
* Fuel Tank: 28.3 gal
* Engine Oil with Filter: 8.6 qt
* Hydraulic Reservoir: 5 gal
* Hydraulic System Capacity: 11 gal
* Transmission (Final Drive): 7 gal
HYDRAULIC SYSTEM
* Hydraulic System Pressure (Standard and High Flow: 3,500 psi
* System Relief at Quick Couplers: 3,500 psi
* Auxiliary Standard Flow: 17.6 gal/min
* Auxiliary High Flow: 26.9 gal/min
* Pump Capacity: 17.6 gal/min
* Raise Lift Arm: 3.4 s
* Lower Lift Arm: 2.7 s
* Bucket Dump: 2.5 s
* Bucket Rollback: 1.8 s
GENERAL
* Contract Codes: Skid-Steer Loaders
* First Year of Production: 2020
CONTROLS
* Vehicle Steering: Dual Levers
* Hydraulic (Lift & Tilt): Dual Pedals
* Control Option: Selectable Joysticks
* Auxiliary Hydraulics: Finger Tip Controls
DIMENSIONS
* Length: 135"
* Length without Attachment: 107"

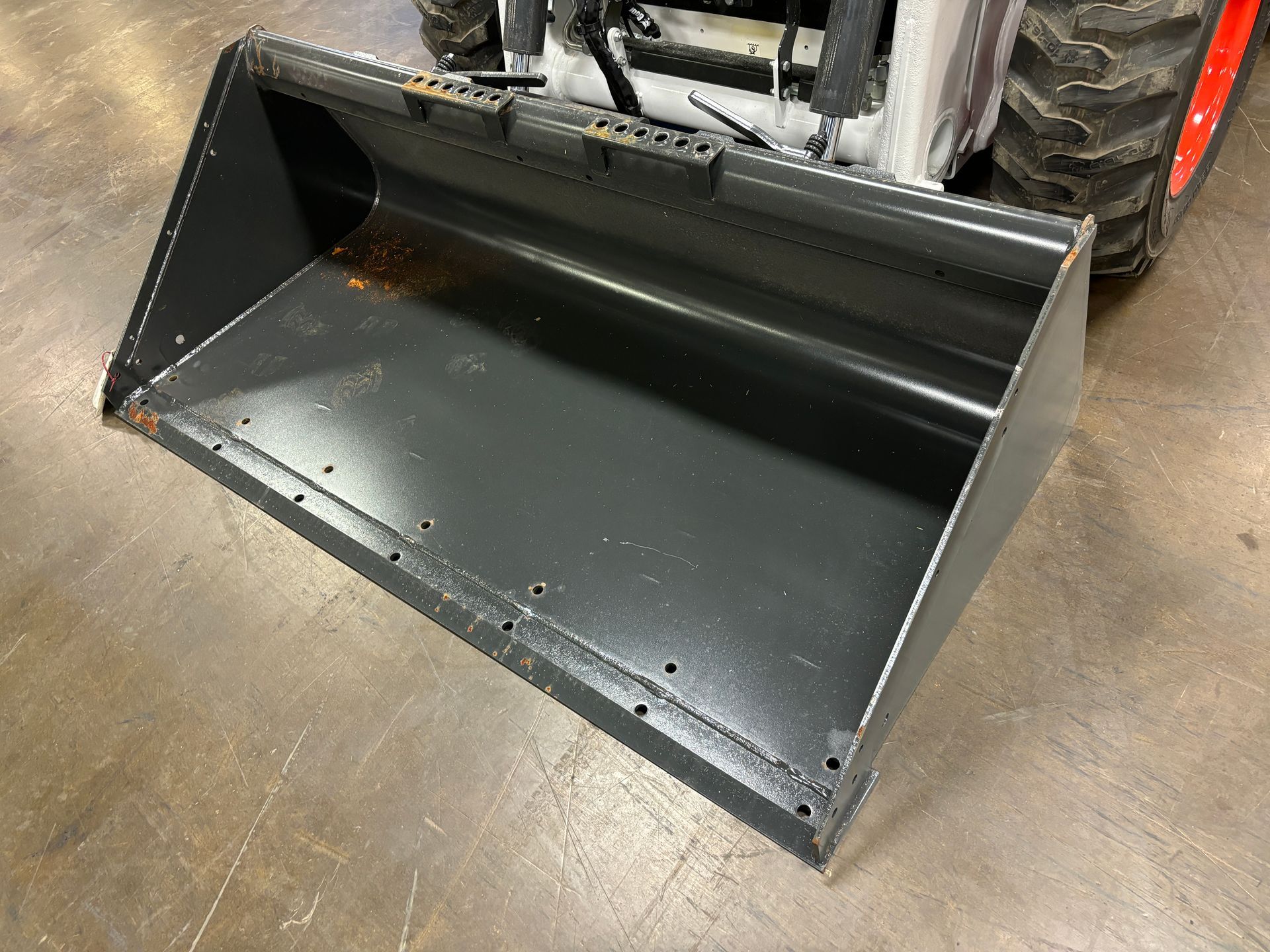

* Length with Standard Bucket: 135"
* Width: 64.6"
* Width (with bucket): 68"
* Height: 80.5"
* Height with Operator Cab: 80.5"
* Height to Bucket Hinge Pin: 114.5"
* Reach @ Maximum Height: 20.4"
* Turning Radius:79.8"
* Wheelbase: 44.6"
* ROC with Counterweight Option: 2,250 lb
* Dump Angle @ Maximum Height: 37 degree
* Ground Clearance: 7.5"
