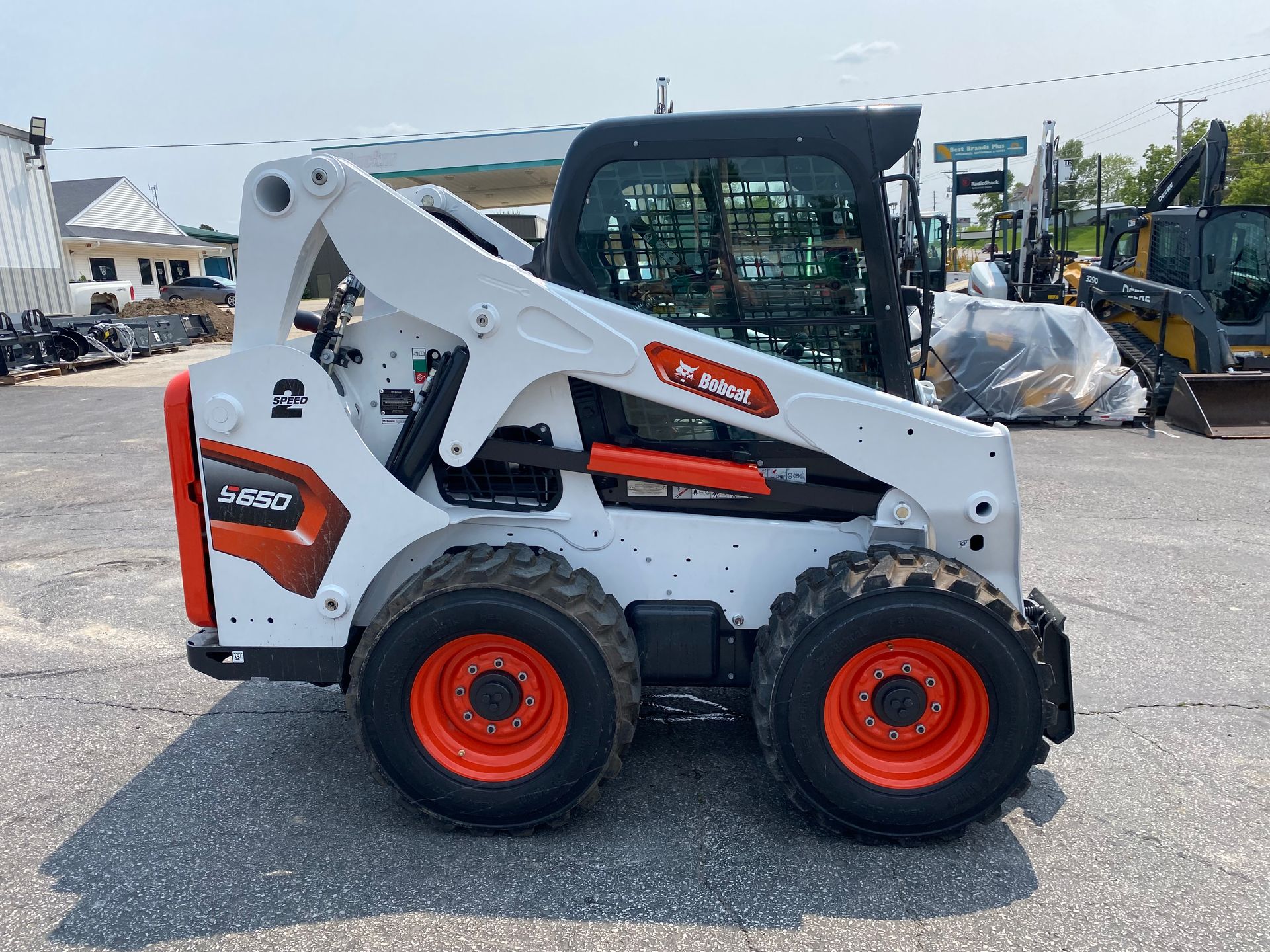

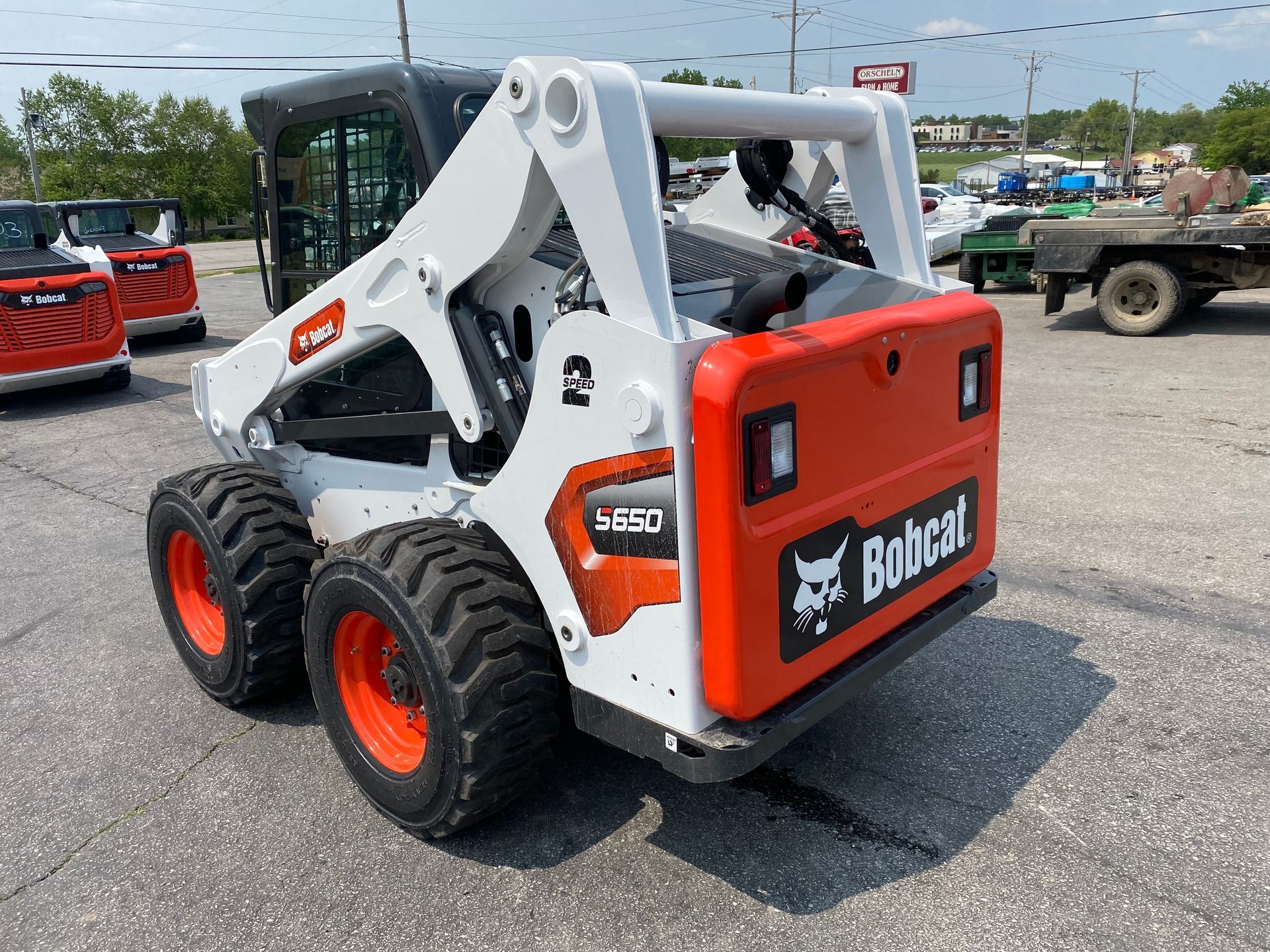

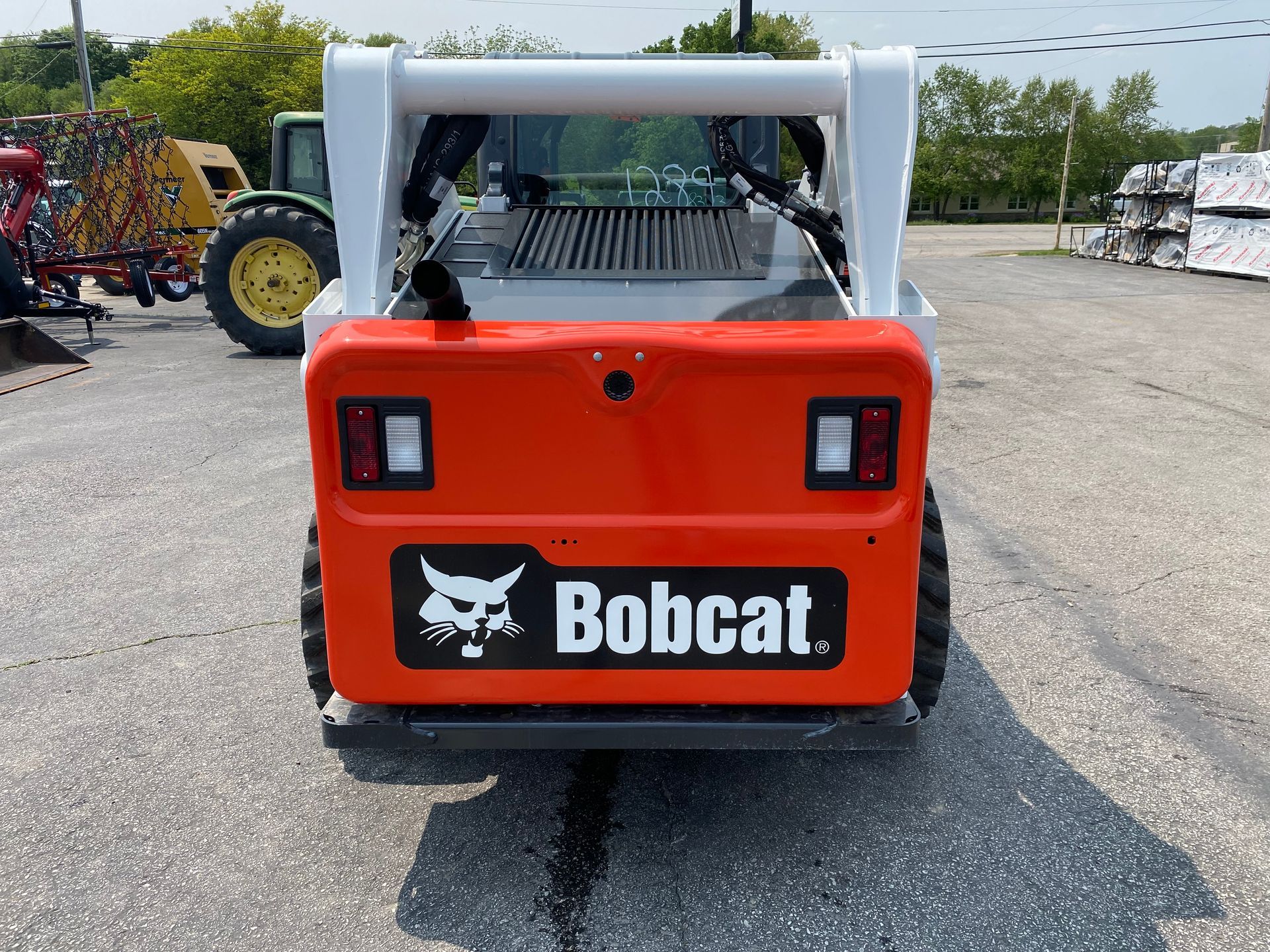

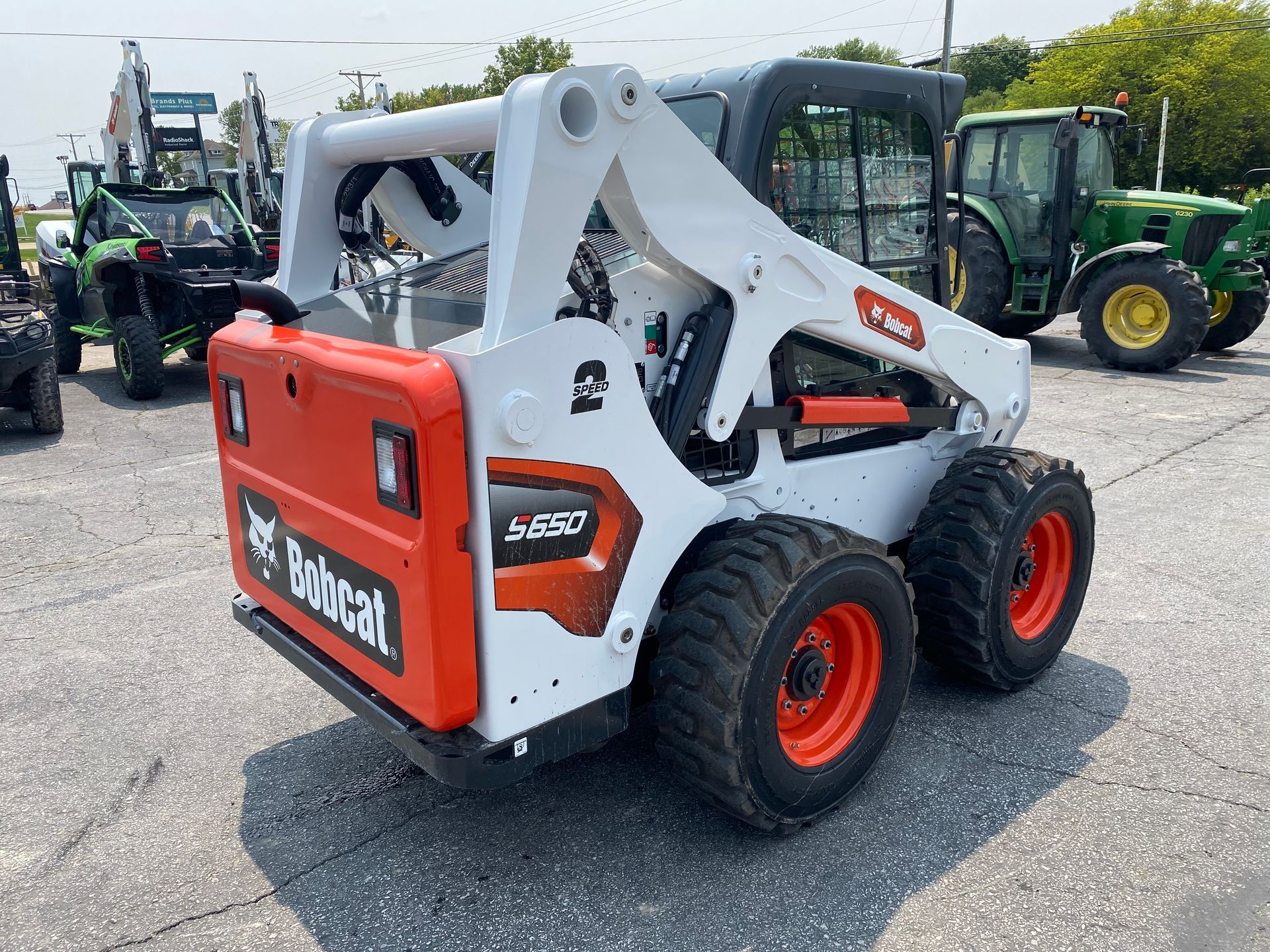

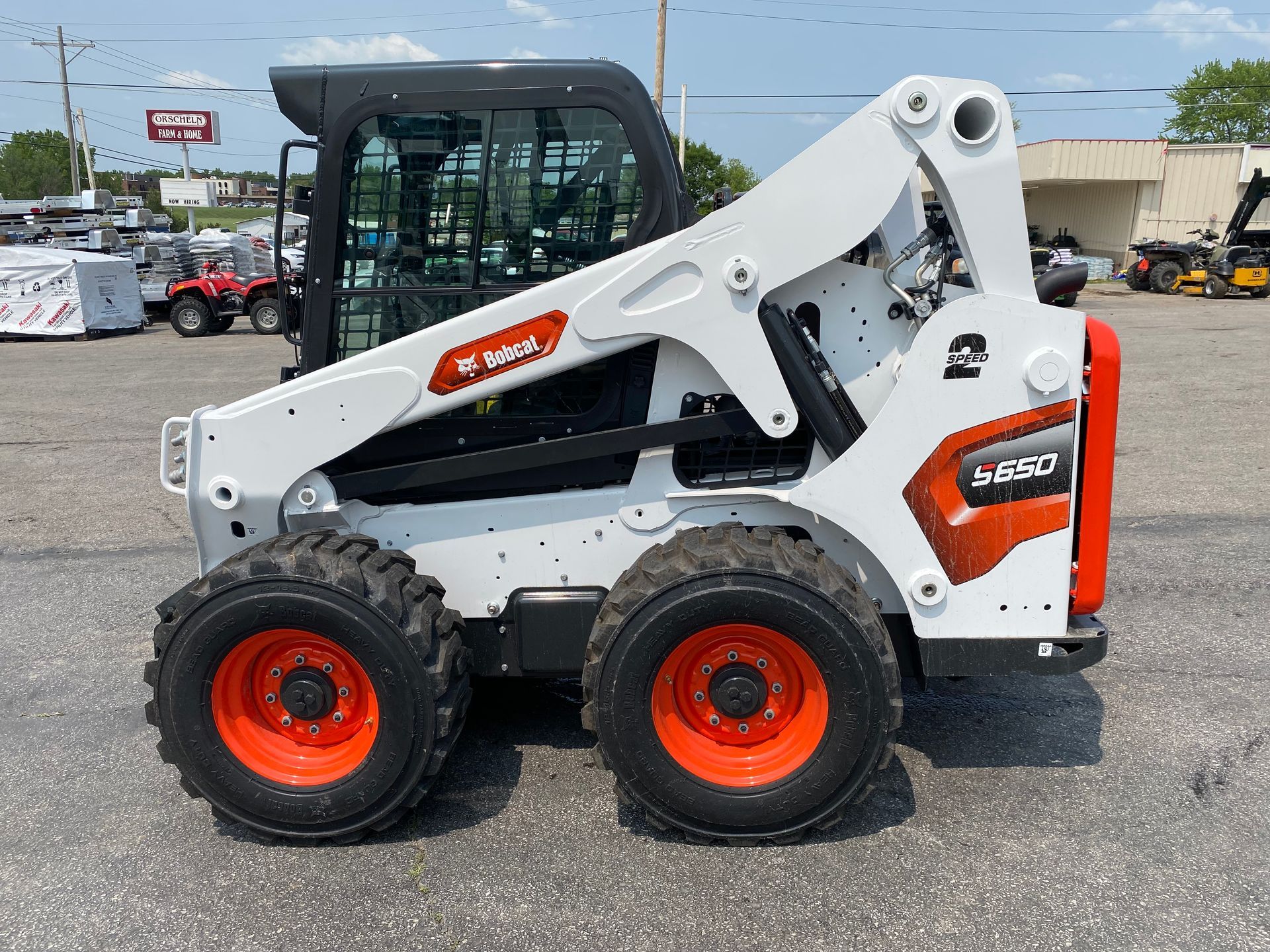

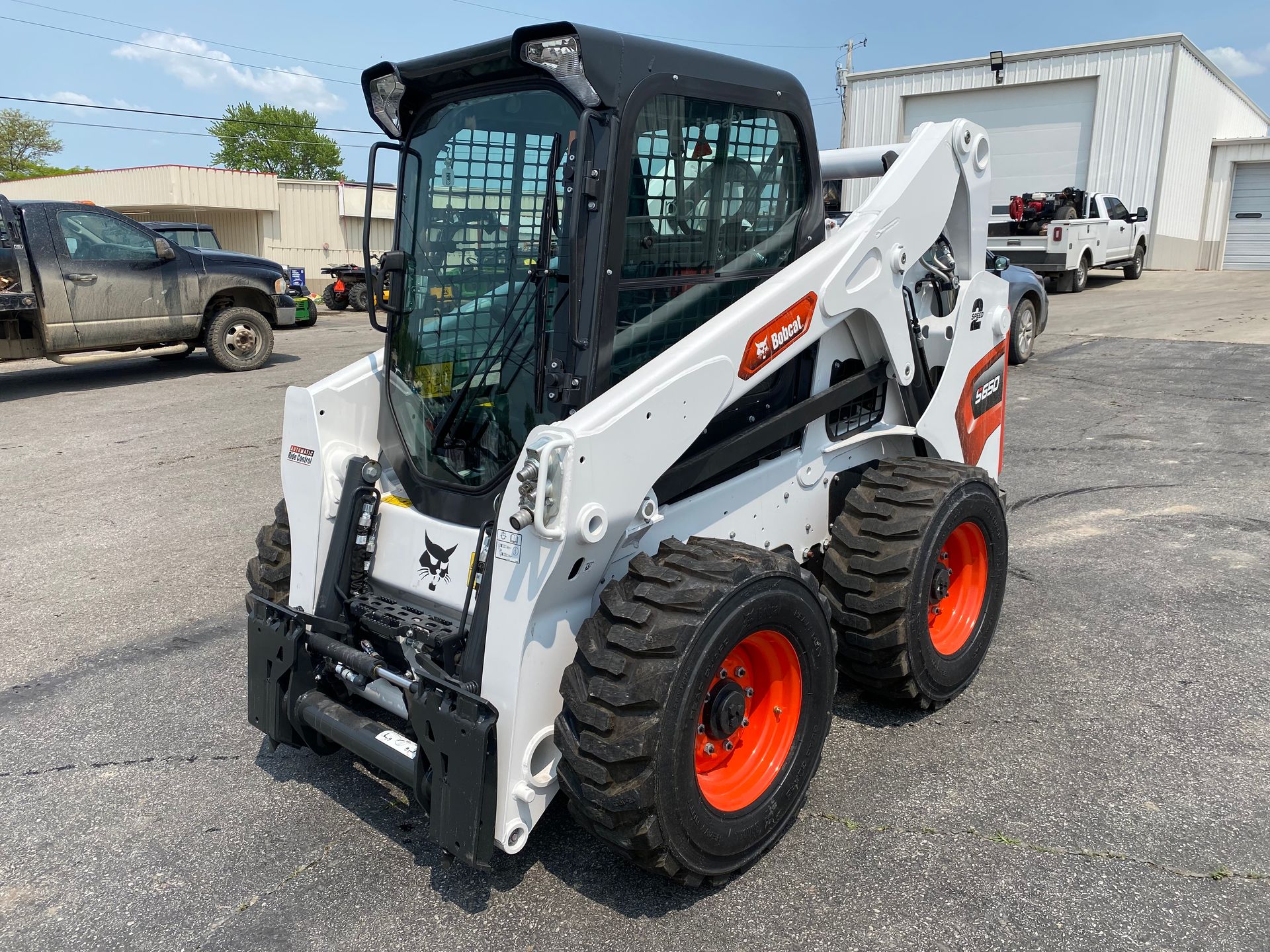

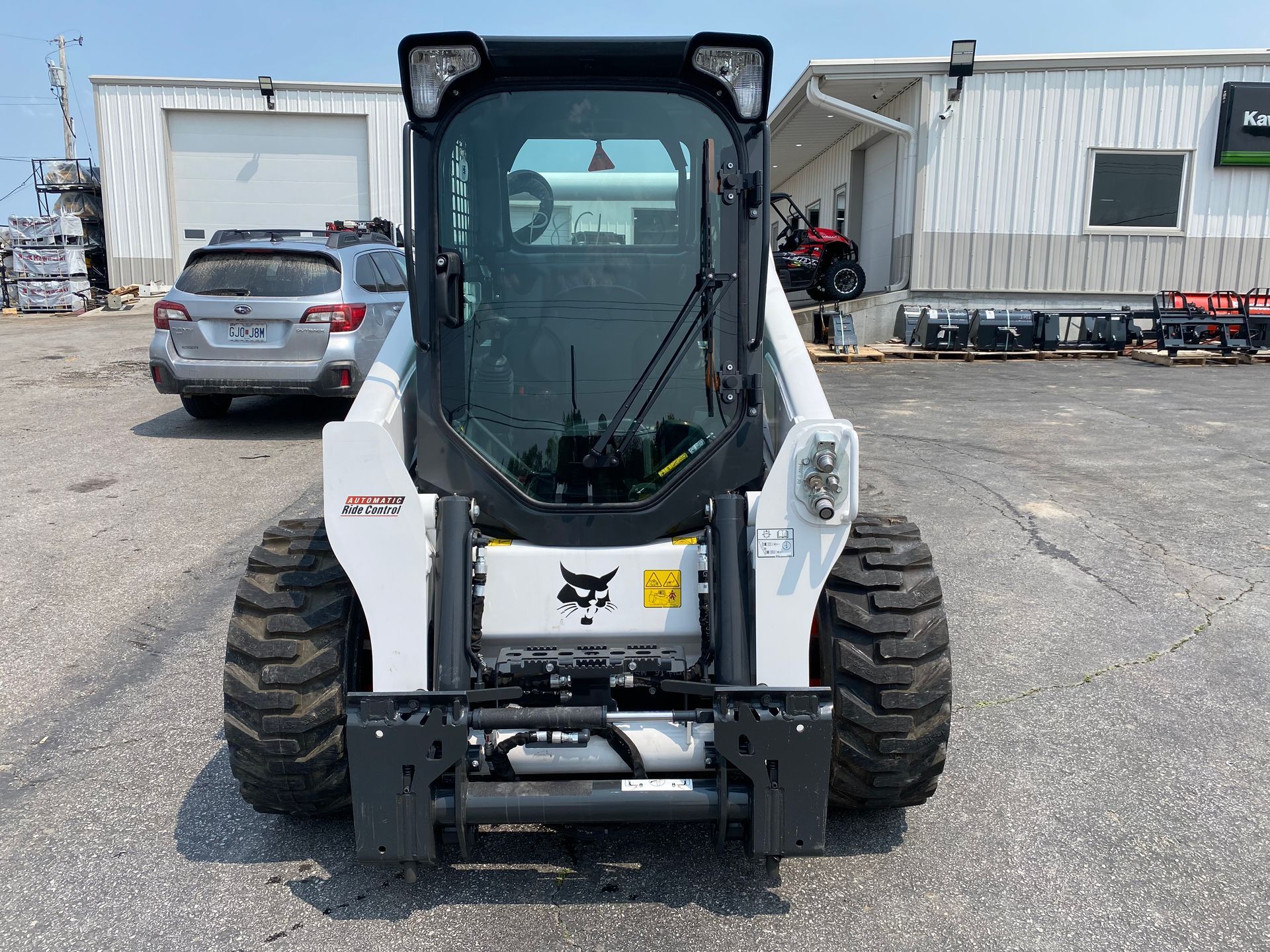

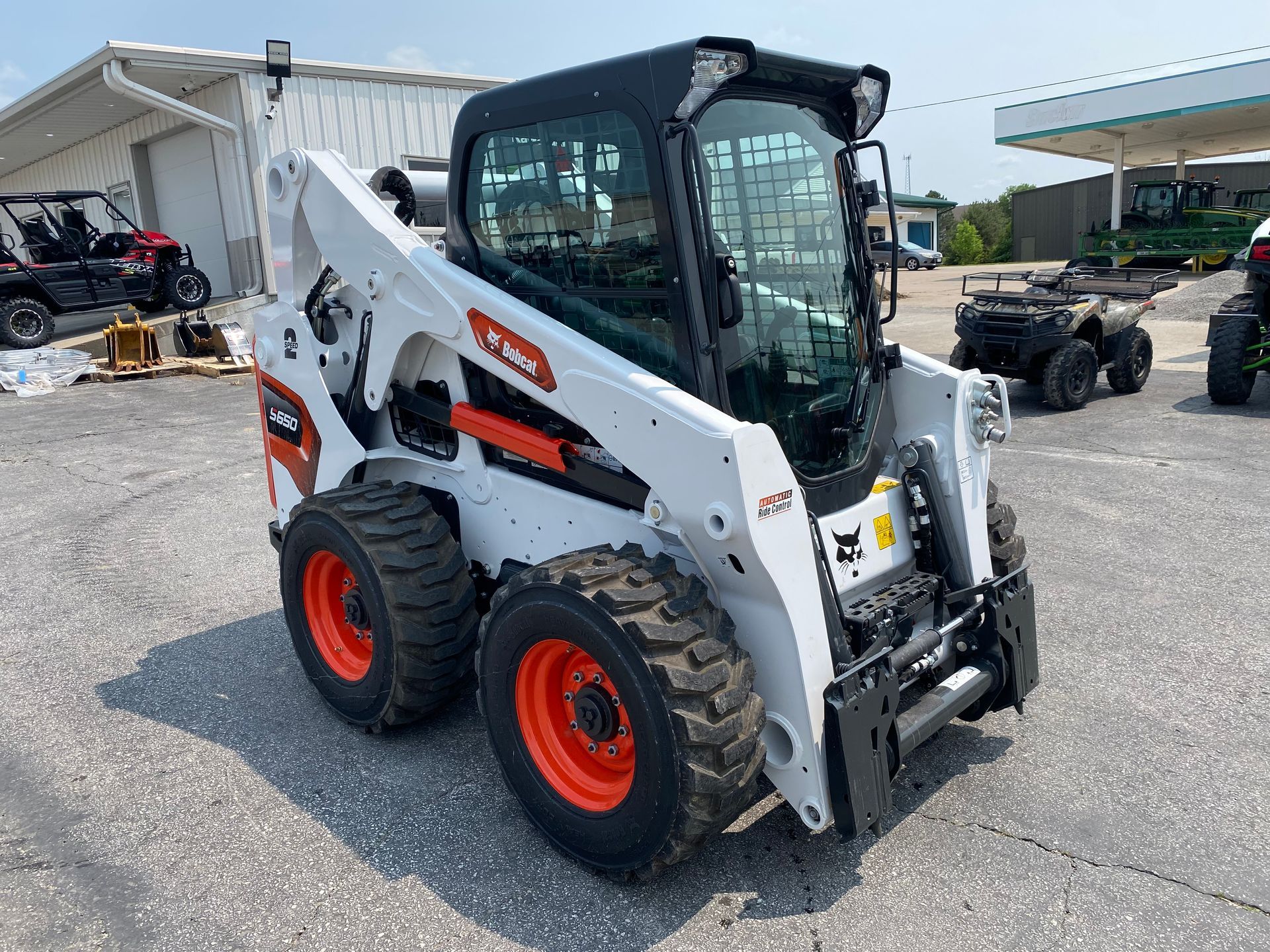

2023 Bobcat S650 M3-Series Skid Steer Loader $67,907
Features
* 2023 Bobcat S650 M3-Series Skid Steer Loader
* 1 Hour

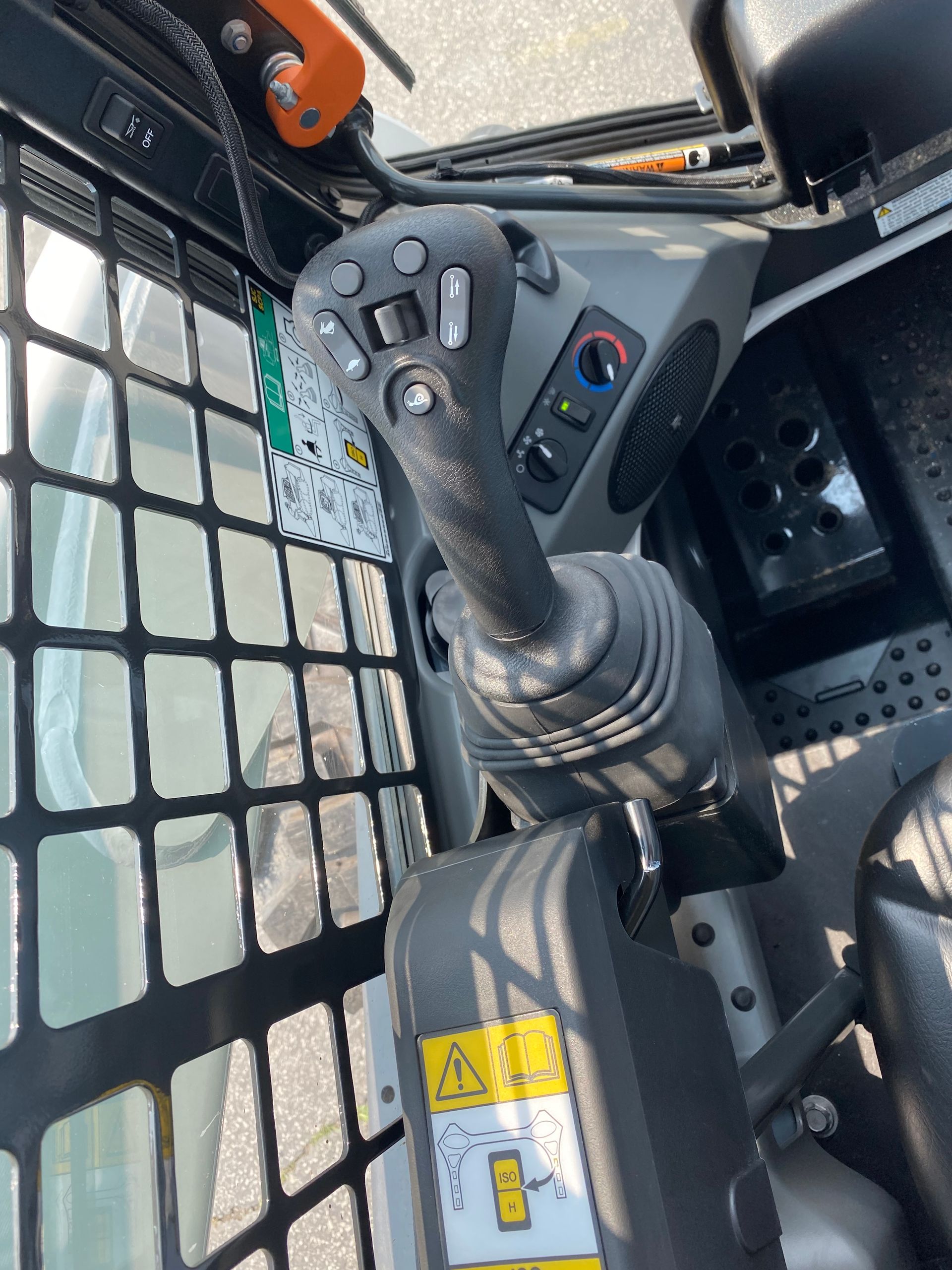

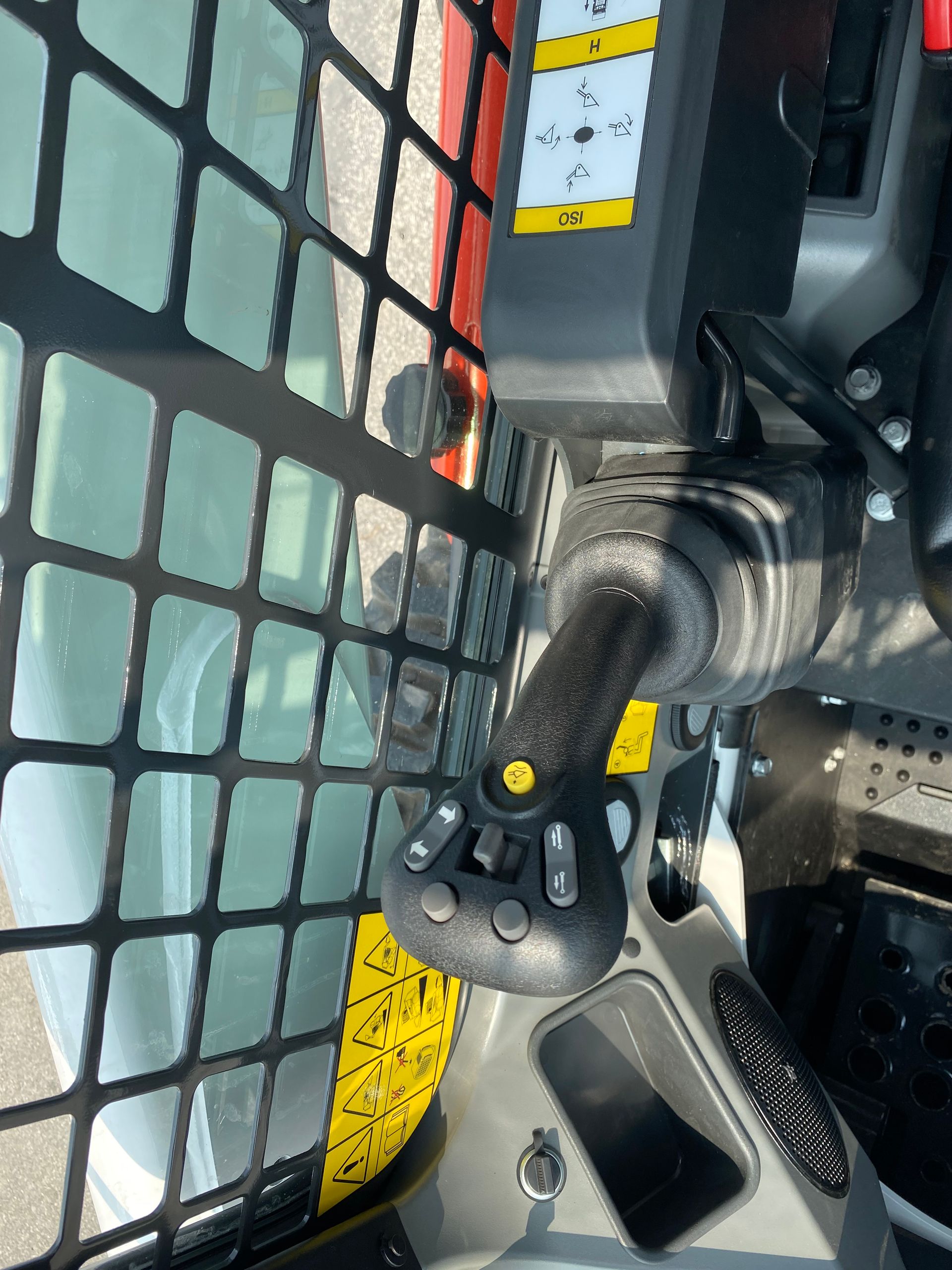

* Selectable Joystick Controls
* C20 Comfort Package
- Enclosed Cab with AC/Heat
- Cab Accessories Package
- Standard Panel

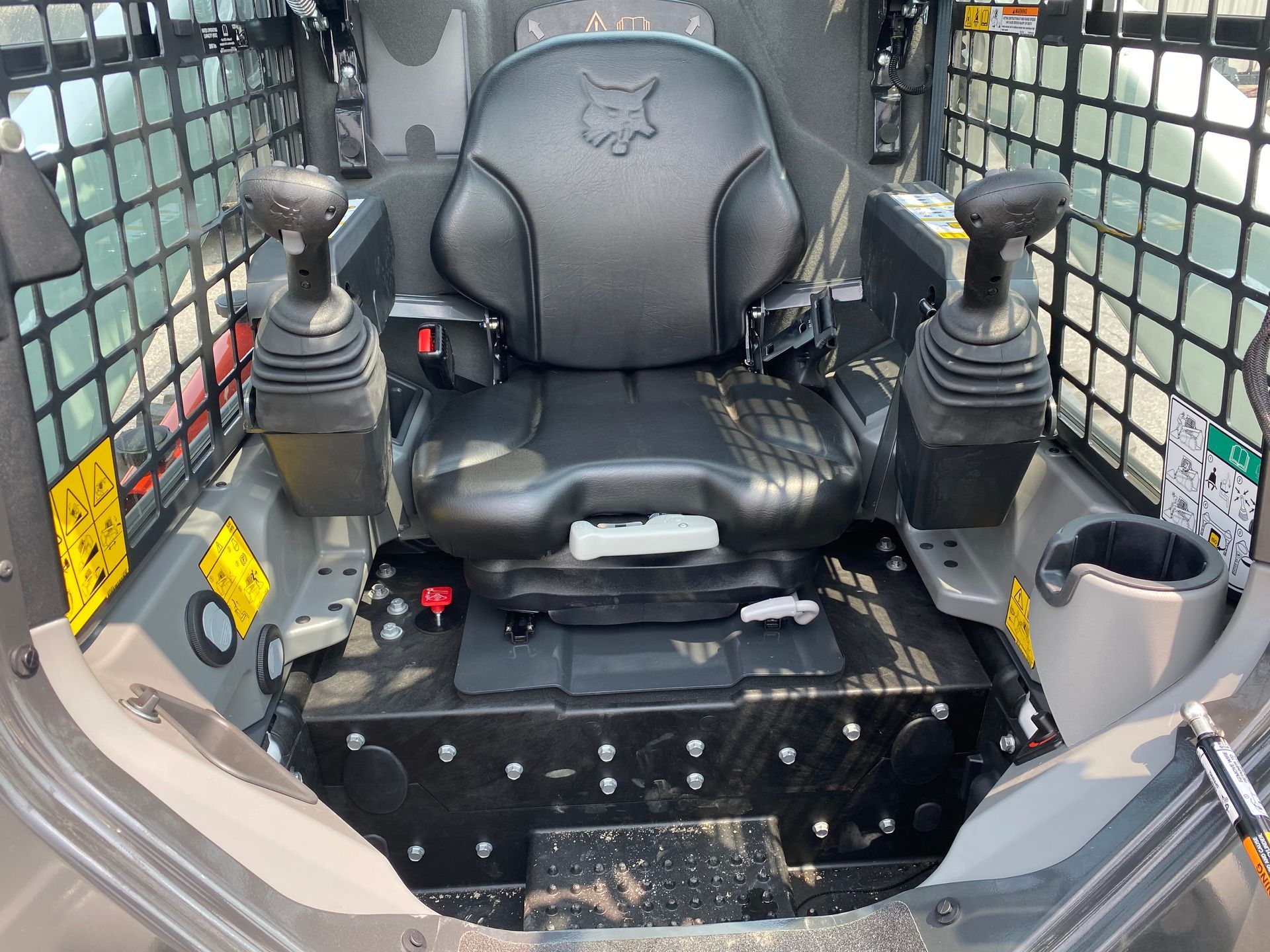

- Adjustable Suspension Seat
* P28 Performance Package
- Standard Flow
- 2-Speed

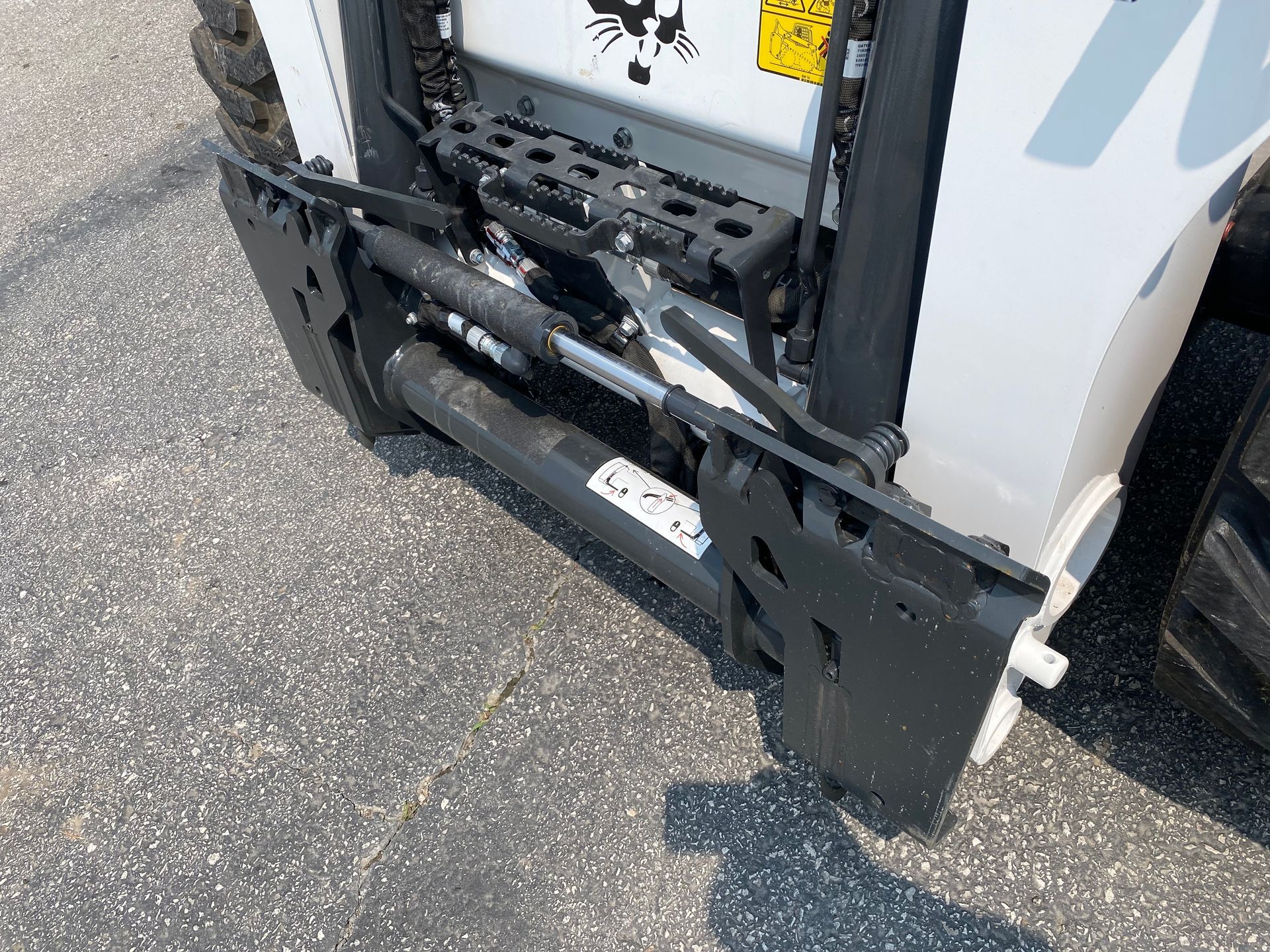

- Power Bob-Tach
- 7-Pin Attachment Control
- Hydraulic Bucket Positioning
- Automatic Ride Control
Standard Features
* 74HP Tier 4 Turbo Diesel Engine

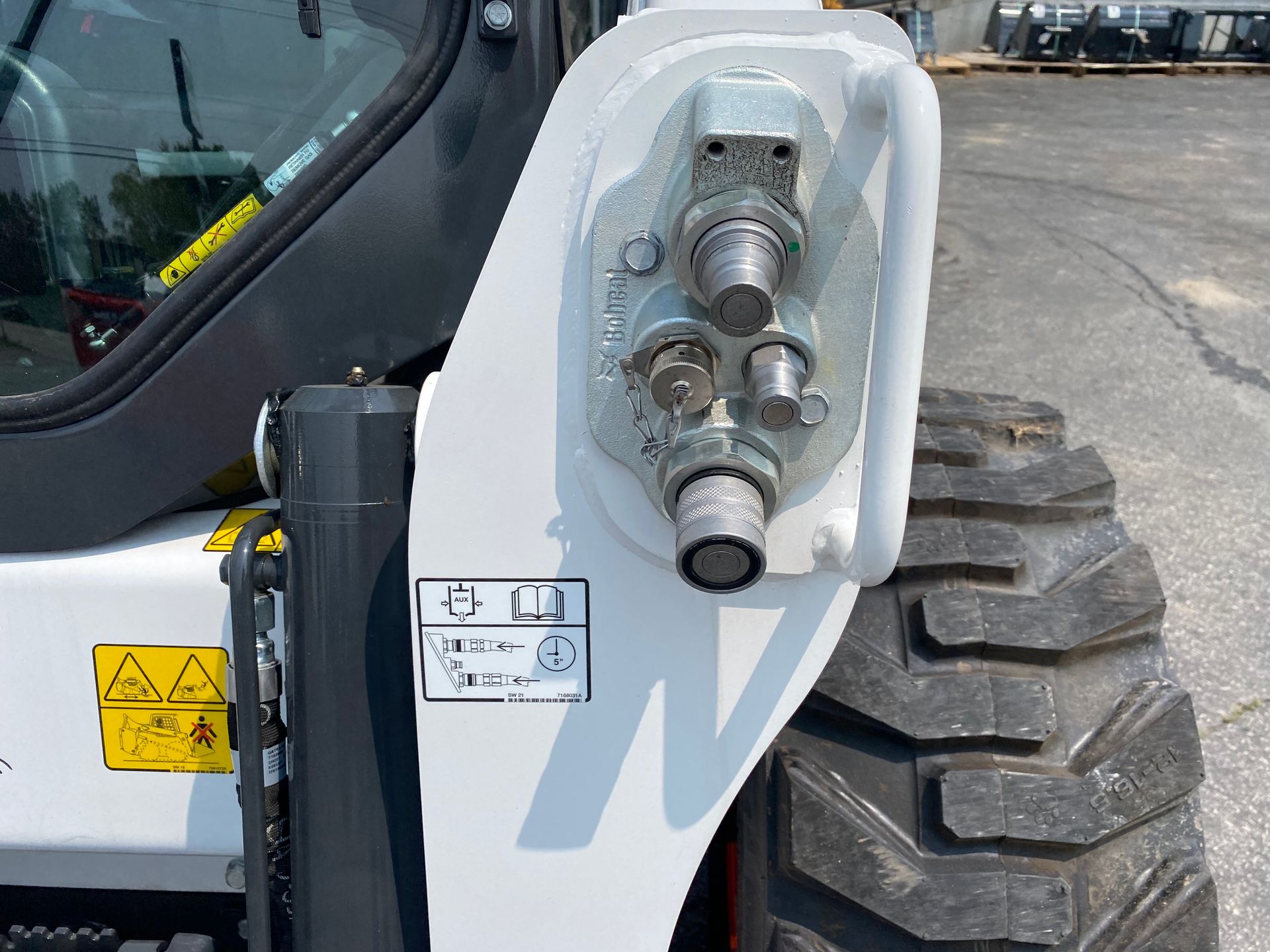

* Auxiliary Hydraulics: Variable Flow
* Backup Alarm
* Bob-Tach
* Bobcat Interlock Control System (BICS)
* Controls: Bobcat Standard
* Cylinder Cushioning - Lift, Tilt
* Engine/Hydraulic Systems Shutdown
* Glow Plugs (Automatically Activated)
* Horn

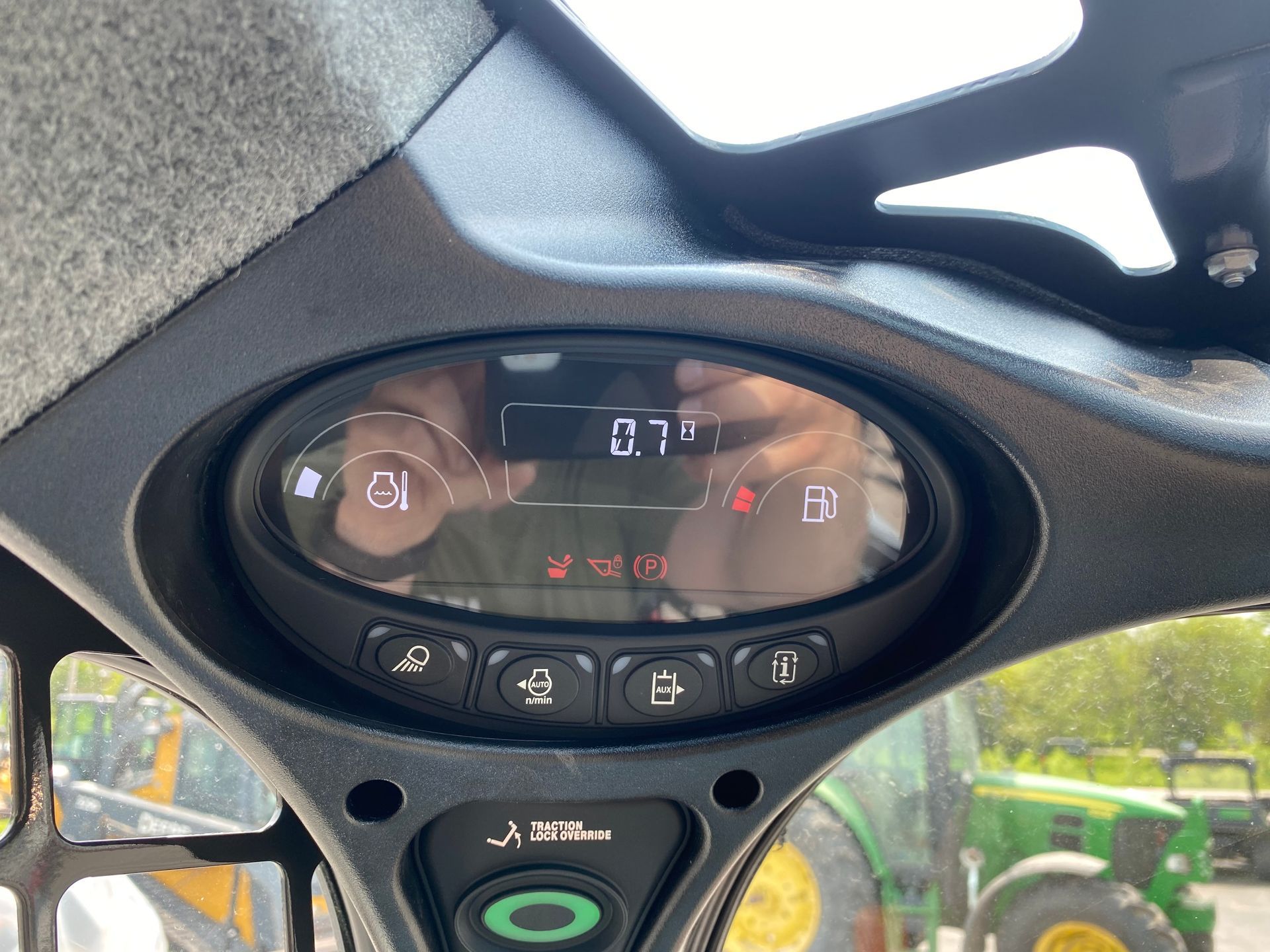

* Instrumentation:
- Engine Temp & Fuel Gauges
- Hourmeter
- ROM & Warning Lights
* Lift Arm Support
* Lift Path: Vertical
* Lights, Front & Rear

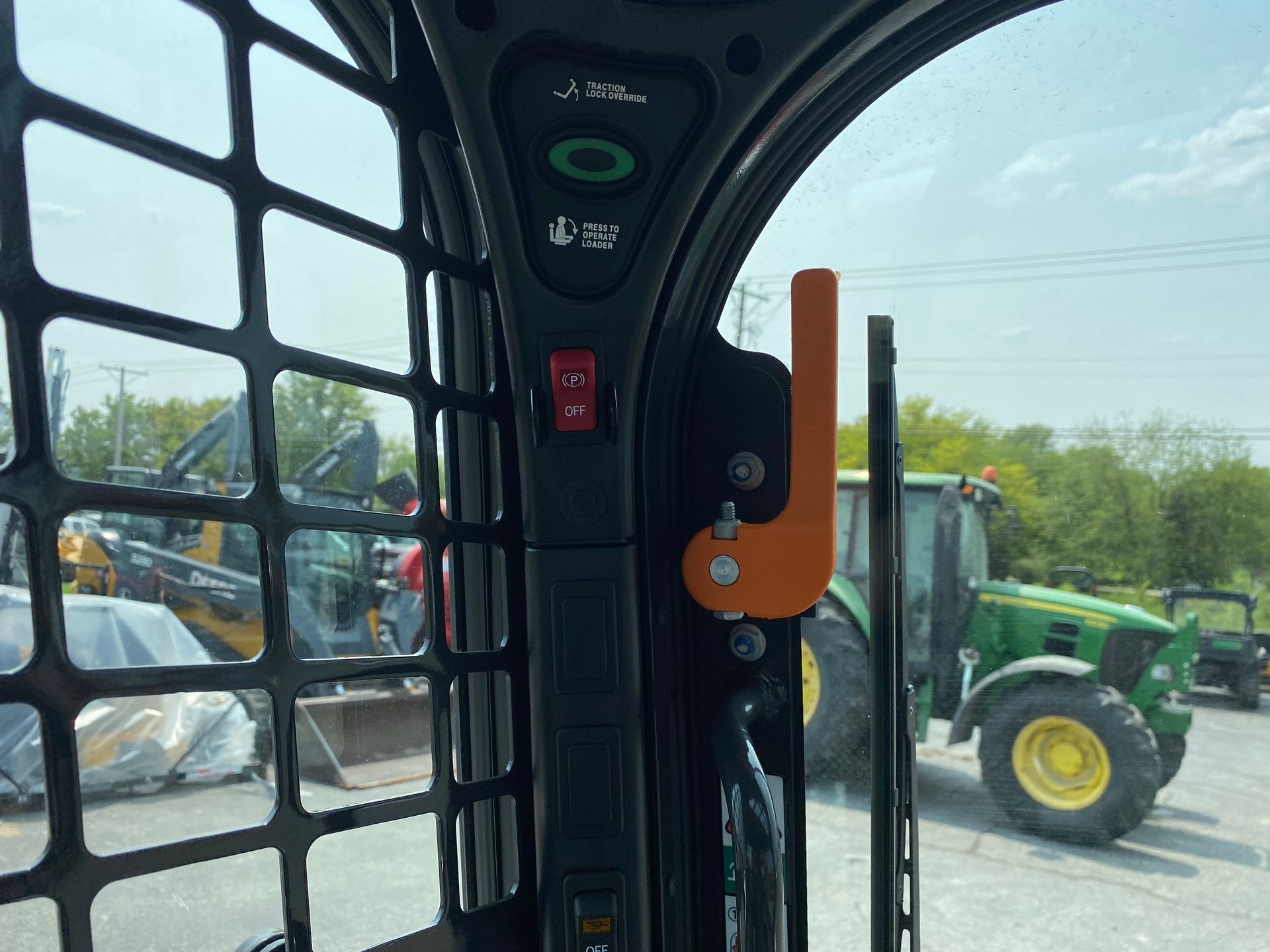

* Operator Cab Includes:
- Adjustable Suspension Seat
- Top & Rear Windows
- Parking Brake
- Seat Bar
- Seat Belt
* Roll Over Protective Structure (ROPS) meets SAE-J1040 & ISO 3471
* Falling Object Protective Structure (ROPS) meets SAE-J1043 & ISO 3449, Level I (Level II is available through Bobcat Parts)
* Spark Arrestor Exhaust System

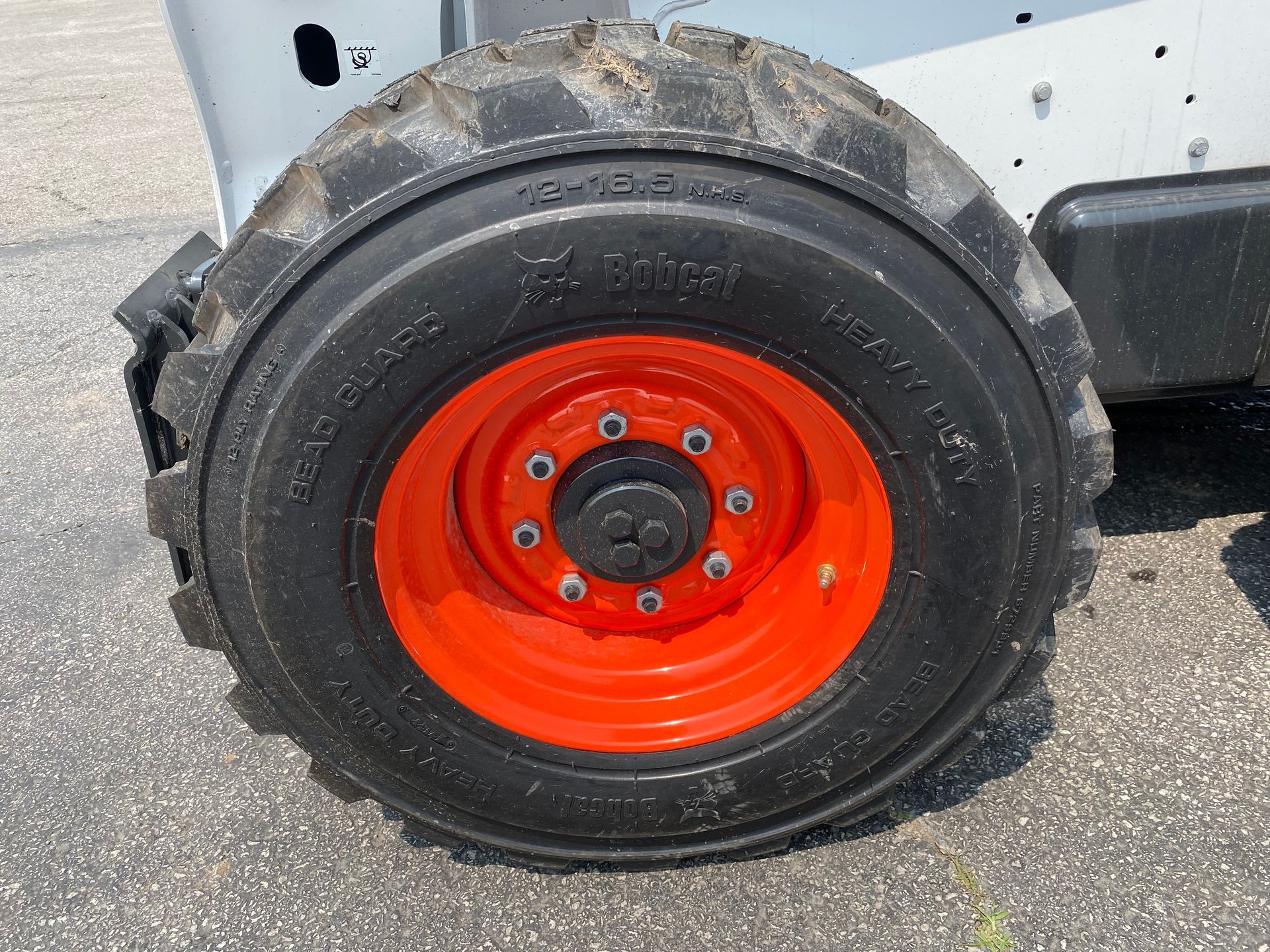

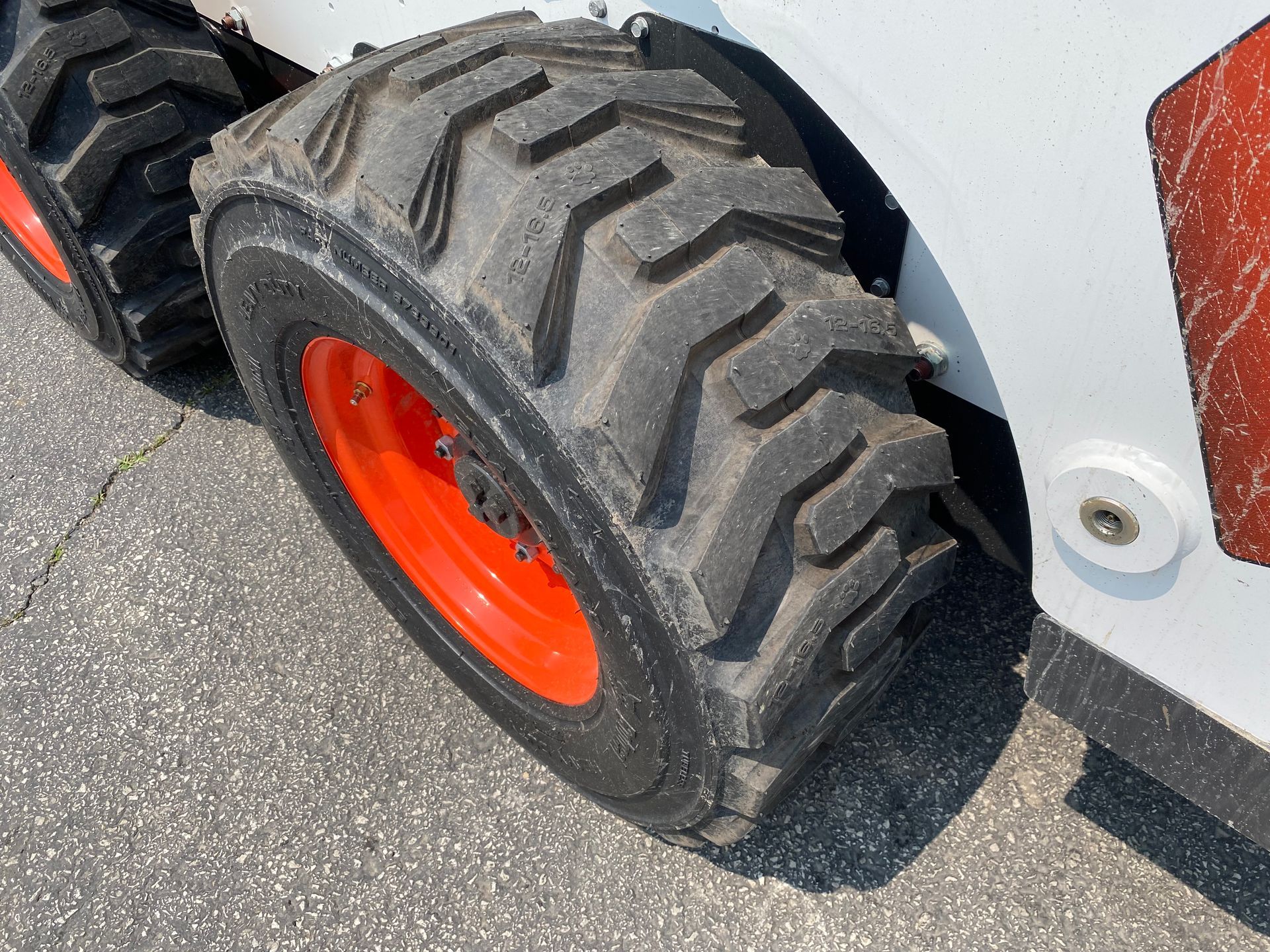

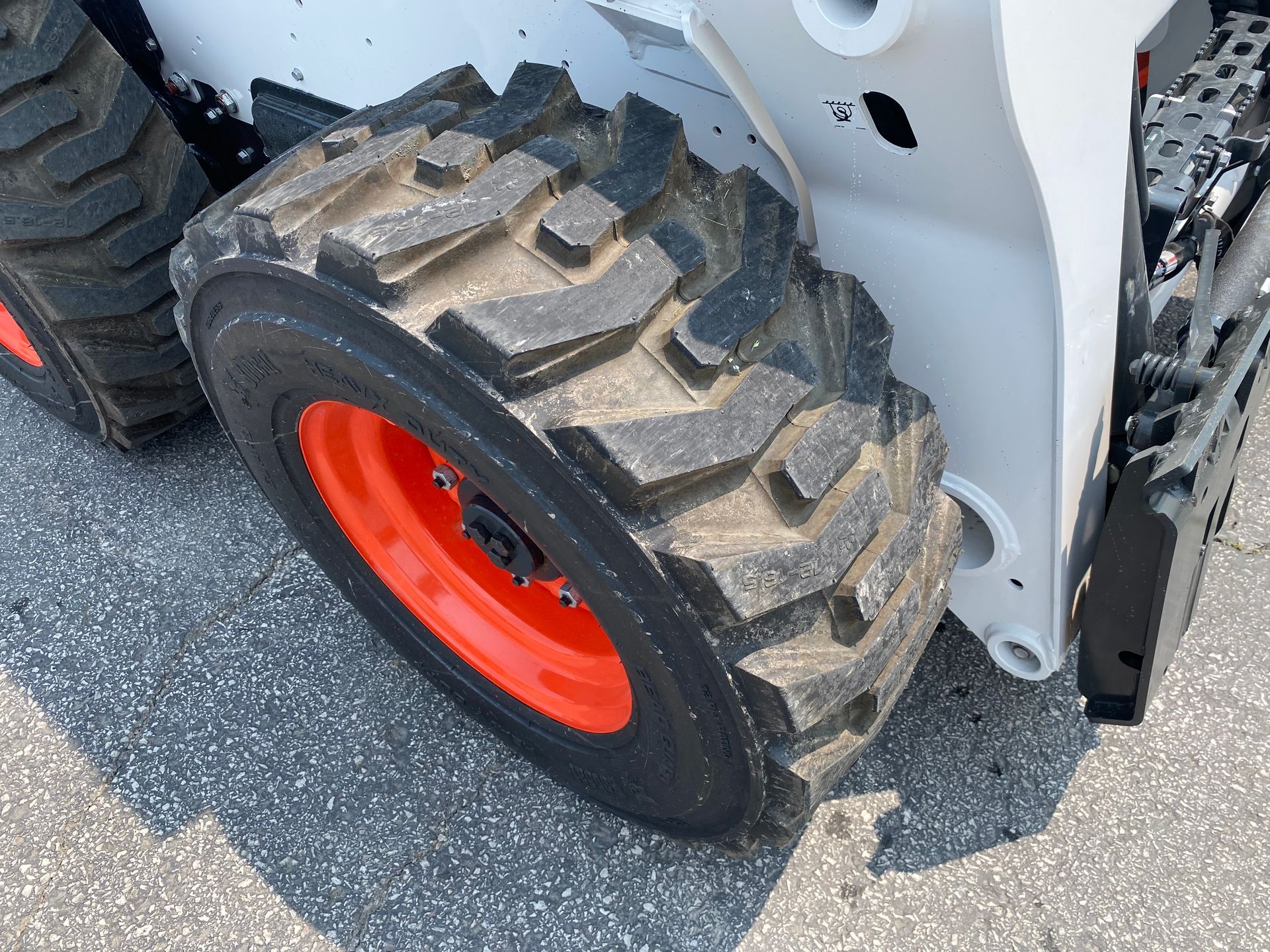

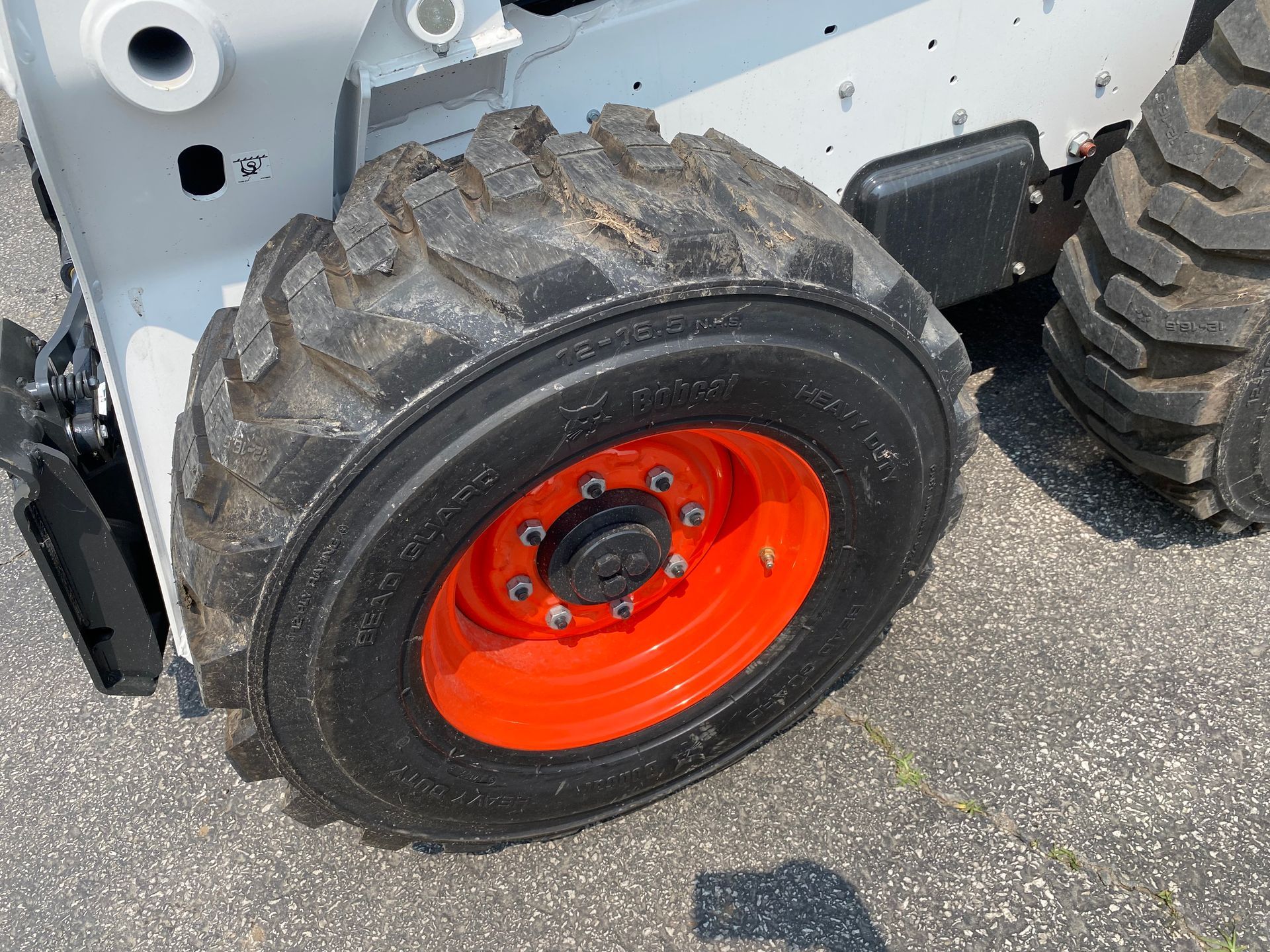

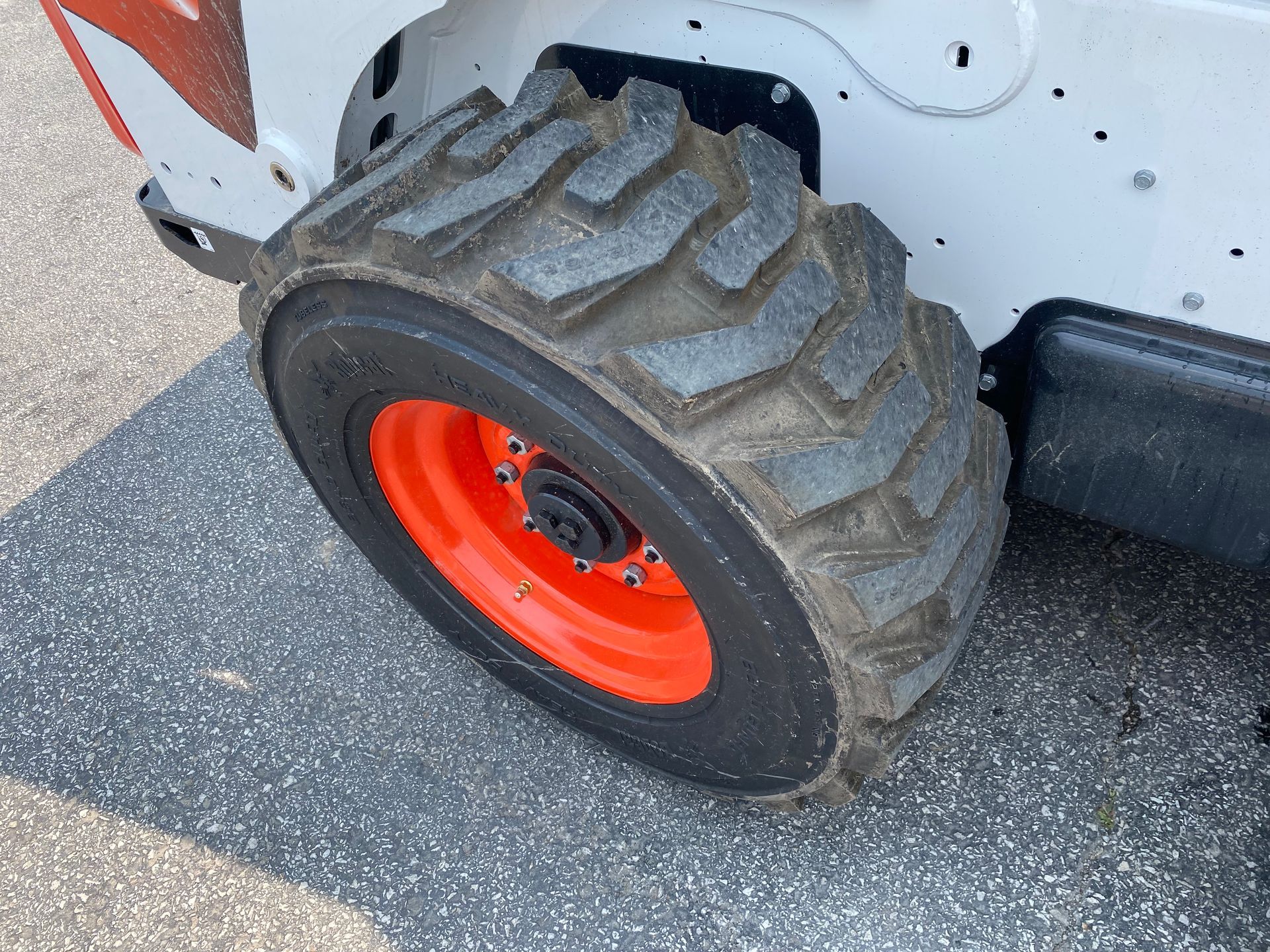

* Tires: 12-16.5 12PR Bobcat Heavy Duty
* Warranty: 2 years, or 2,000 hours whichever occurs first
Specifications
ENGINE
* Emissions Tier (EPA) - 4
* Engine Cooling - Liquid
* Engine Fuel - Diesel
* Horsepower - 74 hp
* Turbocharged Engine - Optional
* Engine Model - 2.4L Bobcat Engine
* Engine Make - Bobcat
* Displacement - 146" cubic
* Torque RPM - 1,800 rpm
* Number of Cylinders - 4
PERFORMANCE
* Rated Operating Capacity (ISO) - 2,570 lb
* Operating Capacity (50% of Tip) - 3,670 lb
* Rated Operating Capacity (35% of Tip - 2,570 lb
*Tipping Load - 7,343 lb
* Operating Weight - 9,113 lb
* Travel Speed - 6.2 mph
* Travel Speed - 8.7 mph
* Ground Pressure (Rubber) - 5.7 psi
CAPACITIES
* Fuel Tank - 4.9 gal
HYDRAULIC SYSTEM
* System Relief @ Quick Couplers - 3,500 psi
* Auxiliary Std Flow - 23 gal/min
* Auxiliary High Flow - n/a
GENERAL
* Contract Codes - Skid Steer Loader
* First Year of Production - 2023
DIMENSIONS
* Length - 136.8"
* Length without Attachment - 108.4
* Width - 72.9"
* Width (with bucket) 74"
* Height with Operator Cab - 81.3"
* Height to Bucket Hinge - 124"
* Reach @ Maximum Height - 36"
* Length of track on ground - 57.7"
* Track Width - 12.6"
* Ground Clearance - 7.3"
* Dump Angle @ Maximum Reach - 37.6 degree
